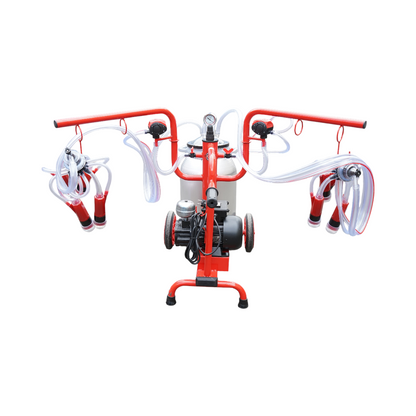

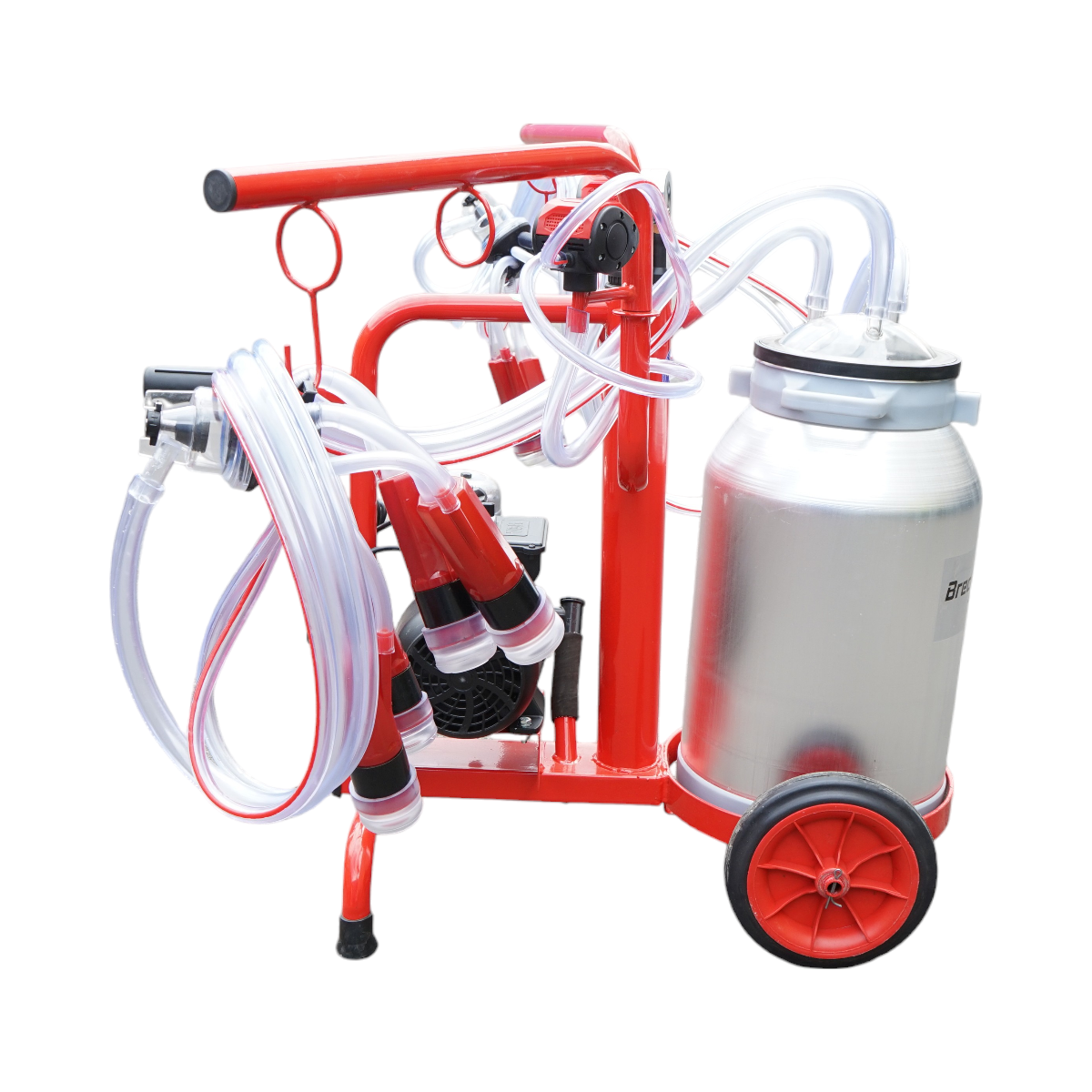

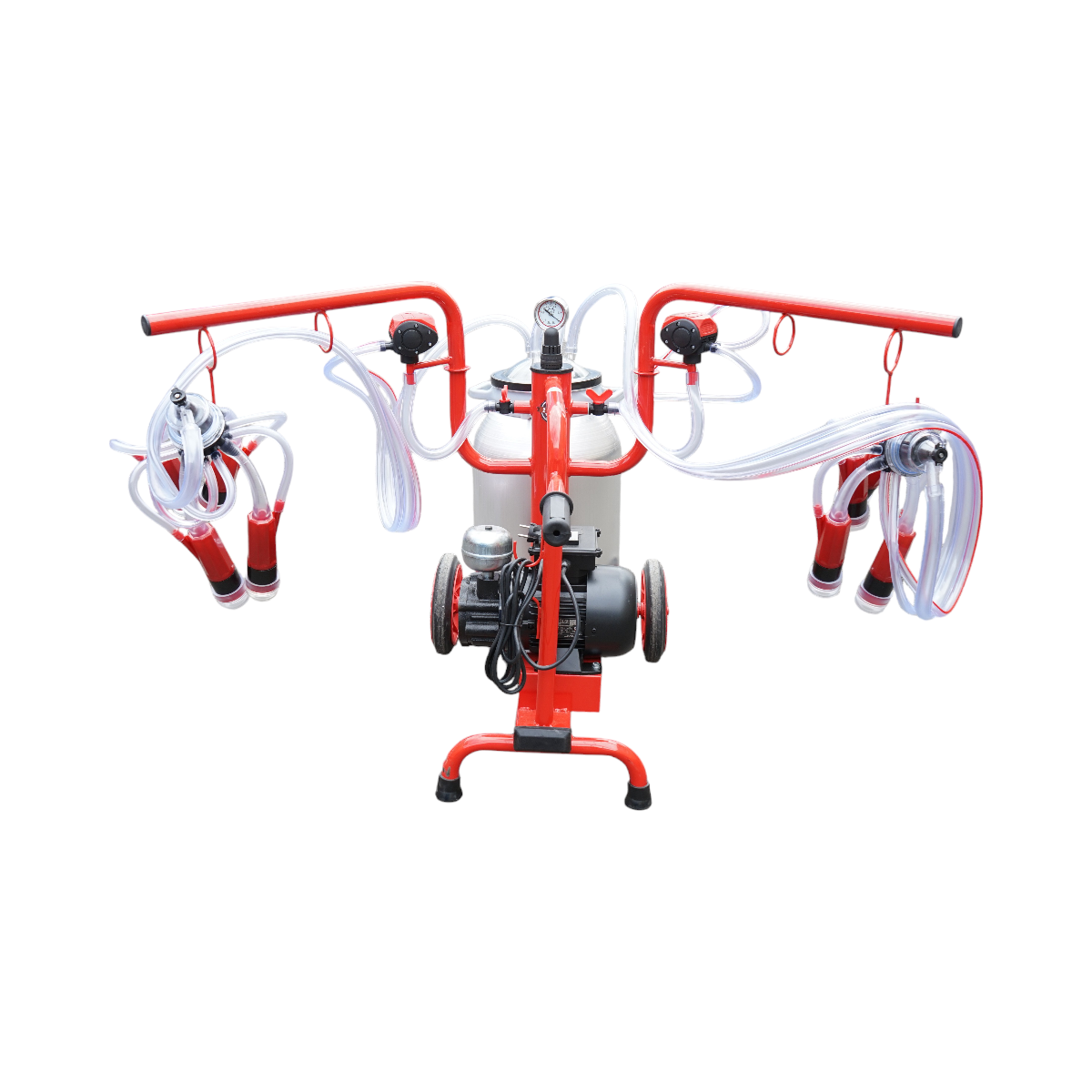

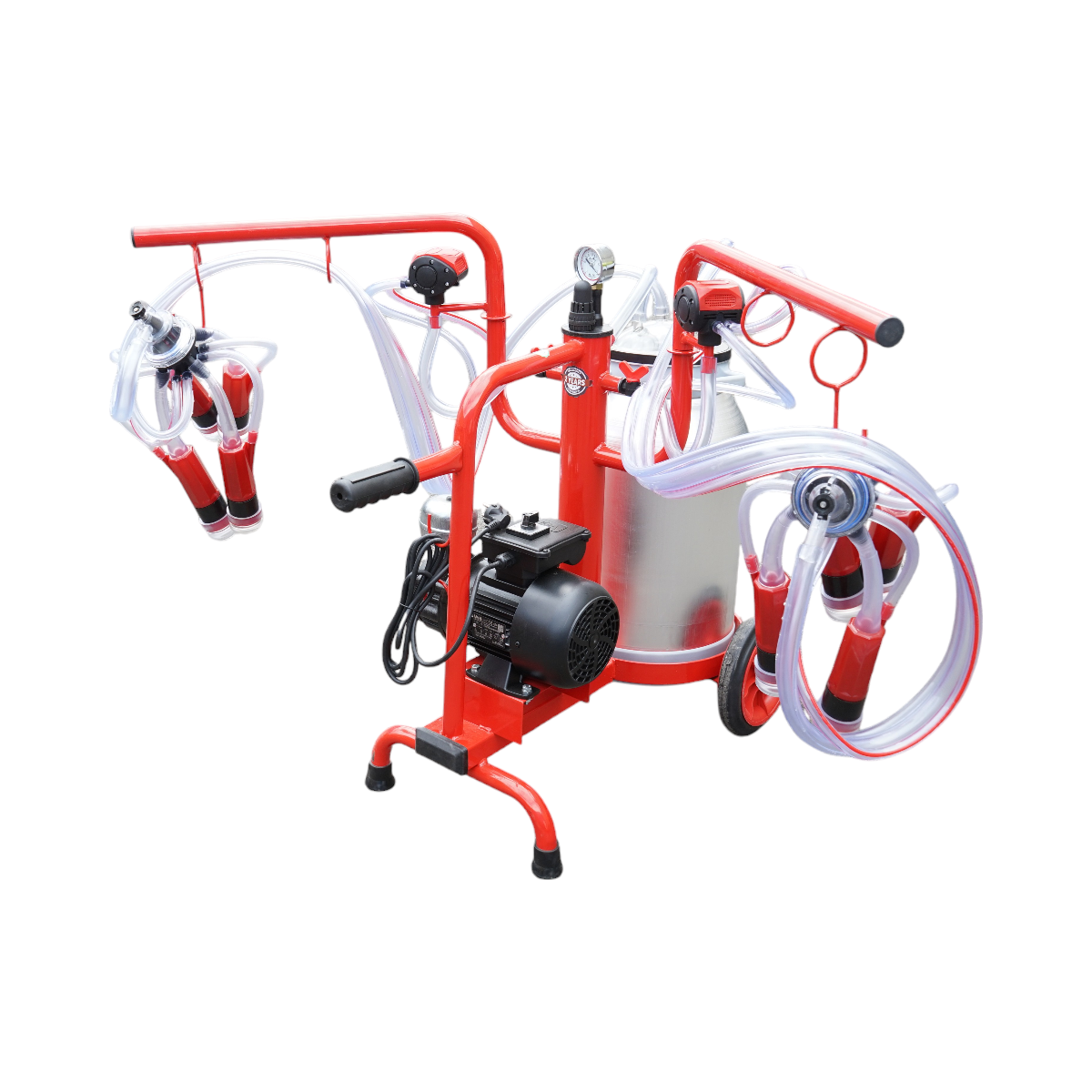

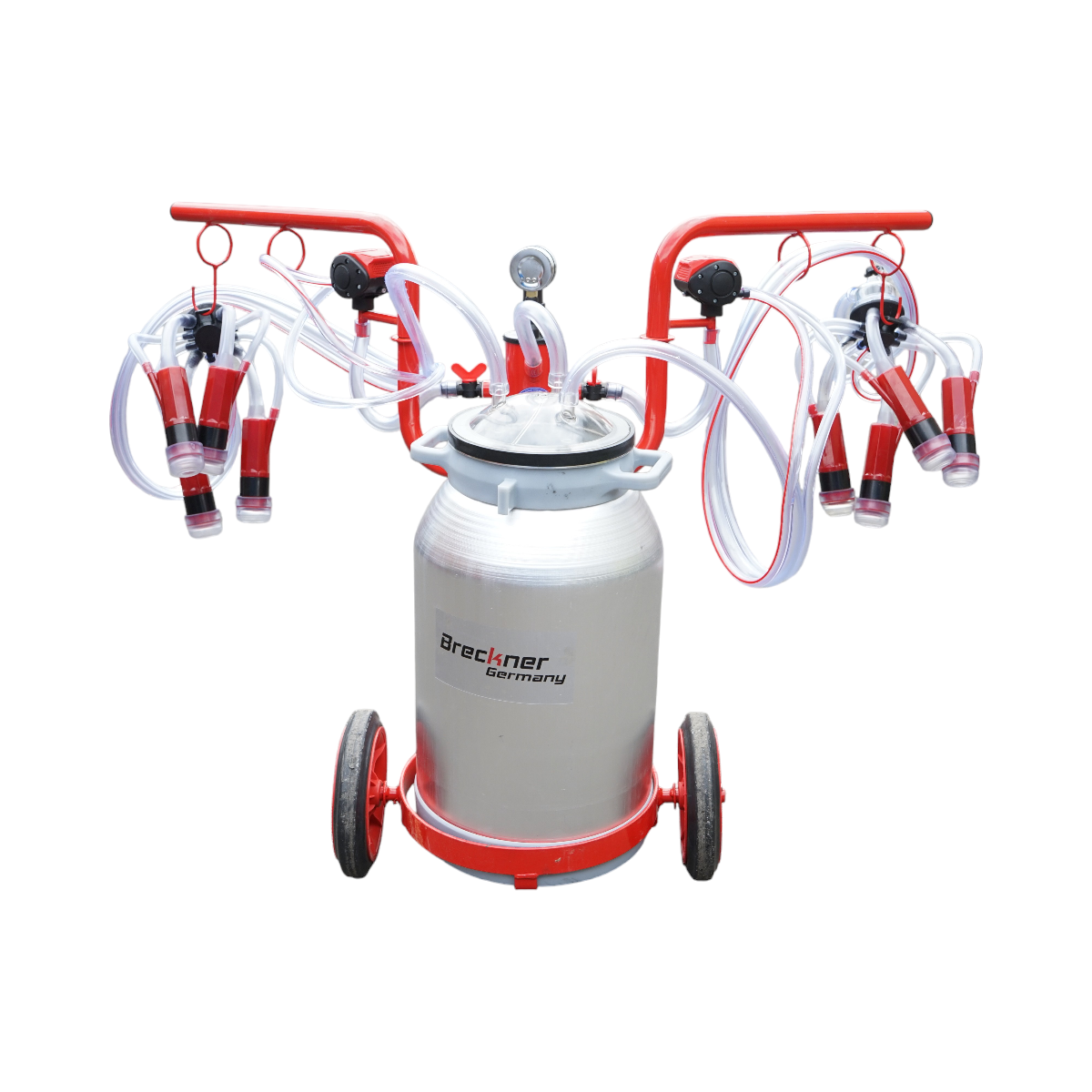

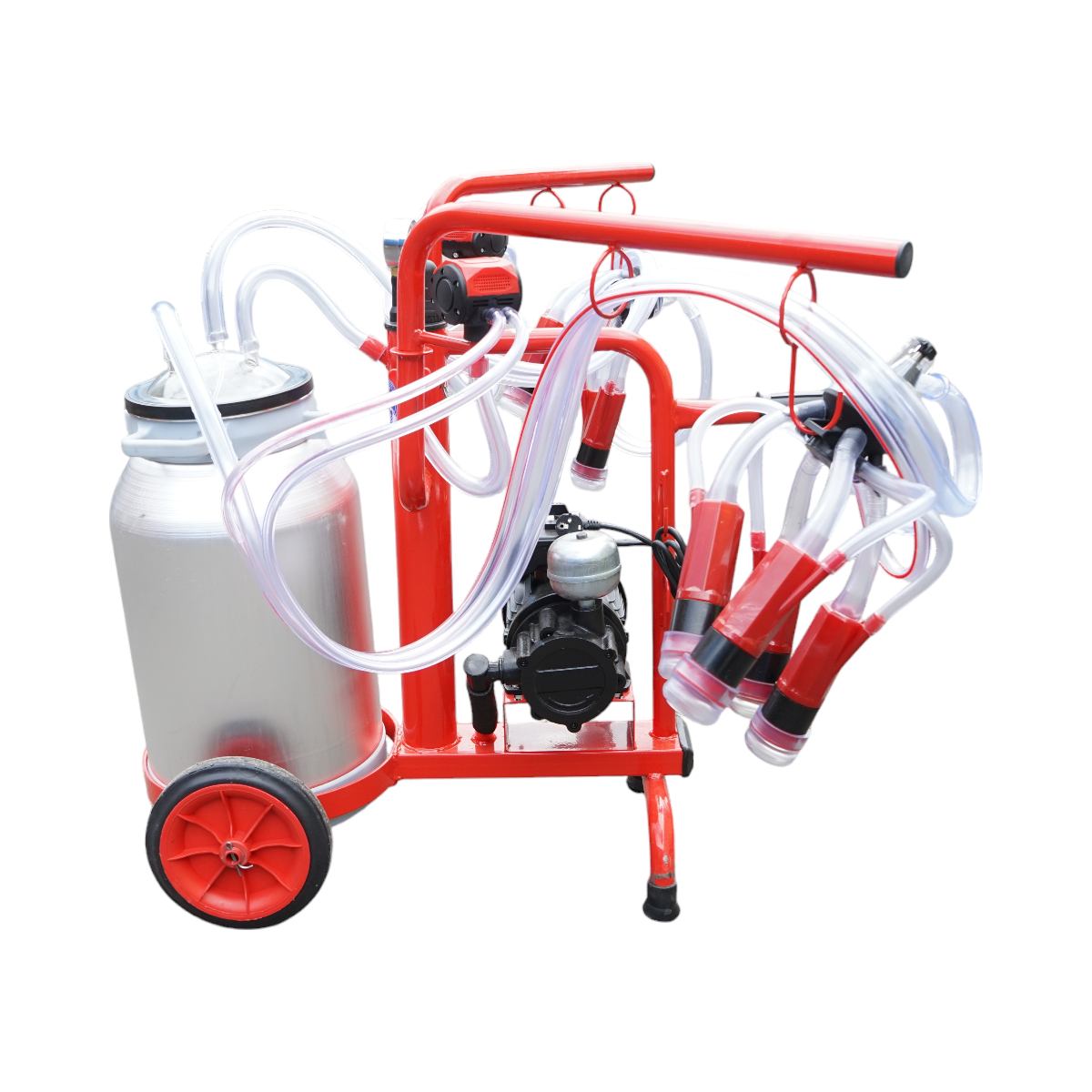

Milking machine for cows with 2 positions, 40L aluminum tank with vacuum frame (Breckner Germany)

See User Manual: Click here

Milking appliance 2 Posts Bidon 40l Aluminum Breckner Germany Details:

Technical characteristics

Match graphite pallet with the BK90516 code

CHASSIS

• Length (cm): 110
• Width (cm): 35
• Height (cm): 78
• Weight (kg): 43.5

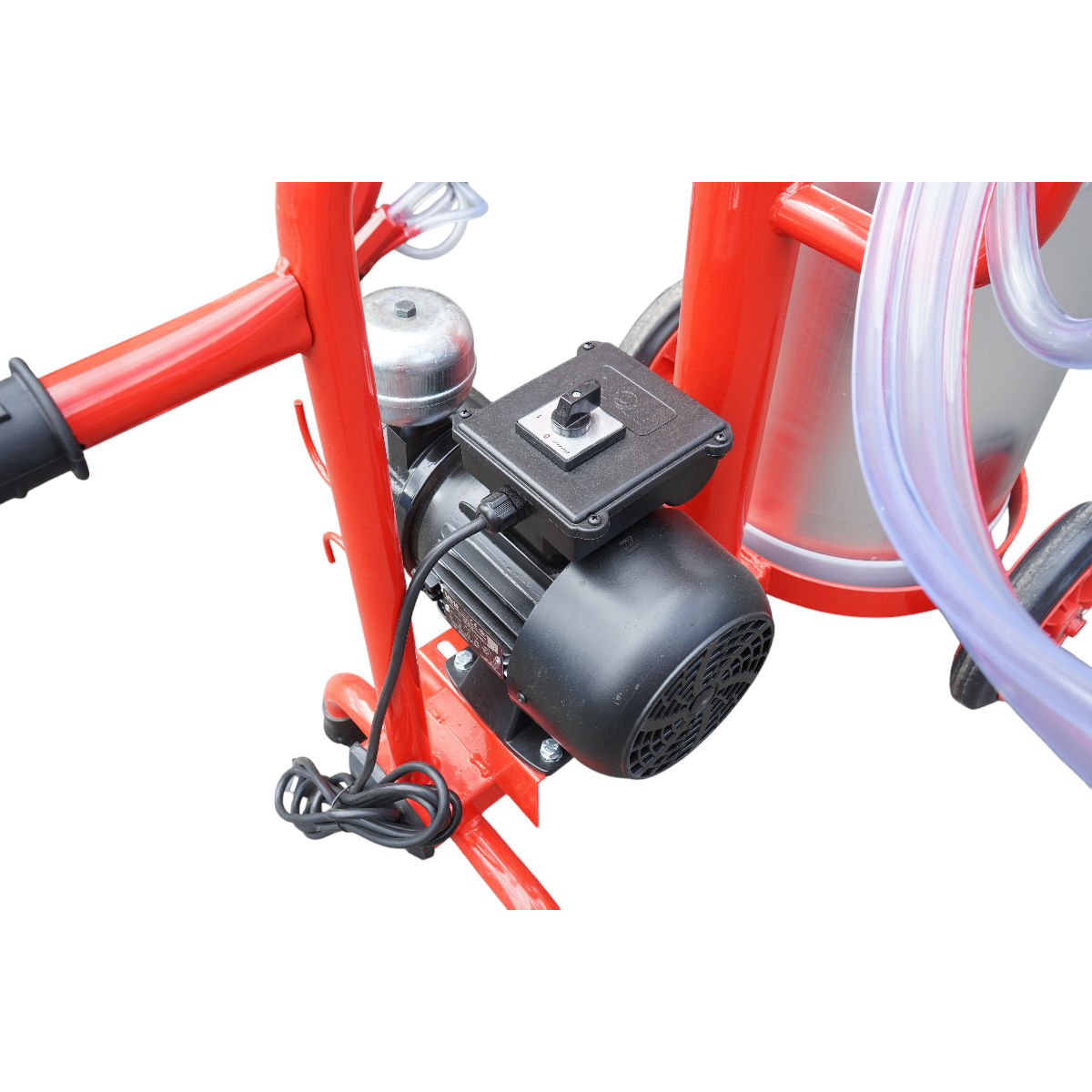

The vacuum pump

• Engine power (KW): 0.55 kW
• Rotation (RPM): 1440 rpm
• Tension (V): 220 and 110 volts - 50 and 60 Hz
• Debit (L / min): 180-200
• Palette type: graphite
• Palette size (mm): 4.9 x 43 x 70
• Capacity of the tank (L): 4

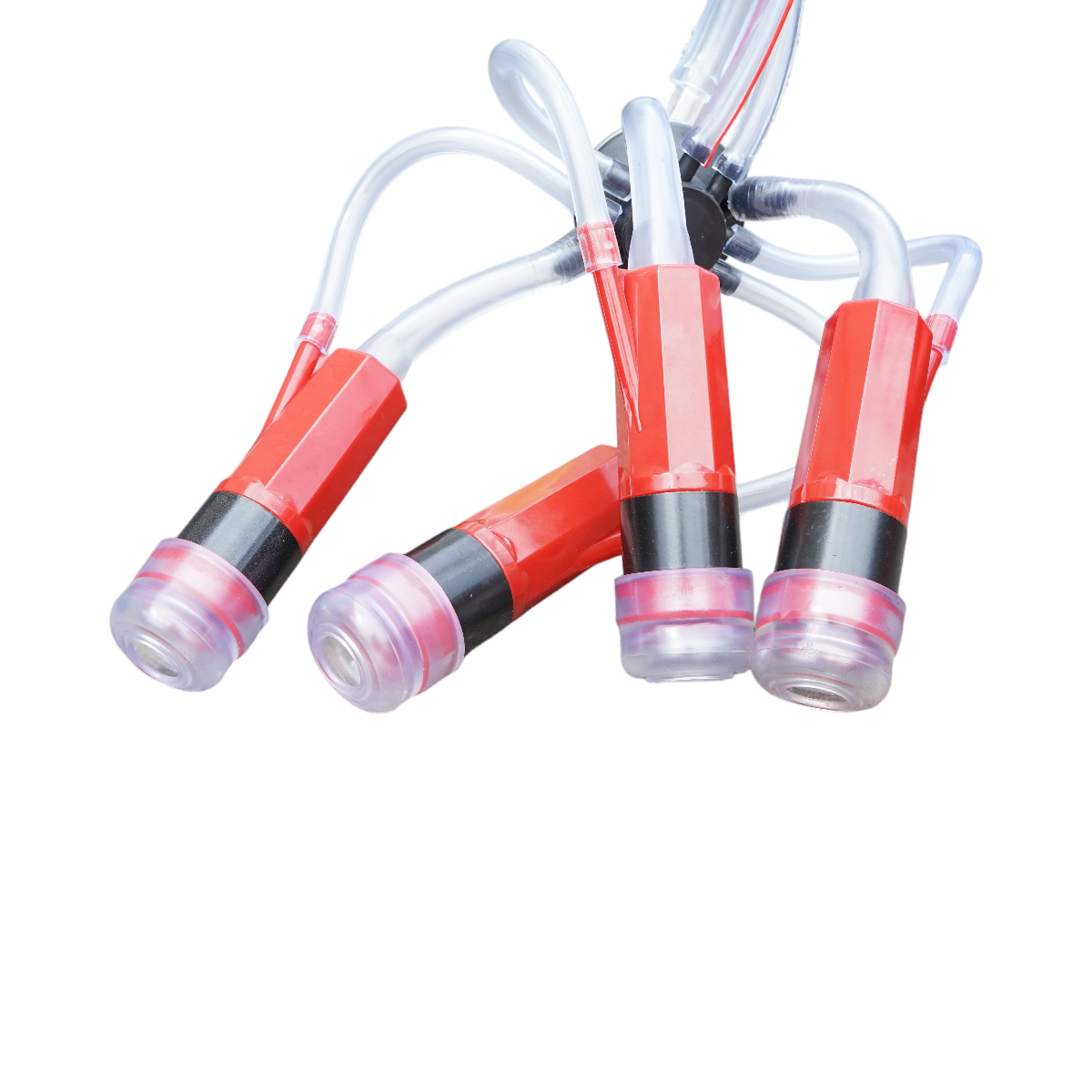

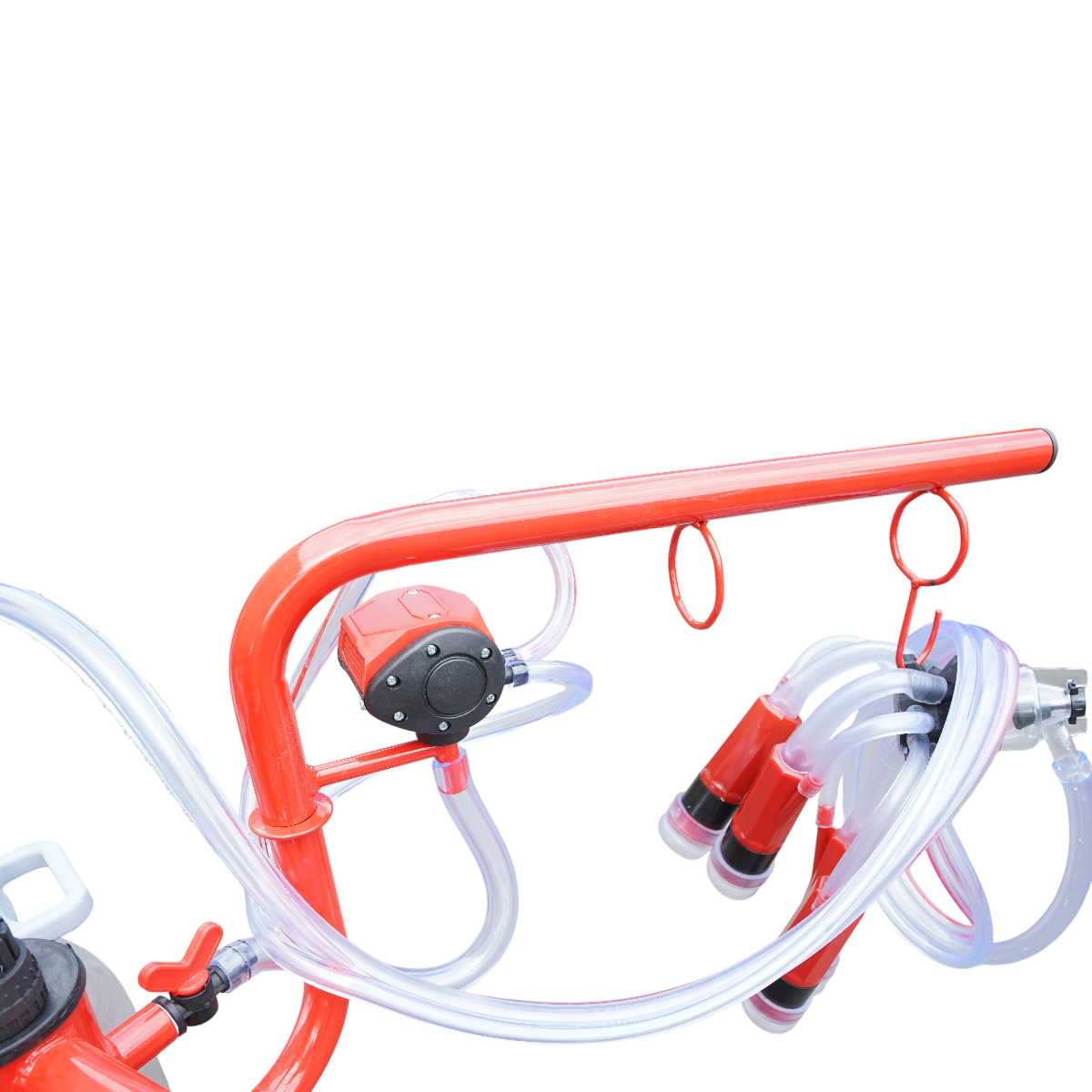

The milking group

• Cup type: aluminum
• Cup volume: 40 l
• Capacity Milk Grace: 2 x 160cc
• Pulsation: 60/40
• Milk hose: 2250mm (24mm x 14mm)
• Impuls hose: 2250mm (13mm x 7mm)
