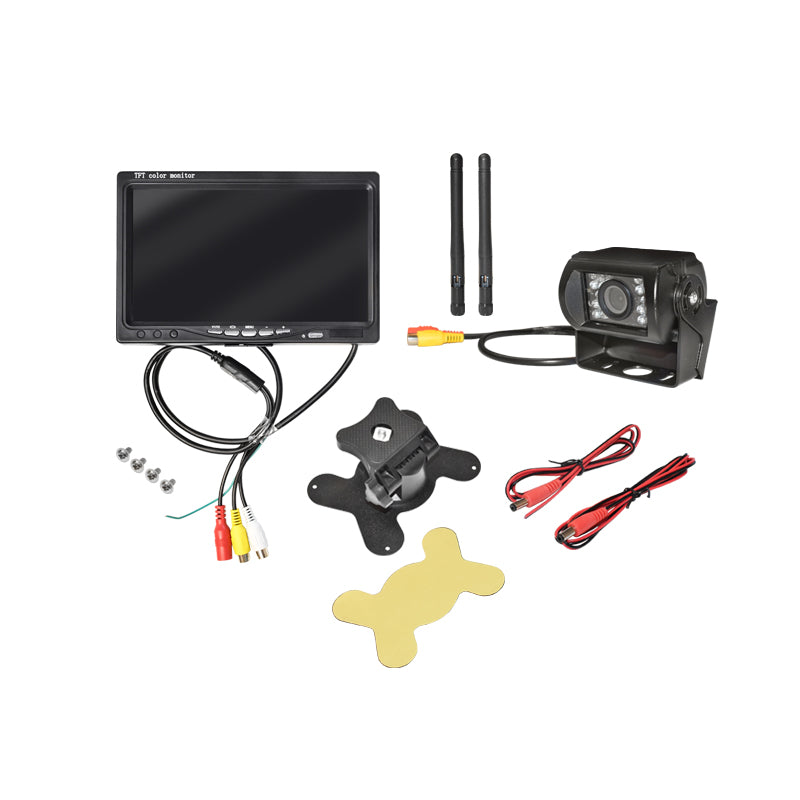

Wireless rearview camera with display 12V

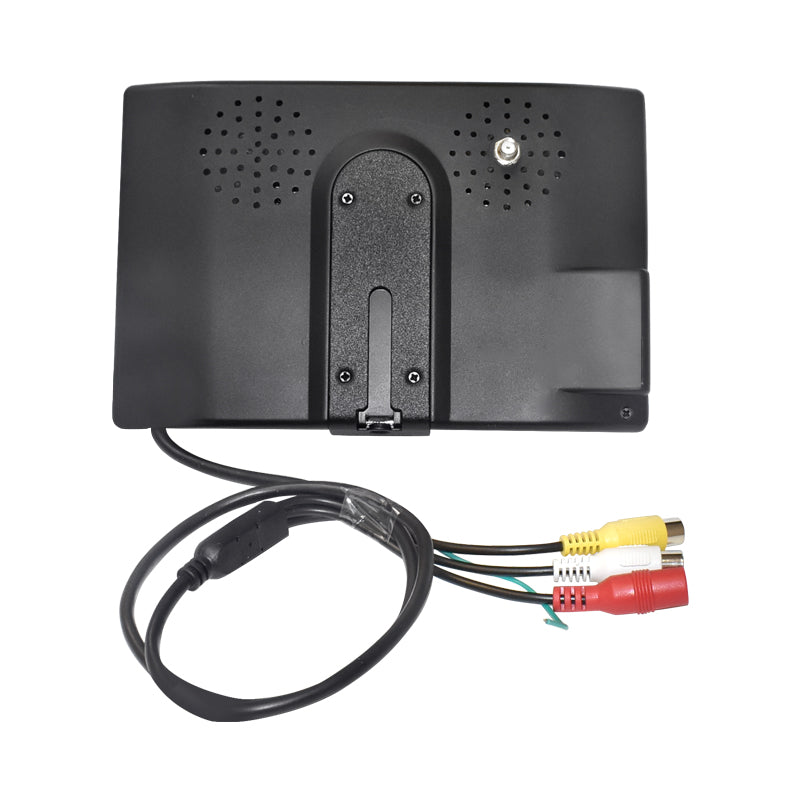

Monitor:

•          Size: 7 inches

•          Appearance rate: 16: 9
•          Resolution: 1024wxrgBx600hpixel
•          Built in wireless: 2.4GHZVIDEE REFERER
•          Reception: 50m in open air
•          4CH (2510,2370,2390,2490) Video display changing options manually
•          System: Pal & NTSC
•          Video: X2 inputs
•          Rear vision: V2 automatically returns when the trigger is activated
•          Power: DC12V, DC9V-35V
•         Consumption: 5W

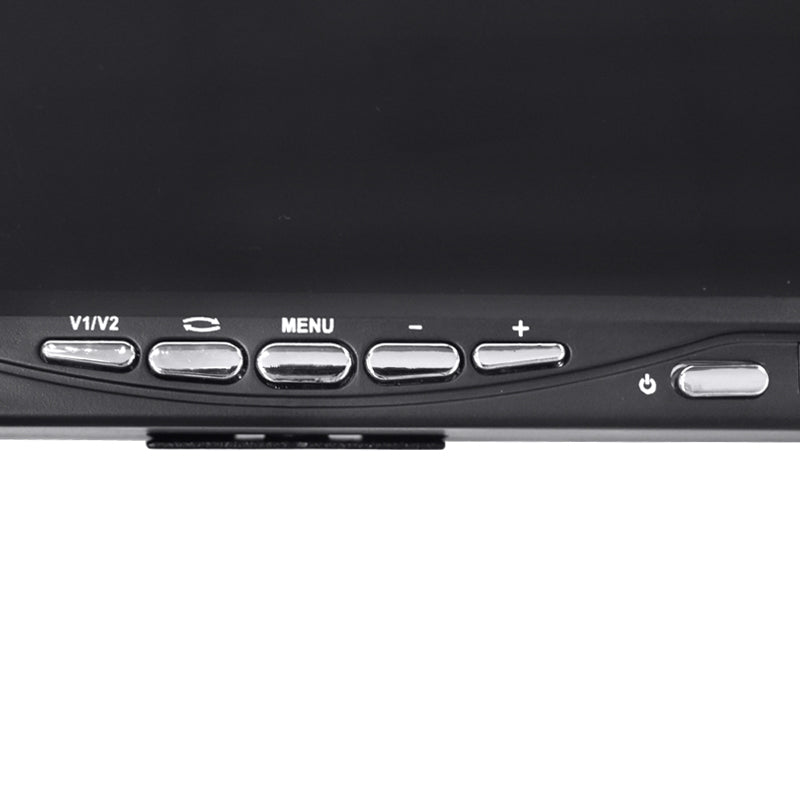

•          Method of operation: key tocomand
•          Working temperature: -10C ~+40C
•          Storage temperature: -25C ~+80C
•          External dimensions: 174wx113Hx19d (mm)
•          Weight: 415g
•          With sunshine defenders

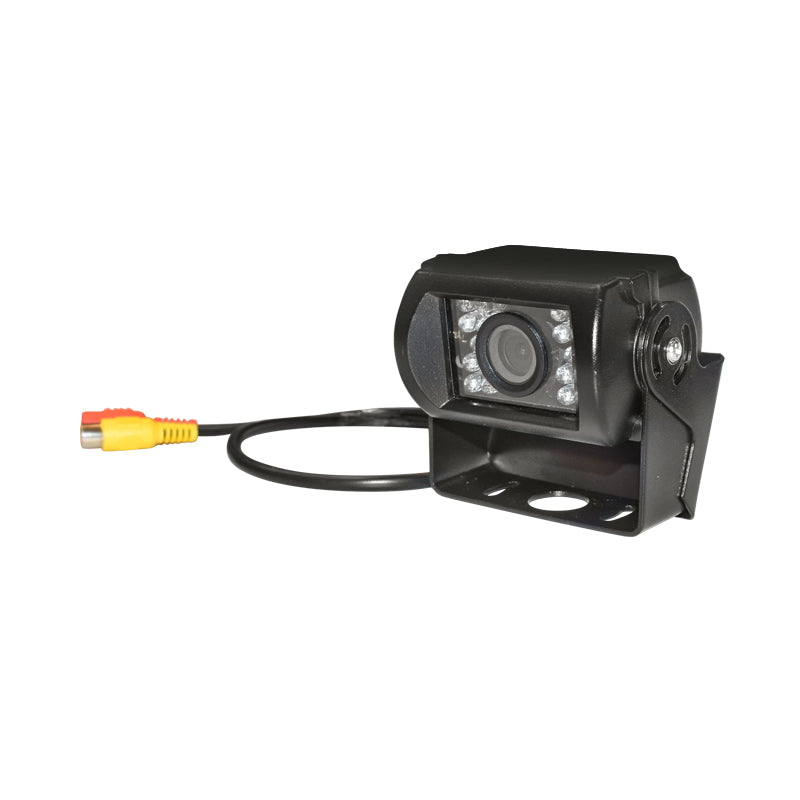

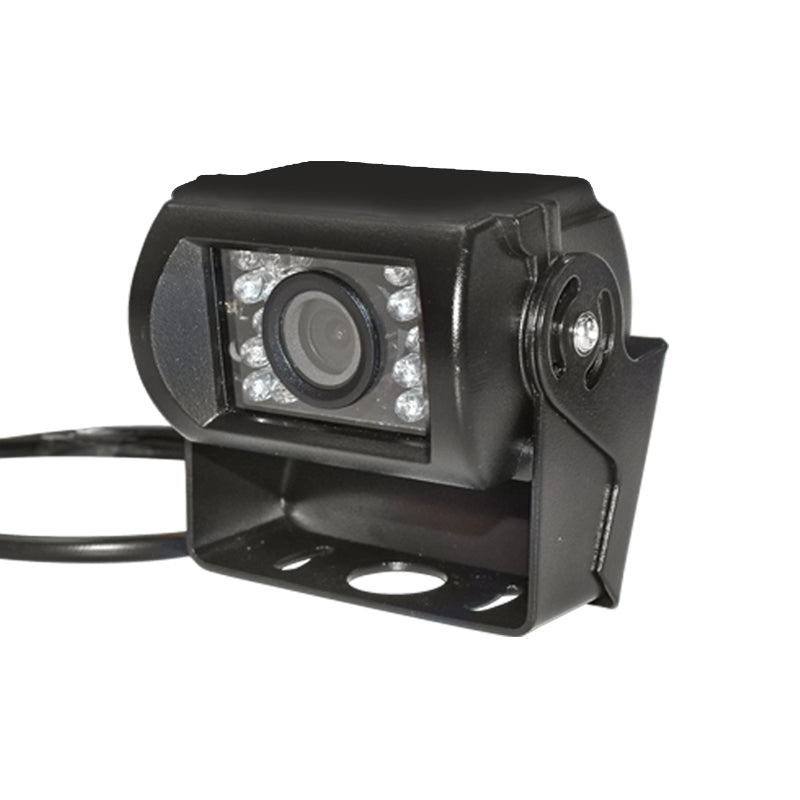

The attal room:

•          Image sensors: IR color CMOS, CCD

•          Built in wireless room: 2.4GHz video
•          Transmitter Transmission: 50 m outdoors
•          TV system: PAL/NTSC
•          Water resistance rate: IP67
•          Effective pixels: 752x582pixel/768x494 pixels
•          Resolution: 480tv lines
•          Minimum lighting:
• 1.0LUX / F1.2
•        0.2LUX/ F1.2 (0LUX IR ON)
•       Objectives: F = 2.8mm/ F = 2.0
•          Objectives angle: 120IR LED: 18pcs
•          Vertical synchronization: frequency: 50Hz / 60Hz
•          Output Video: 1.0VP-P, 75OHM
•          Food power: DC12VDC9V-35V
•          Current consumption:300ma
•          Electric shutter: 1/60 ~ 1/10.0000 Second Gamma Consumption: 0.45
•          S/N ratio: Better than 48 Dbsistem of Scan: 2: 1 Internal
•          Operating temperature: -20C ~ 70C. RH95% max
•          Storage temperature: -40° C ~ 85 ° C, RH95%Ma
