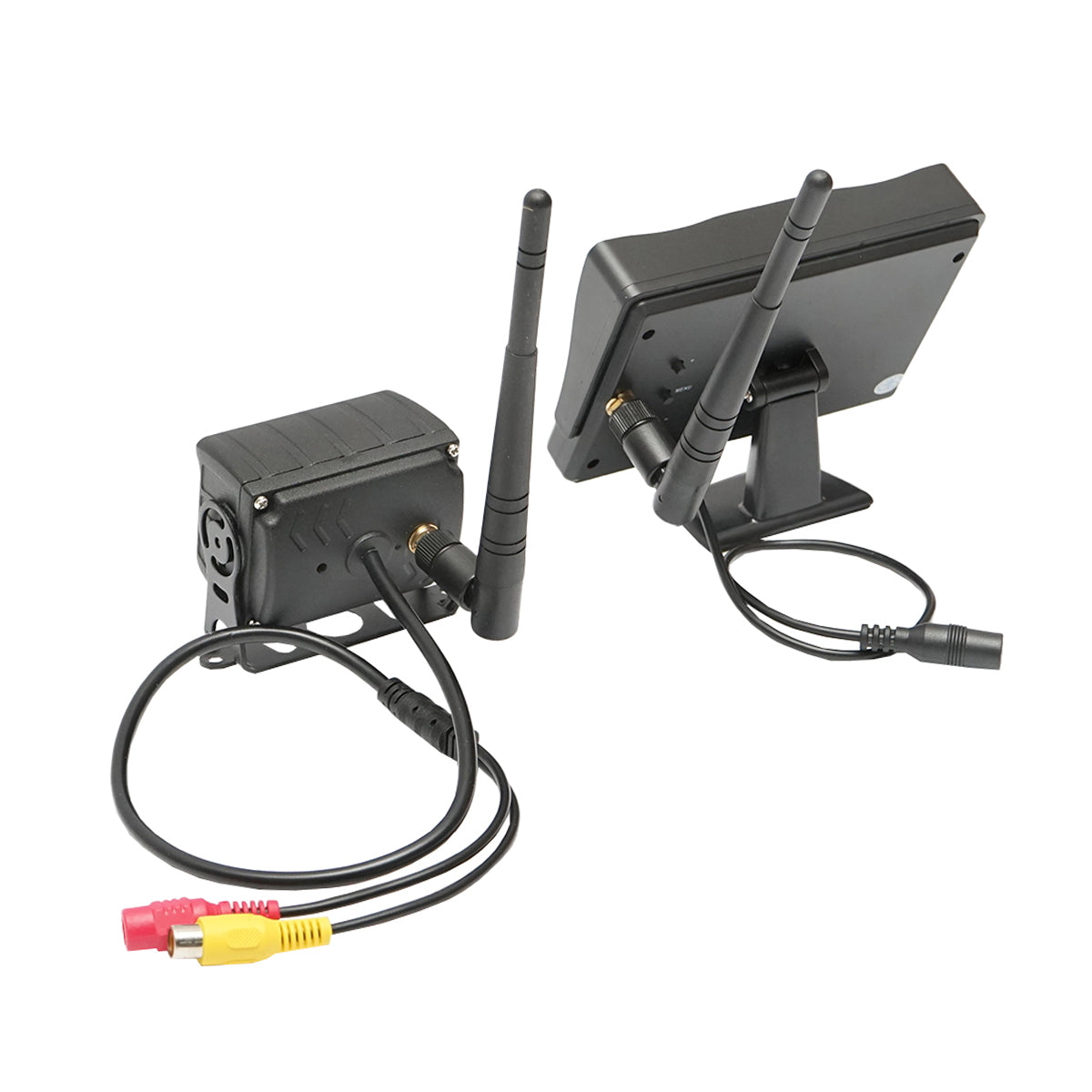

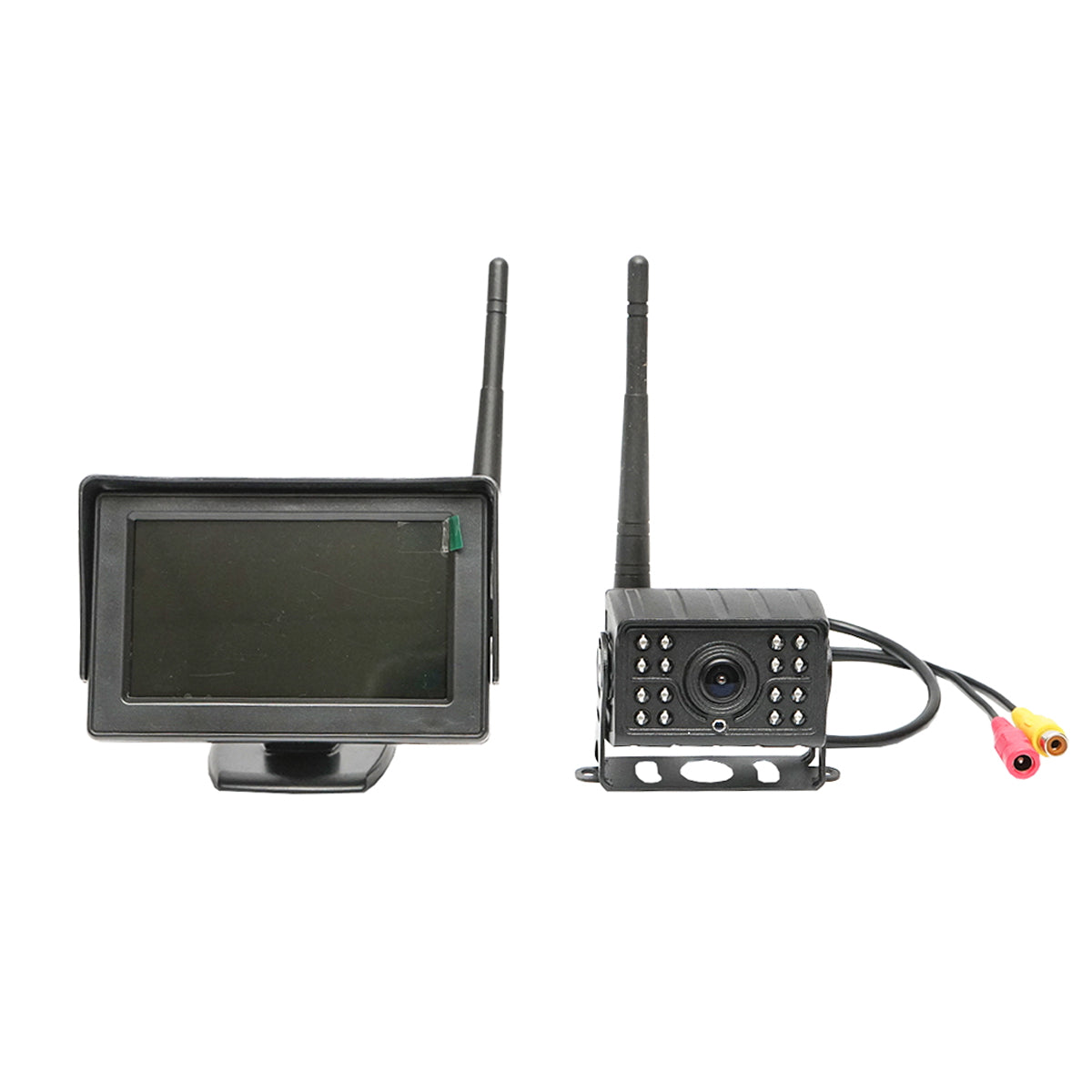

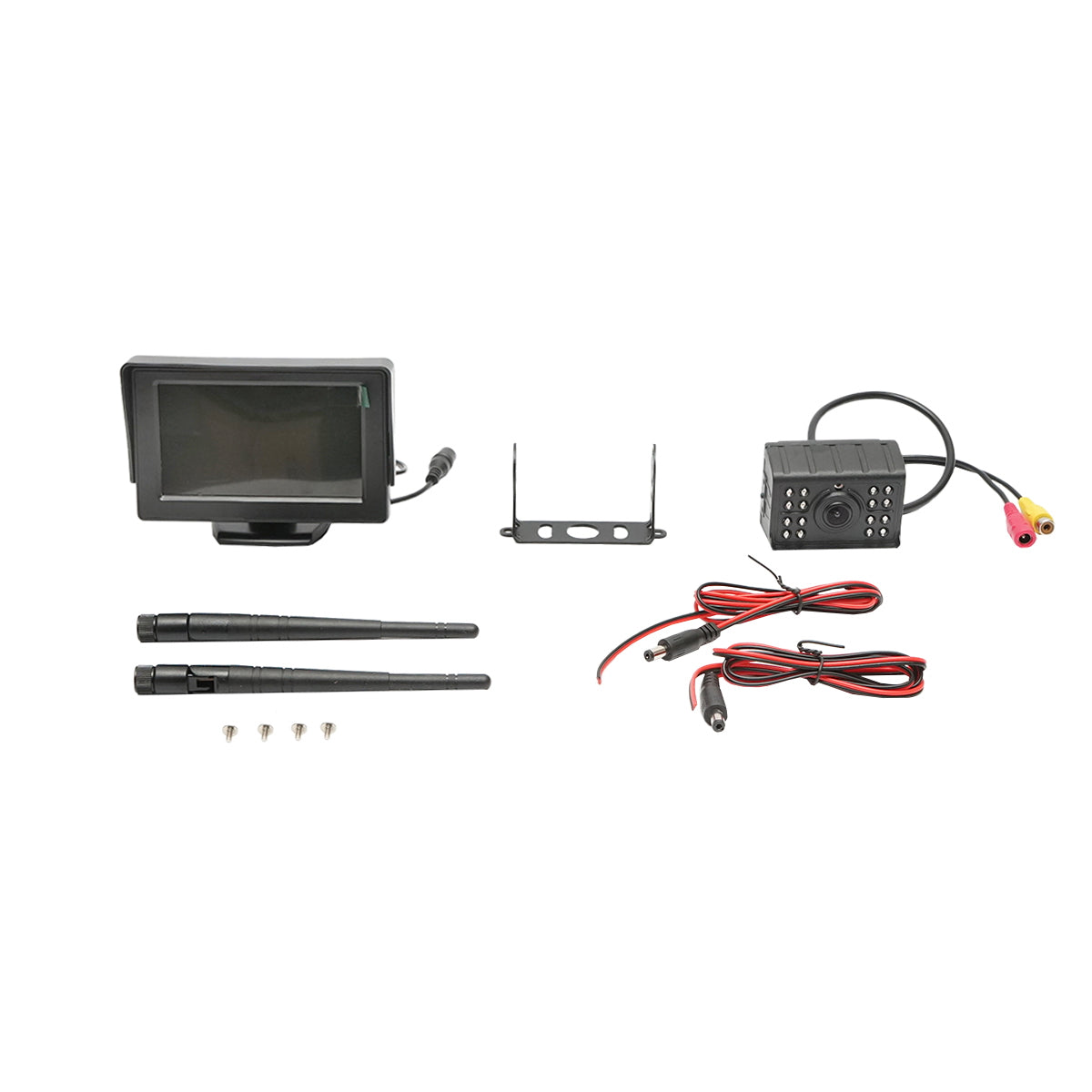

Wireless rearview camera with night vision display 12V

Wireless attal room overlooking (nocturnal)

System with 4.3inch high wireless clarity monitor.

LCD screen+LED camera for night view (to help the driver to see what is behind the vehicle and to help avoid accidents). Clear day and night. The water resistant room works very well in any weather. The monitor can be easily mounted wherever you think you have the perfect place for it. The system engages very well in use in trucks, buses etc

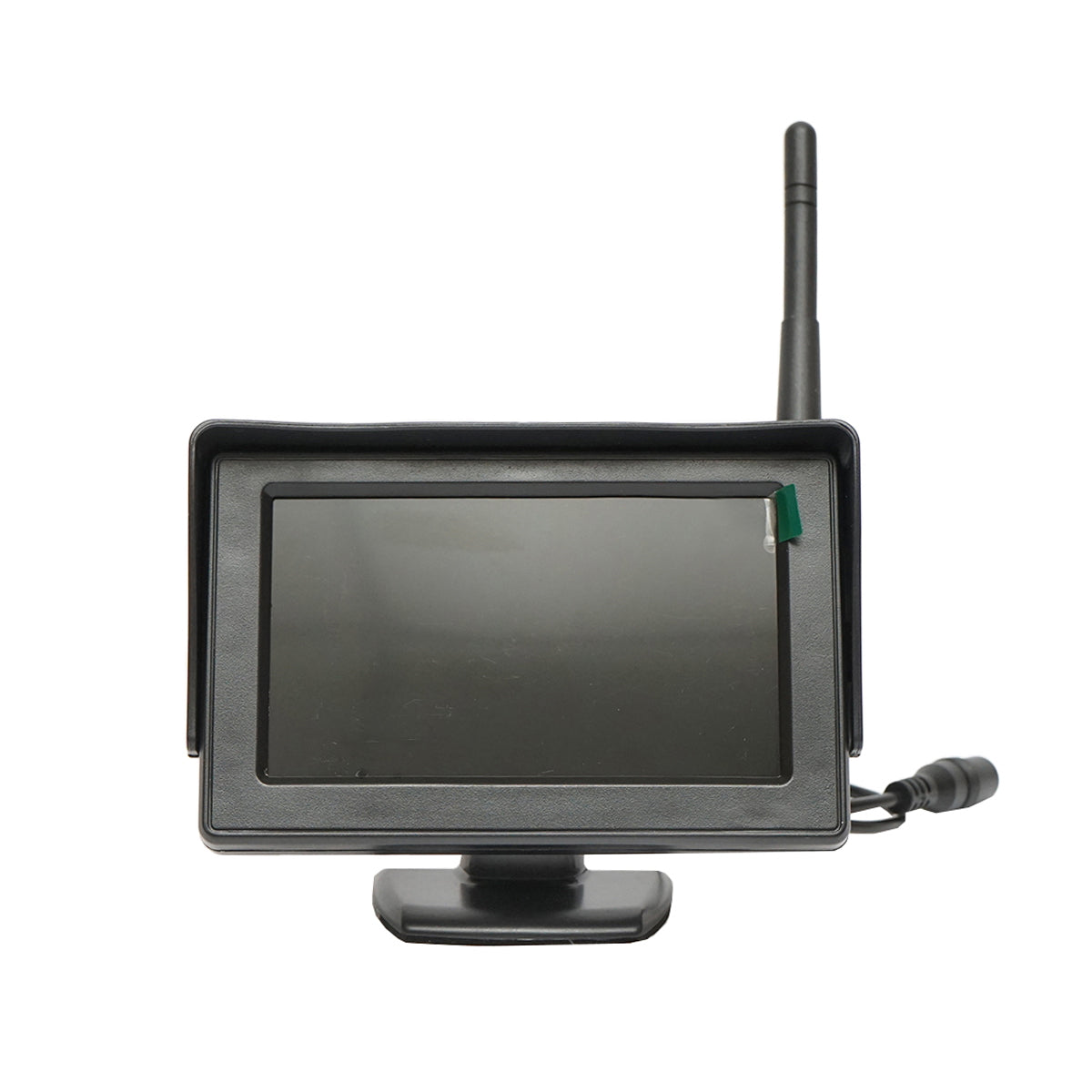

Description Monitor:

• Screen size: 4.3inch
• Appearance rate: 16: 9
• Resolution: 480RGBX234
• Video system: NTSC/PAL compatible
• Food voltage: DC 12V-24V
• Nominal power: 5W
• Support DVD, VCD, camera and other video equipment
• When the car is parked, the rear image will automatically appear on the screen
• Operation mode: Remote control and by touching buttons
• Without input and audio output
• Operation temperature: -10 ° C - +50 ° C
• Storage temperature: -20 ° C - +60 ° C
• Built for 2.4g Wireless Technical Specification
• Wireless frequency: 2370MHz
• Voltage: DC 12V
• Video format: PAL/NTSC
• Wireless transmitter distance: 20m
• The temperature at which it works: -20 ° C - +70 ° C
• Video output: pale/nts
• Receiver sensitivity: -85dbm
• Power: DC 5V 1.5W

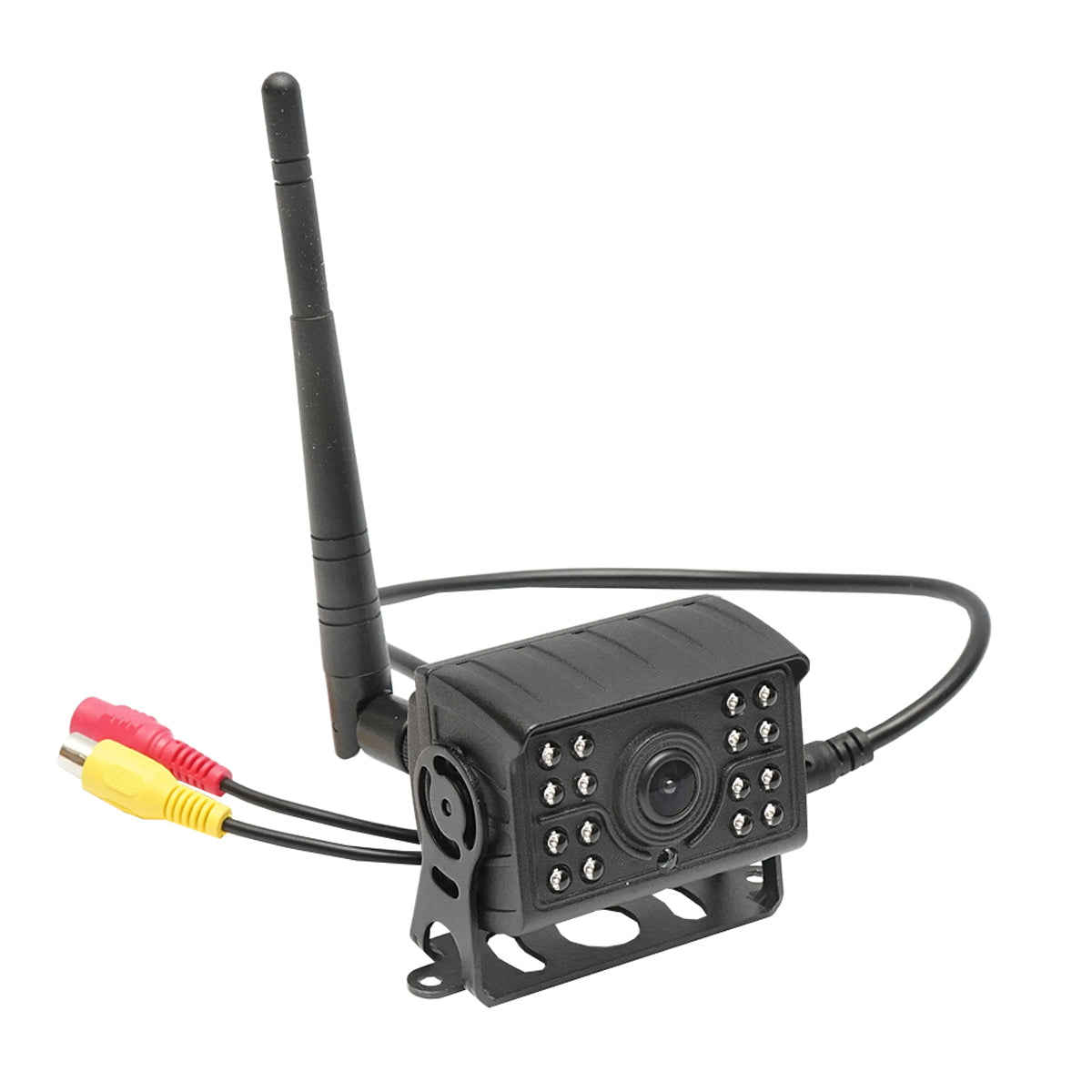

Description of the nightmare room:

• Image sensor: CMOS3089
• Objective angle: 120 degrees
• Pixels Effective: 656 x 492 pixel
• Resolution: 480 TVL
• TV system: NTSC/Optional PAL with parking line
• White Balance: Automatic
• Water -resistant degree: IP67
• Food voltage: DC12V
• Consumption: 60mA
• Detection area: 4.08x 3.102mm
• Minimum lighting: 0.1-0.5lux /f=1.2
• Output Video: RCA Connector, 1.0VP-P, 75OHM
• Operation at temperature: -20 ° C - 75 ° C, Rh 95%max
• Temperature resistance: -40 ° C -85 ° C, Rh 95% max
• Color: black
• Distance View at night: 5-7 m
• Applicable for many models and brands of vehicles: trucks, buses, etc.
• Built for 2.4g Wireless Technical Specifications:
• Wireless frequency: 2370MHz
• Voltage: DC12V
• Video format: PAL/NTSC
• Distance Wireless Transmission: 20m
• Working temperature: -20 ° C+70 ° C
• Video output: pale/nts
• Reciver sensitivity: -85dbm
• Power: DC 5V 1.5W
