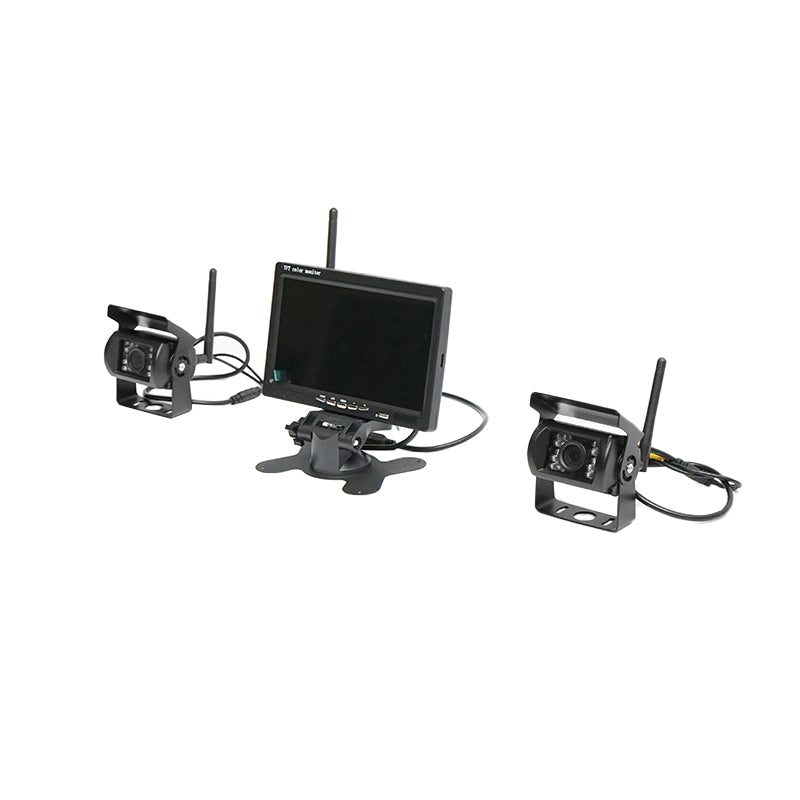

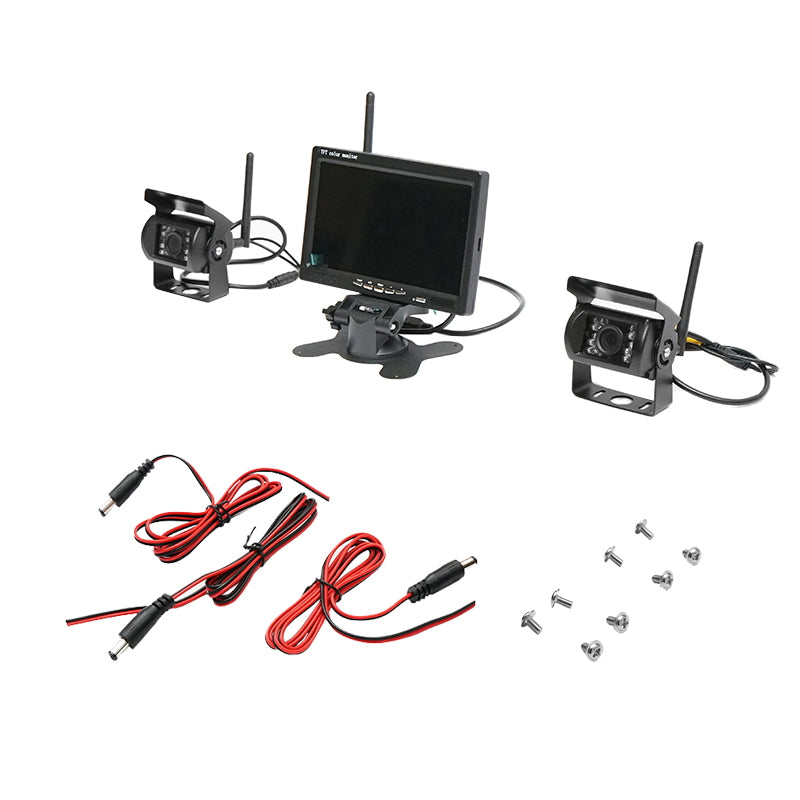

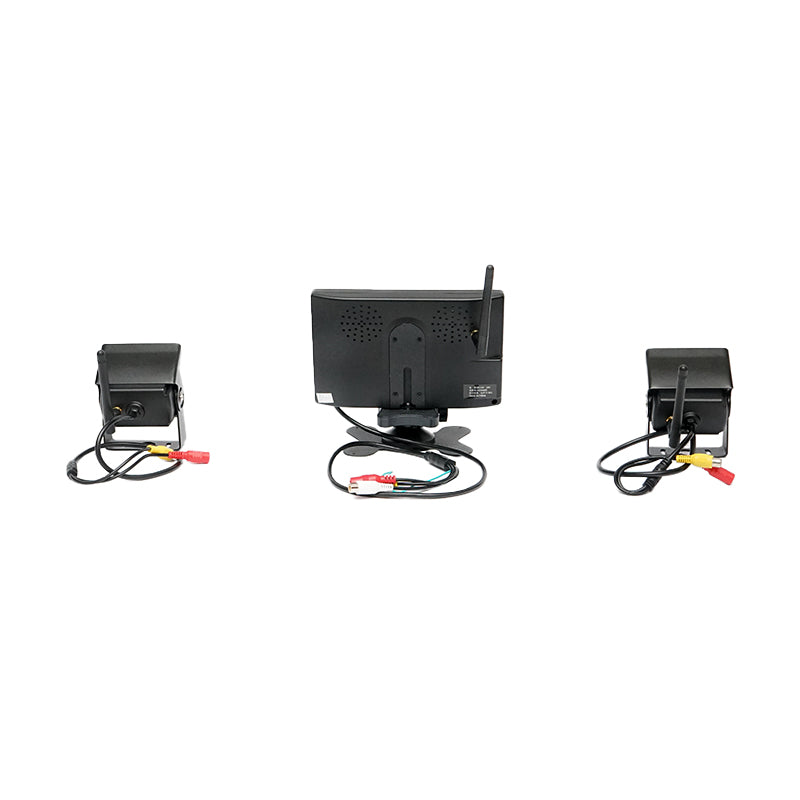

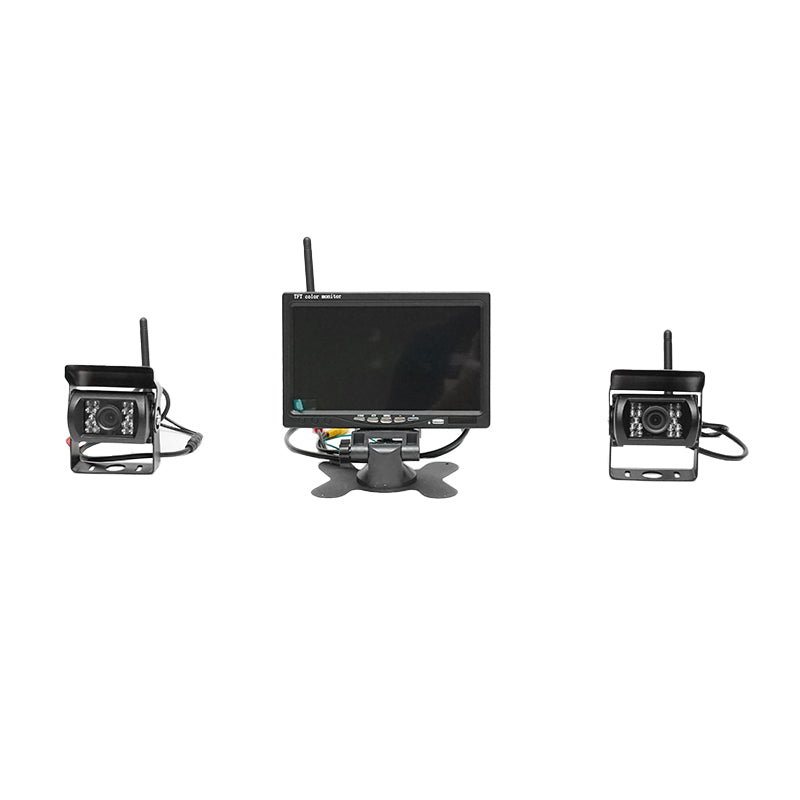

Wireless rearview camera with 7 Inch display 12V

Manual for Wireless Back Room

Monitor's description:

• Screen size: 7inch
• Appearance ratio: 16: 9
• Resolution: 1024@xRGBX600H pixels
• Built in wireless: 2.4GHz Video Receiver
• Reception: 50m in open air
• 4CH (2510,2370,2390,2490) Optional video display can be done by manual setting
• System: Pal & NTSC
• Video entry: X2
• Rear view: V2 Automatic Turn When Activated Trigger is
• Food source: DC12V or DC11V-32V
• Consumption: 5W

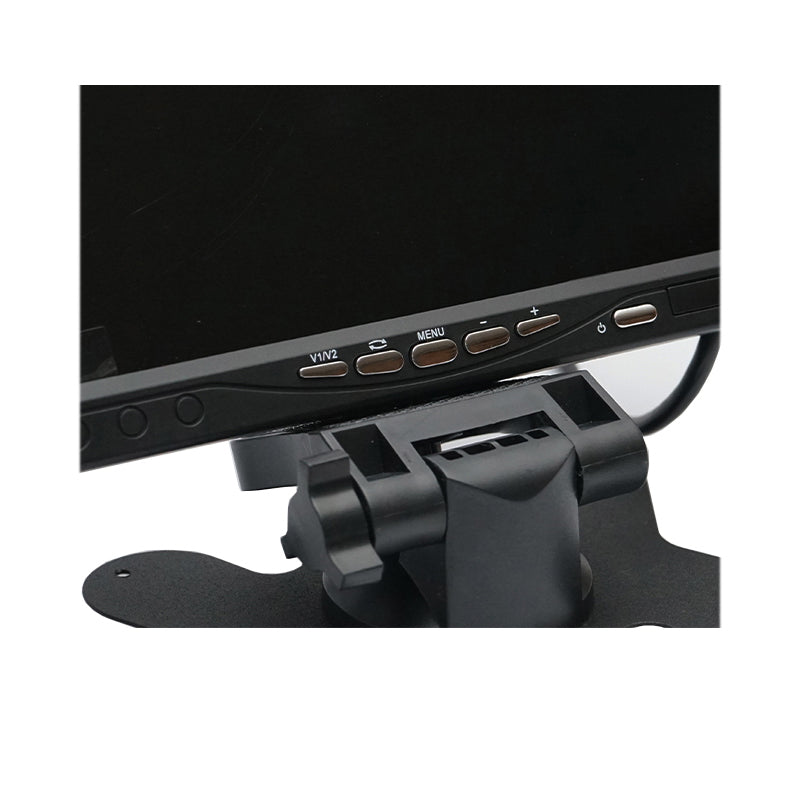

• Method of operation: key and remote control
• Working temperature: -10 ° C-+40 ° C
• Storage temperature: -25 ° C-+80 ° C
• Exterior dimensions: 174wx113Hx19d (mm)
• Weight: 415g
• With optional sun protection

Description Wireless camera for sight:

• Image sensors: IR color CMOS, CCD
• Room Construction: 2.4GHz Video
• Transmitting Transmitter: 50 m in open air
• TV system: PAL / NTSC
• Water resistance rate: IP67
• Effective pixels: 752x582 pixels / 768x494 pixels
• Resolution: 480TV lines
• Minimum lighting:
• 1.0LUX / F1.2
• 0.2LUX / F1.2 (0LUX IR ON)
• Objective: f = 2.8mm / f = 2.0
• Objective angle: 120 ° IR LED: 18PCS
• Vertical synchronization: frequency: 50Hz /60Hz
• Output Video: 1.0 VP-P, 75 Ohm
• Electric power supply: DC12V, DC9V-35V
• Current Consumption: ≤ 300MA
• Electric shutter: 1/60 ~ 1/10.000 seconds Gamma Consumption: 0.45
• S/N ratio: Better than 48DB Scan system: 2: 1 Interlace
• Operation at temperatures: -20 ° C - +70 ° C, RH95%max
• Temperature resistance: -40 ° C - +85 ° C, RH95 % max
