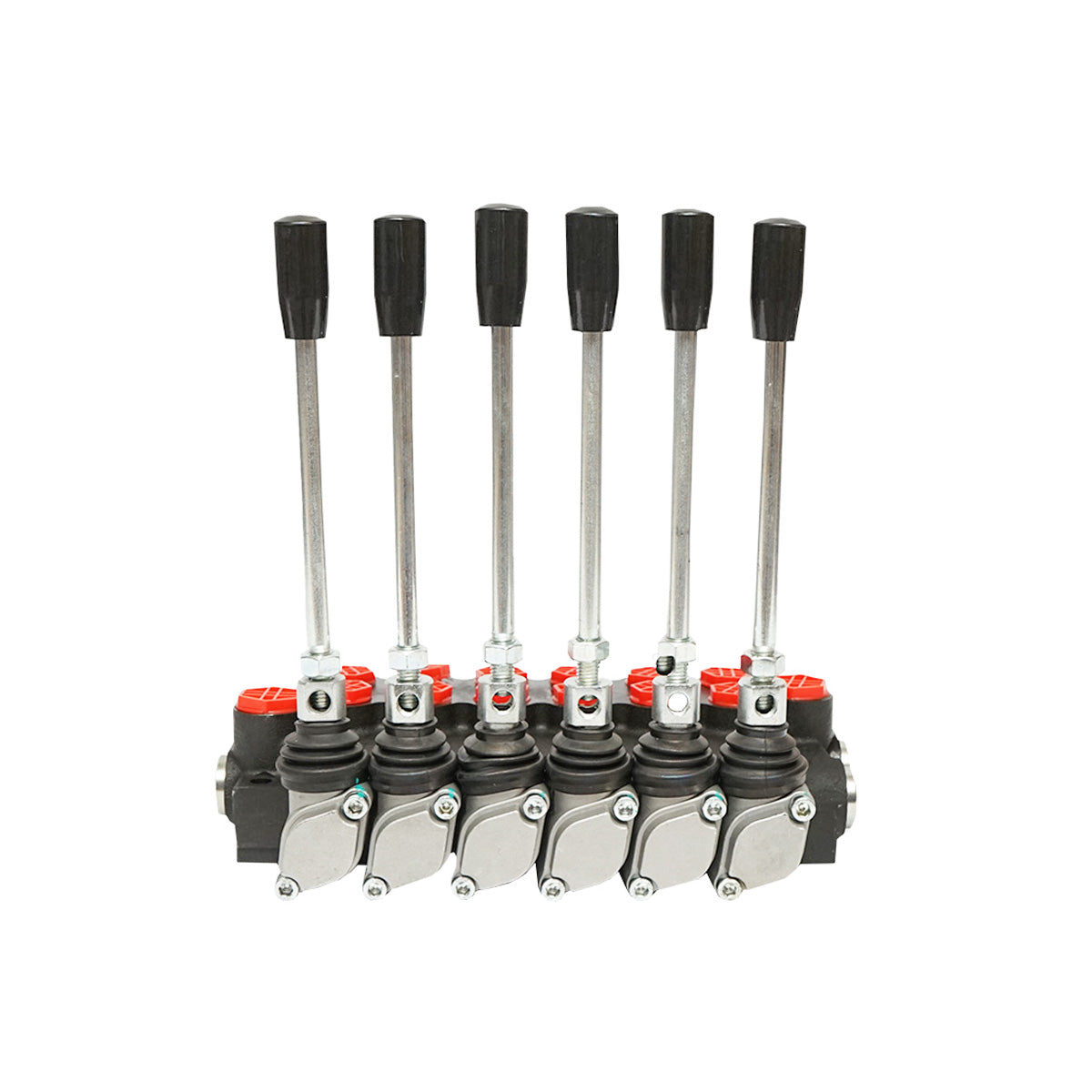

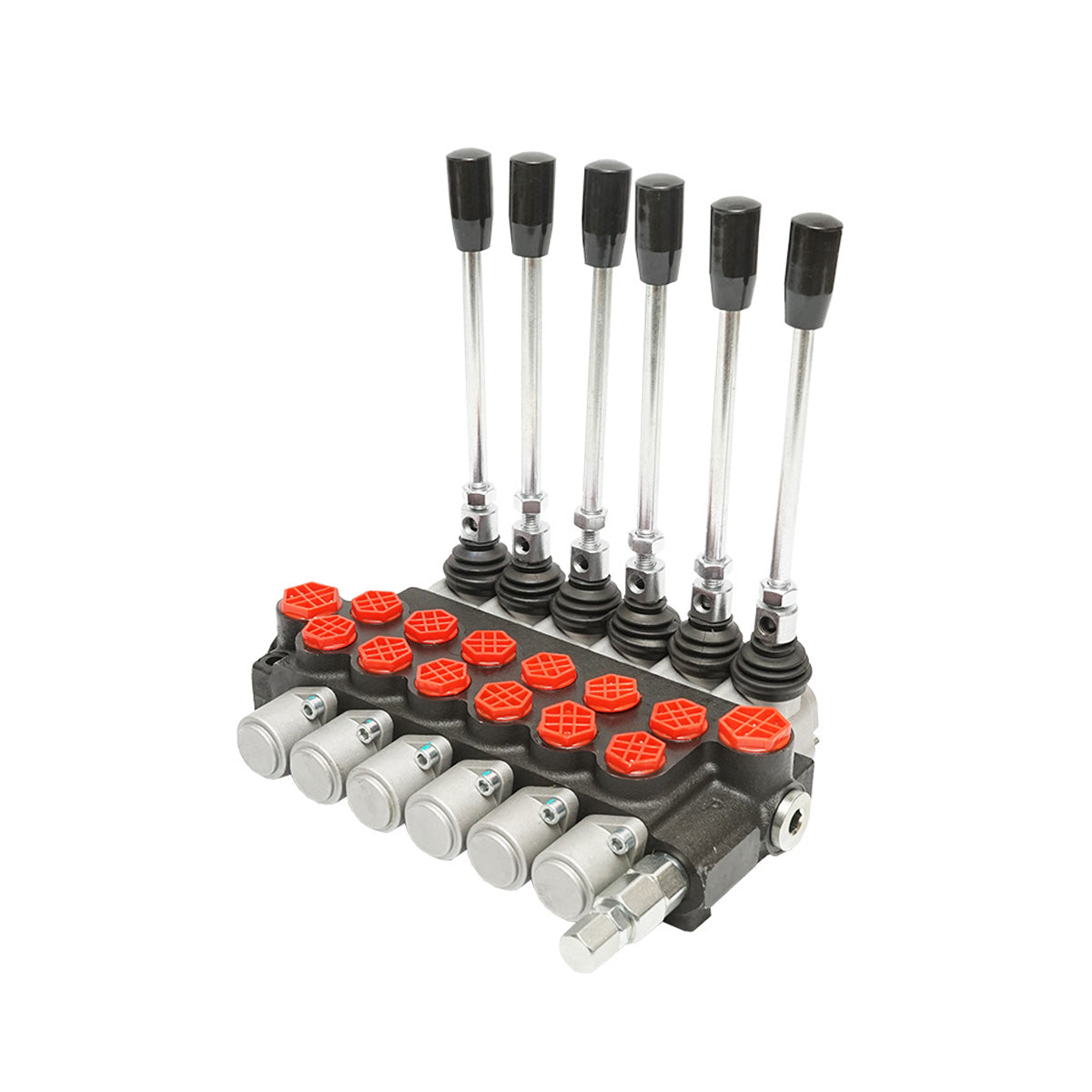

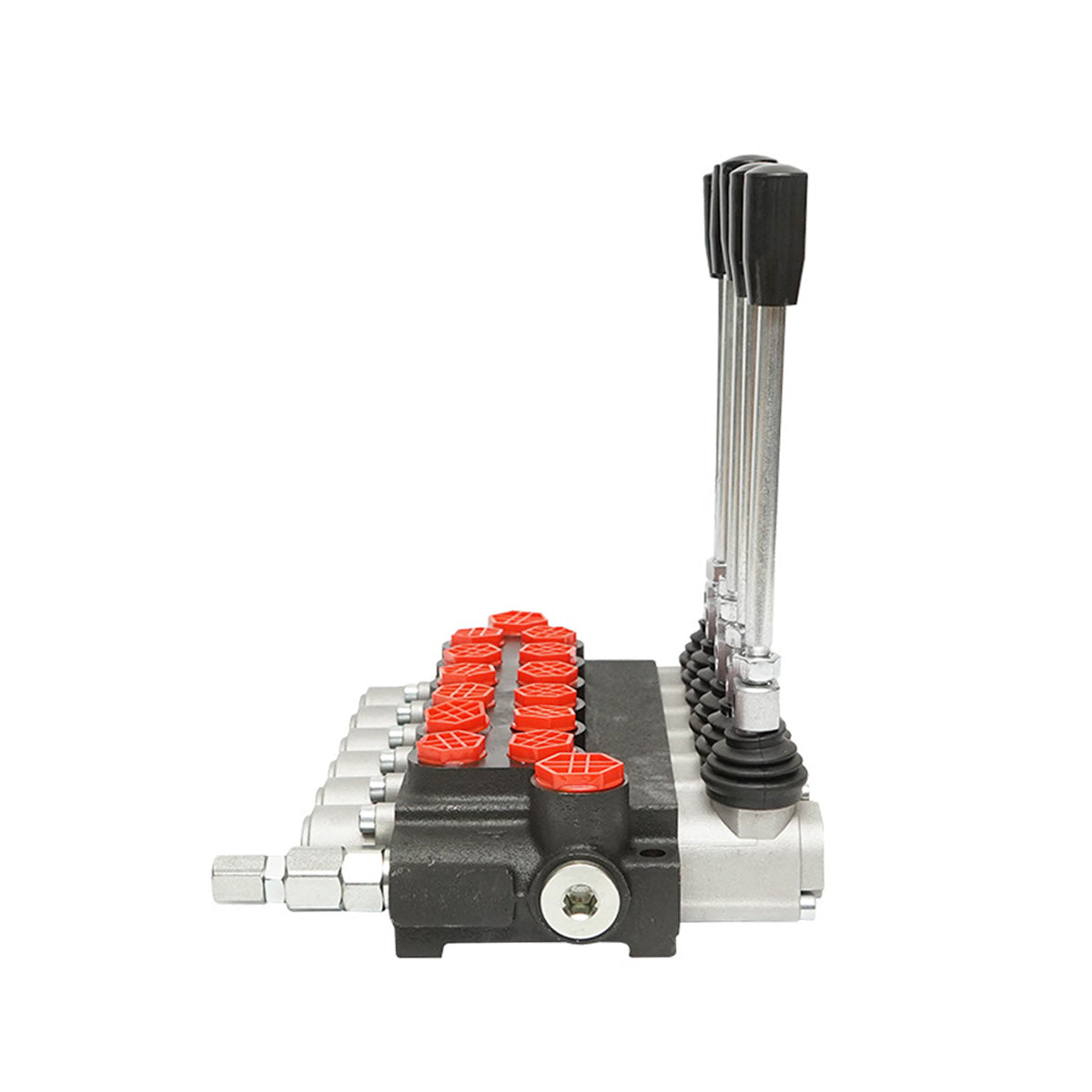

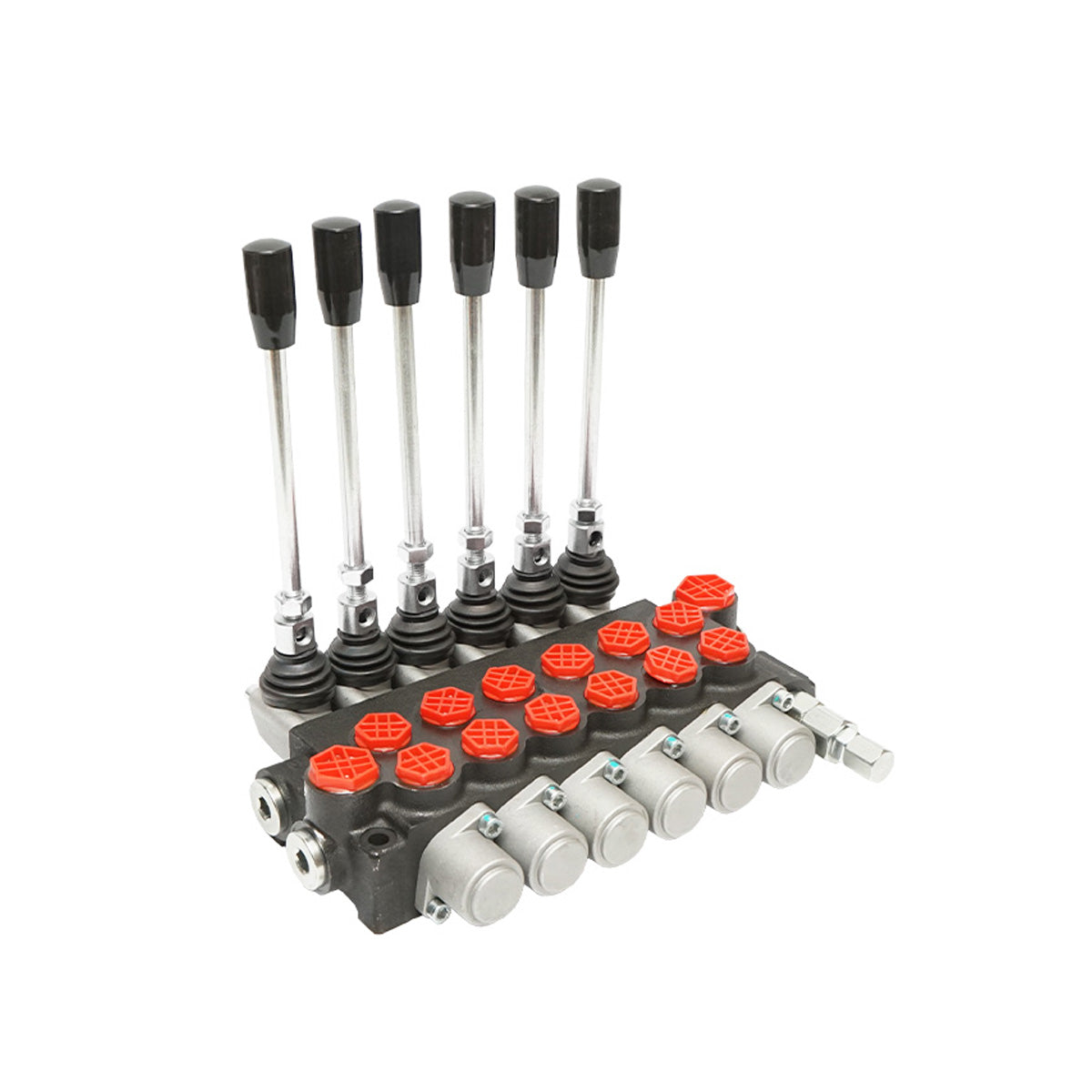

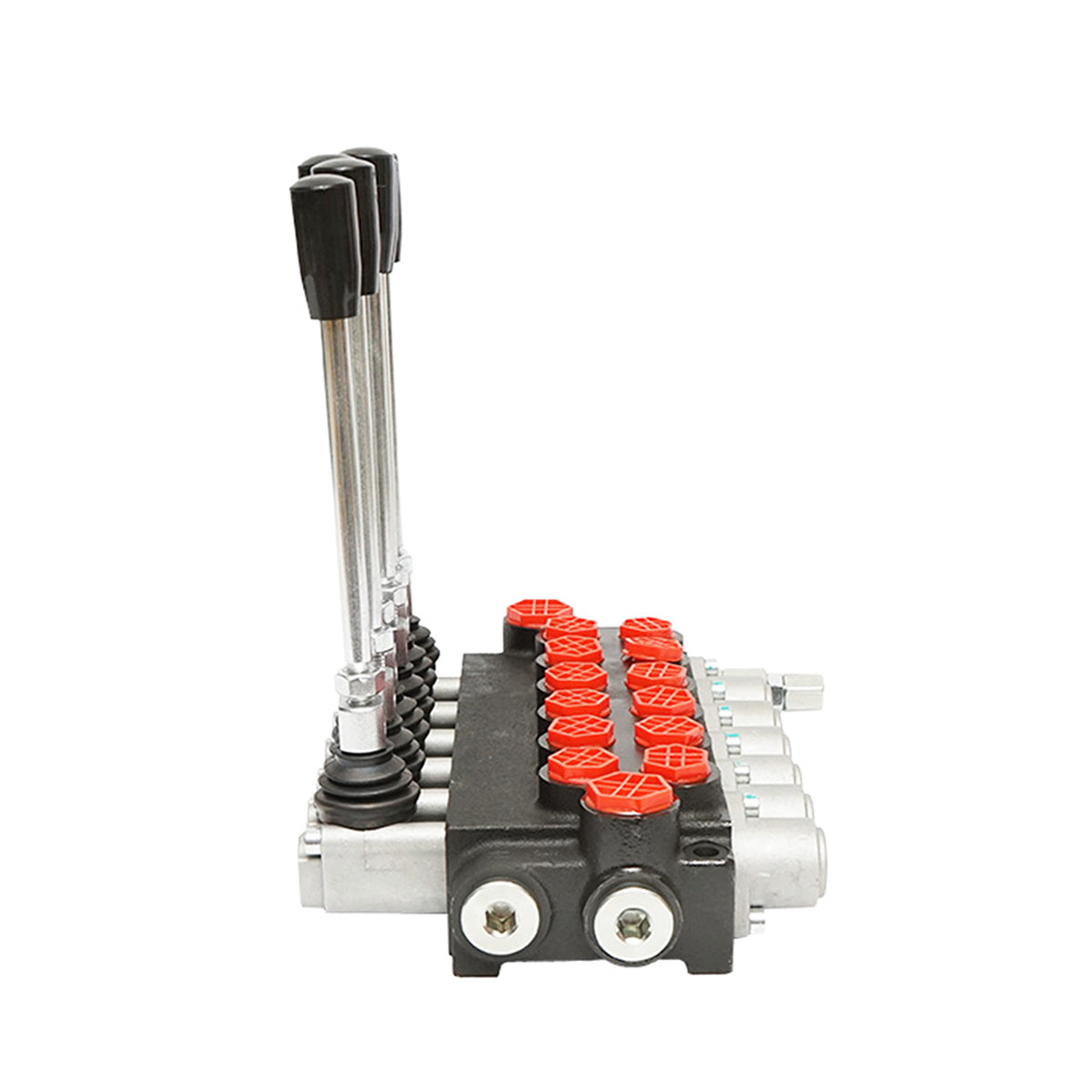

Hydraulic distributor with 6 levers, flow rate 40L/min with included lever and reduction -15 /+80 Breckner Germany

About the Product

A	60 mm
B	80 mm
C	269 mm
D	237 mm
File connection p	M22 x 1.5
File connection A-B	M18 x 1.5
Tab tab t	M22 x 1.5
Nominal flow	40 l/min
Working pressure p-n	250 bar
Working pressure a-b	300 bar
Work pressure t	50 bar
Oil temperature in work	-15 ℃ - +80 ℃
Material	Cast iron / steel
Weight	11.1 kg
Brandi	Breckner Germany
