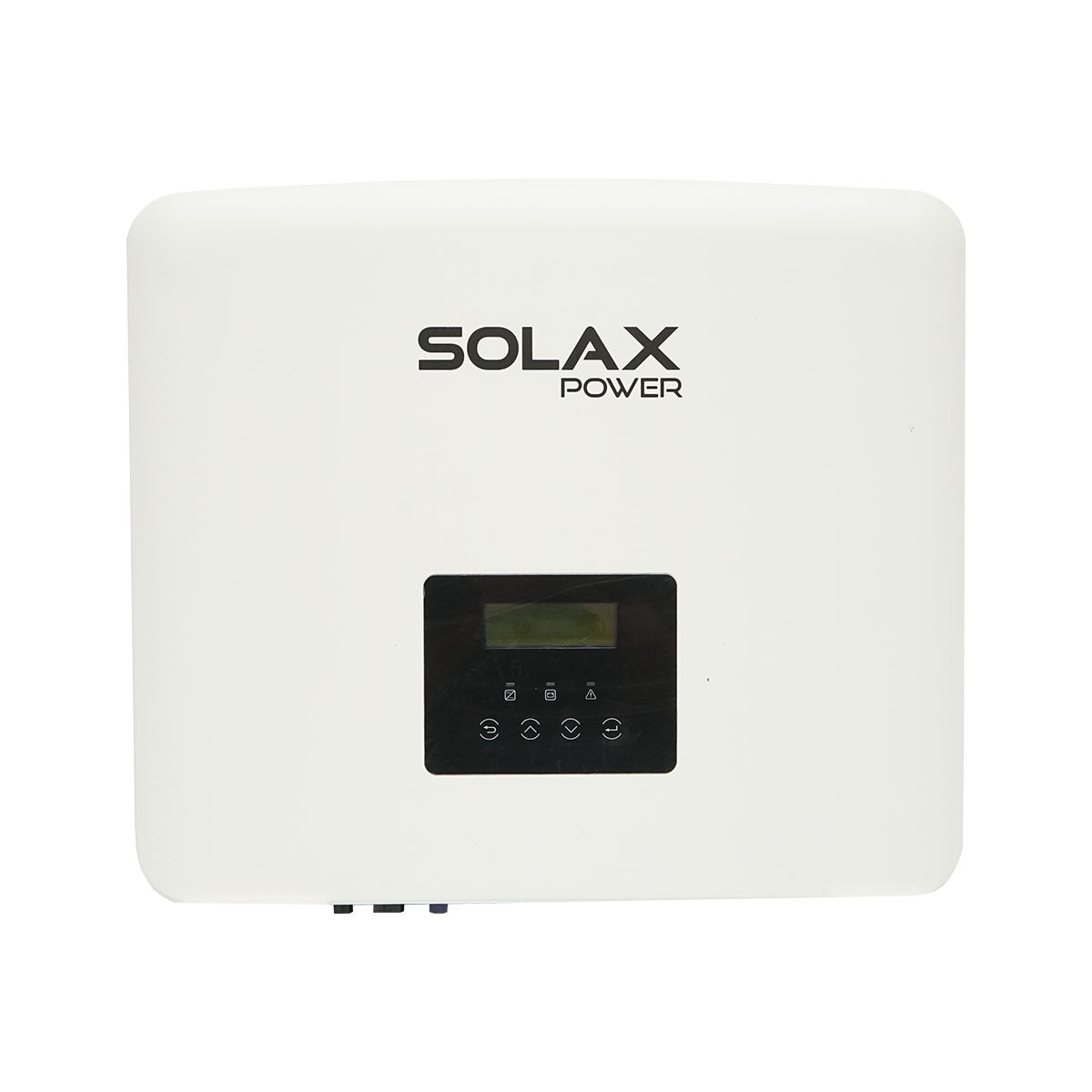

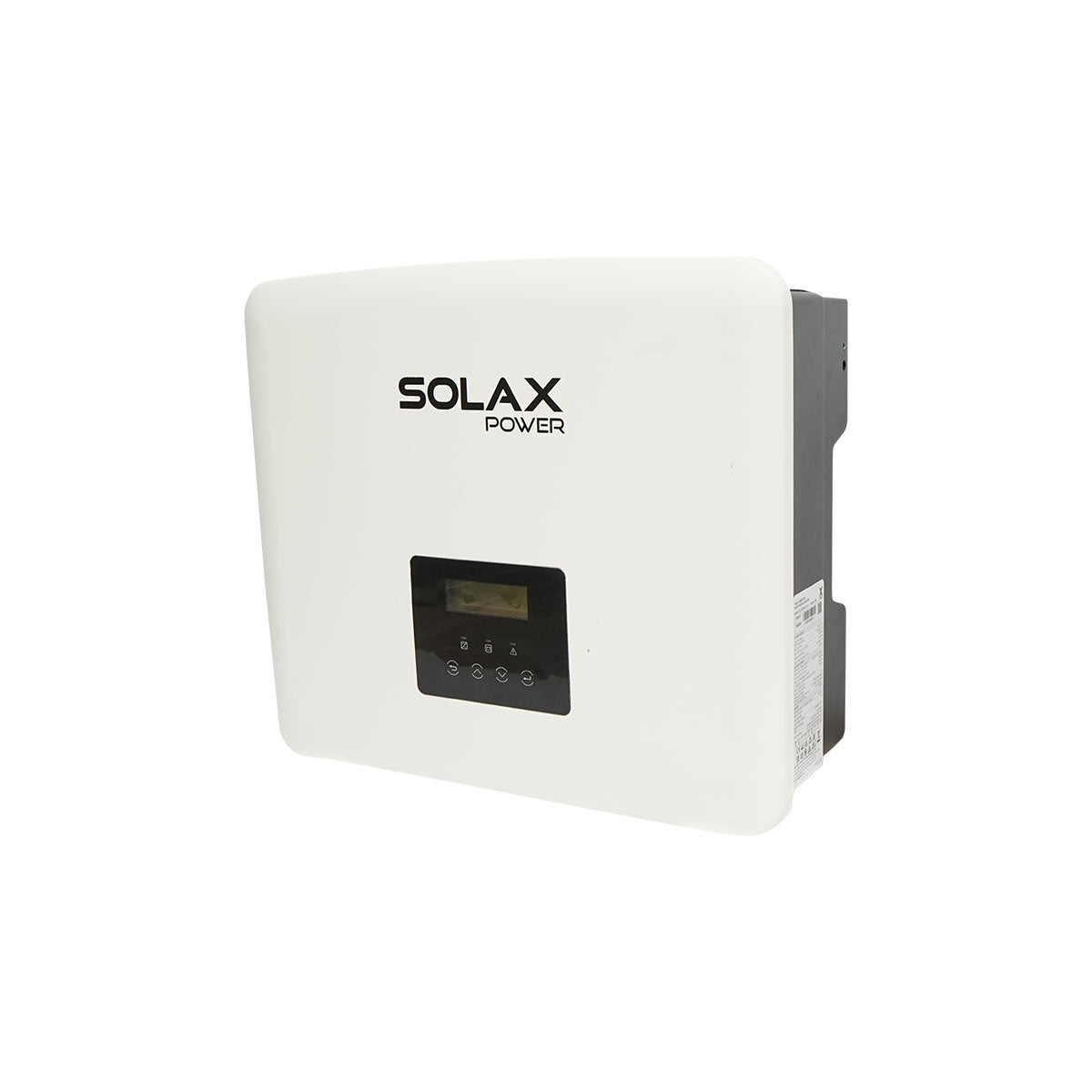

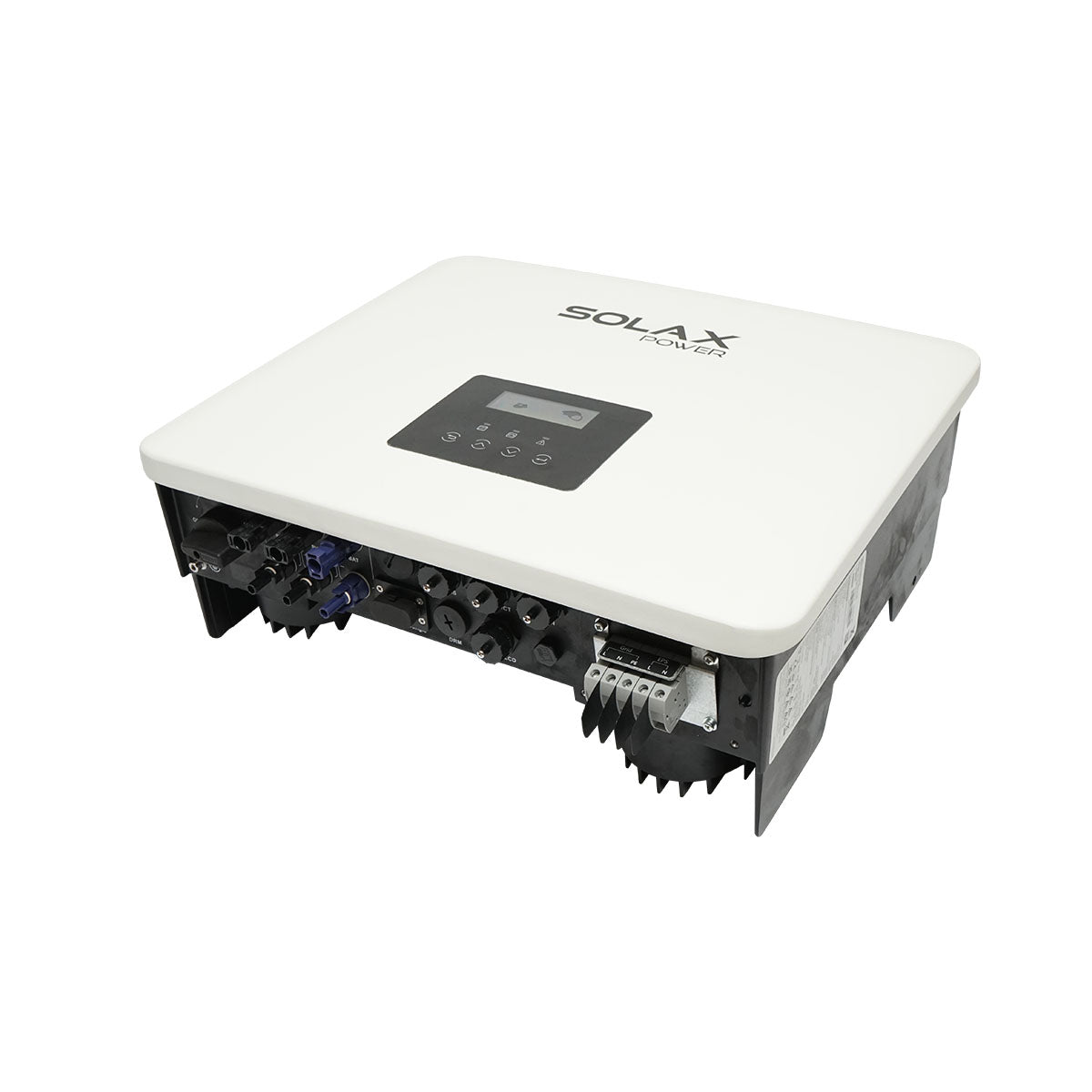

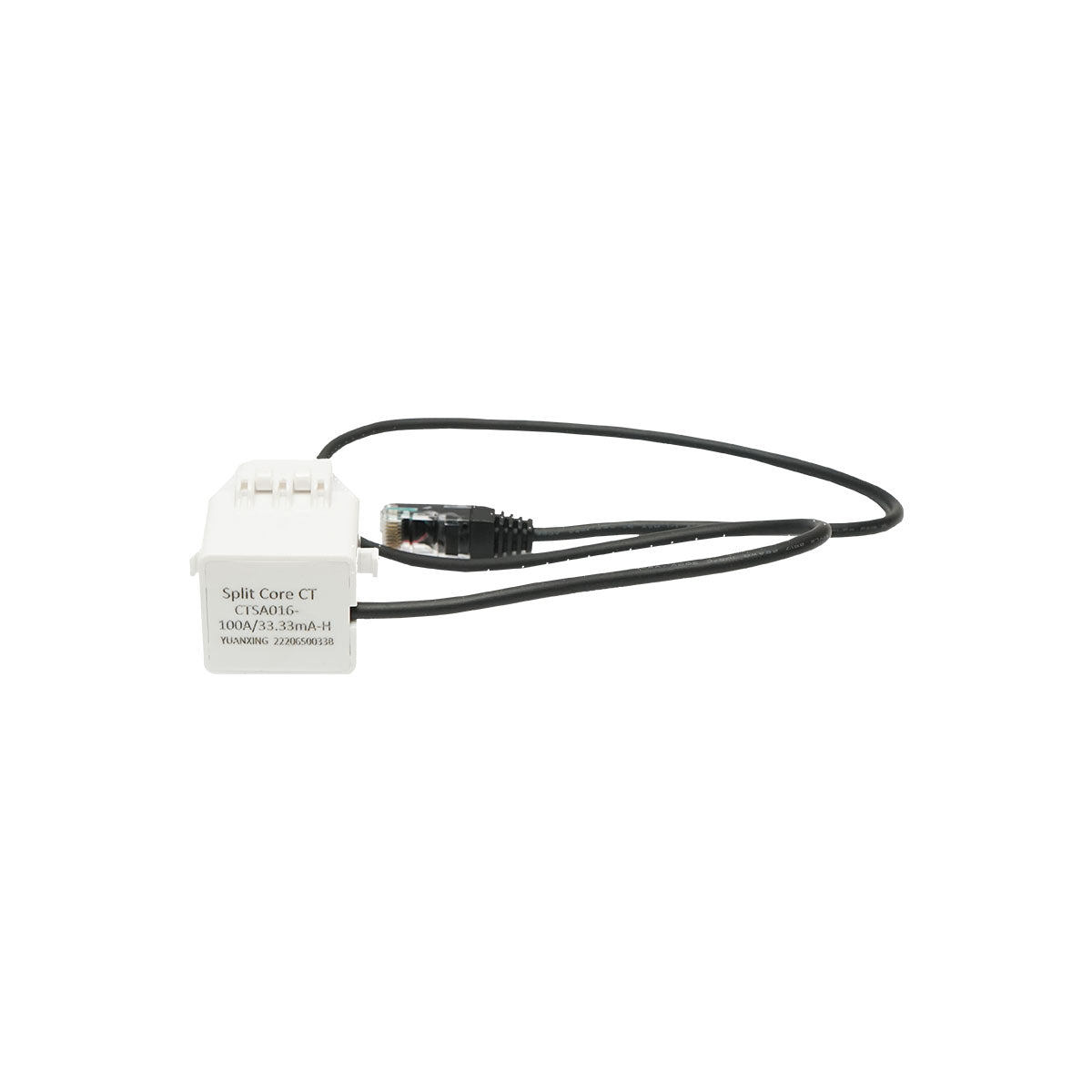

HYBRID Inverter 5KW SOLAX X1-Hybrid-5-D G4, single-phase 230V, prosumer with 100A Split Core

About the Product

Open - technical sheet
Open - User Manual
Open - Installation Guide

GENERAL INFORMATION
Brandi	Solax
series	X1-Hybrid-5-D G4
Inverter type	Hybrid, on/off-brid
Efficiency of Europe	97 %
Efficiency discharge/charge batteries	97/97 %
Protection	IP 65
size	482 x 417 x 181 mm
Weight	24 kg
Display	Lcd
Input dc
Max Power of Entry of DC panels	7500 w
Max Tension of Entry DC panels	600 v
MPPT number	2 - 16/16 a
Input ac
Max power of the AC network input	5000 w
Max AC voltage	23.9 a
The nominal voltage of the AC network	230/240 v
Output ac
Nominal power AC	5000 w
The nominal voltage of the AC network	230/240 v
Maximum AC output current	21.7 a
Output DC (at batteries)
Types of batteries	Lead-Acid, Lithium Ion
Battery tension	80 - 480 V
Max Maxim of Loading/Download	30 a
Output off-grid, with batteries
Maximum power continues	5000 w
Nominal tension	230 v
DC current max	21.7 a
