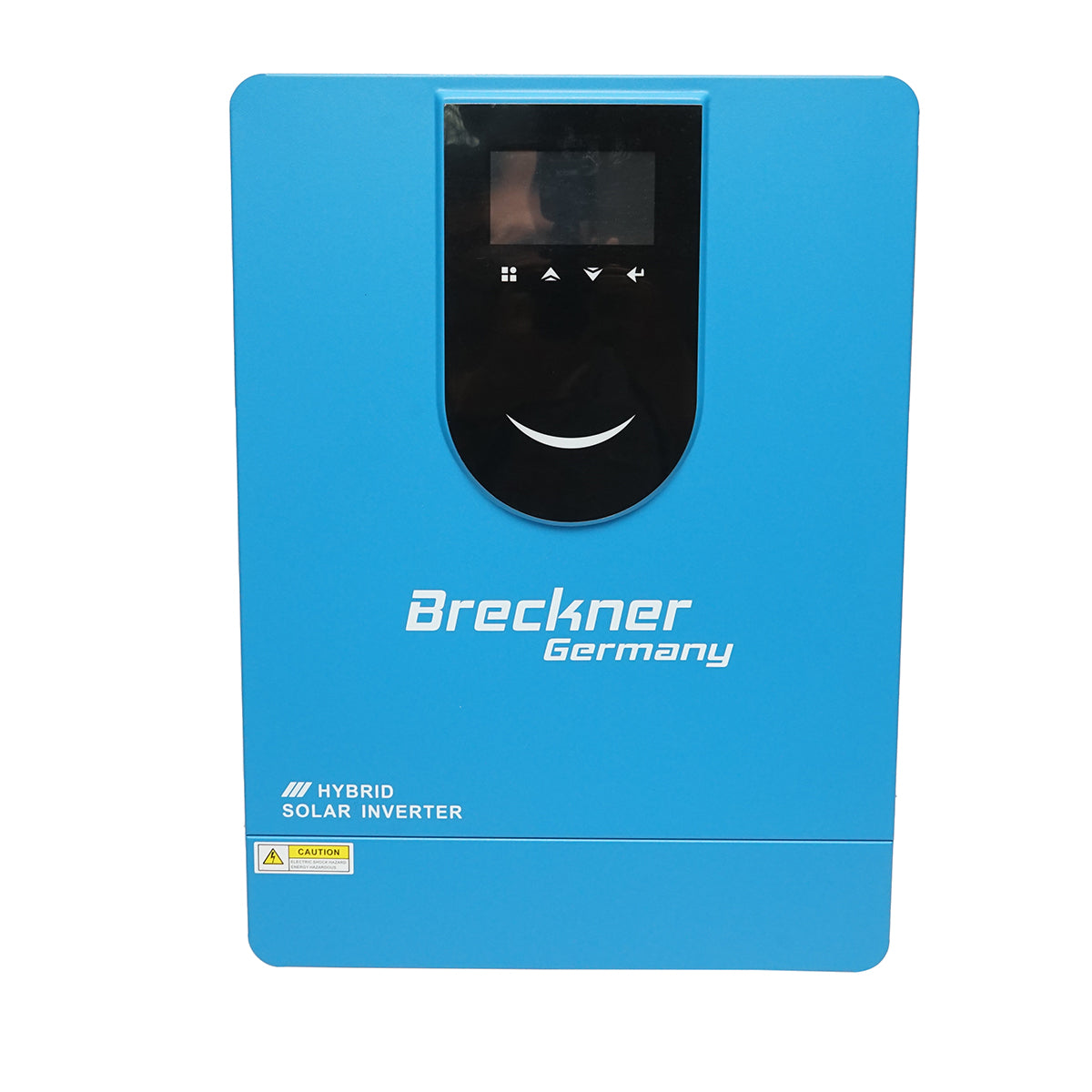

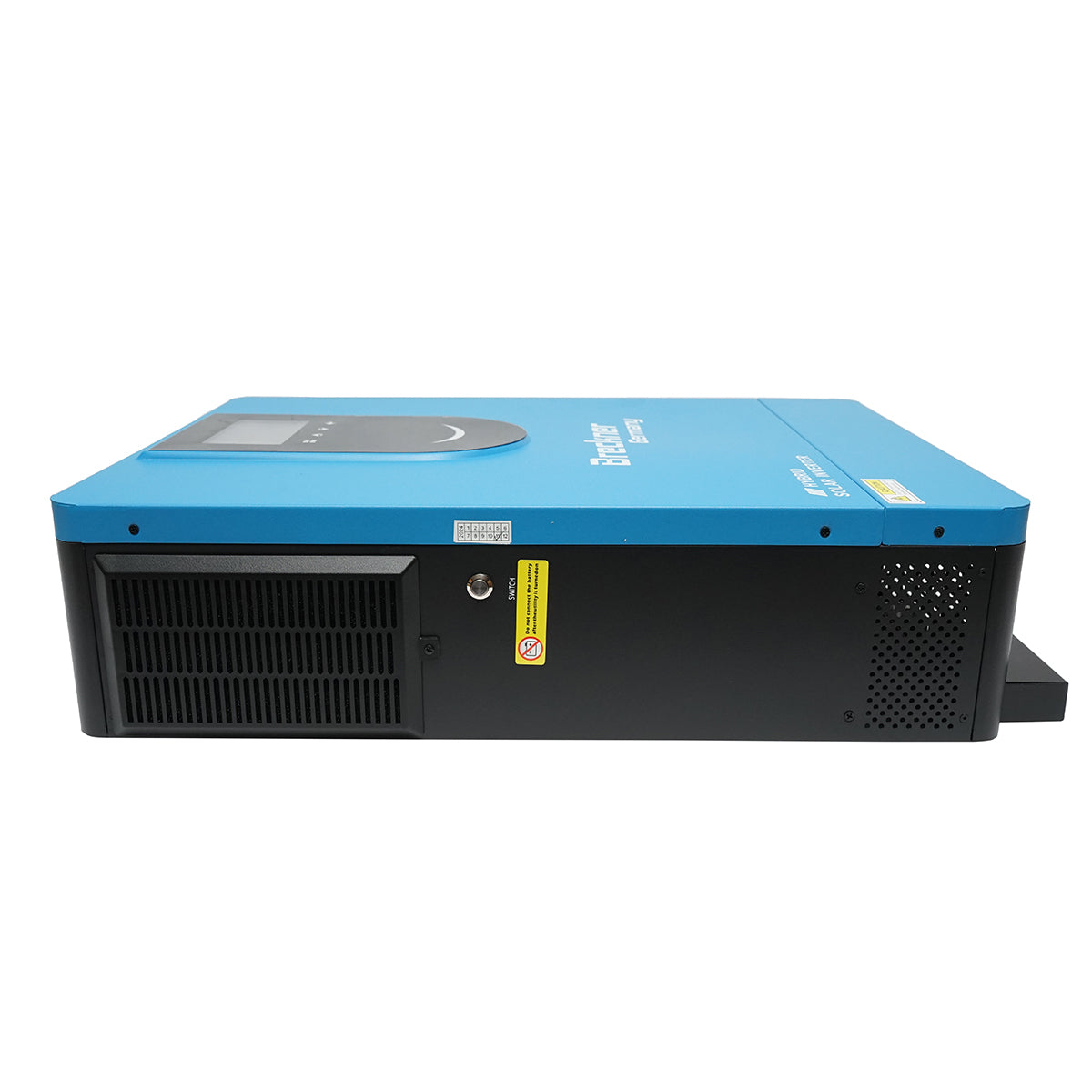

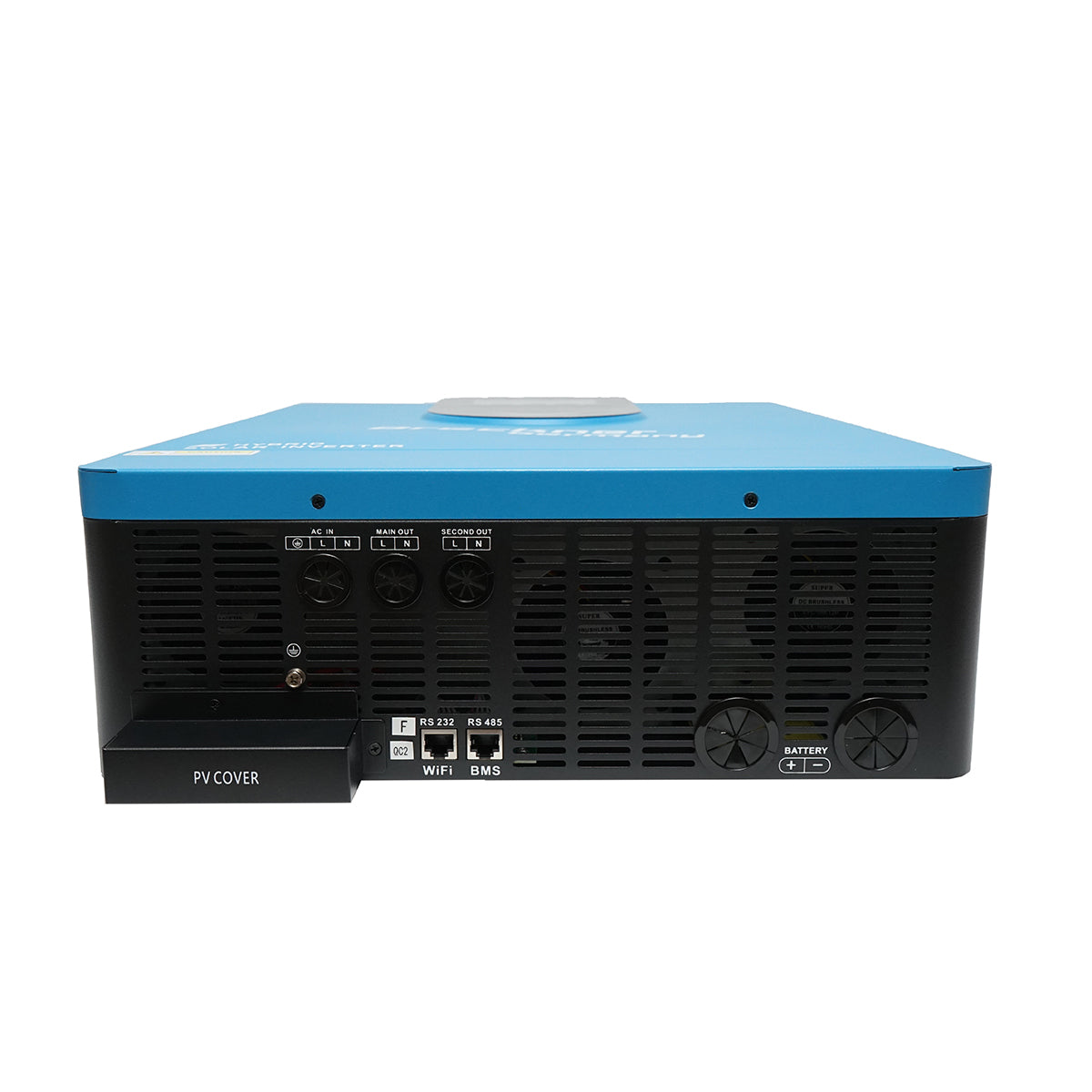

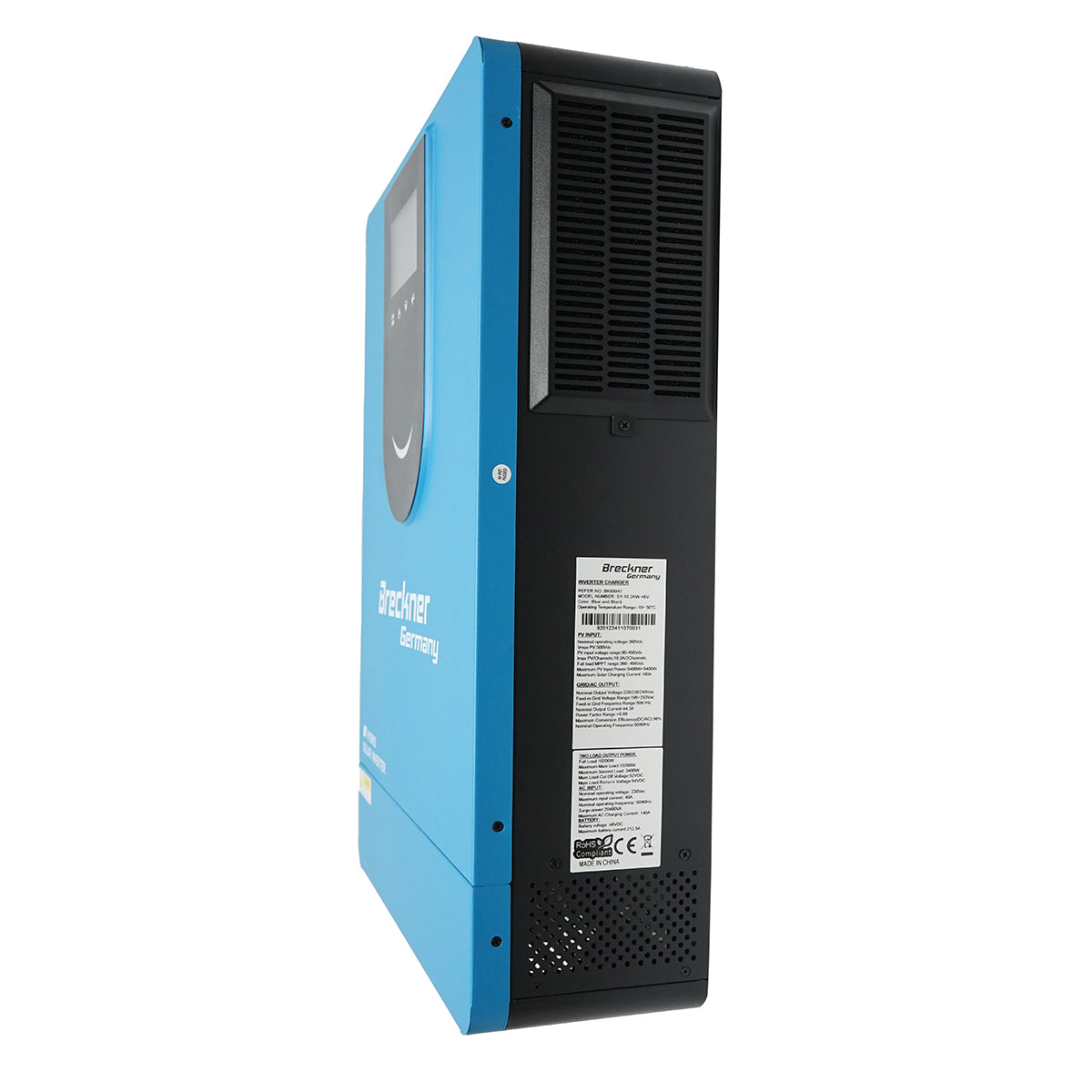

Hybrid solar inverter 10.2 KW, 48V, 140A, MPPT, single-phase, OFF-GRID, SY-10.2KW-48V Breckner Germany

About the Product

General data
Brandi	Breckner Germany
Inverter type	Off-grid / hybrid
PV input
Nominal operating tension	360 VDC
max	500 VDC
The range of entry tension	90 - 450 VDC
Imax	18 A / 2 channels
Nominal power	10200 w
Maximum PV input	5400 + 5400 W
Frequency	50/60 Hz
Maximum load	160 a
Output needle
Nominal output tension	220/230/240 cow
Nominal output current	44.3 a
Wave	Pure sinusoidal wave
Nominal frequency of operation	50/60 Hz
Batteries
Battery voltage	48 vdc
Maximum current batteries	212.5 a
AC input
Nominal operating tension	230 cow
Maximum current	40 A.
Nominal frequency	50/60 Hz
Overvoltage	20400 will
Maximum AC charging current	140 a
gEnEral
Display	Lcd
Communication	RS485/ RS232, WFI (optional)
size	530 x 390 x 130mm
Weight	14.2 kg
Batteries type	AGM, gel batteries
Logger wifi	BK77957
