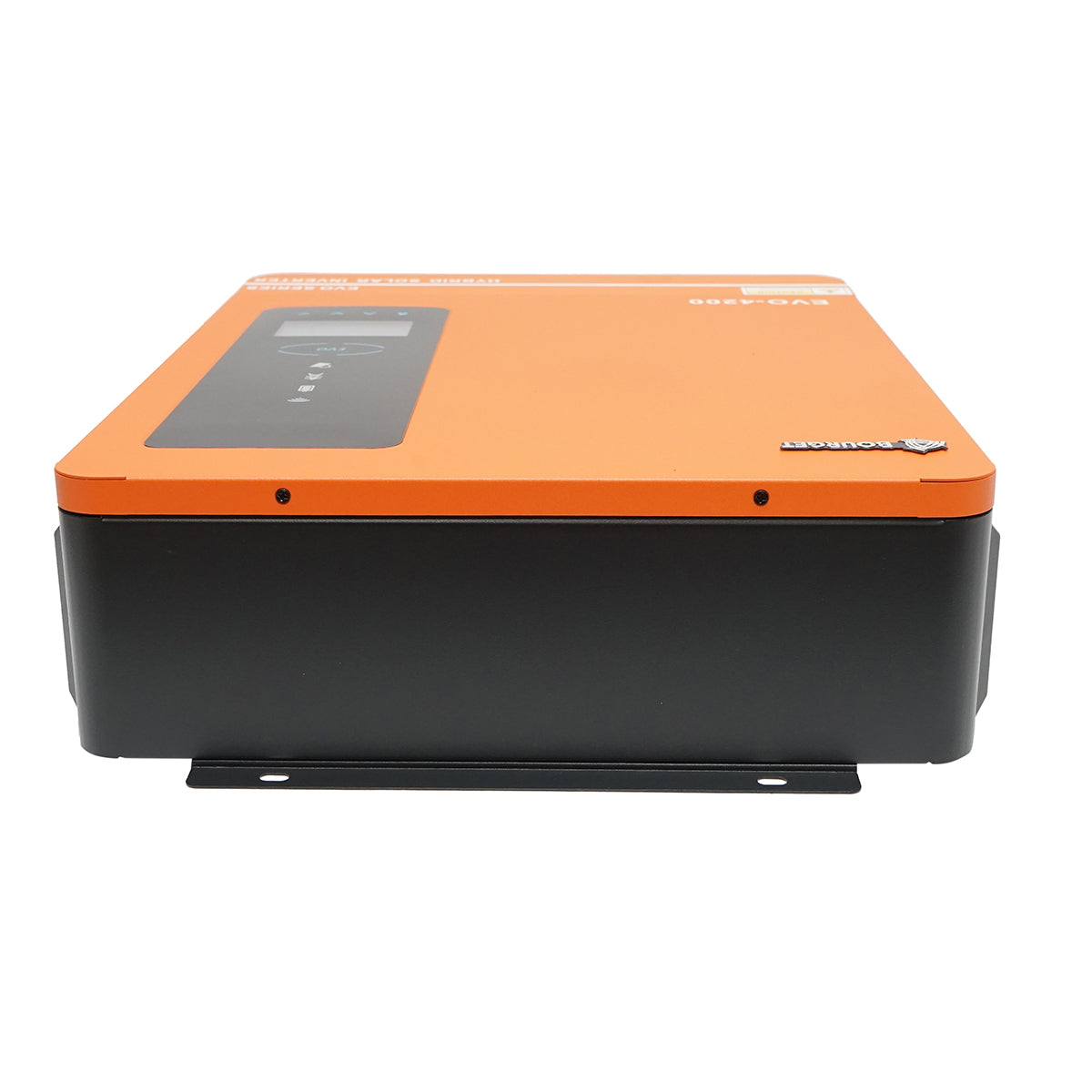

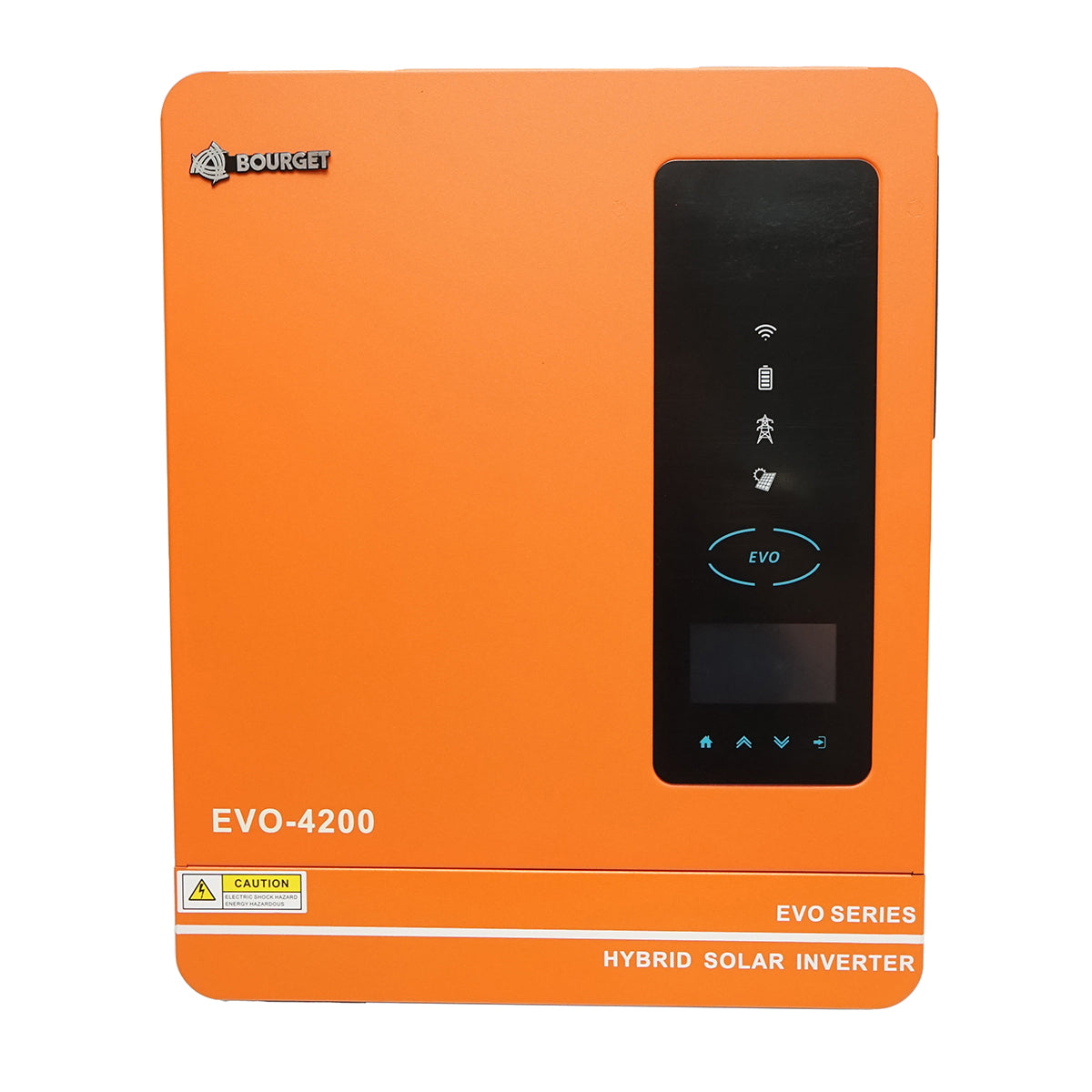

Hybrid solar inverter 3.0 KW, 24V, 120A MPPT, single-phase, ON/OFF-GRID, EVO-4200 Bourget

About the Product

Brandi	Bourget
PV input (solar panels)
Nominal power	3000 w
Nominal operating voltage	240 vdc
Maximum voltage (VMAX PV)	500 VDC
Tension interval of PV input	60 - 450 VDC
Maximum current	18 a
MPPT range at maximum task	240 - 450 VDC
Maximum PV input	6200 w
Maximum solar charging current	120 a
Output in network / needle (grid / output)
Nominal output tension	220 /230 /240 cow
Tension range network for injection	195 - 253 cow
Frequency of network frequency	50 ± 1 Hz
Nominal output current	18.2 a
Power factor	> 0.99
Maximum conversion efficiency DC/AC	97%
Nominal operating frequency	50 /60 Hz
Output power on two circuits
Total power	4200 w
Maximum main pregnancy	4200 w
Maximum secondary load	1400 w
Tension to stop the main task	26 vdc
TENSION OF RELATING THE MAIN TASK	27 vdc
AC input
Nominal operating voltage	230 cow
Maximum entry current	30 a
Nominal frequency	50 /60 Hz
Peak power	8400 will
Maximum load	100 a
BATTERY
Battery voltage	24 vdc
Maximum battery current	175 a
Logger Wi-Fi Pro	93RG555
