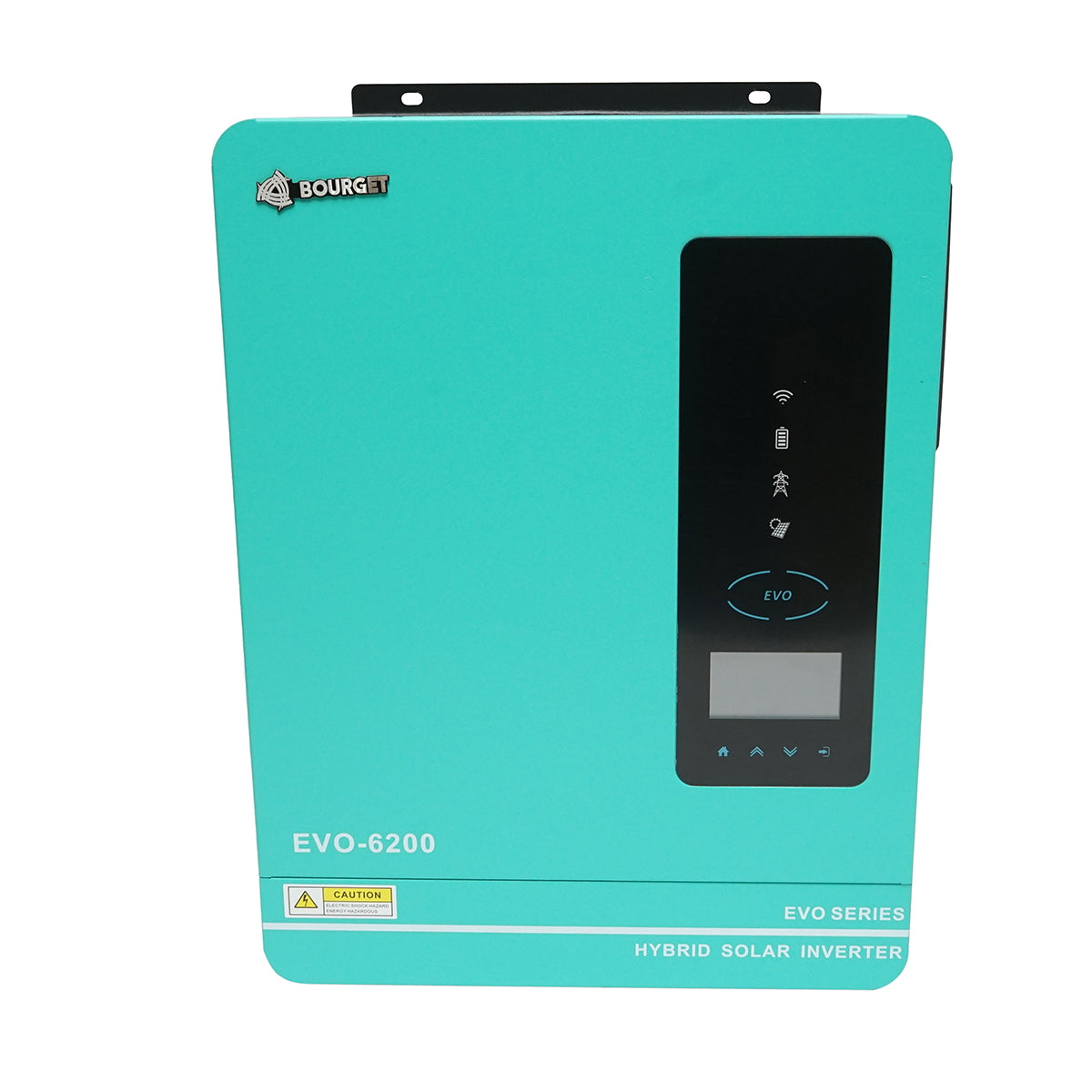

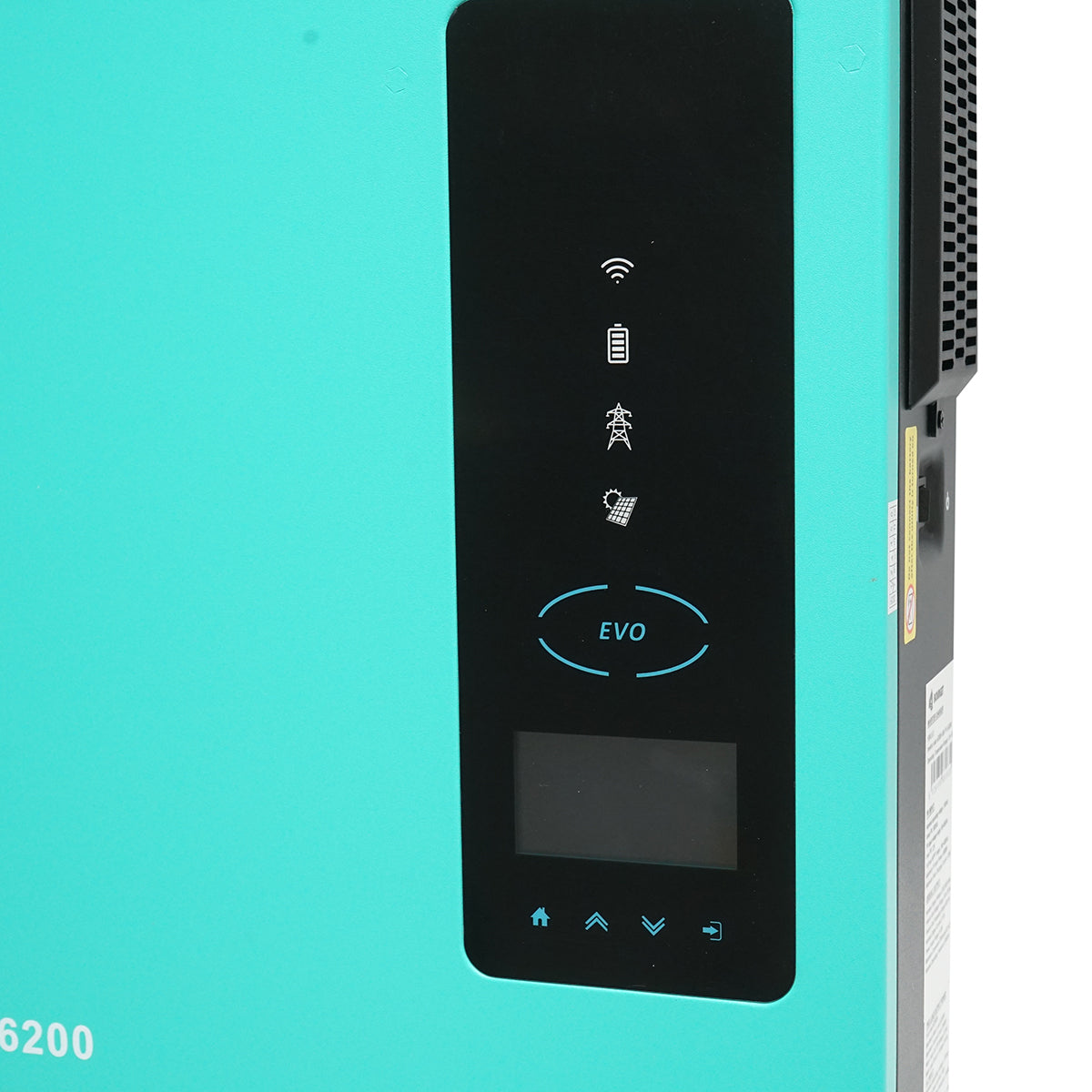

Hybrid solar inverter 6.2 KW, 48V, 120A MPPT, single-phase, ON/OFF-GRID, EVO-6200 Bourget

About the Product

Brandi	Bourget
PV input (solar panels)
Nominal power	6200 w
Nominal operating voltage	240 vdc
Maximum voltage (VMAX PV)	500 VDC
Tension interval of PV input	60 - 450 VDC
Maximum current	22 a
MPPT range at maximum task	240 - 450 VDC
Maximum PV input	6500 w
Maximum solar charging current	120 a
Output in network / needle (grid / output)
Nominal output tension	220 /230 /240 cow
Tension range network for injection	195 - 253 cow
Frequency of network frequency	50 ± 1 Hz
Nominal output current	27 a
Power factor	> 0.99
Maximum conversion efficiency DC/AC	97 %
Nominal operating frequency	50 /60 Hz
Output power on two circuits
Total power	6200 w
Maximum main pregnancy	6200 w
Maximum secondary load	2066 w
Tension to stop the main task	52 VDC
TENSION OF RELATING THE MAIN TASK	54 vdc
AC input
Nominal operating voltage	230 cow
Maximum entry current	40 A.
Nominal frequency	50 /60 Hz
Peak power	12400 will
Maximum load	100 a
BATTERY
Battery voltage	48 vdc
Maximum battery current	125 a
Logger Wi-Fi Pro	93RG555
