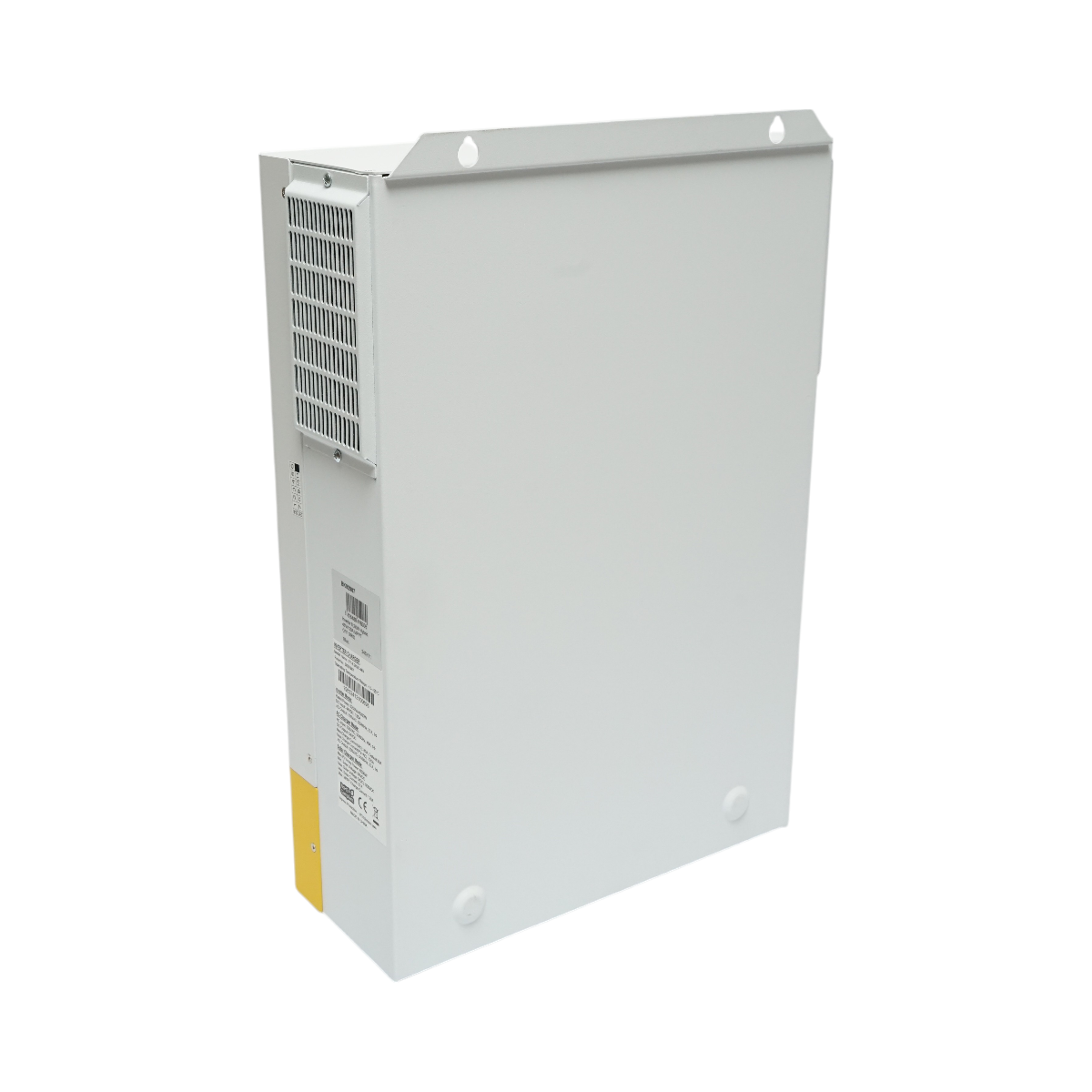

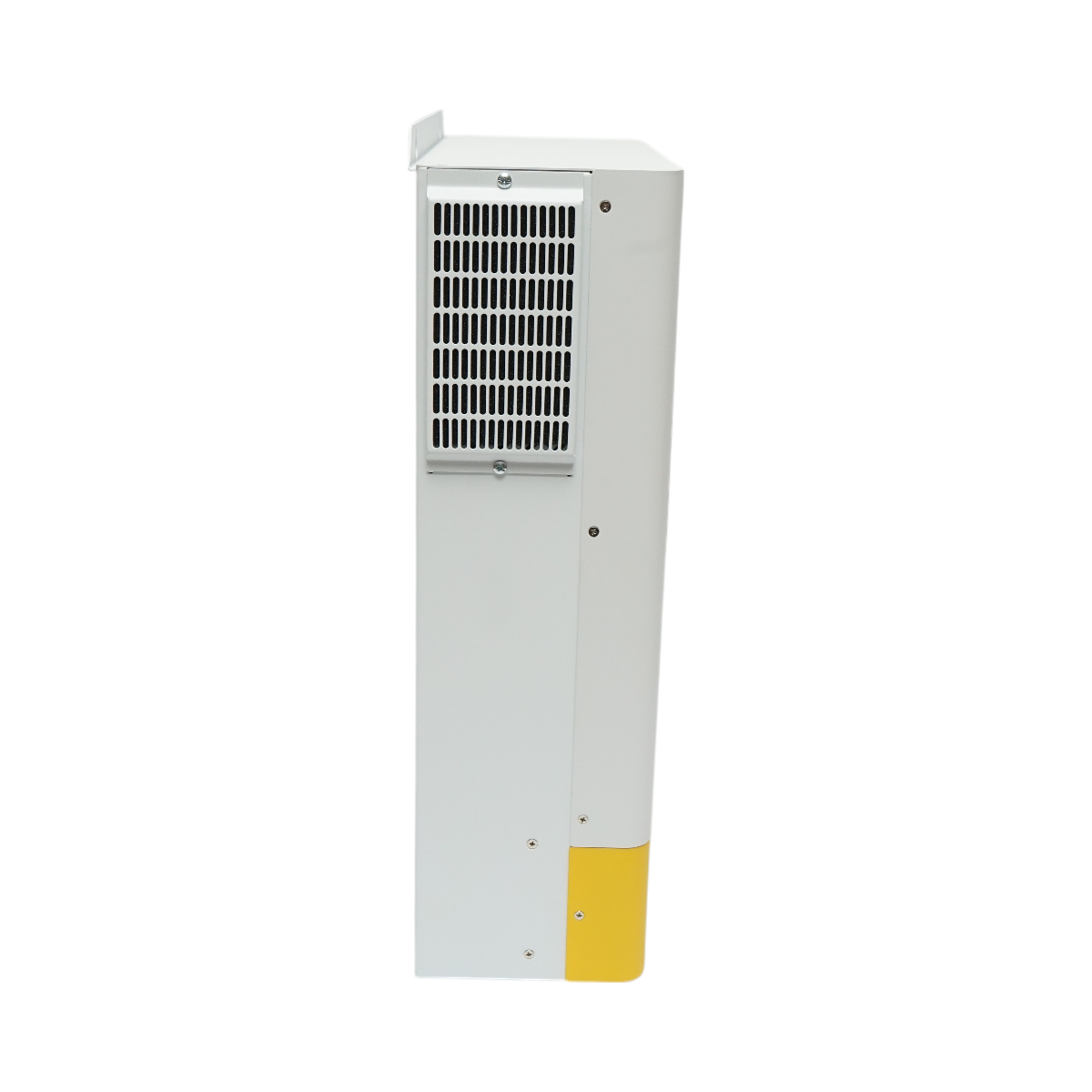

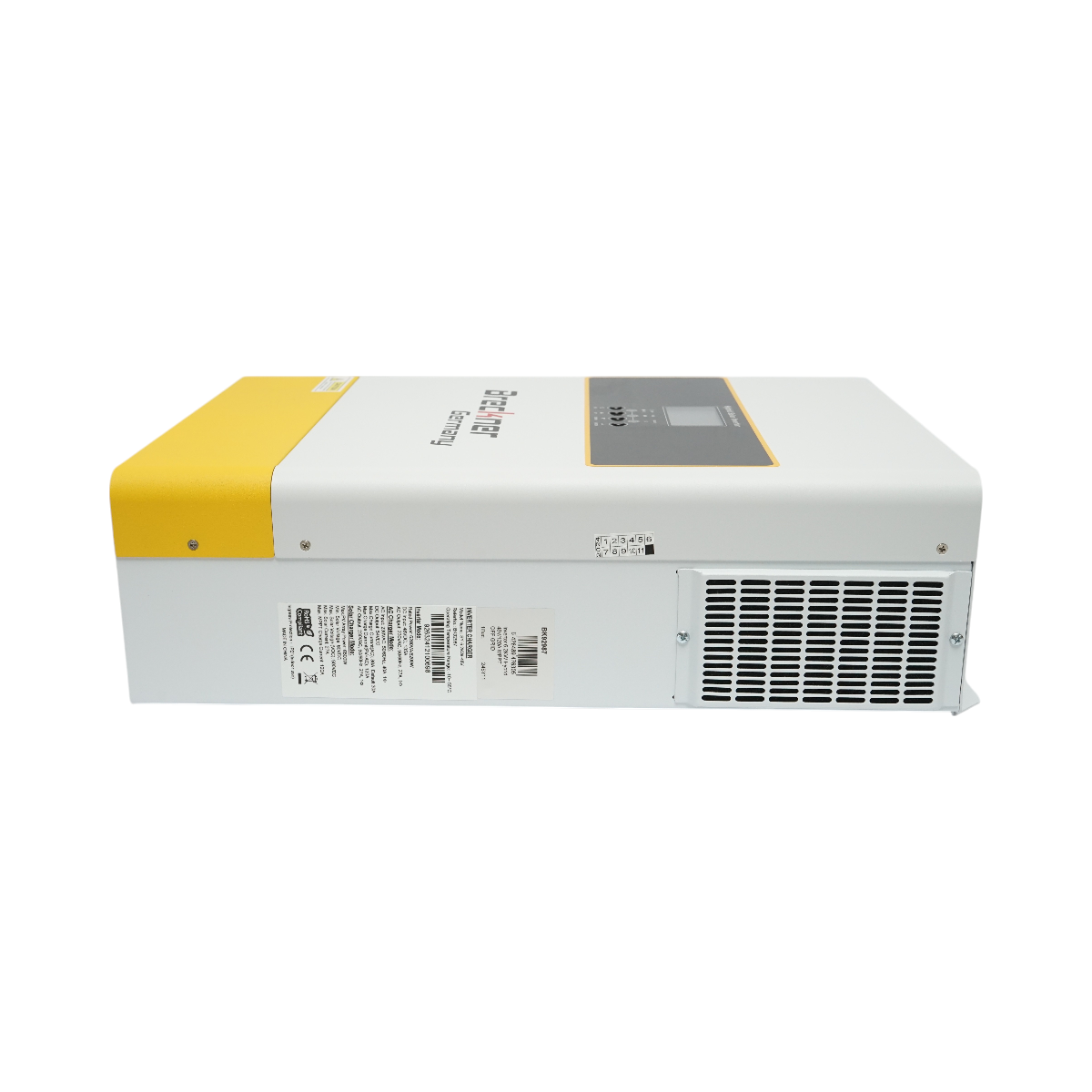

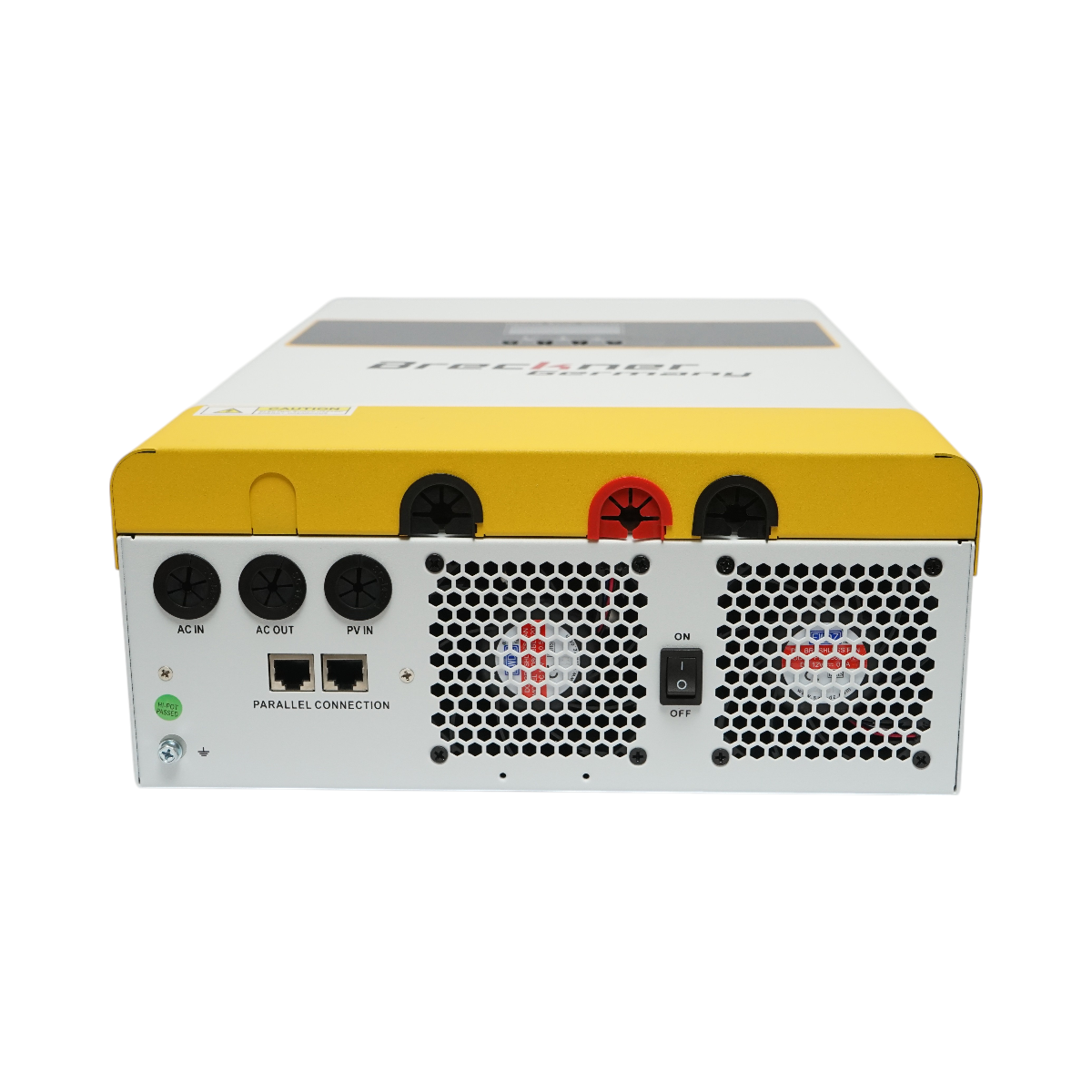

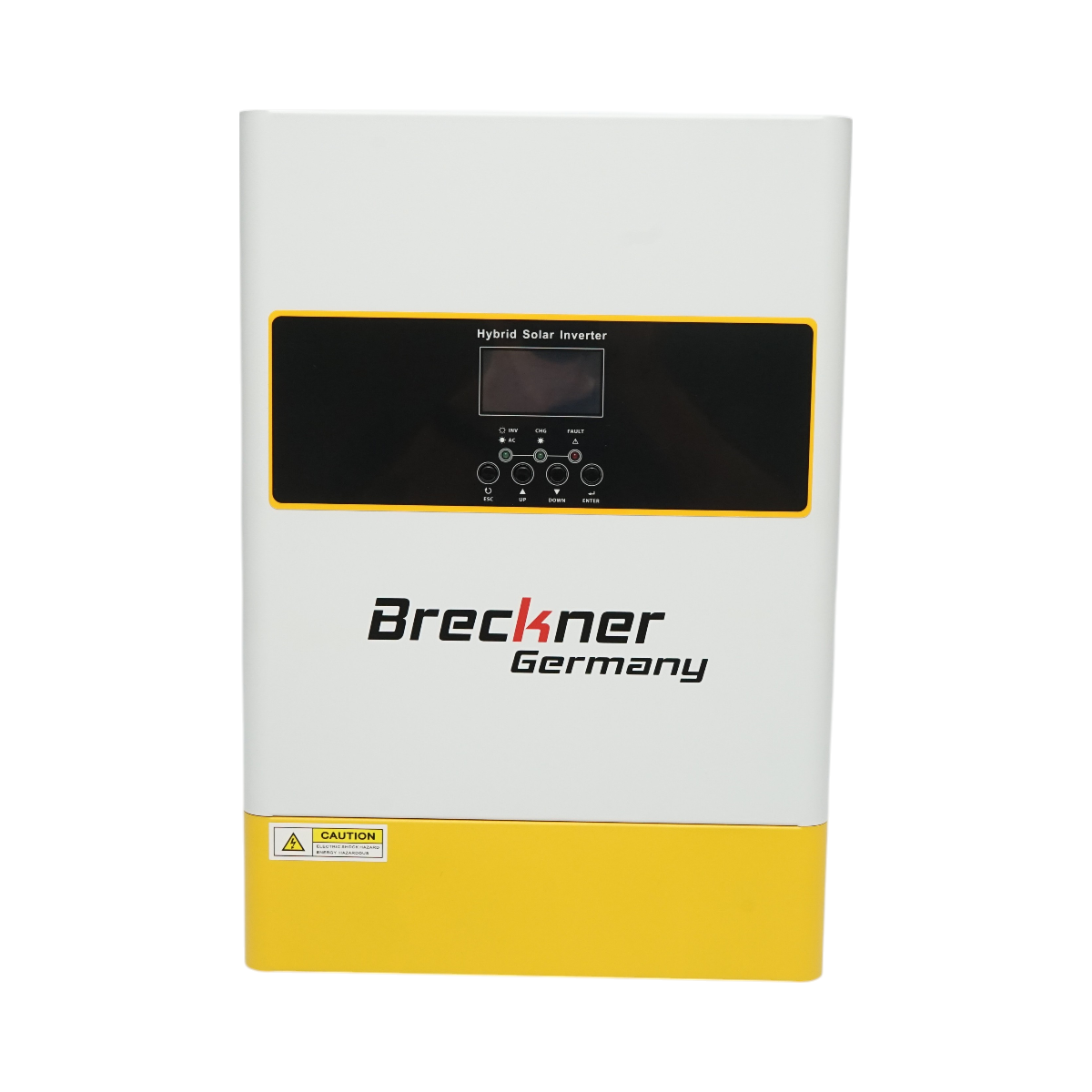

Hybrid solar inverter 6.2KW, 48VDC 135A, MPPT 120A, single-phase, OFF-GRID, parallel function SY-6.2K-48V Breckner Germany

About the Product

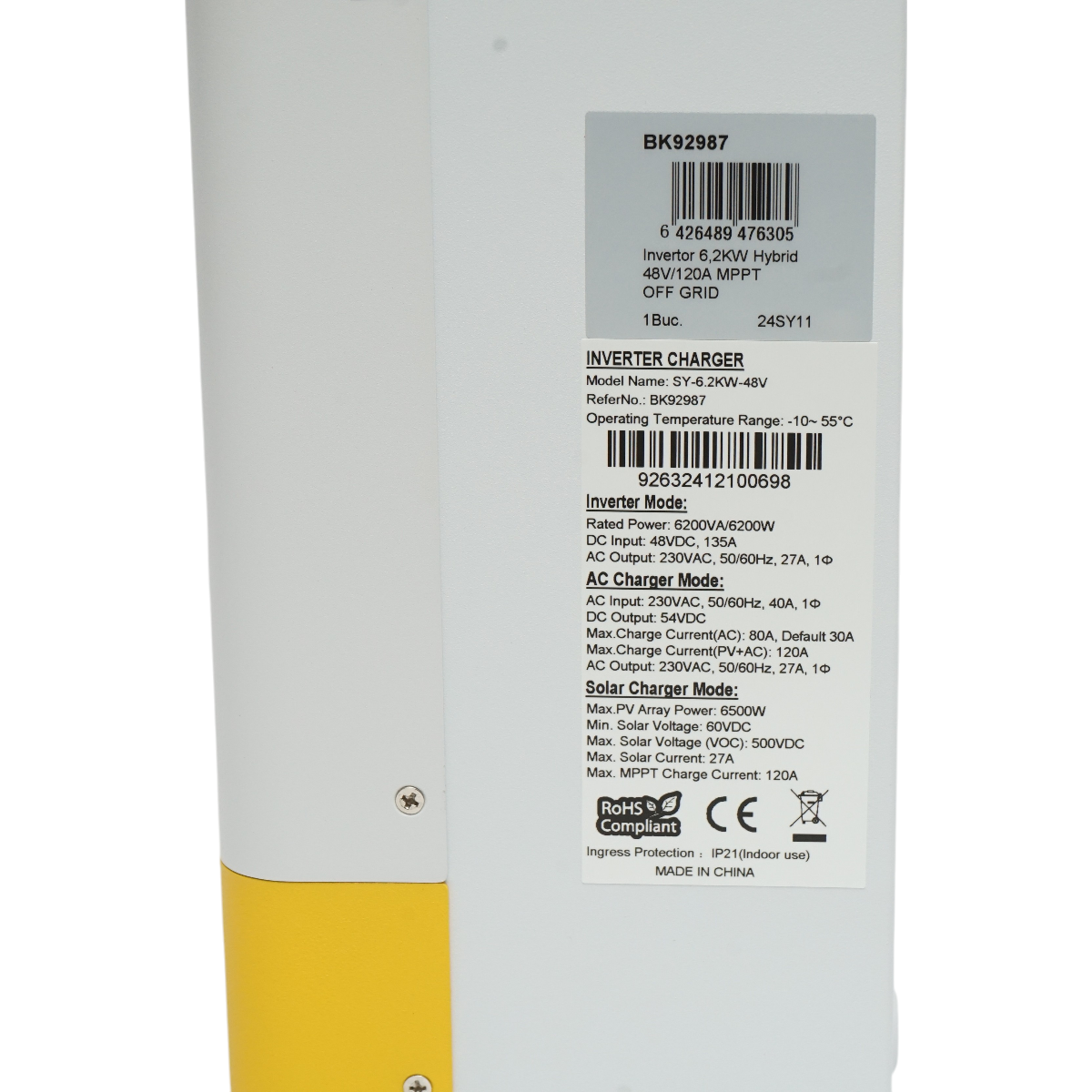

General data
Inverter type	Off-grid, hybrid with parallel function
Brandi	Breckner Germany
series	SY-6.2K-48V
size	450 x 300 x 130 mm
Weight	9.6 kg
Protection class	IP21
ENTRY
Nominal power	6200 VA/500W
Wave	Pure sinusoidal
Nominal input frequency	50/60 Hz (automatic detection)
Entry dc	48 VDC / 135A
OUTPUT
Output needle	230 cow, 50/60Hz, 27a, single -phase (1φ)
Peak efficiency	94 %
Battery charge
Battery voltage	48 vdc
Strengthen ac	230VAC, 50/60Hz, 40A, single -phase (1φ)
Output dc	54 vdc
Maximum charging current (AC)	80A (default set to 30A)
Maximum Combined Current (PV+AC)	120a
Output needle	230VAC, 50/60Hz, 27A, single -phase (1φ)
Batteries type	Gel, lead-Acid, Agm
PV panels
Maximum power from panels	6500 w
Minimum tension from panels	60 vdc
Maximum tension from VOC panels	500 VDC
Current maximum panels	27
Maximum MPPT load current	120 a
