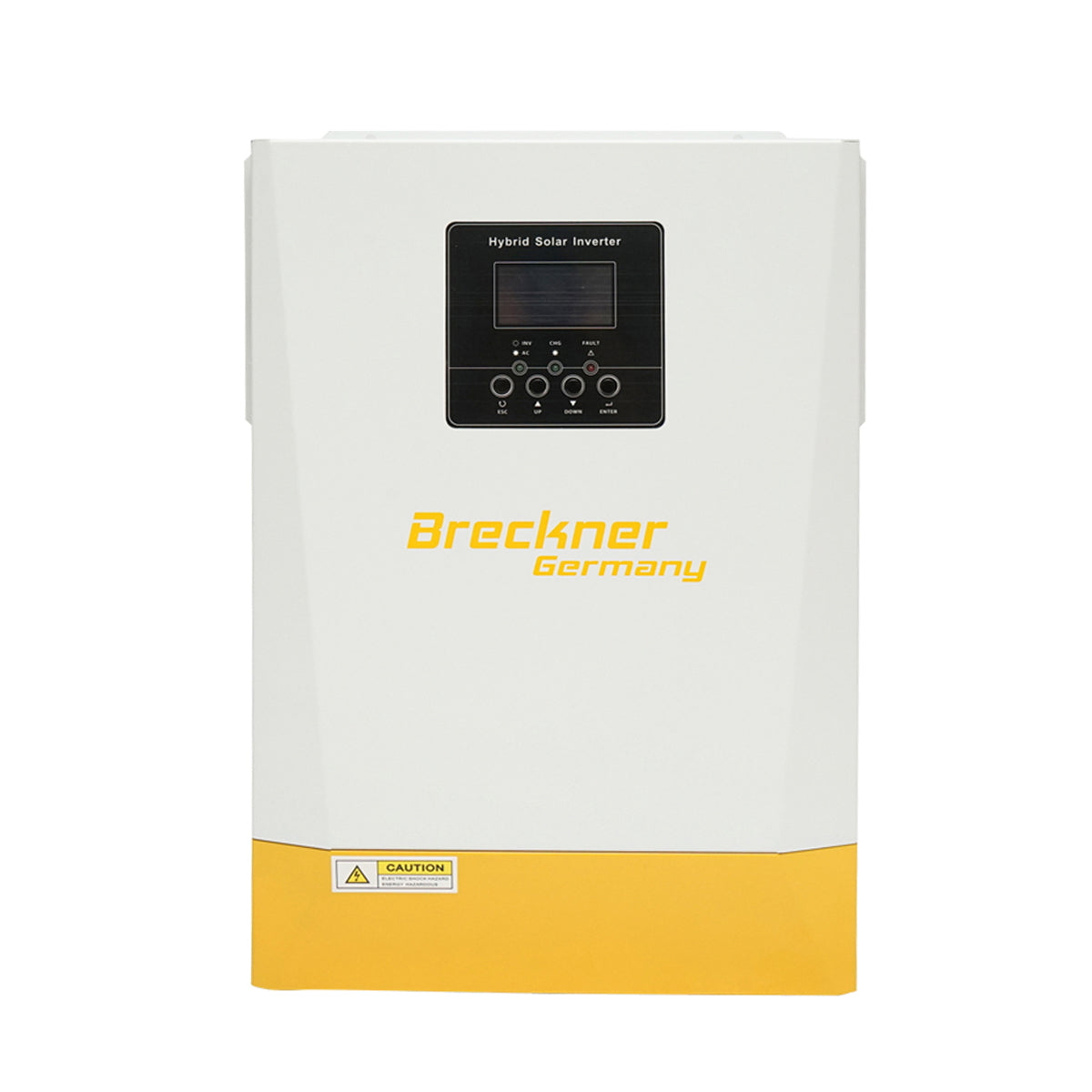

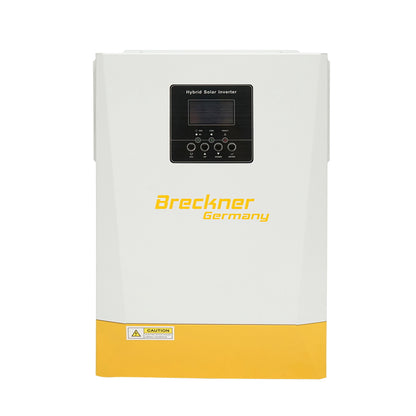

OFF-GRID solar inverter, hybrid 5.5KW M5500-48PL, 100A, with parallel function Breckner Germany

About the Product

General data
Inverter type	Off-grid, hybrid with parallel function
Brandi	Breckner Germany
series	M5500 - 48pl
size	448 x 295 x 122 mm
Weight	9.9 kg
protection	IP 20
ENTRY
Nominal power	5500 VA/5500W
Wave	Pure sinusoidal
Nominal entry frost	50/60 Hz (automatic detection)
Transfer time	10 ms (UPS) 20 ms (electrocanic)
OUTPUT
AC voltage	230 cow
Peak efficiency	94 %
Efficiency	95 %
output	230 Vac, 50/60 Hz, 23.9A
Battery charge
Battery voltage	48 vdc
Loading voltage	60 a
Max PV+AC current	100 a
Batteries type	lead-Acid, Agm
PV panels
Max power from the panels	5500 w
The minimum tension from the panels	120 vdc
Maximum tension from VOC panels	500 VDC
Maxima MPPT range	100 a
