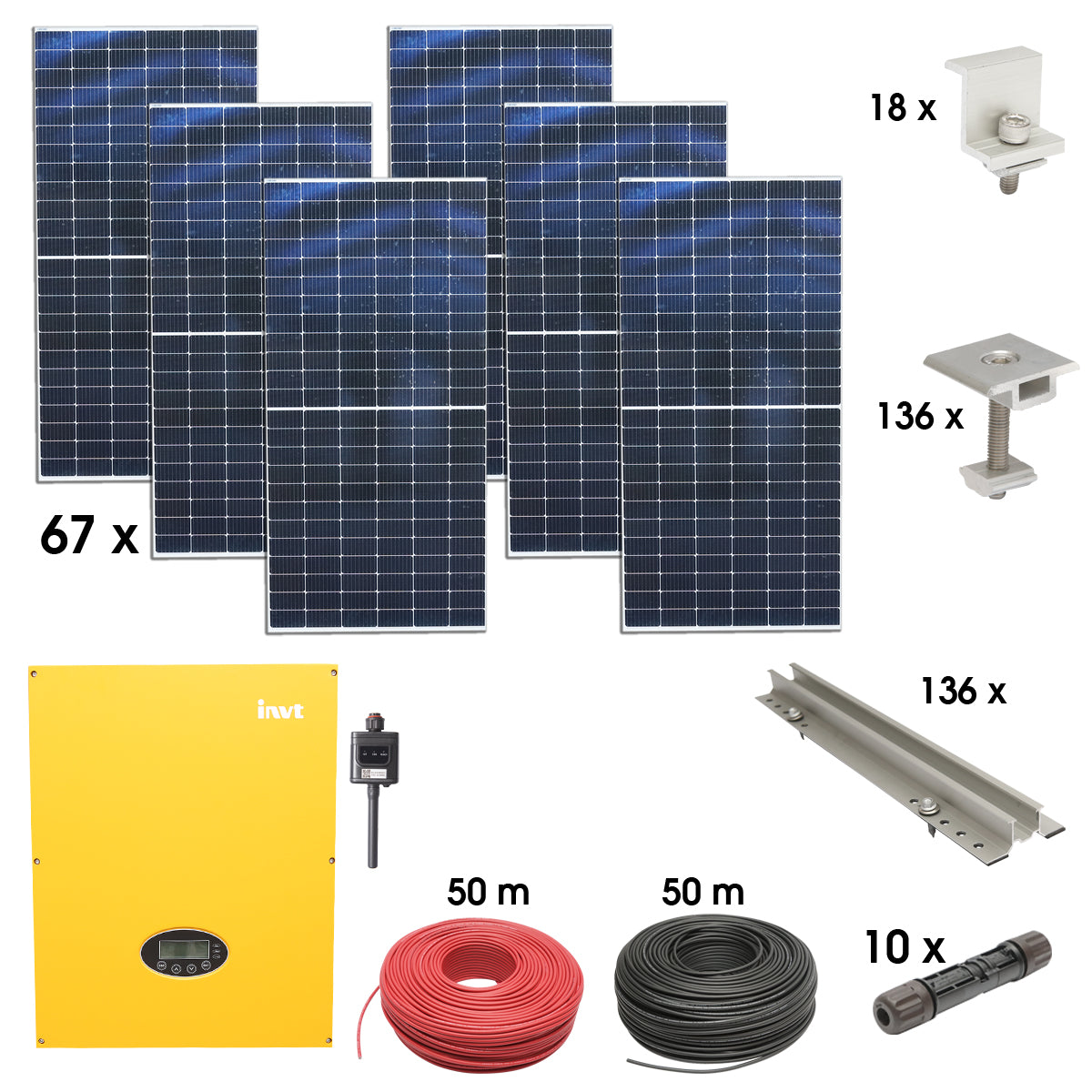

30KW ON-GRID three-phase photovoltaic solar system kit with 67x450W panels, prosumer WIFI with mounting system for Breckner Germany sandwich panels.

Name: 30KW ON-GRID three-phase photovoltaic solar system kit with 67x450W panels, prosumer WIFI with mounting system for Breckner Germany sandwich panels.
Brand: My Store
SKU: BK88714
Availability: InStock

About the Product

Open - Inverter Technical Tool

Open - Inverter Usage Manual

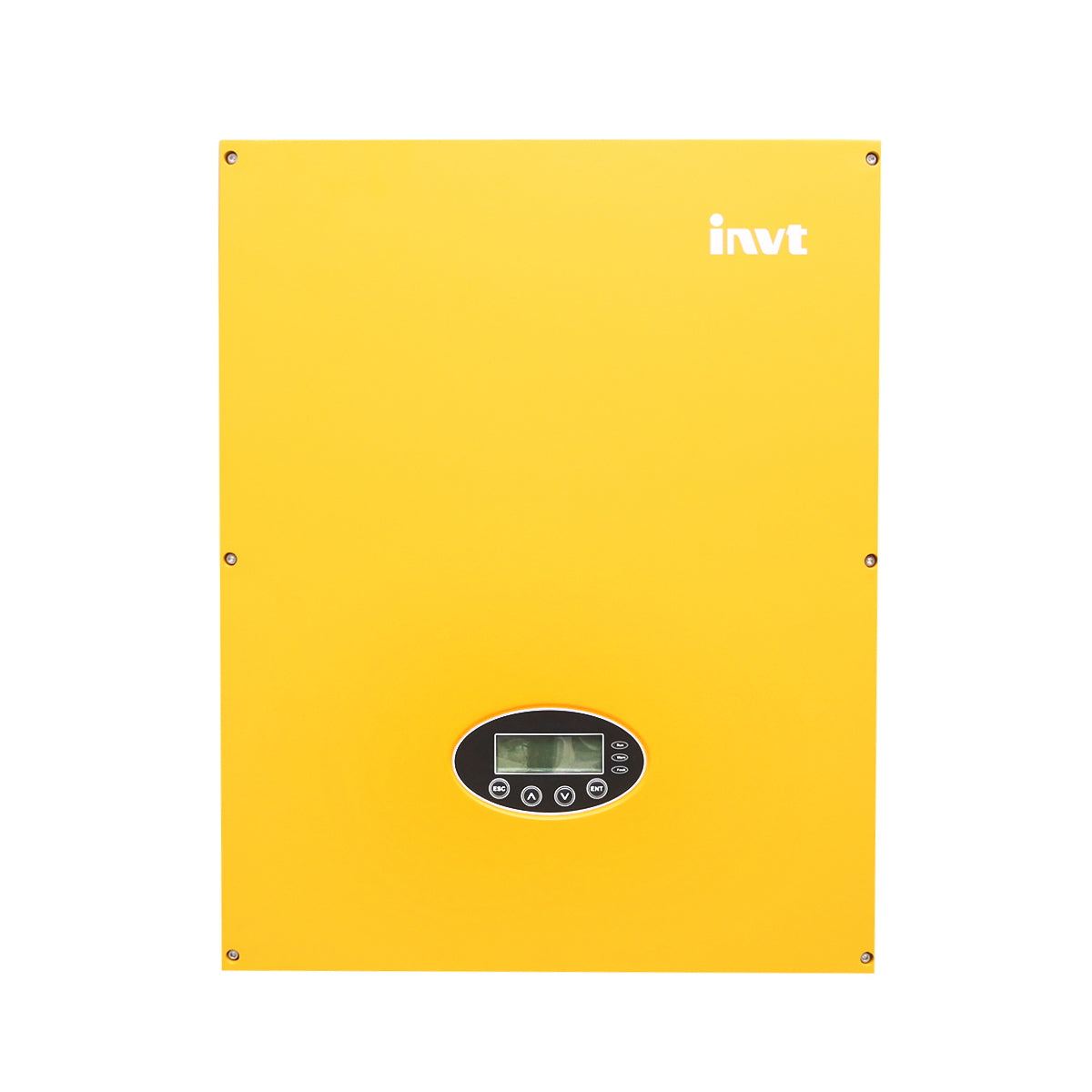

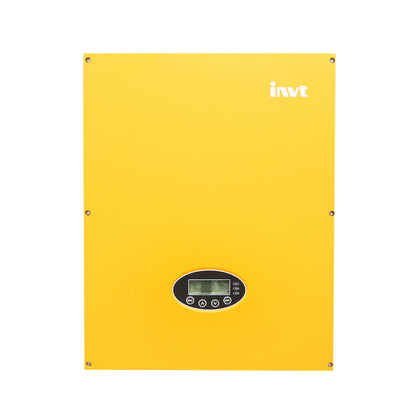

- 1 pcs X Solar Inverter Imars Trifazic Dual MPPT BG30KTR ON-GRID 30KW

Max power. input dc	33,000 w
MPPT input voltage	1000 v
Number of MPPT	2
Nominal output power	30,000 w
Nominal output intensity	48 a
Nominal output voltage	220-230 / 380-400 V
size	660 x 520 x 250 mm
Weight	52 kg
Protection	IP65

- 67 pcs xSolar panel 450W Photovoltaic monocrystalline 41.5V 2108x1048x35mmbrengner Germany

Maximum power panel	450 w
Maximum intensity panel	10.85 a
Maximum tension panel	41.5 v
Short circuit	11.6 a
Open circuit voltage	44.2 V.
Maximum voltage system	DC 1500 V.
Size	2108 x 1048 x 35 mm
Protection factor	IP 68
Weight	23.5 kg
