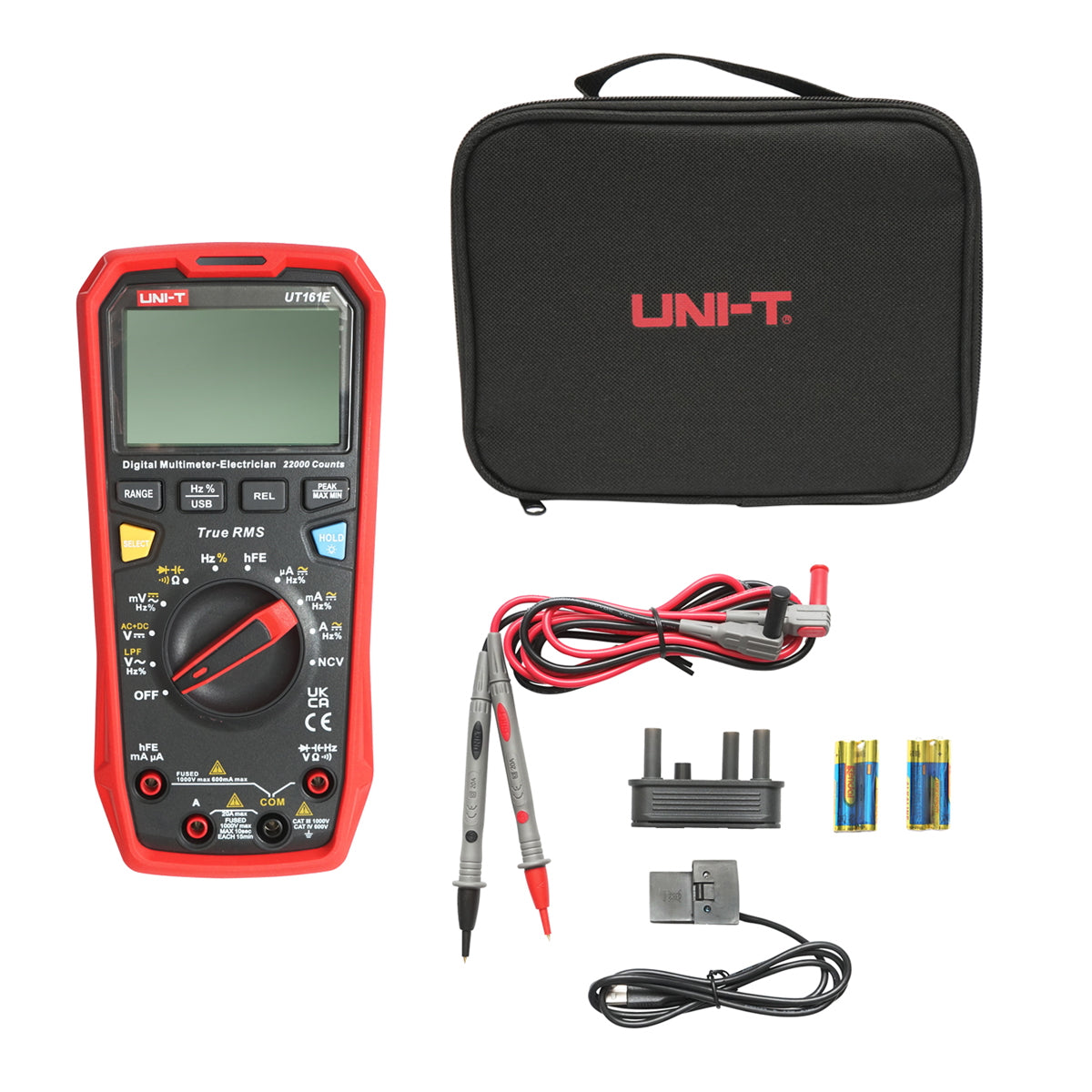

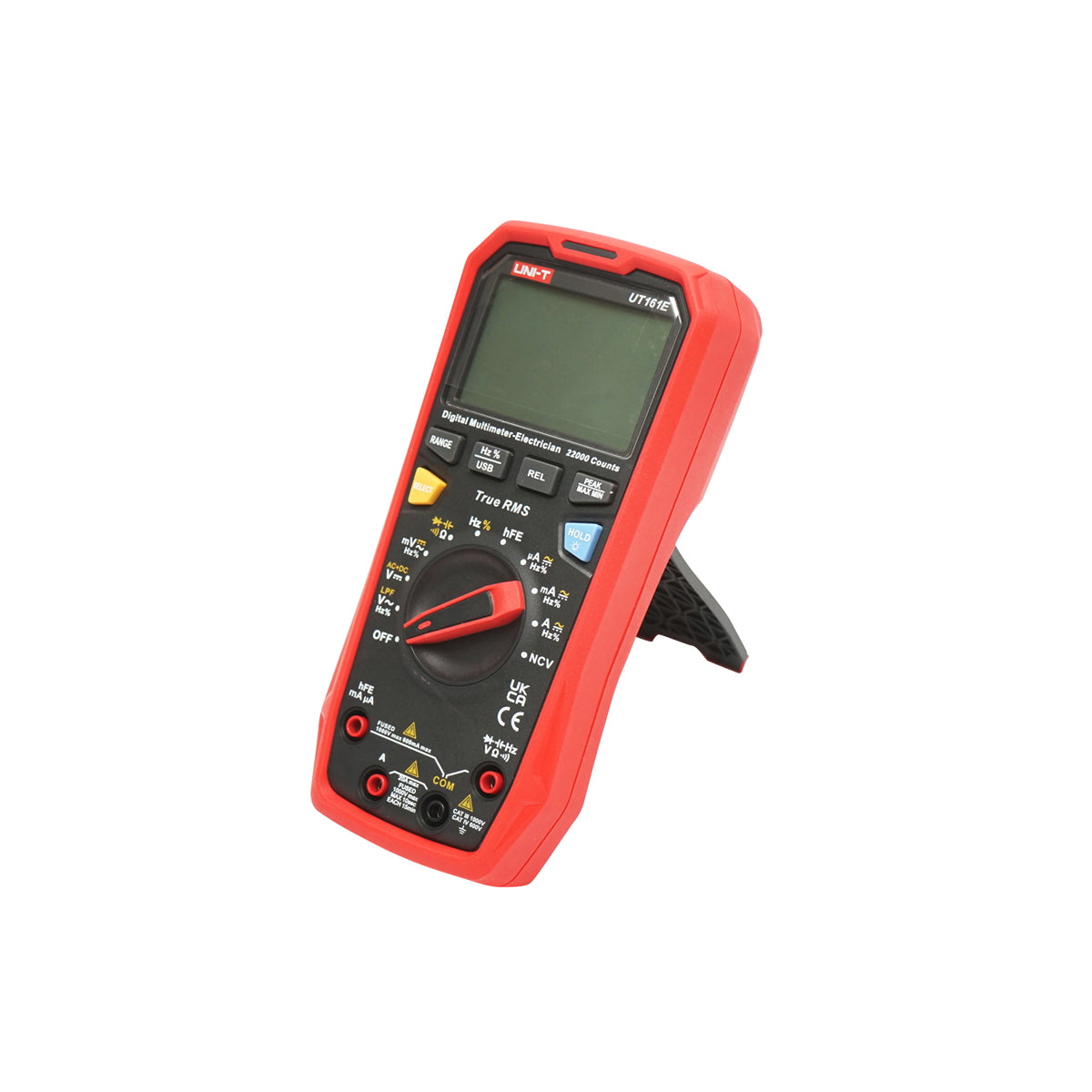

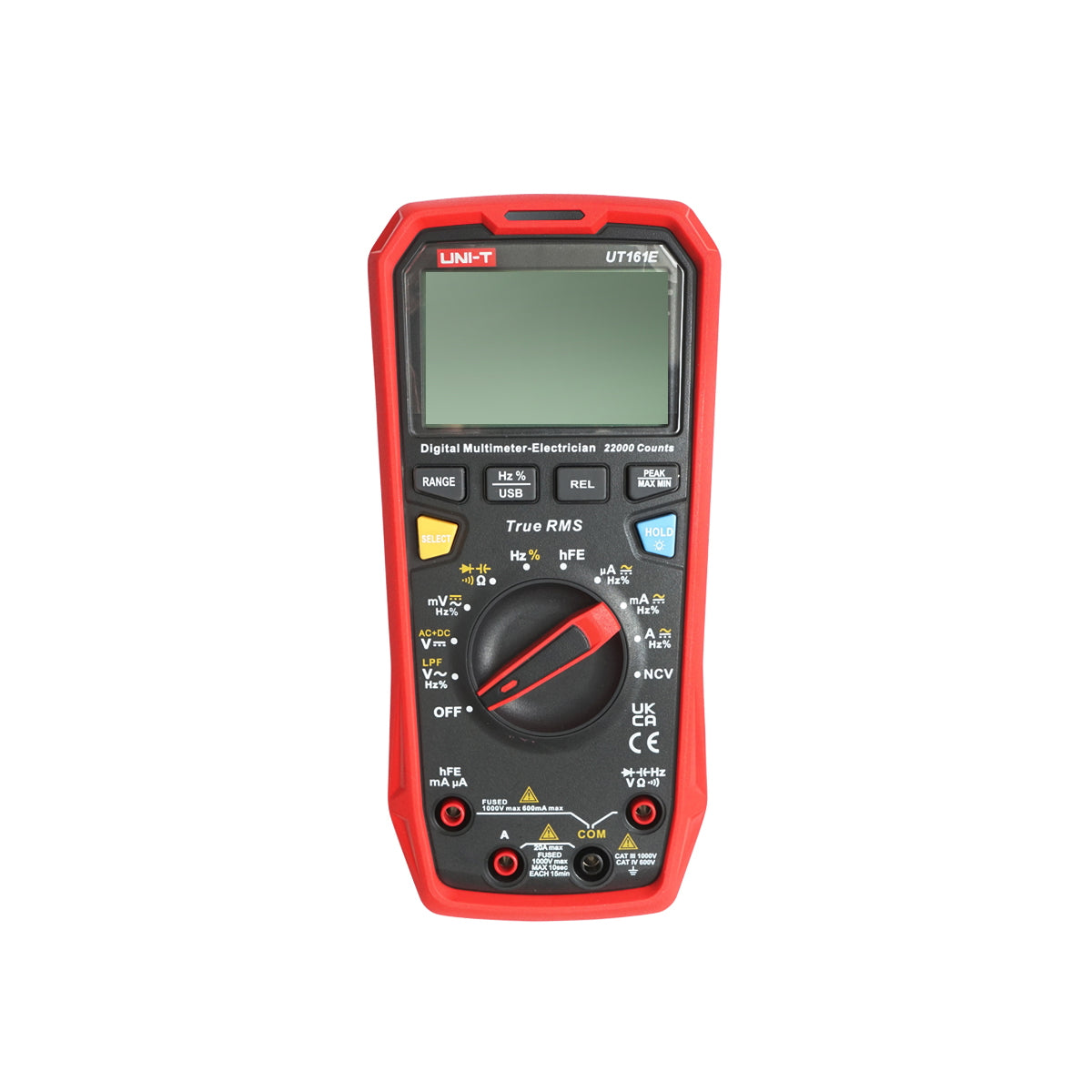

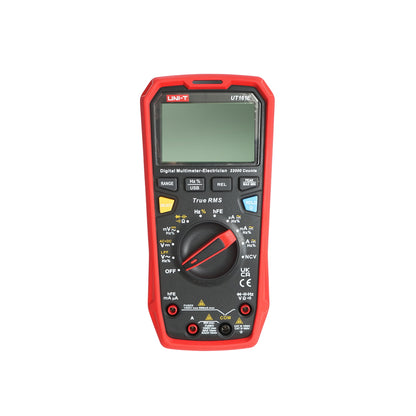

Digital multimeter 9 functions, UT161E, UNI-T

Technical parameters:

1. DC voltage measurement:

220.00 MV / 0.01mv / ± (0.1% + 5)

2.2000 V / 0.1 MV / ± (0.05% + 5)

22,000 V / 1 MV / ± (0.05% + 5)

220.00 V / 10 MV / ± (0.05% + 5)

1000 V / 0.1 V / ± (0.1% + 5)

2. AC voltage measurement:

220.00 MV / 0.01 MV / ± (1.0% + 10) / ± (1.5% + 30) / unspecified

2.2000 V / 0.1 MV / ± (0.8% + 10) / ± (1.2% + 50) / ± (1.2% + 50)

22,000 V / 1 MV / ± (0.8% + 10) / ± (1.2% + 50) / ± (1.8% + 50)

220.00 V / 10 MV / ± (0.8% + 10) / ± (2.0% + 50) / ± (2.0% + 50)

1000 V / 0.1 V / ± (1.2% + 10) / ± (3.0% + 50) / ± (3.0% + 50)

3. AC + DC voltage measurement:

2.2000 V / 0.1 MV / ± (1.8% + 70)

22,000 V / 1 MV / ± (1.8% + 70)

220.00 V / 10 MV / ± (1.8% + 70)

1000 V / 0.1 V / ± (4.0% + 70)

4. DC Massuration:

220.00 μa / 0.01 μa / ± (0.5% + 10)

2200.0 μa / 0.1 μa / ± (0.5% + 10)

22000 Ma / 1 μa / ± (0.5 % + 10)

220.00 Ma / 10 μa / ± (0.5% + 10)

20,000 A / 1 Ma / ± (1.2% + 50)

5. Alternative current measurement:

220.00 μa / 0.01 μa / ± (0.8% + 10) / ± (3% + 50)

2200 μa / 0.1 μa / ± (0.8% + 10) / ± (3% + 50)

22 Ma / 1 μa / ± (1.2% + 10) / ± (3% + 50)

220 ma / 10 μa / ± (1.2% + 10) / ± (3% + 50)

20 A / 1 Ma / ± (1.2% + 10) / ± (3% + 50)

6. The measurement of resistance:

220.00 Ω / 0.01 ω / ± (0.5% + 10)

2.2000 KΩ / 0.1 Ω / ± (0.5% + 10)

22,000 kΩ / 1 Ω / ± (0.5% + 10)

220.00 KΩ / 10 Ω / ± (0.5% + 10)

2.2000 MΩ / 100 Ω / ± (0.8% + 10)

22,000 MΩ / 1 KΩ / ± (1.5% + 10)

220.00 MΩ / 10 KΩ / ± (3.0% + 50)

7. The capacity of the capacitor:

22,000 NF / 1 PF / ± (3.0% + 5)

220.00 NF / 10 PF / ± (3.0% + 5)

2.2000 μF / 100 pf / ± (3.0% + 5)

22,000 μF / 1 NF / ± (3.0% + 5)

220.00 μF / 10 NF / ± (40% + 5)

2.2000 MF / 100 NF / ± (40% + 5)

22,000 MF / 1 μF / ± (10% + 5)

220.00 MF / 10 μF / ± (20% + 5)

8. Masking of semiconductor diodes and junctions

9. Masking the continuity of the circuit:

When the line resistance is ≥70 Ω, an open circuit is indicated, the ringtone does not emit a sound signal and the red light indicator is lit.

When the line resistance is ≤ 50 Ω, an uninterrupted circuit is indicated, the ringing issues a continuous signal and the green indicator light is with

overload protection:

1000V resistance resolution for this measurement: 0.1 Ω

10. Frequency measurement, operating cycle:

(interval / resolution / precision)

10 Hz up to 220 MHz / 0.01 Hz up to 0.01 MHz / ± 0.01% + 5

0.1% to 99.9% / 0.1% / ± (2.0% + 5)
