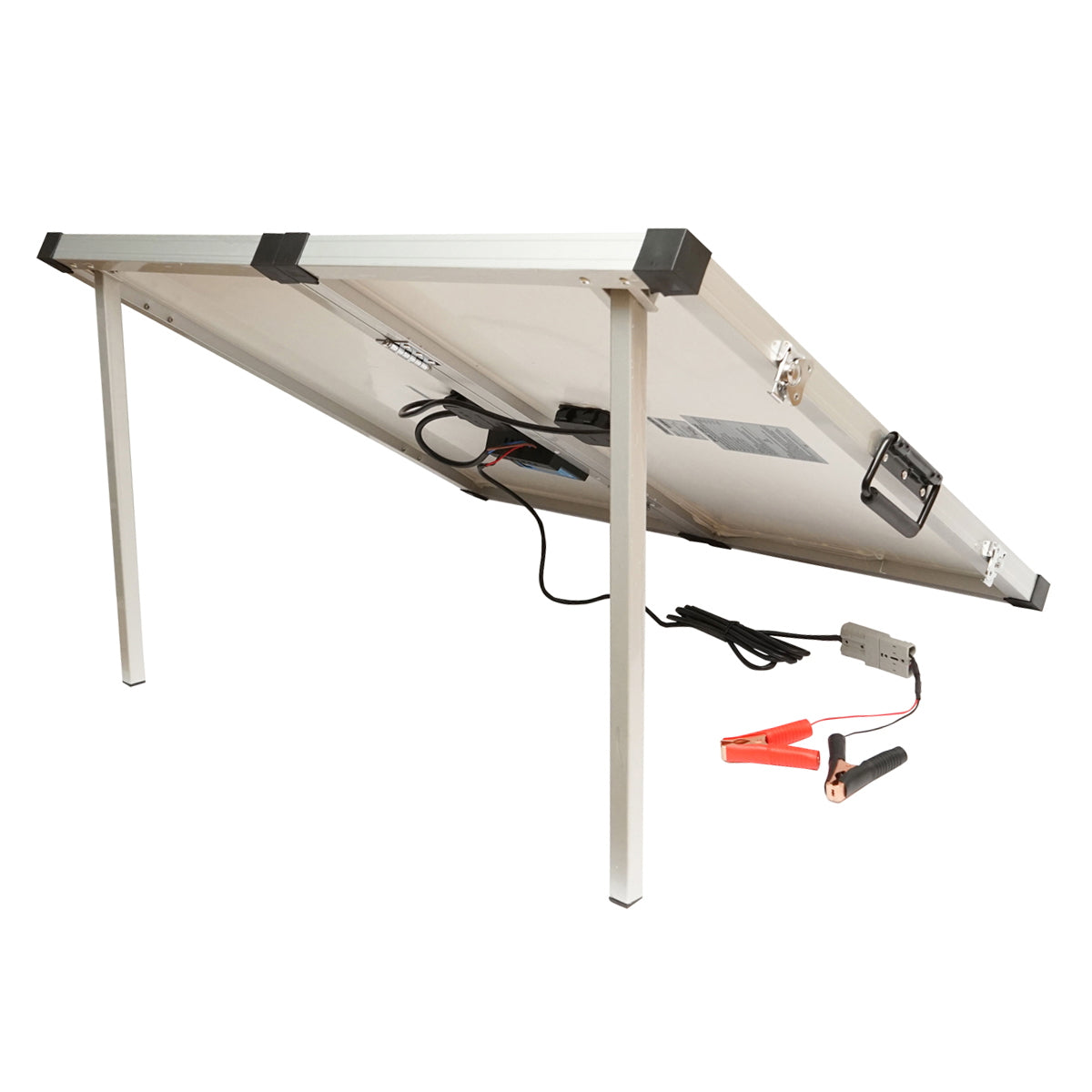

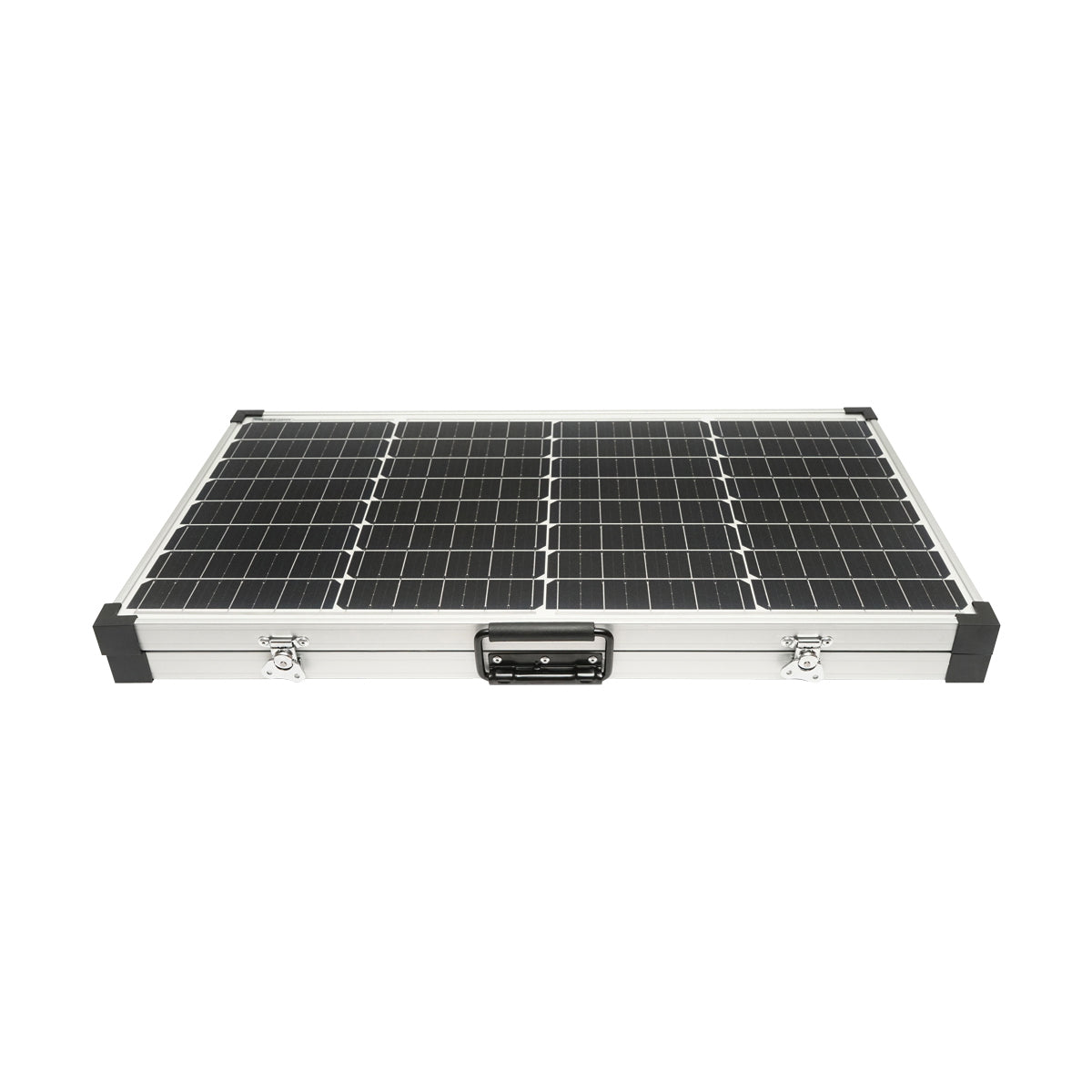

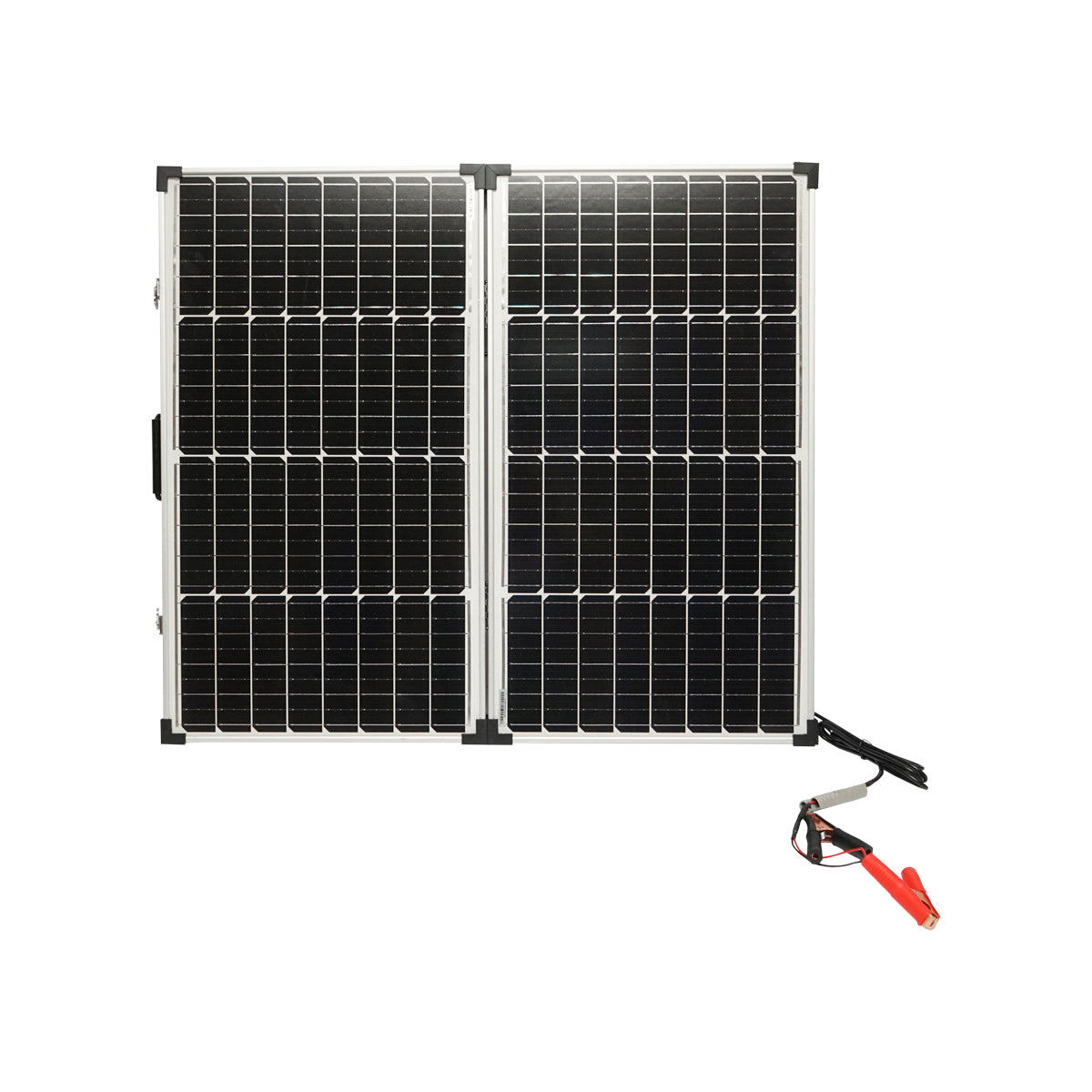

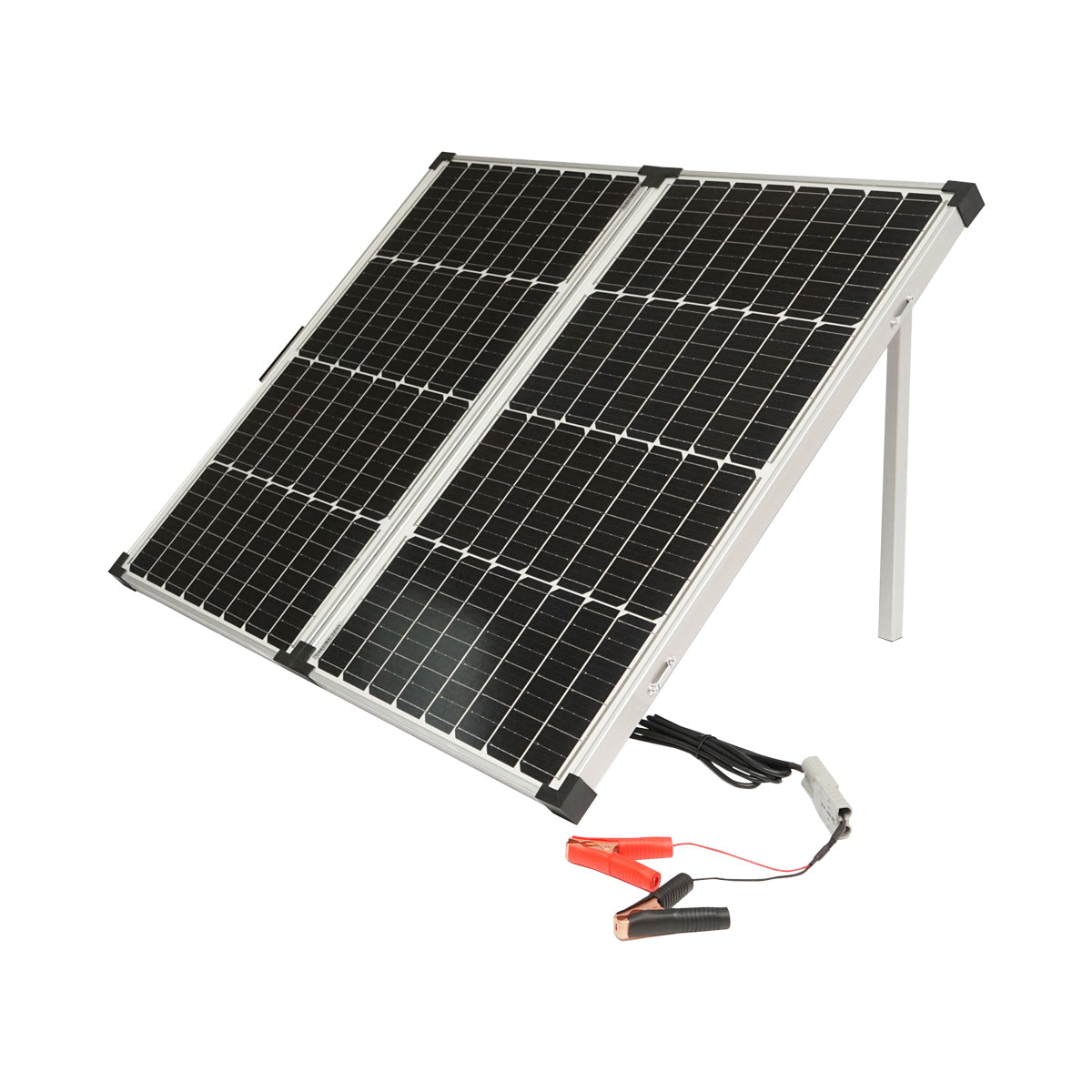

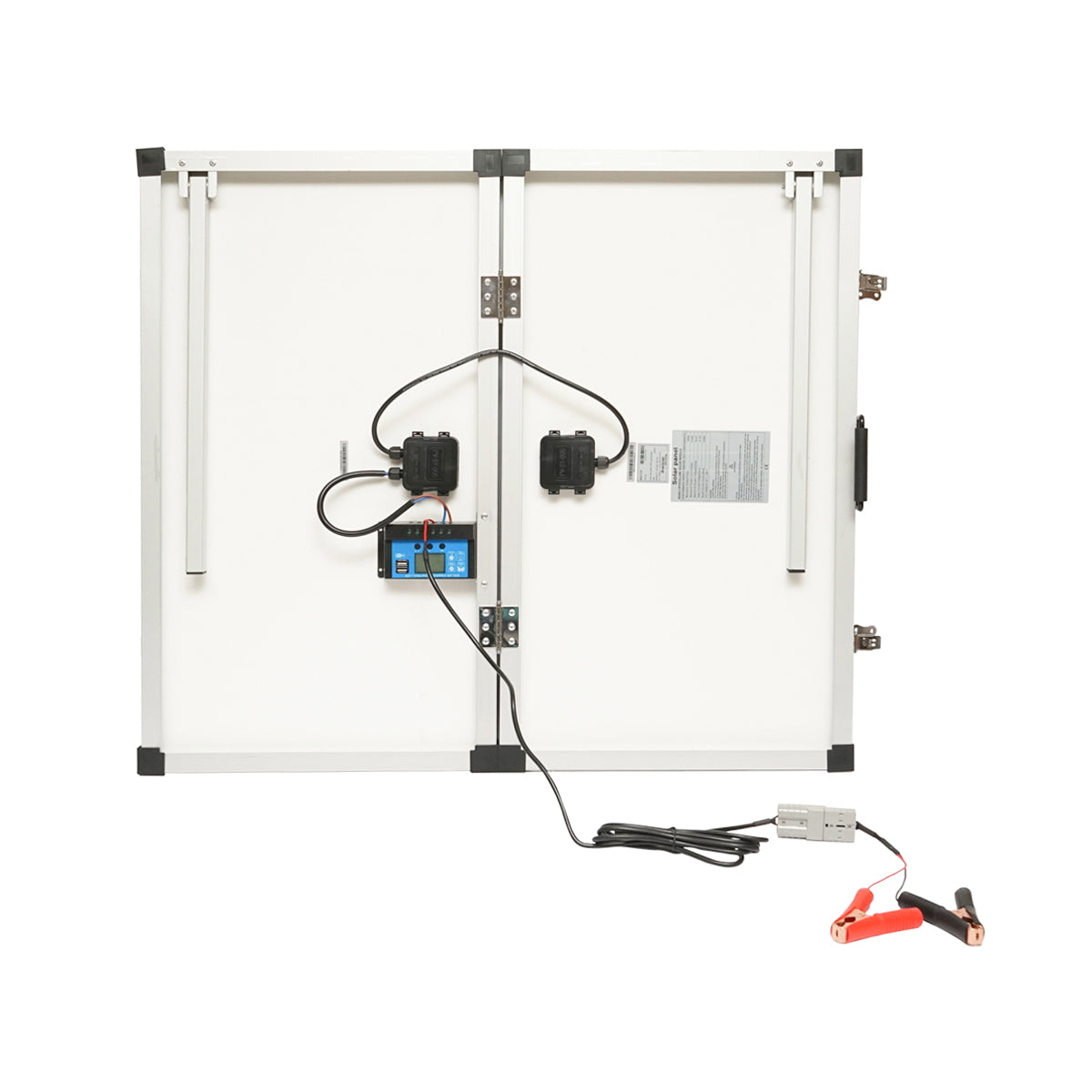

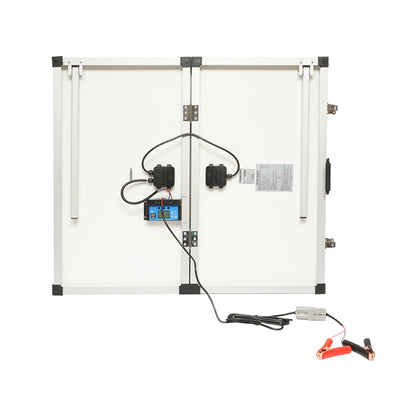

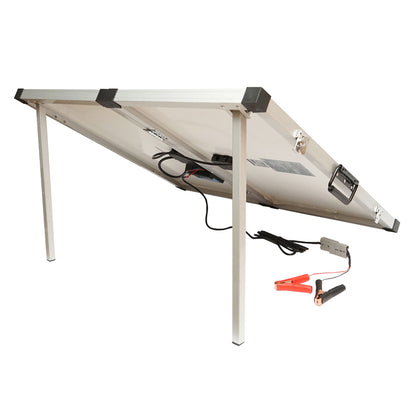

120W photovoltaic monocrystalline solar panel suitcase type with 12/24V 20Ah voltage regulator 2 USB ports Breckner Germany

About the Product

Download - Usage User Manual Tension Regulator

Solar panel
Brandi	Breckner Germany
Type	monocrystalline
Maximum power panel	120 w
Standard test condition	1000W/m2 AM 1.5 25 ° C
Maximum intensity	6.59 a
Maximum voltage VMP	18.2 v
Short circuit	6.98 a
Open circuit voltage	21.8 v
Operating temperature	-45 ° C - +85 ° C.
Open size	860 x 760 x 30 mm
Closed size	760 x 430 x 60 mm
Weight	7.9 kg
Cable length	2 m

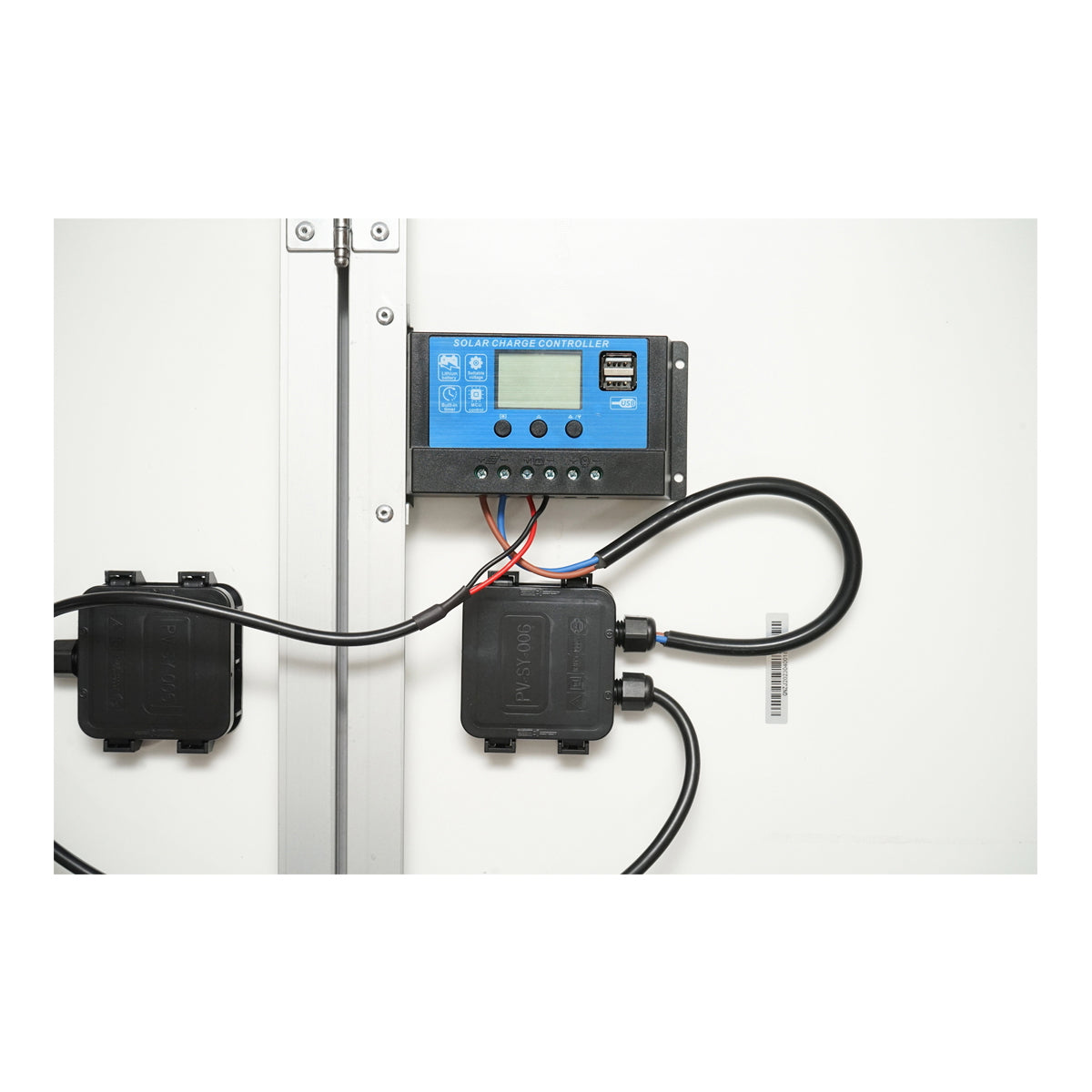

Voltage regulator
tension	12 - 24 V
Intension	20 a
Max PV Voltage	50 v
Power Max Input PV input	12V - 260W / 24V -520W
outputs	2 x USB
