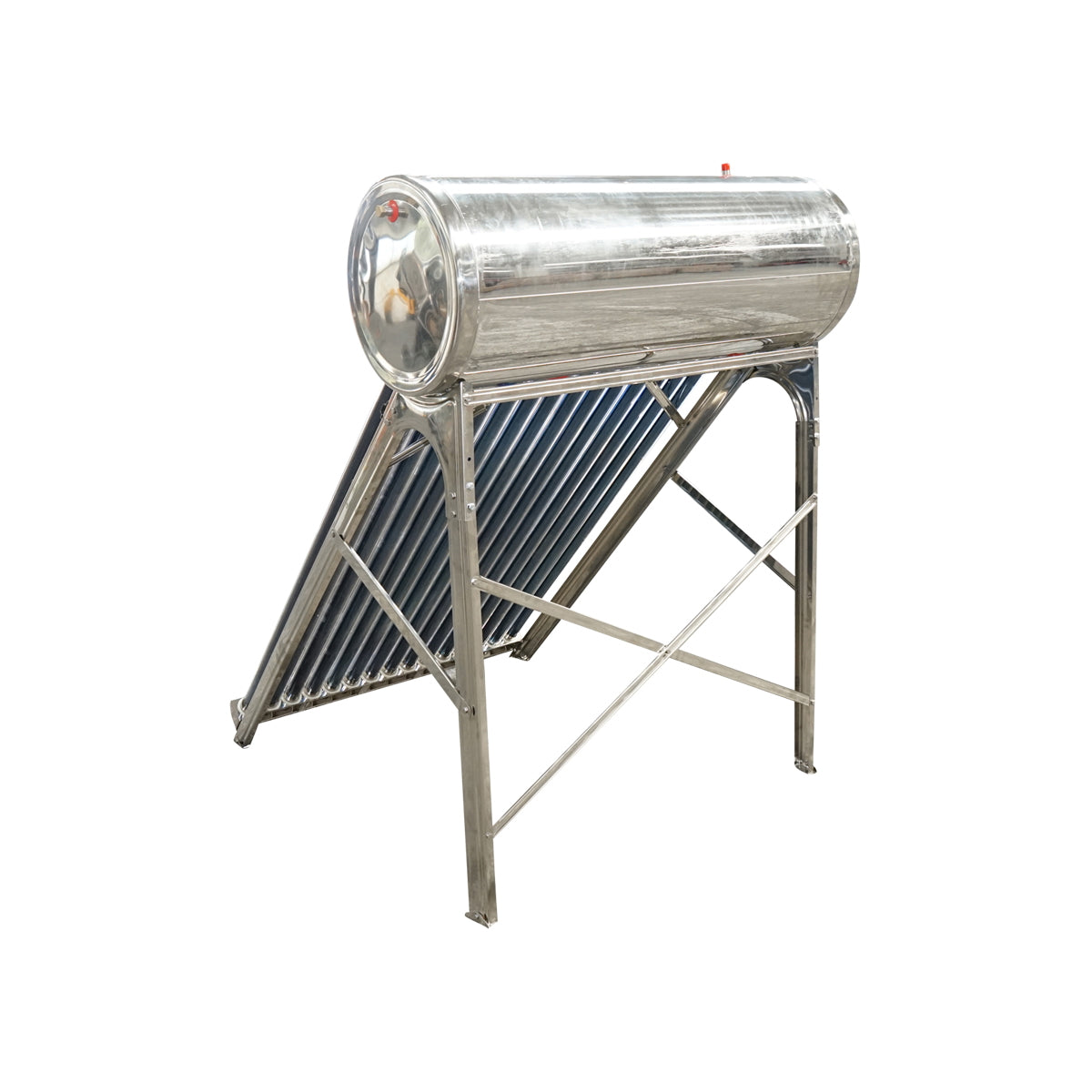

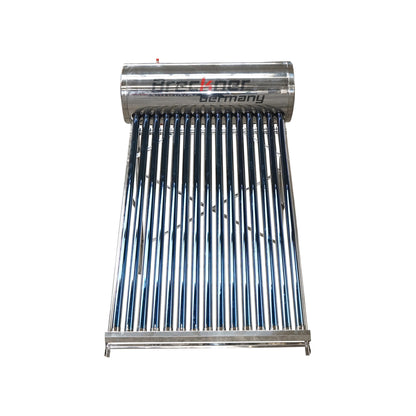

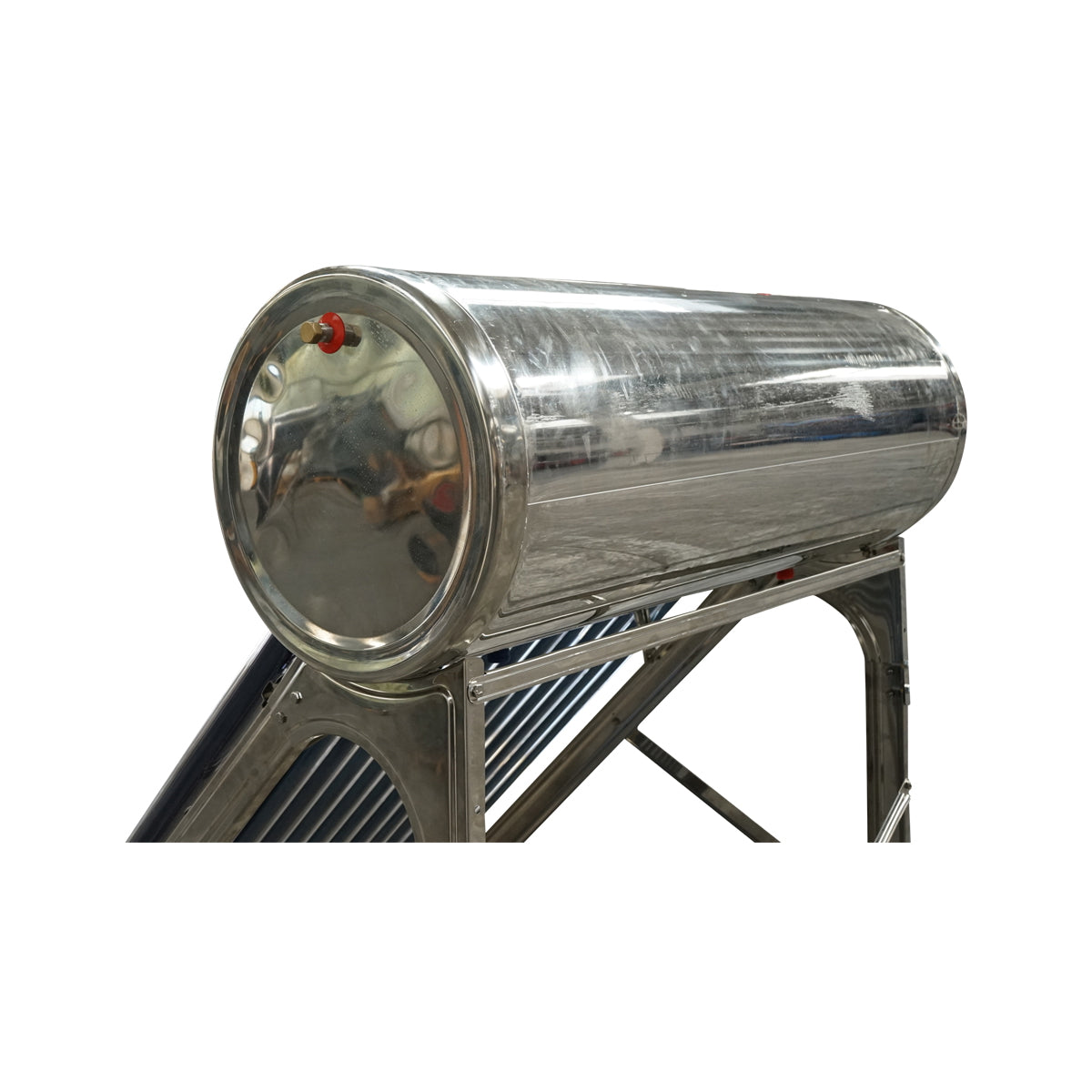

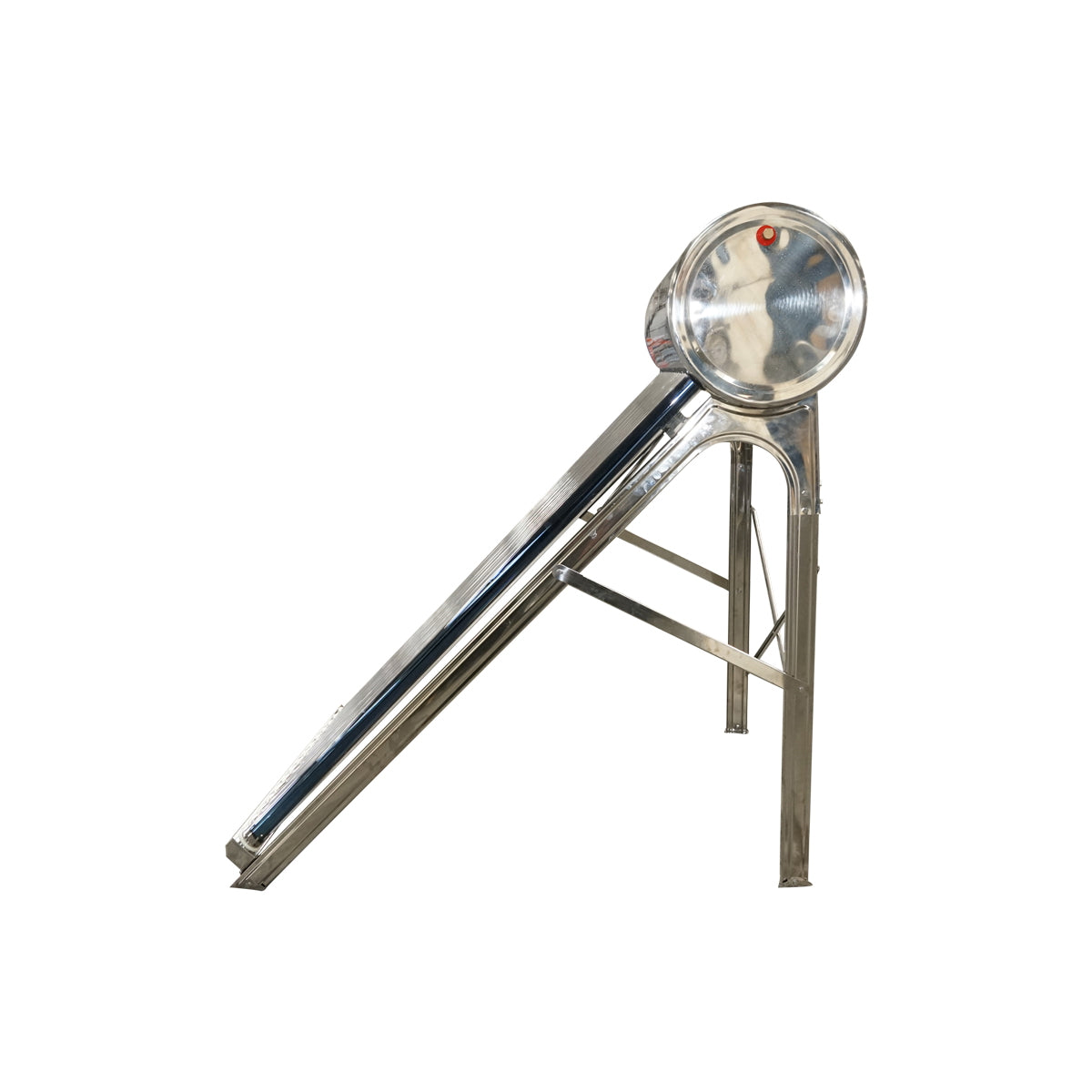

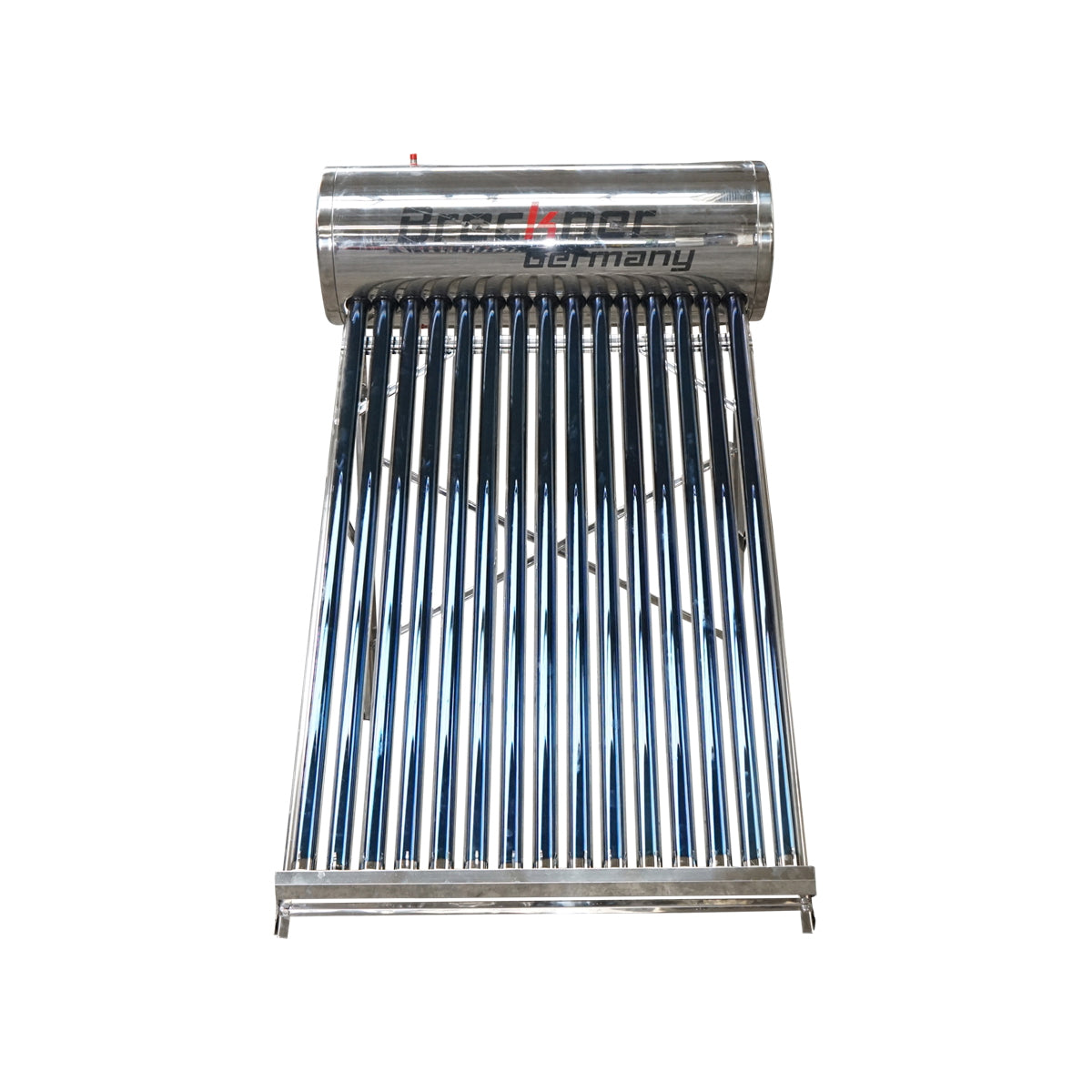

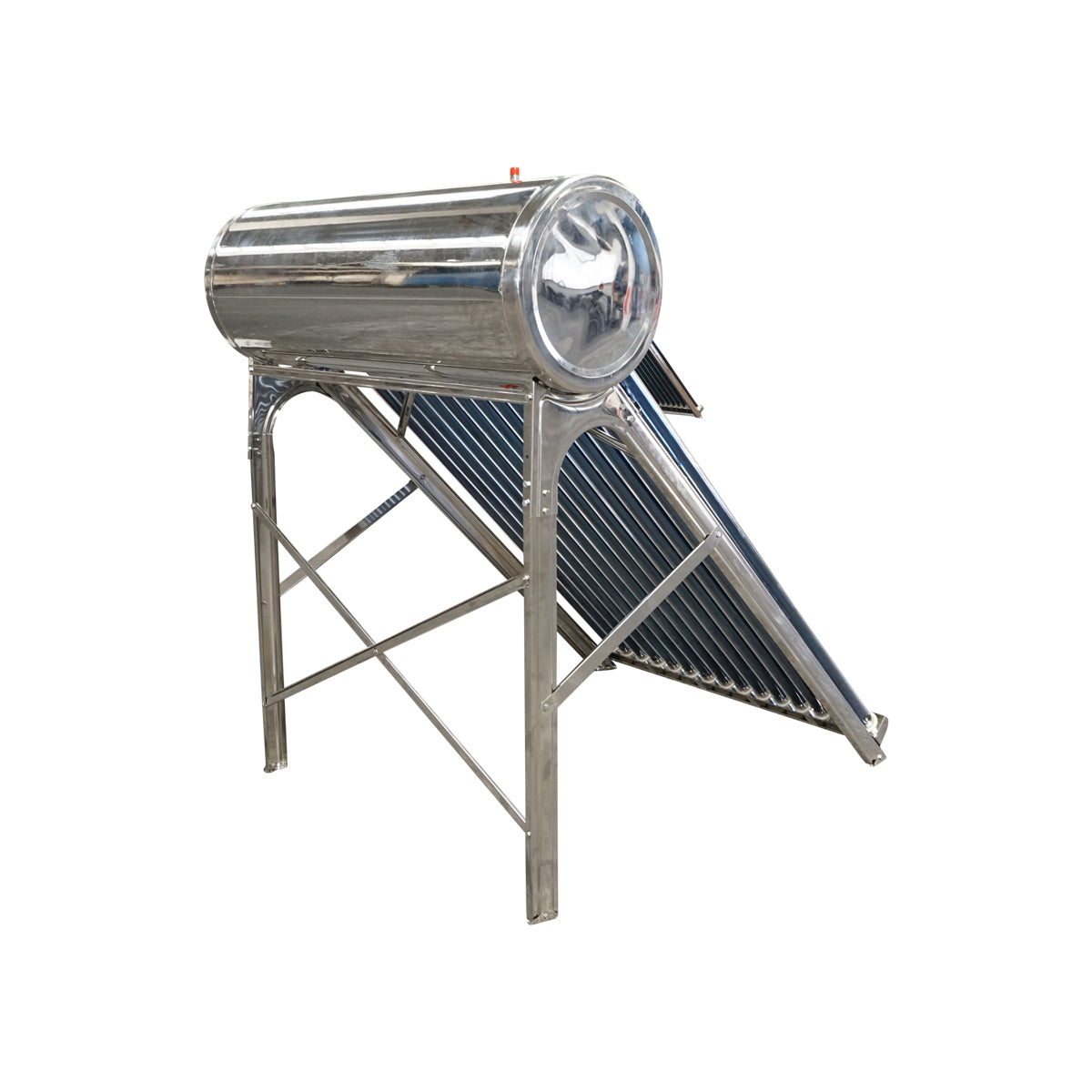

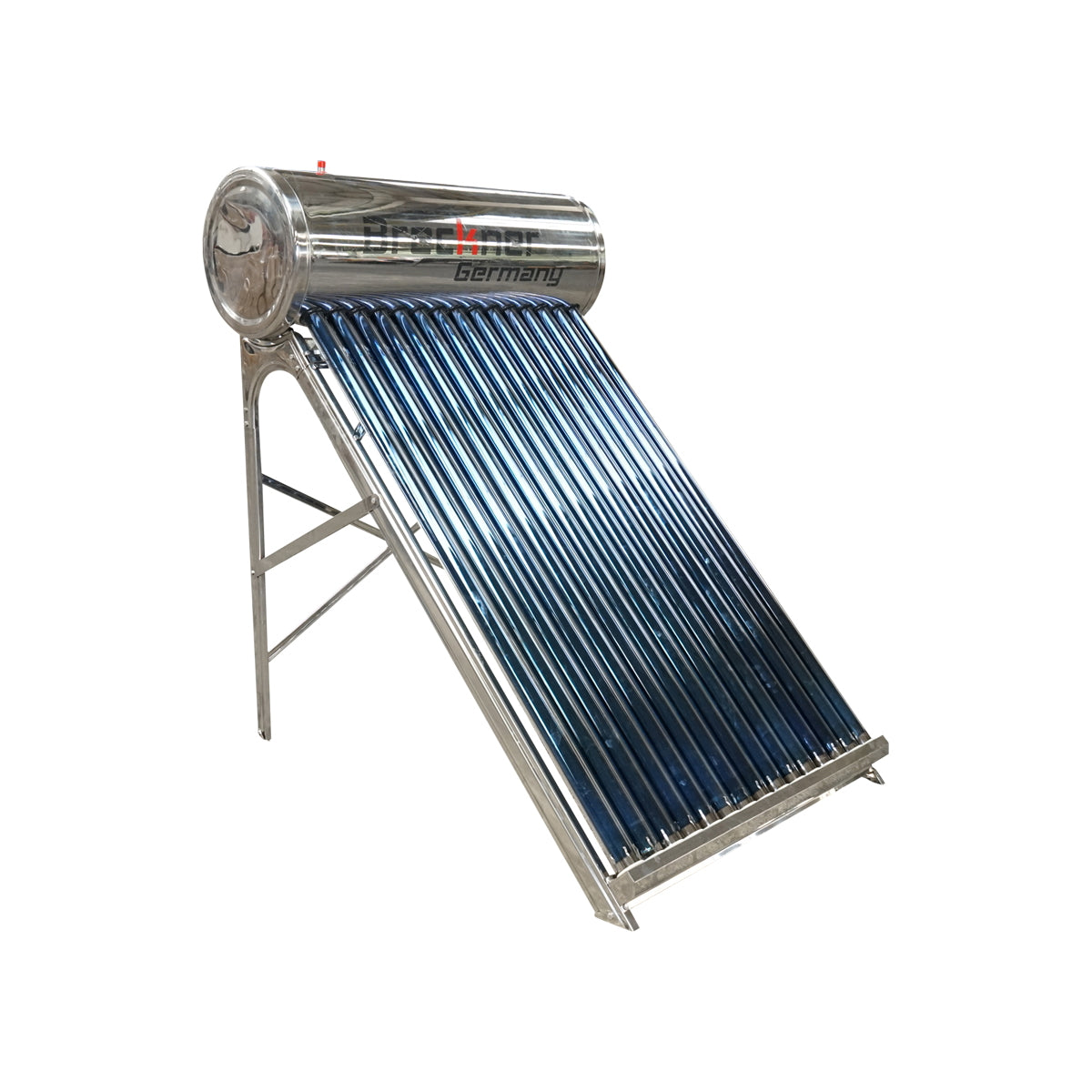

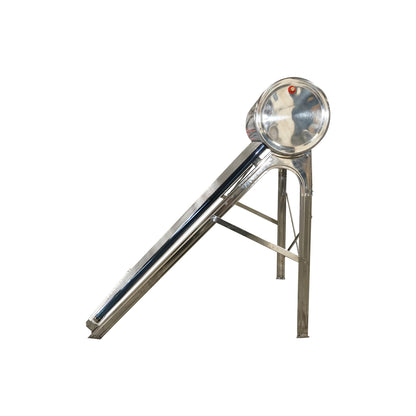

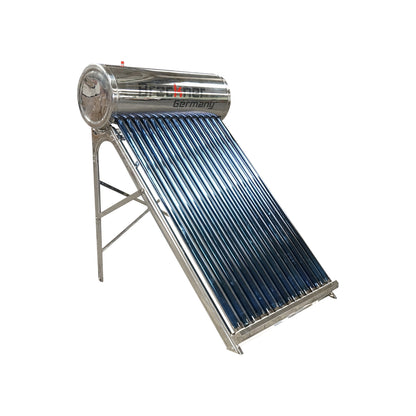

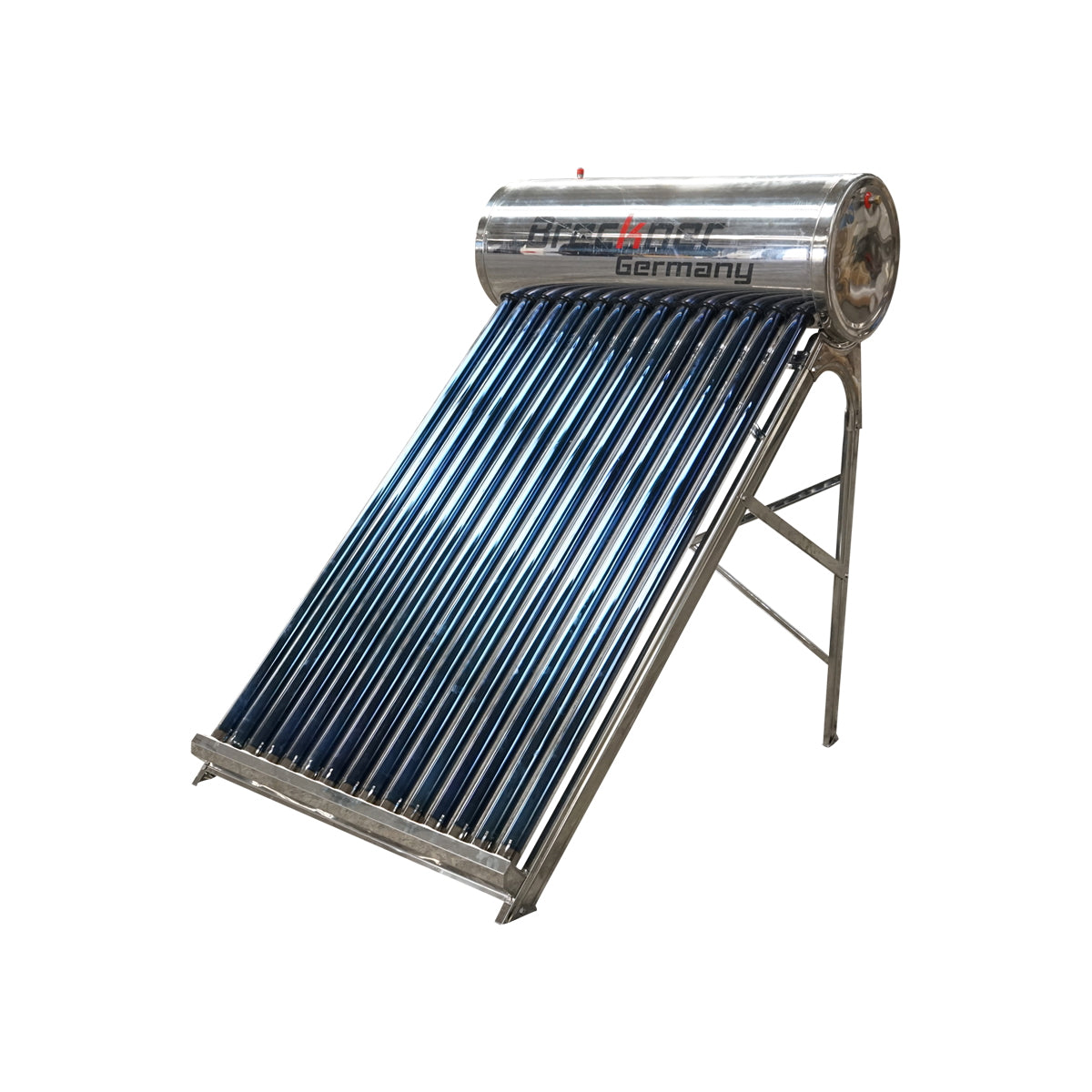

Unpressurized stainless steel solar panel with 15 tubes for hot water, 150L boiler, 1450x490x490mm Breckner Germany

About the Product

Non -pressurized solar panel Details:

Brandi	Breckner Germany
Solar system type	Without pressure
Dimensions (width x height x projection)	1450 x 490 x 490 mm

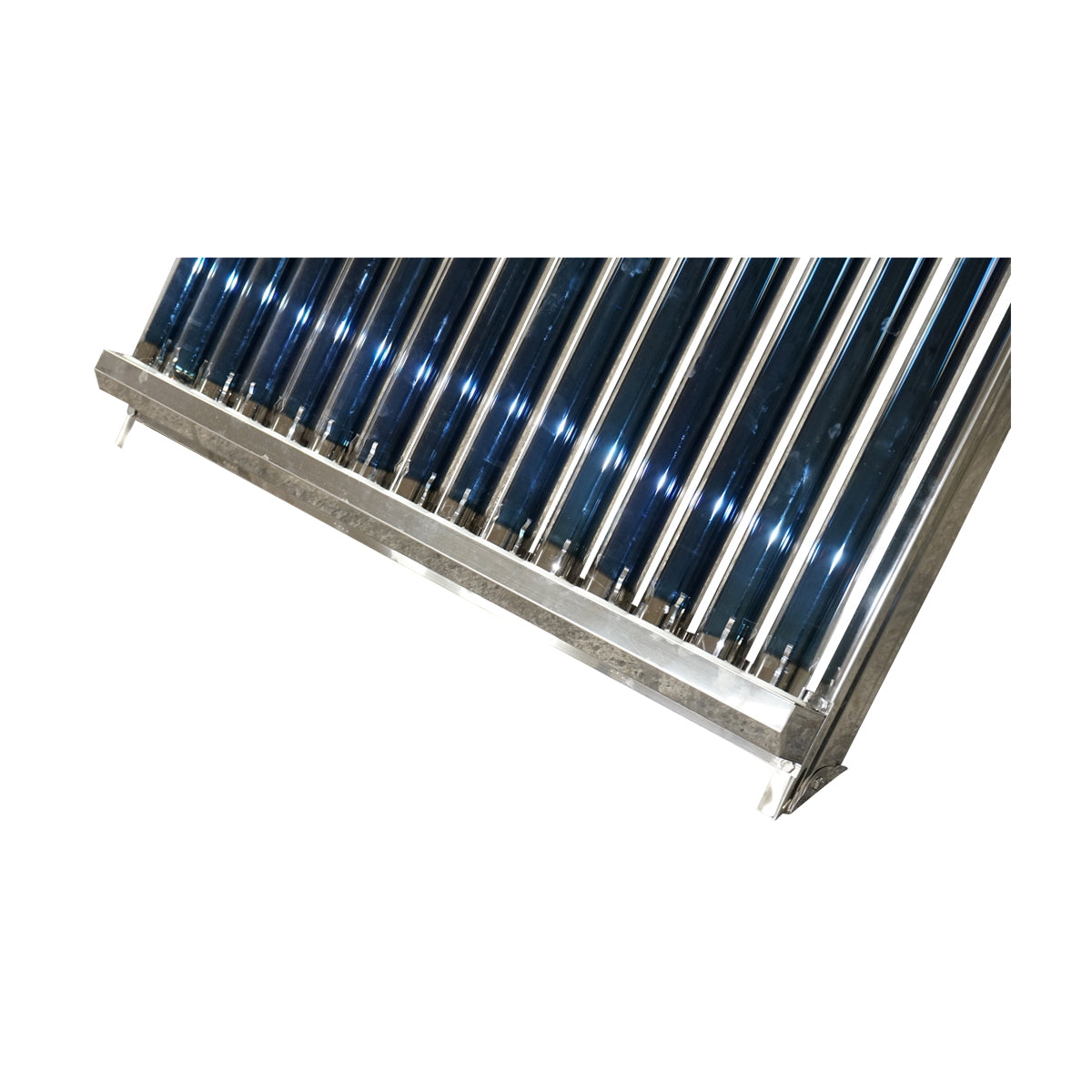

Number of empty tubes	15
Tube size (diameter x length)	1800 x 47 mm
Capacity of hot water tank	150 l
The inner body of the tank	Chromed steel 304 thick 0.4 mm
Interior lid of the tank	Chromed steel 304 thick 0.5 mm
The outer body of the tank	Chromed steel 430 thick 0.3 mm
Tank outer	Chromed steel 430 thick 0.4 mm
Tubes	SS-Alnx/with thickness 1.6 mm
Isolating	Polyurethane thickness 50 mm
legs	Galvanized pipes thickness 1.2 - 1.5 mm
Gaskets	100% pure silicon
