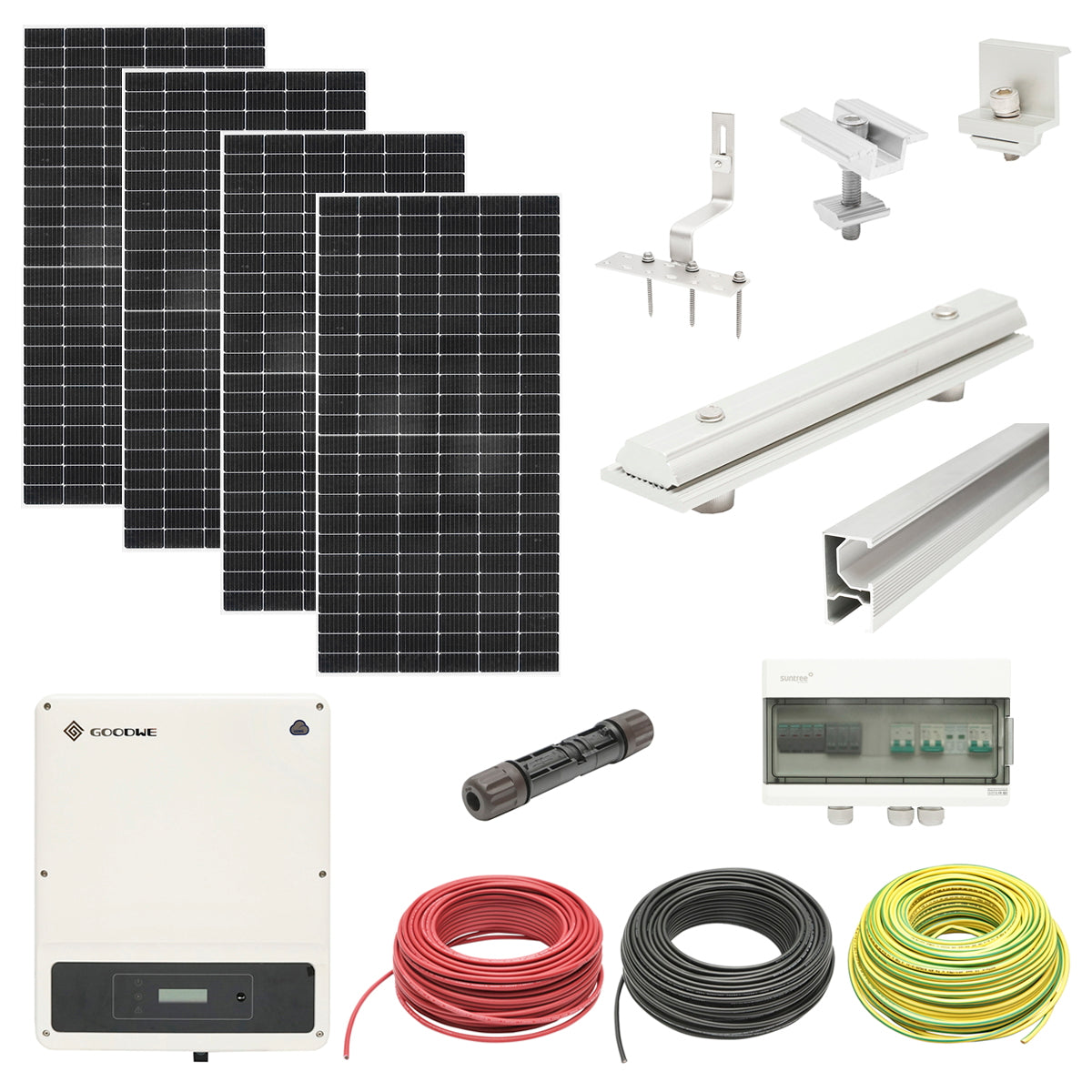

3KW single-phase photovoltaic solar system, ON-GRID prosumer with 8 LONGI 450W photovoltaic panels mounted on a tile roof.

Name: 3KW single-phase photovoltaic solar system, ON-GRID prosumer with 8 LONGI 450W photovoltaic panels mounted on a tile roof.
Brand: My Store
SKU: KIT3KW-GW3000D-NS.2
Price: 4917.39 EUR
Availability: InStock

About the Product

Installation manual

Technical sheet

User manual

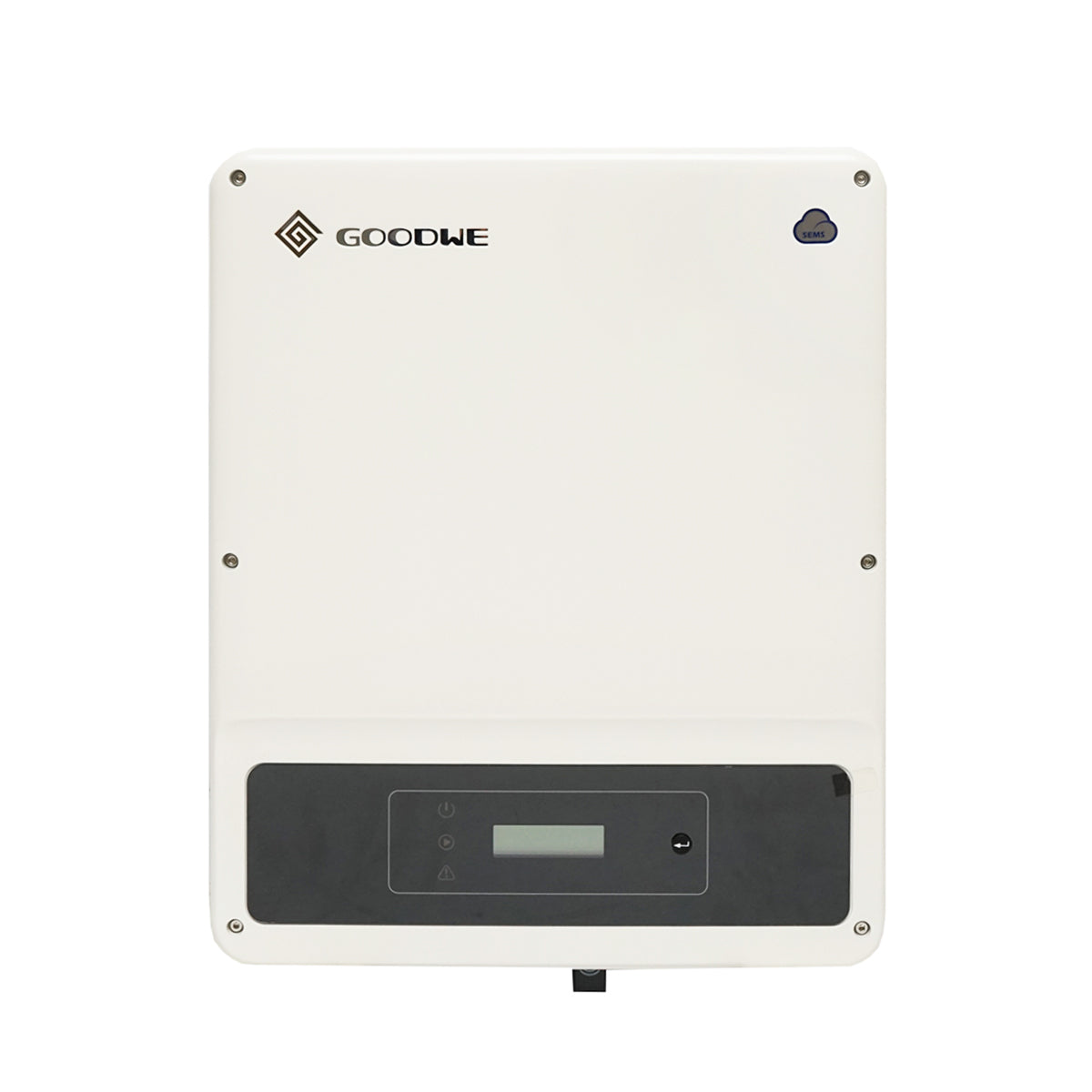

1 x On-Grid Inverter 3KW GW3000D-SN single-phase for photovoltaic system 230V 2XMPPT prosumator	Goodwe
Max Power of Input DC	3900 w
MPPT input voltage	80 - 550 V
Max intensity of strengthening	11/11 a
Nominal output voltage	220 - 230 V
Efficiency (Europe)	97.5%
Protection class	IP65
size	354 x 433 x 147 mm
Weight	13 kg

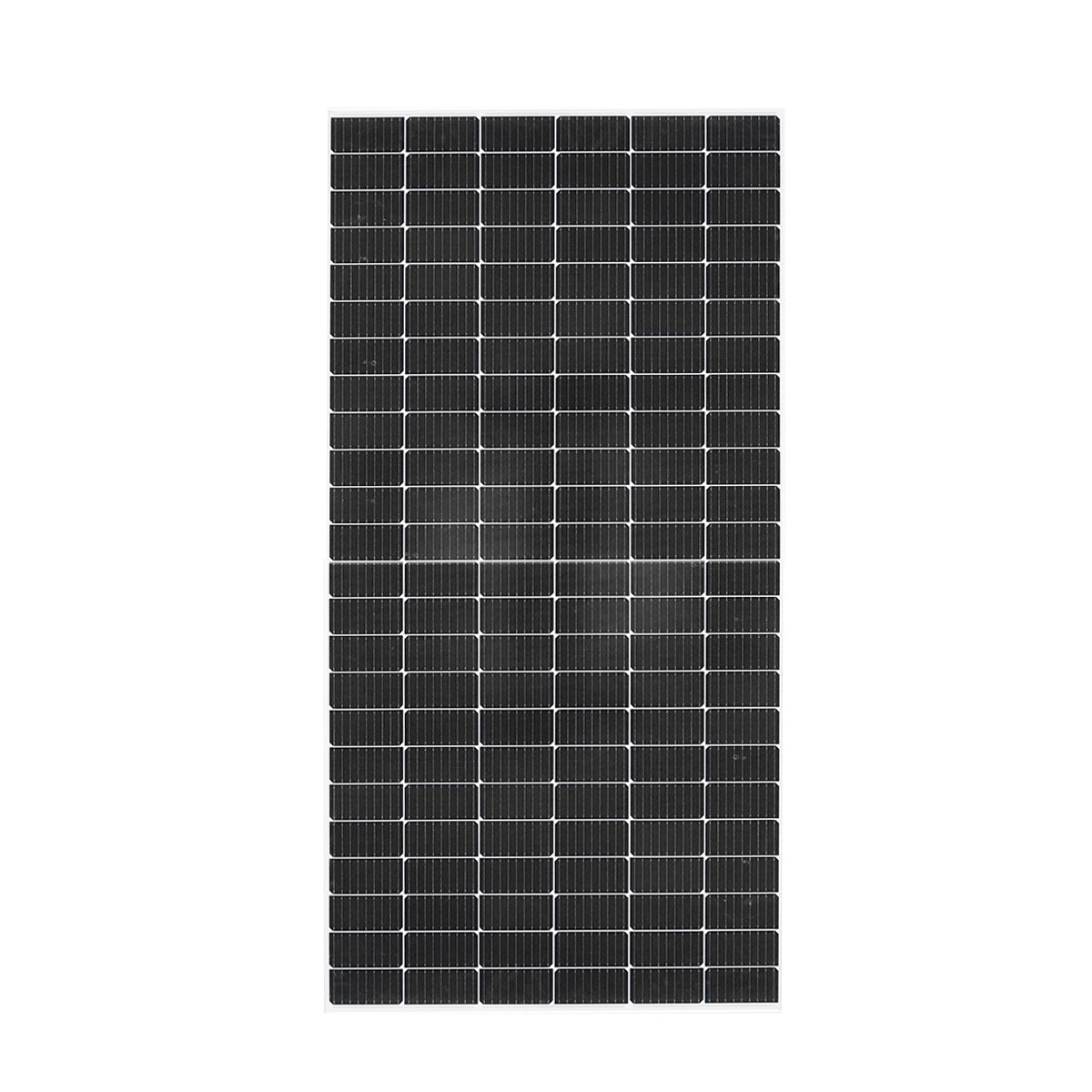

8 x photovoltaic solar panels 450W	Longa
Exemplary	LR4-72HP-450M 450W
Type	monocrystalline
Maximum power (PMAX)	450 w
Maximum voltage (VMP)	41.5 v
Maximum current (IMP)	10.85 a
Open circuit voltage (VOC)	49.3 v
Short circuit (ISC)	11.6 a
Efficiency	20.7 %
size	2094 x 1038 x 35 mm
Protection	IP 68

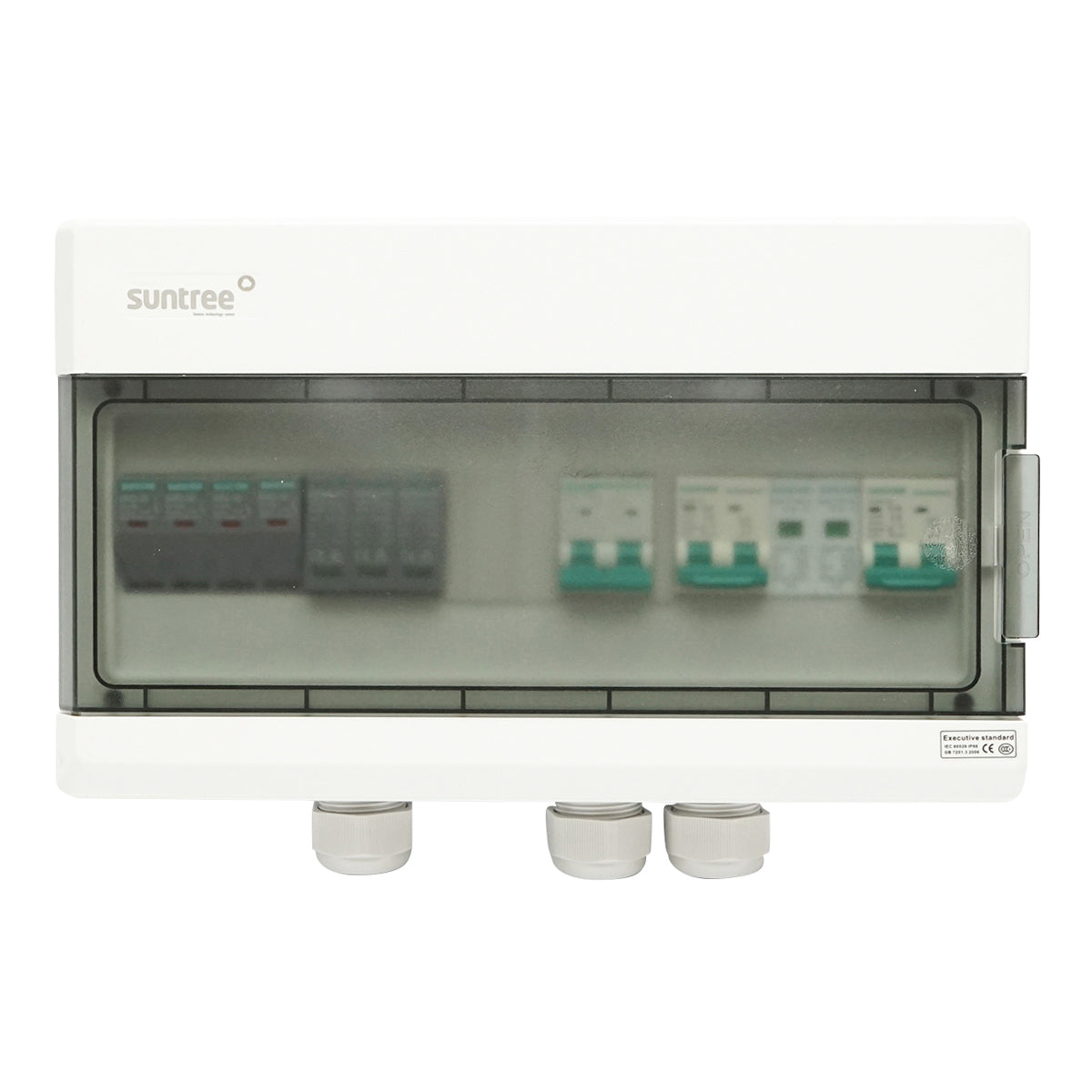

1 x AC/DC safety painting	Suntree

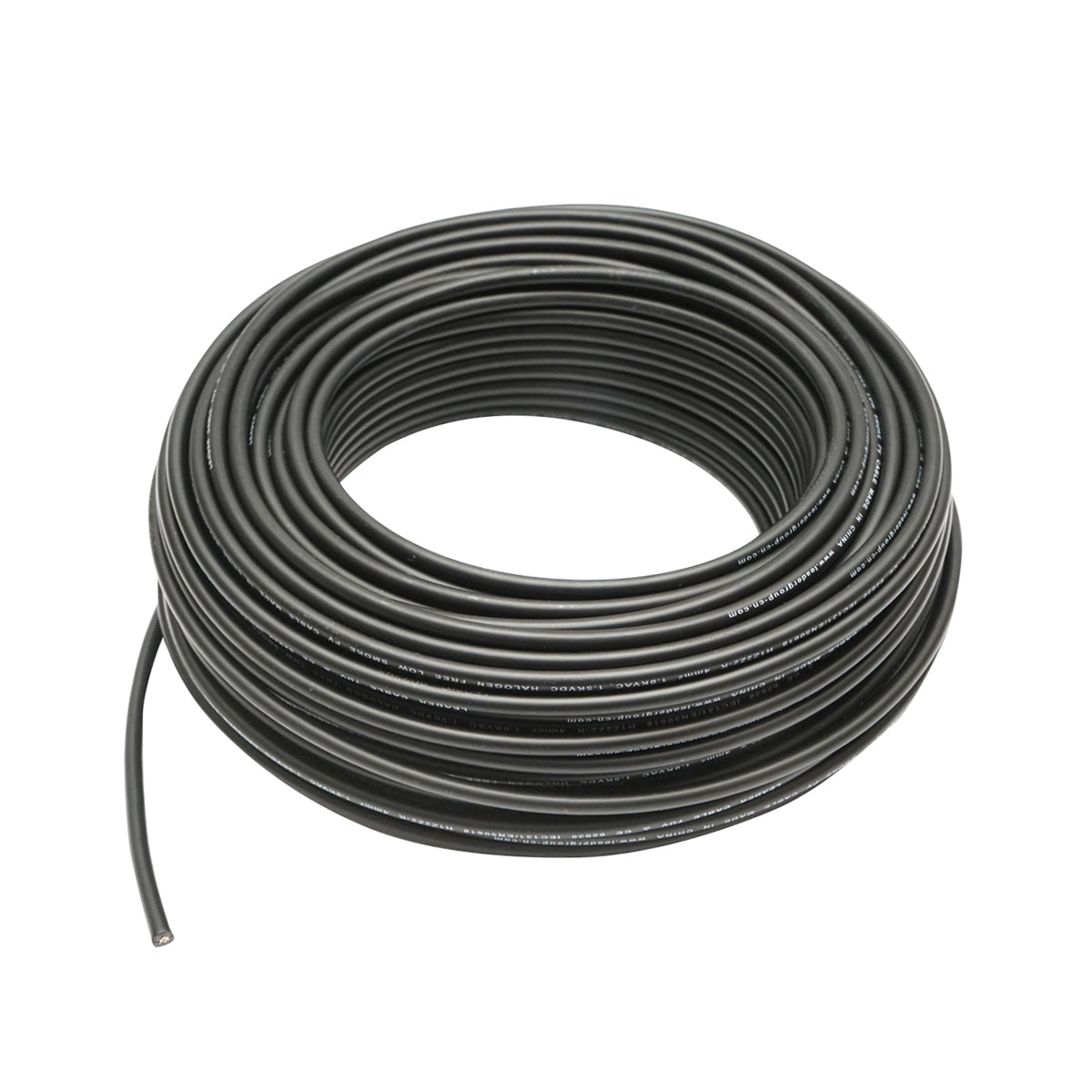

1 x Cable 6mmx20m Black 1.5kV, H1Z2Z2-K	20m

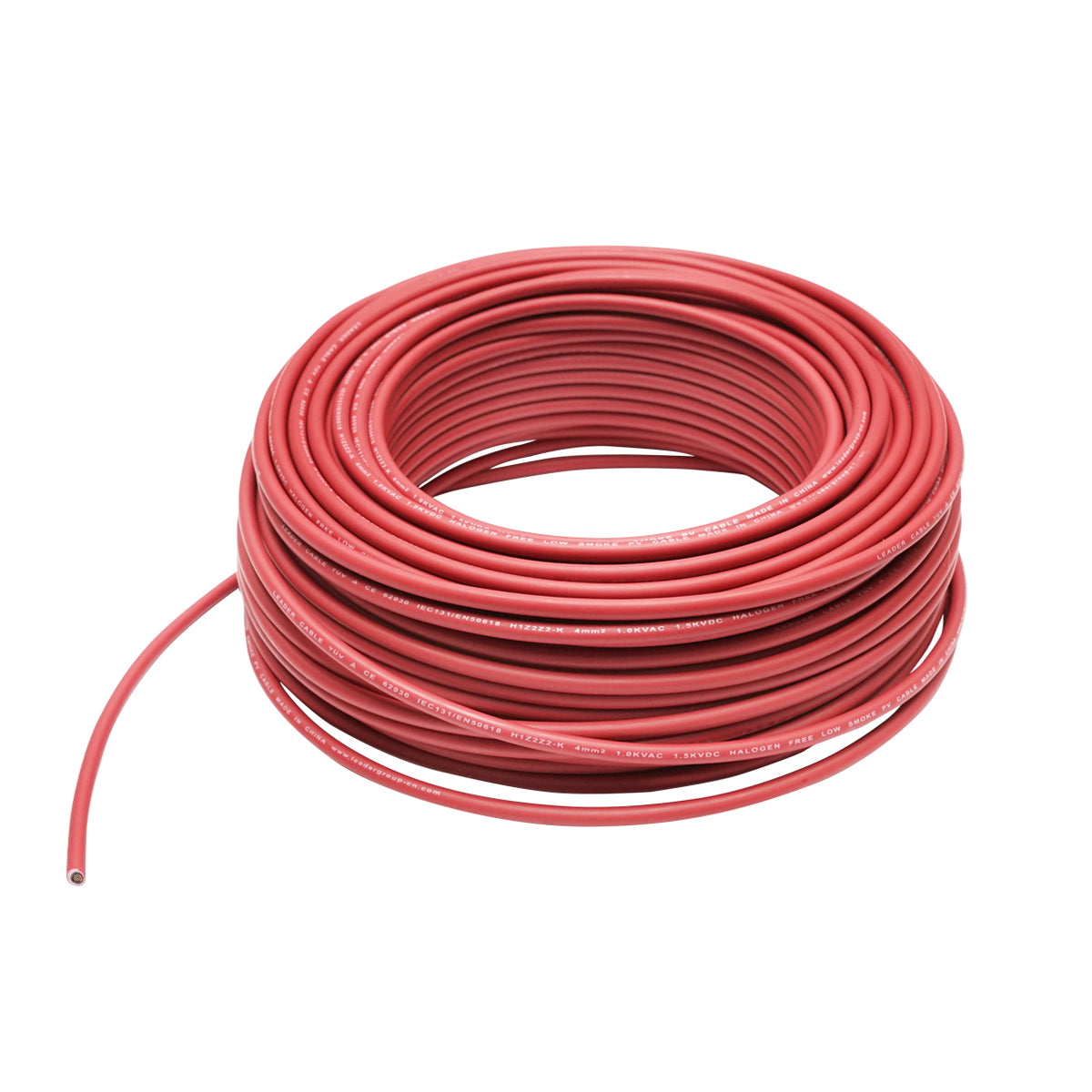

1 x Cable 6mmx20m Red 1.5kV, H1Z2Z2-K	20m

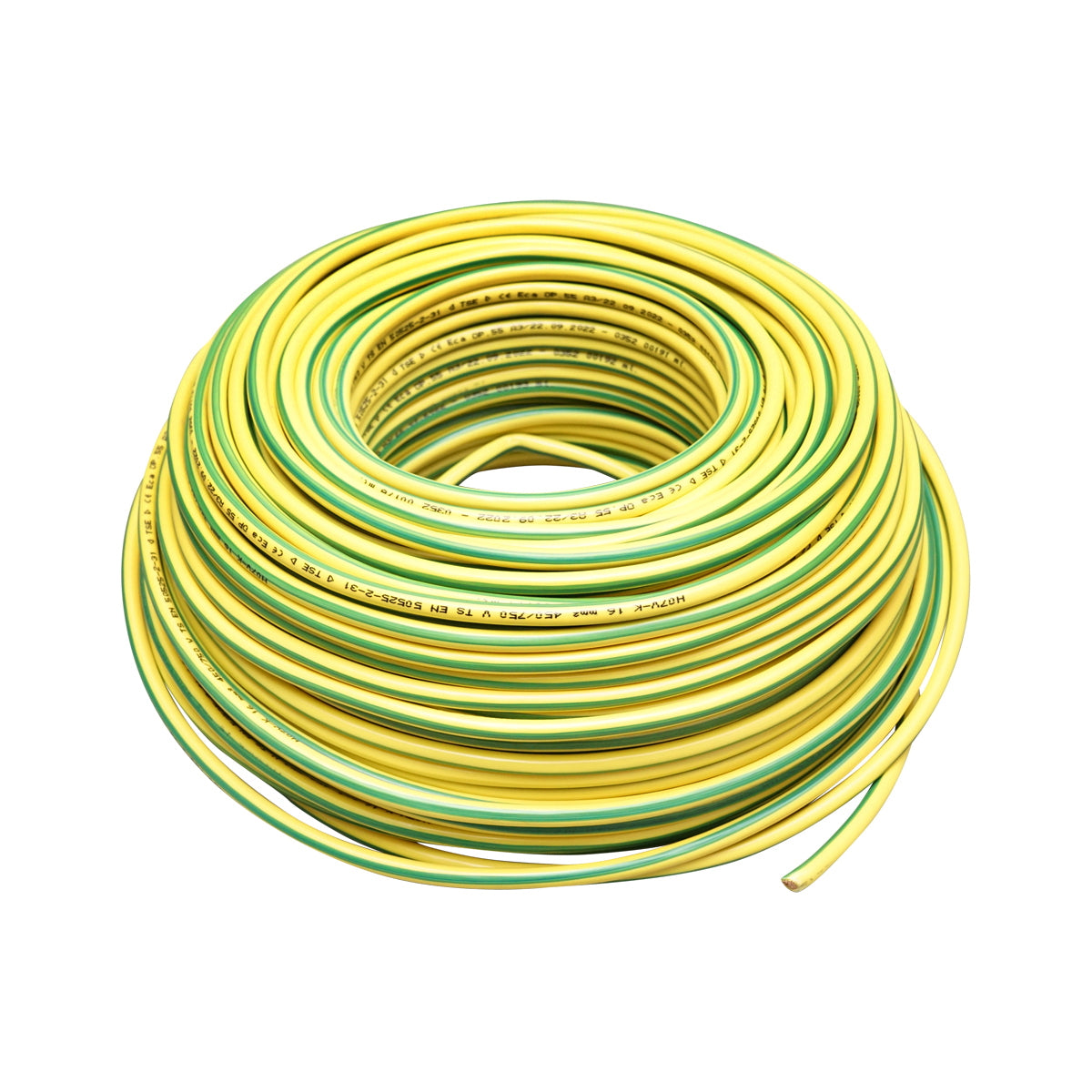

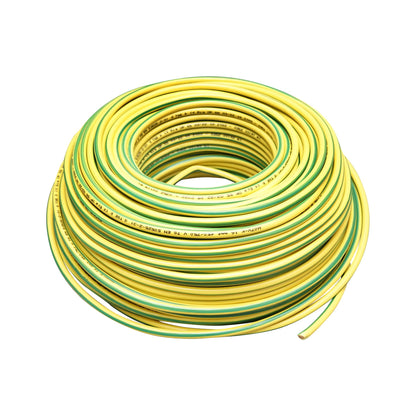

1 x stroke myf 1x16mm, copper, h07v-k v yellow-green	25m

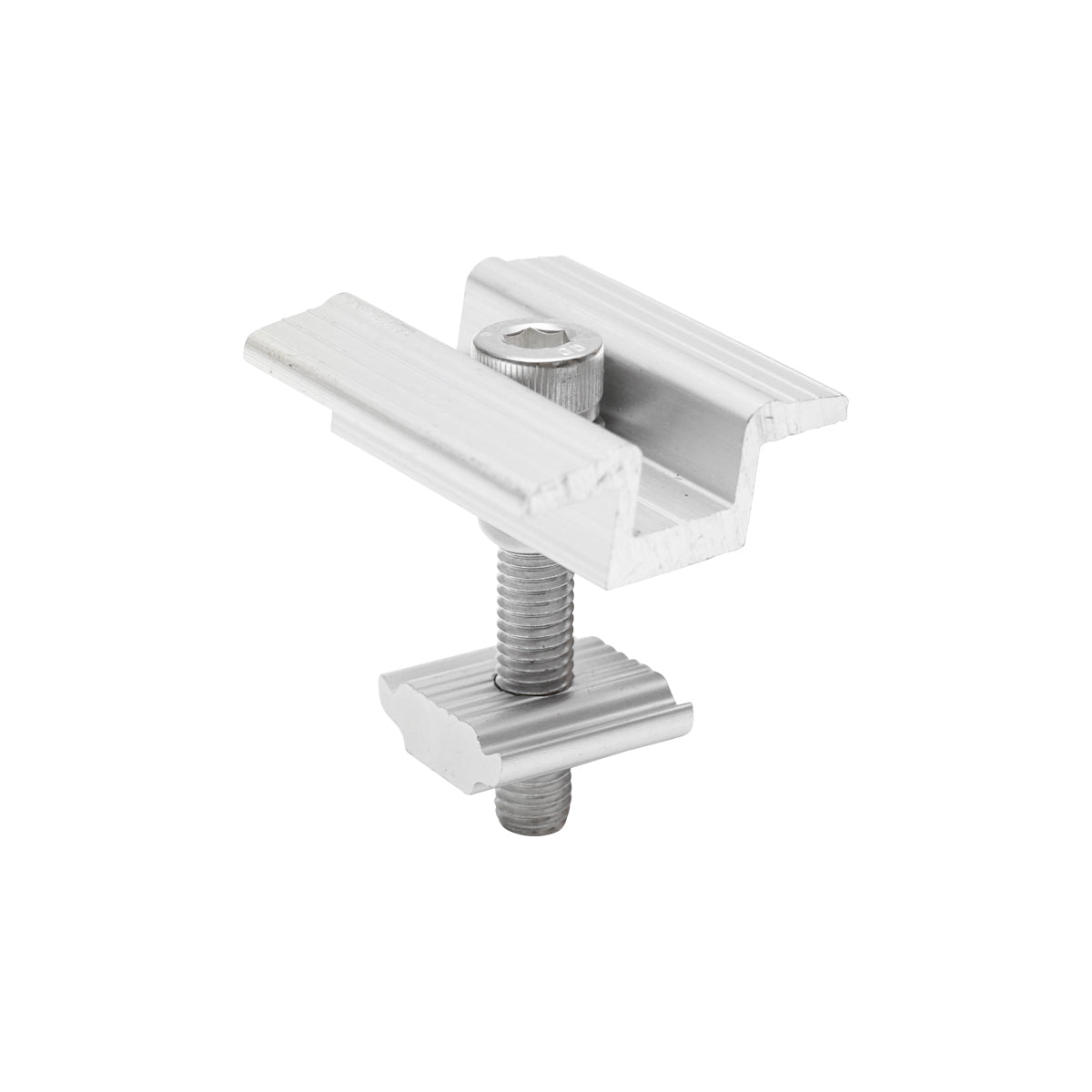

12 x intermediate clips 35 mm	12 pcs

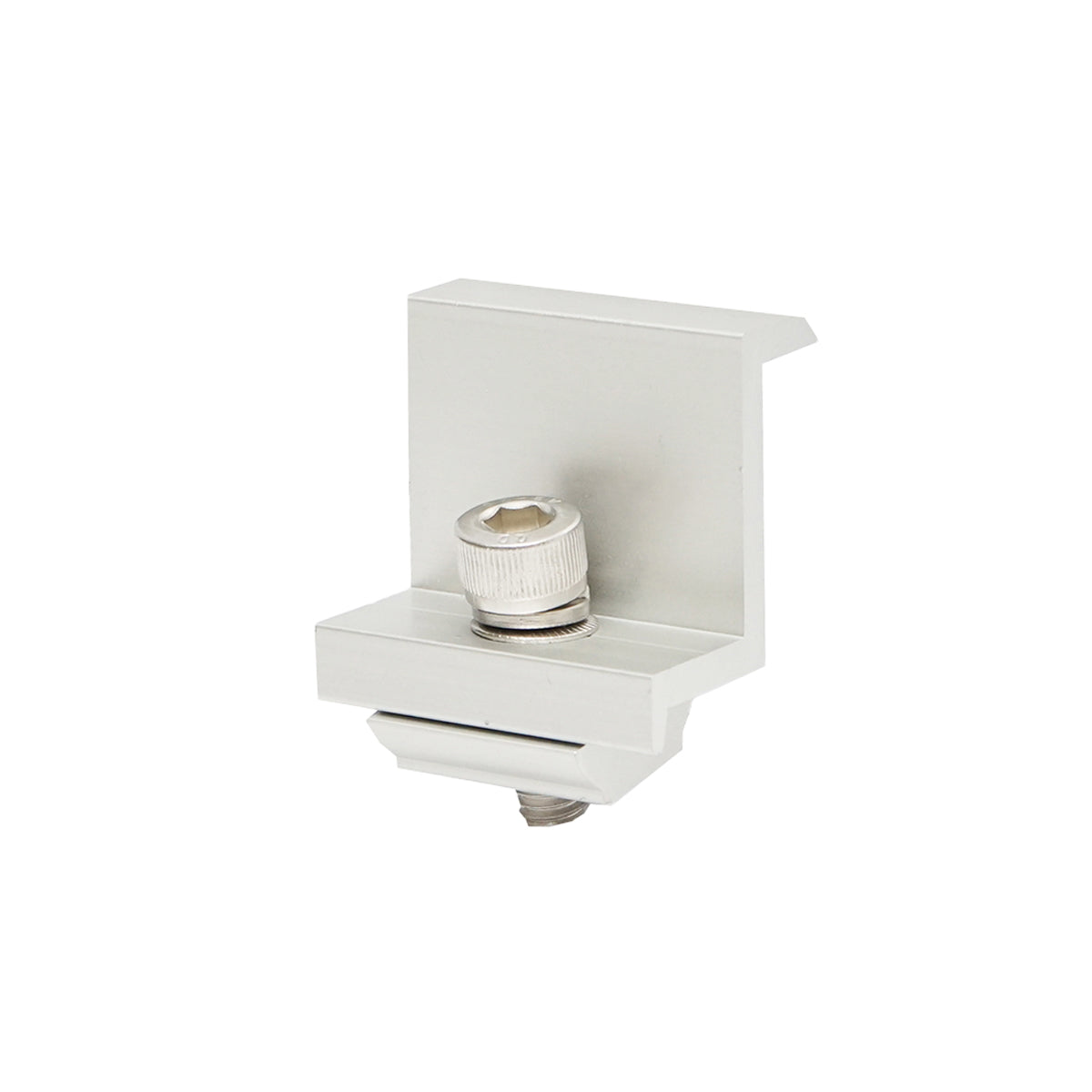

8 x Cleme end 35 mm	8 pcs

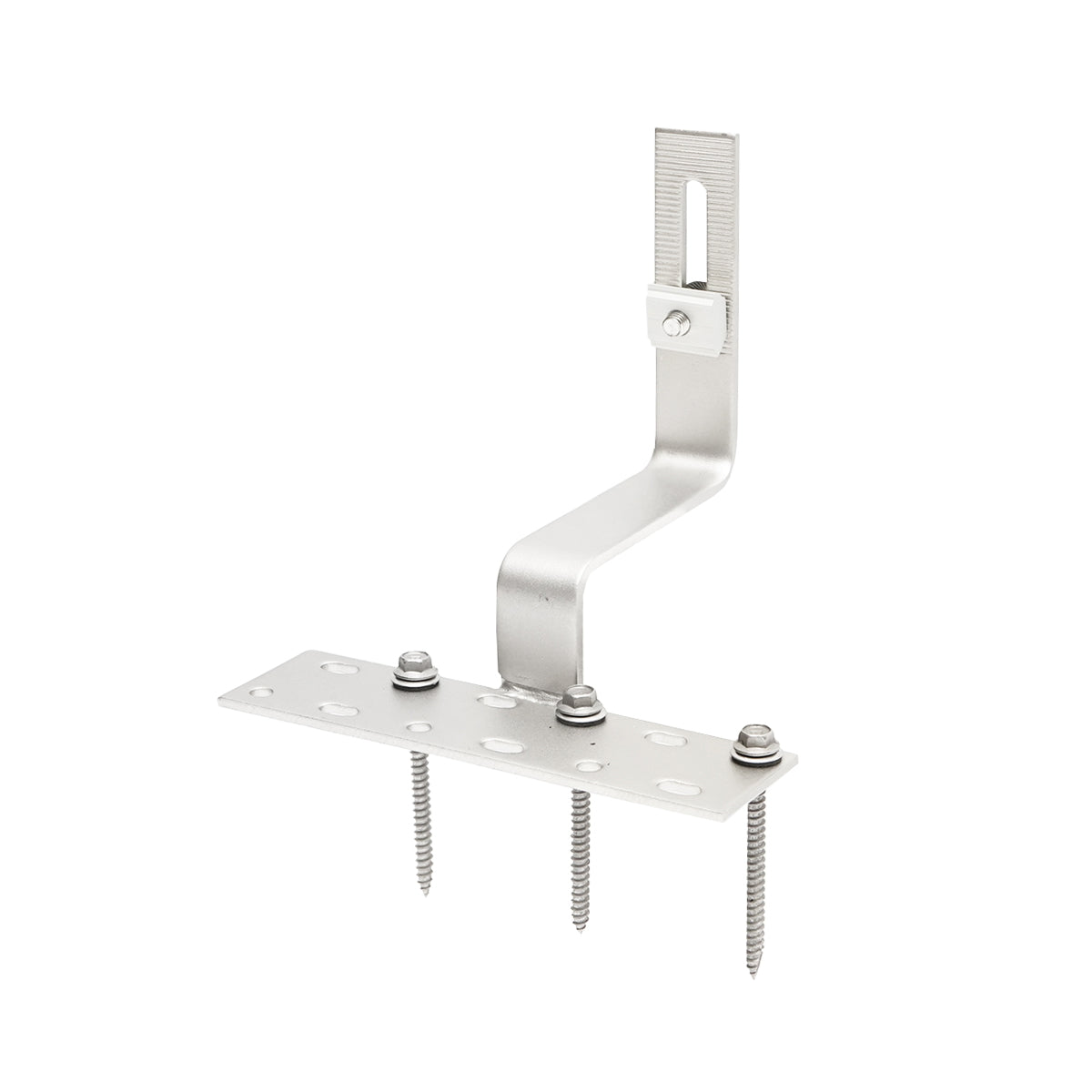

20 x Fixing hook for tile roof	20 pcs

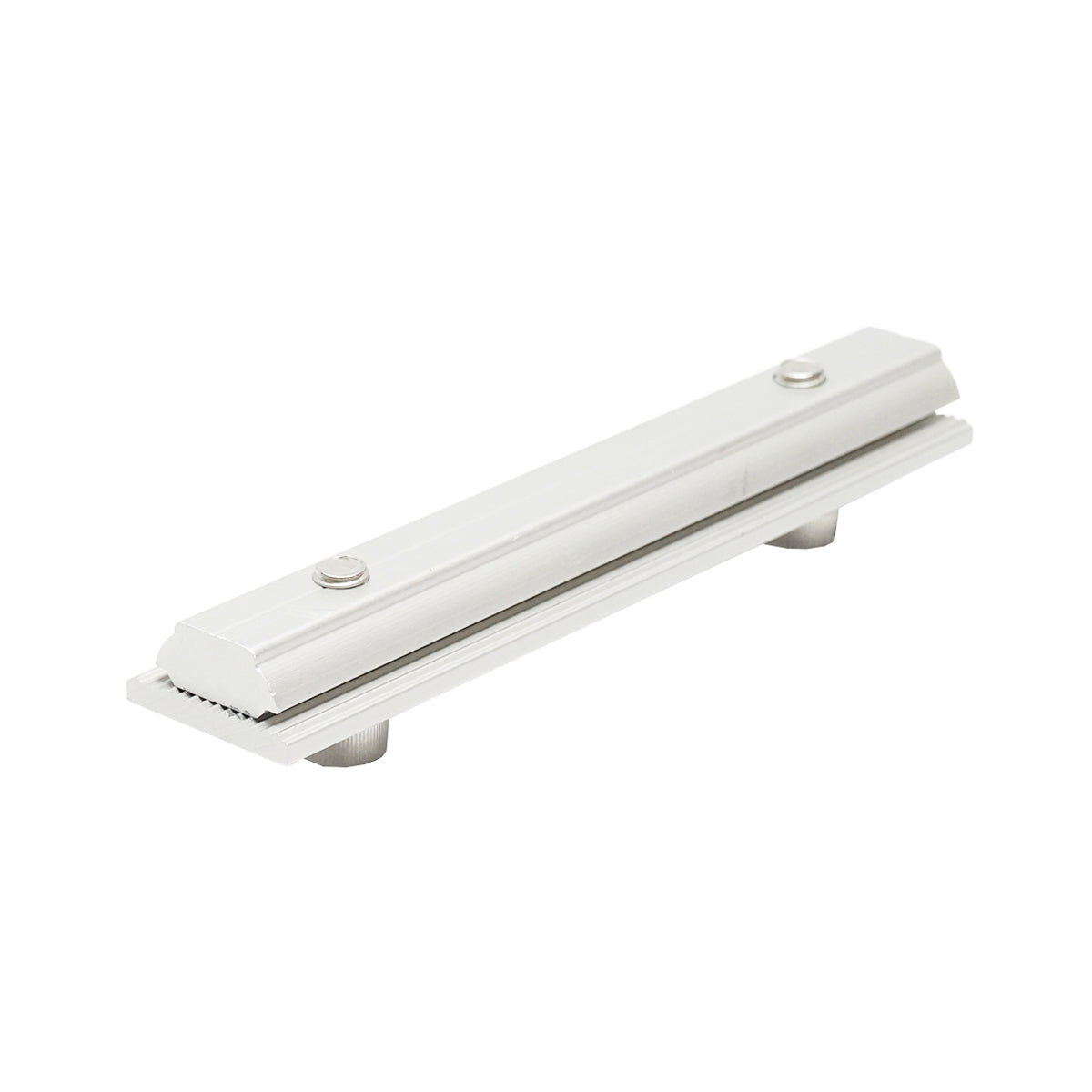

6 x element combination rail	6 pcs

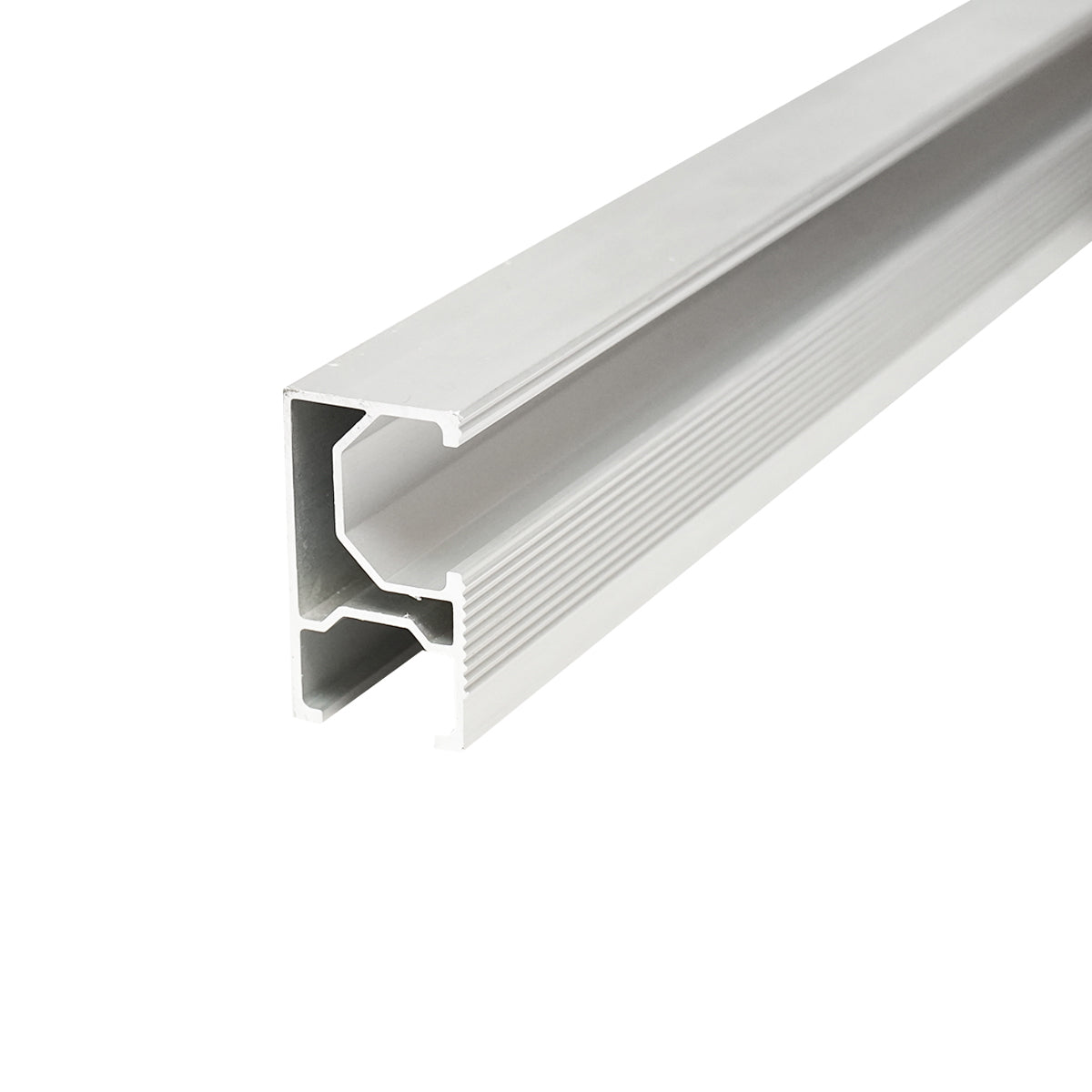

7 X Sina Aluminum 2.5 m	7 pcs

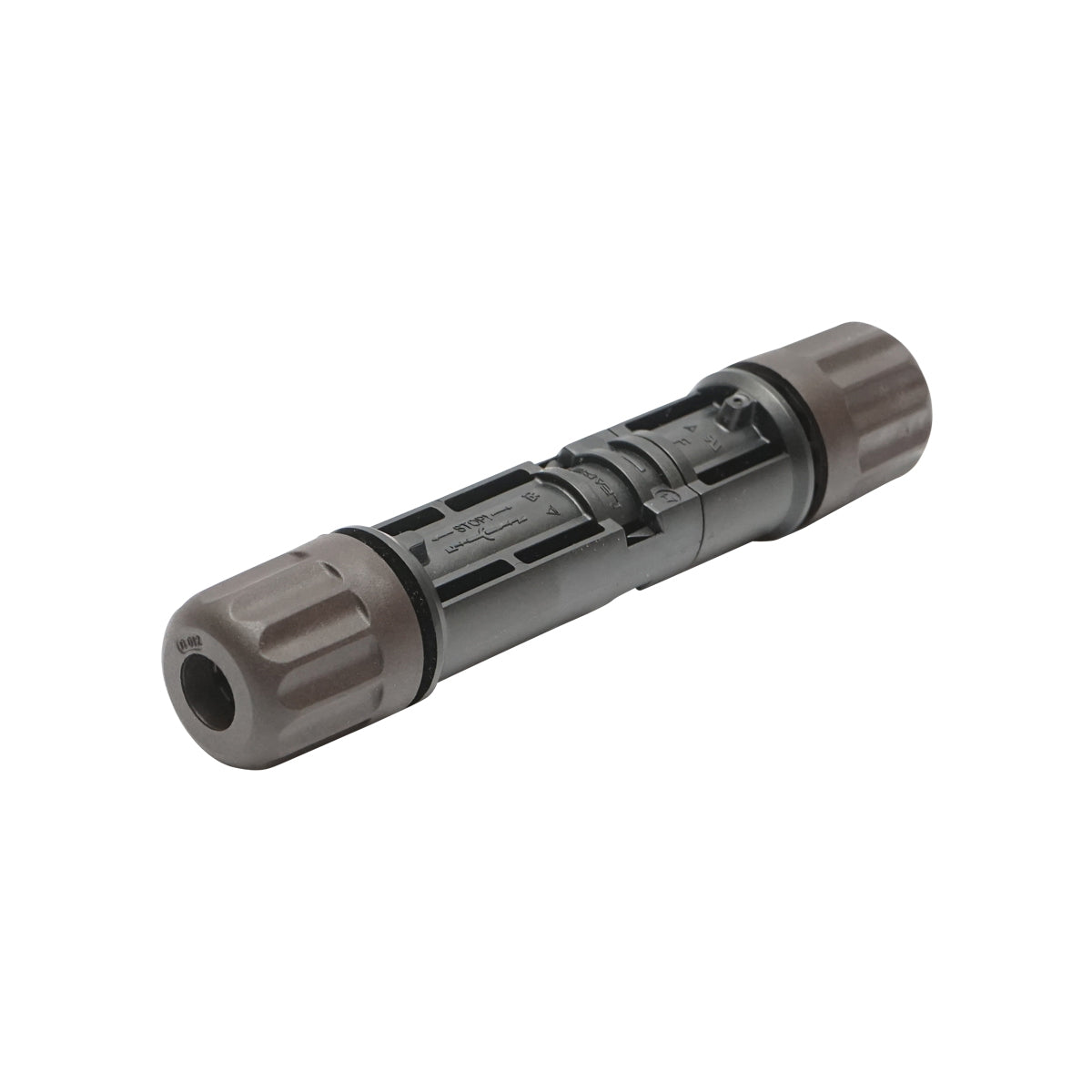

6 x MC4 connector sets	6 pcs
