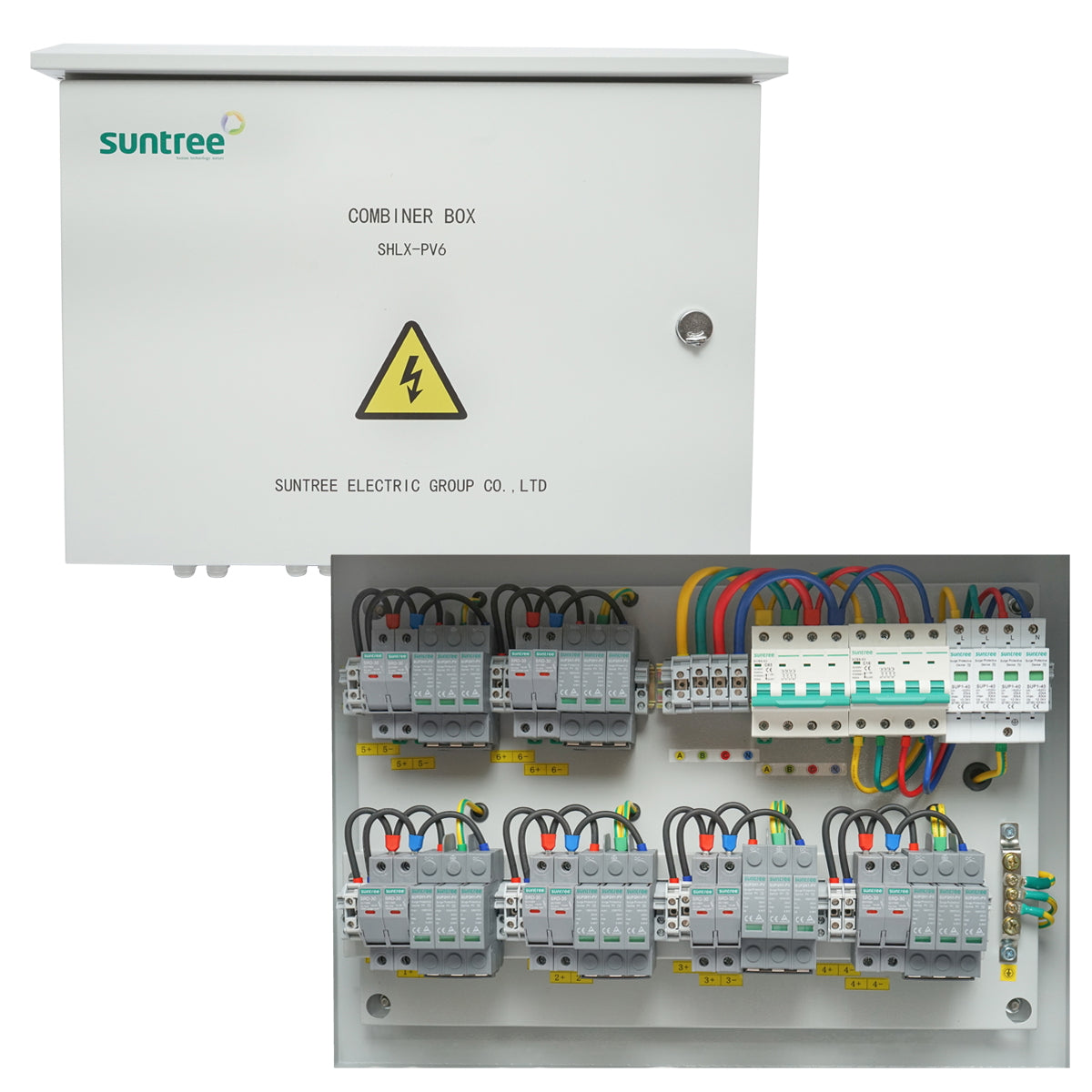

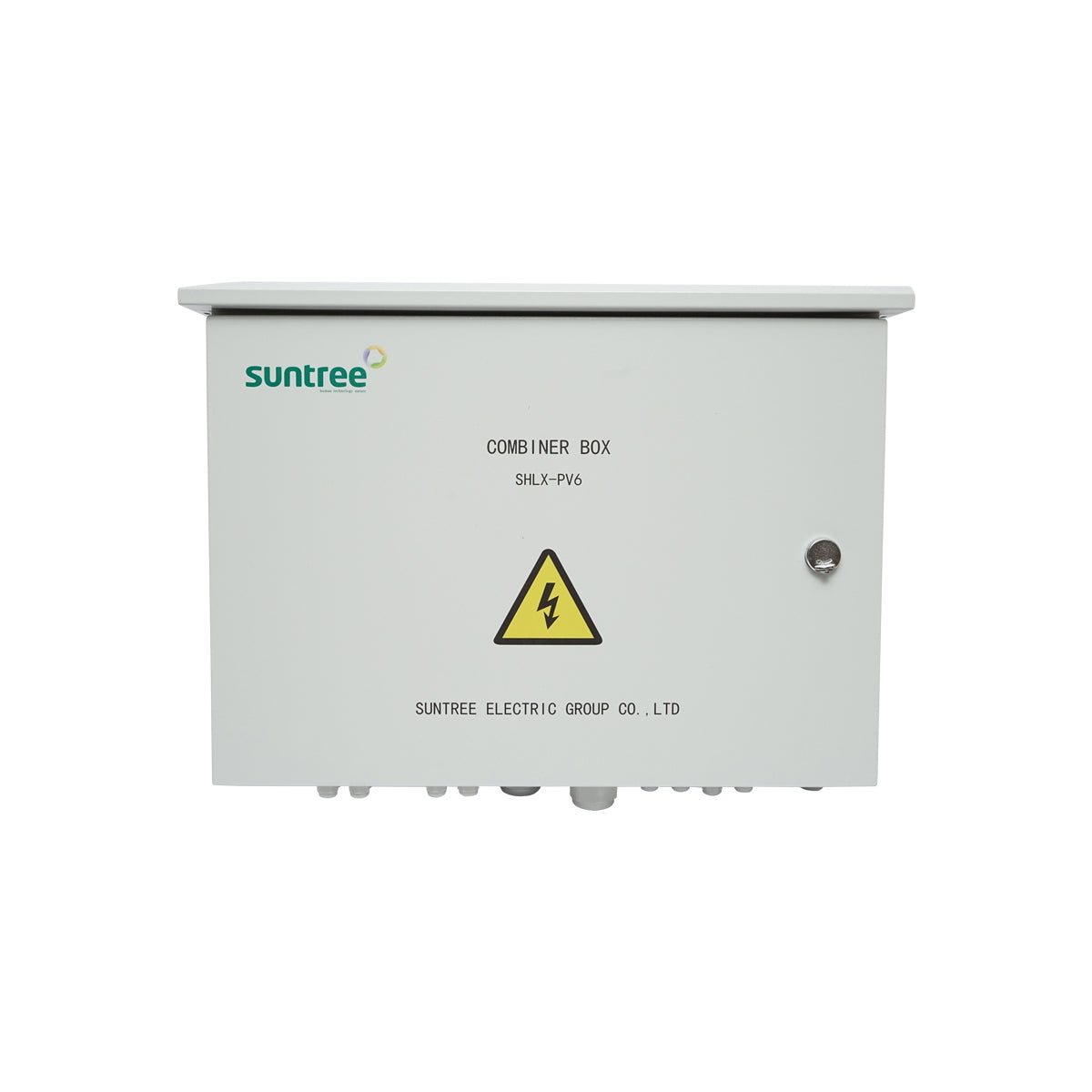

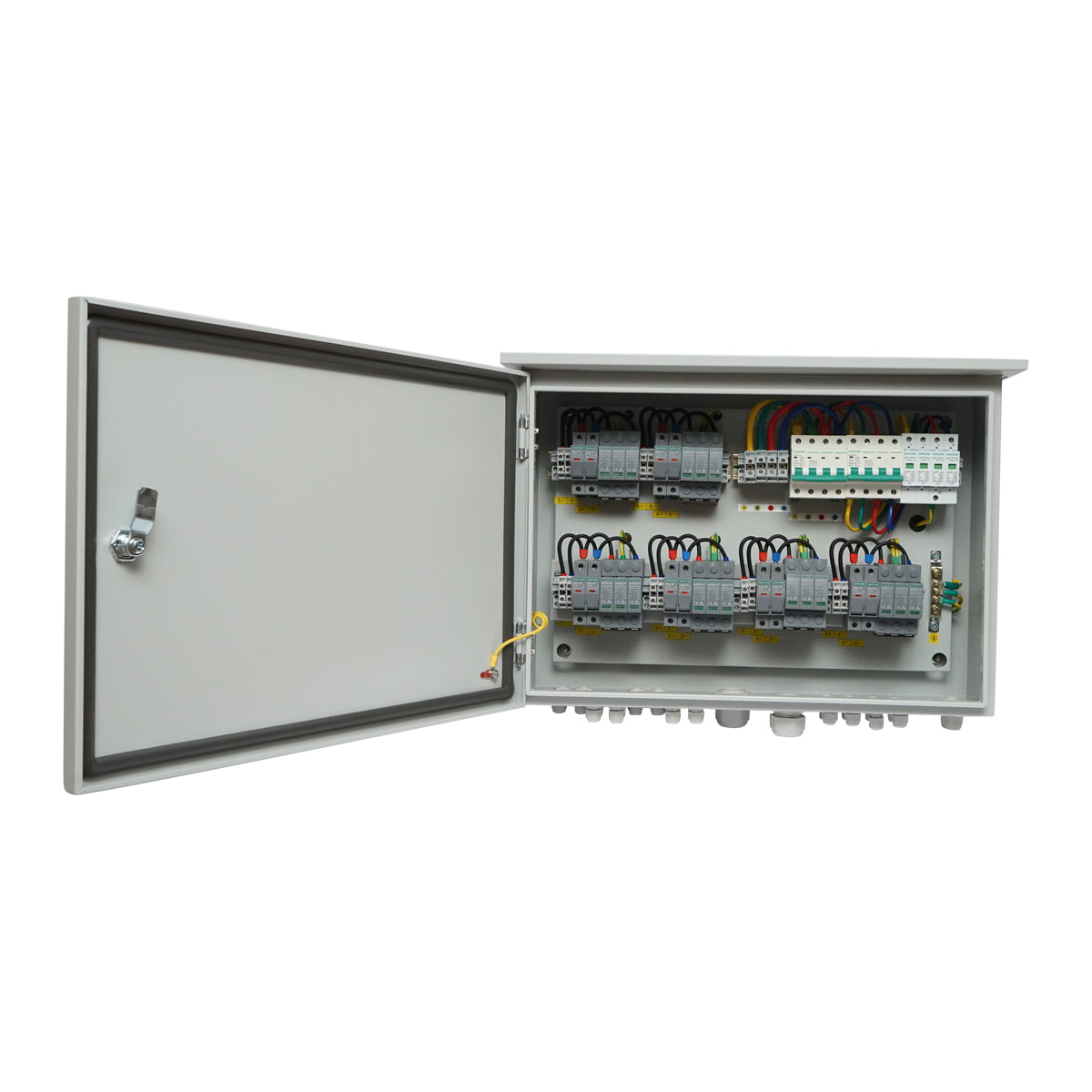

Protection fuse box equipped for 380V photovoltaic systems 20-30KW DC/AC with 6 strings 63A, IP65

About the Product

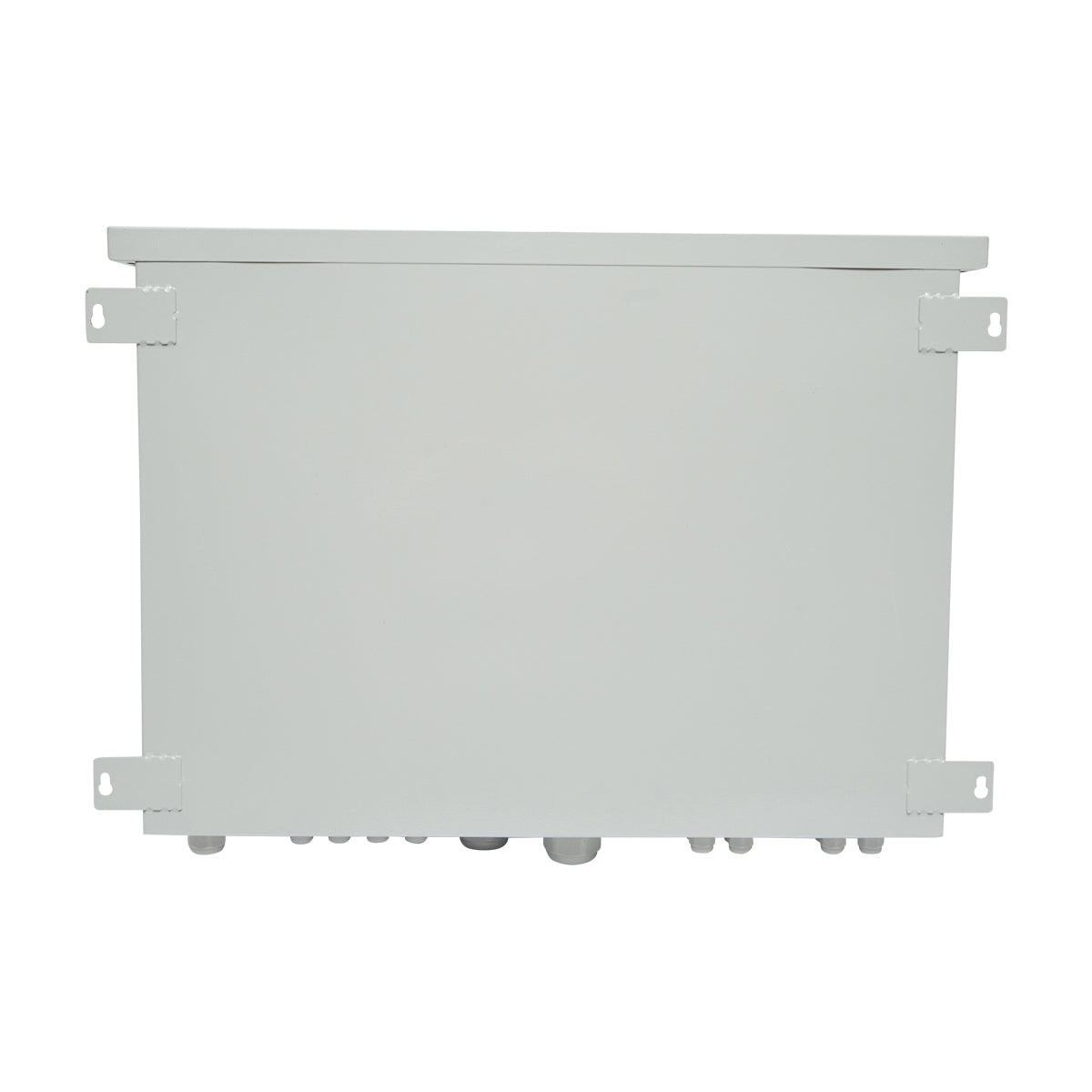

Metal painting
size	590 x 450 x 200 mm
Protection	IP 65
MOUNTING	Apparently, for

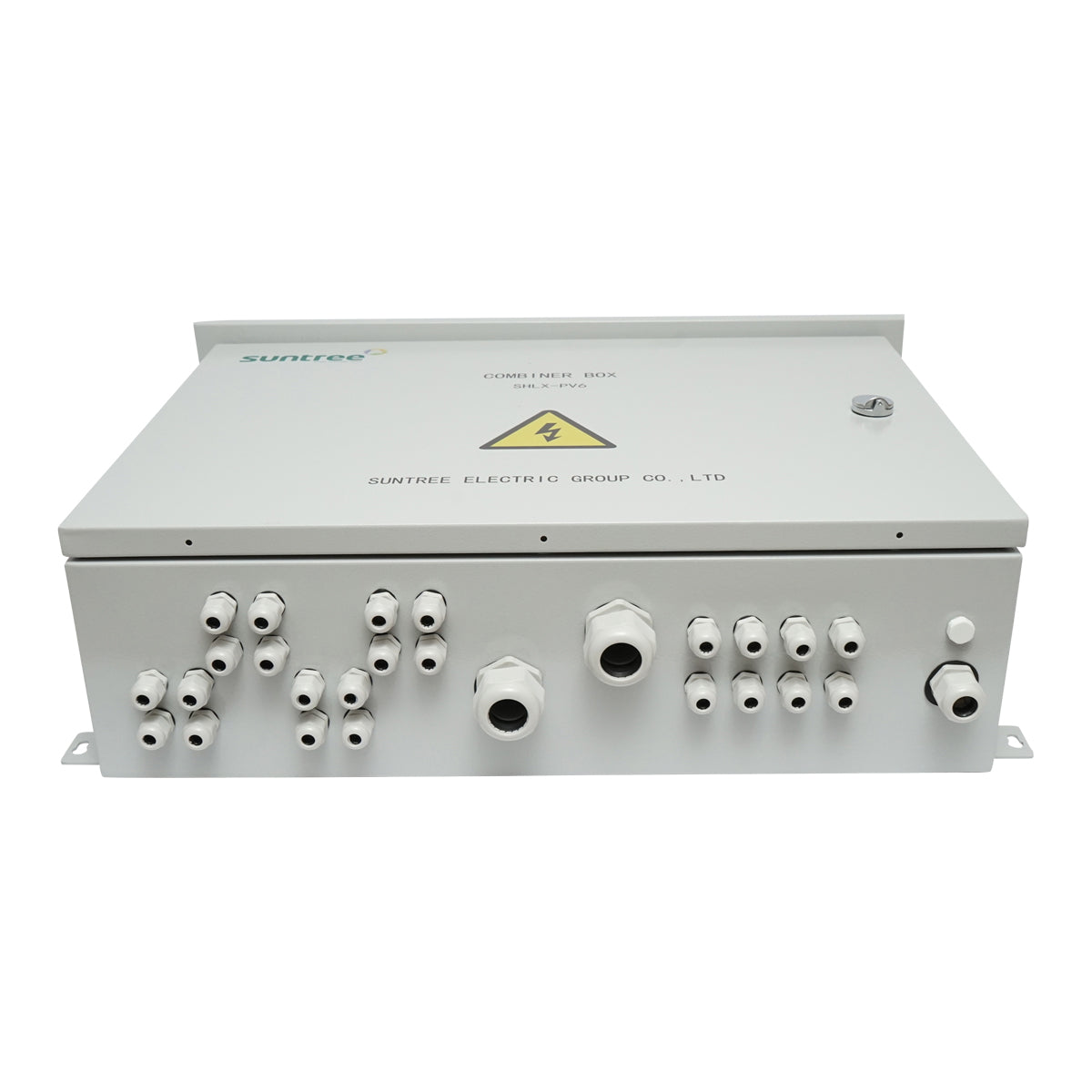

Equipped with prestruple cable IP65
M36 x 1.5 (int 25 mm)	2 pcs
M25 x 1.5 (int 15 mm)	1 pcs
M16 x 1.5 (int 9 mm)	24 pcs

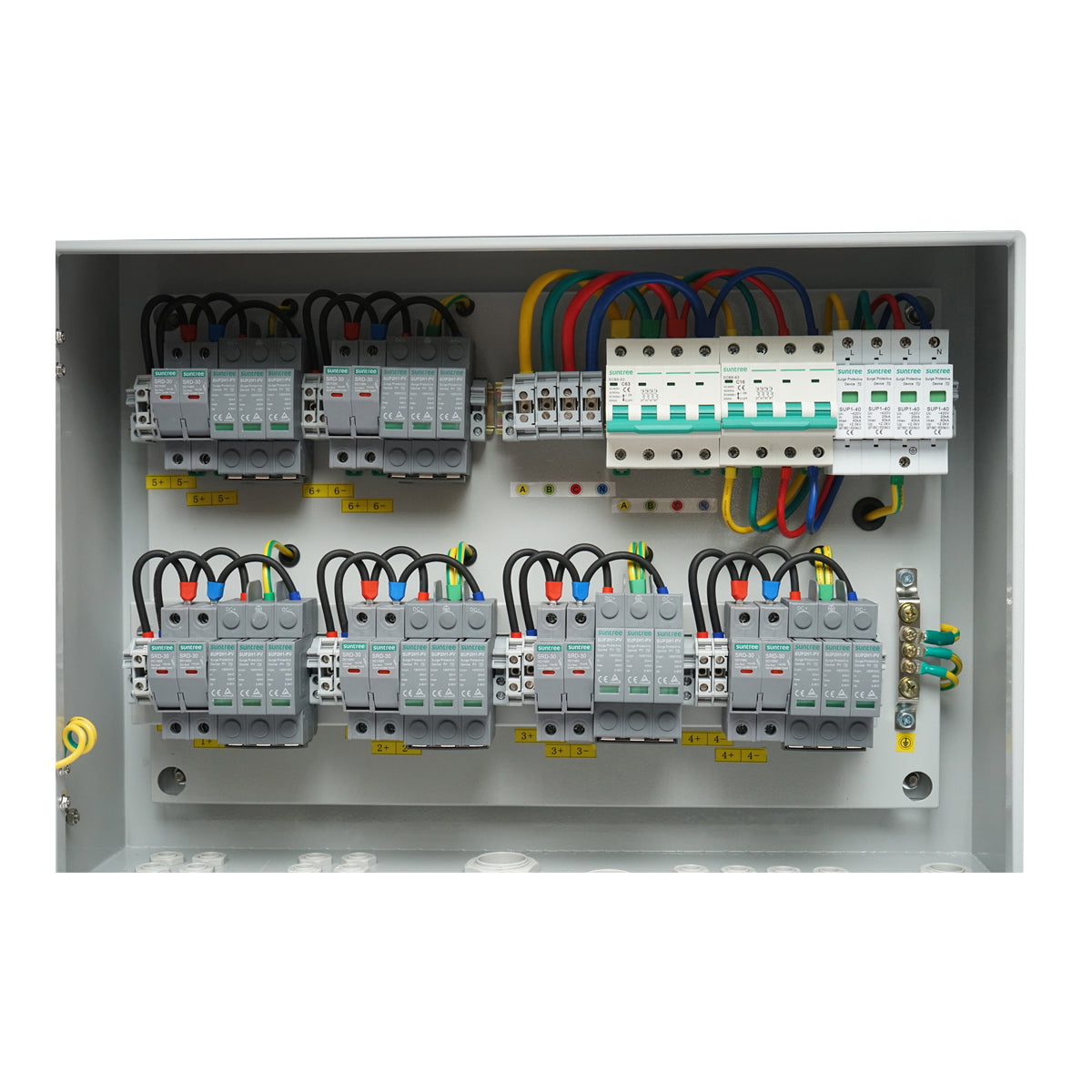

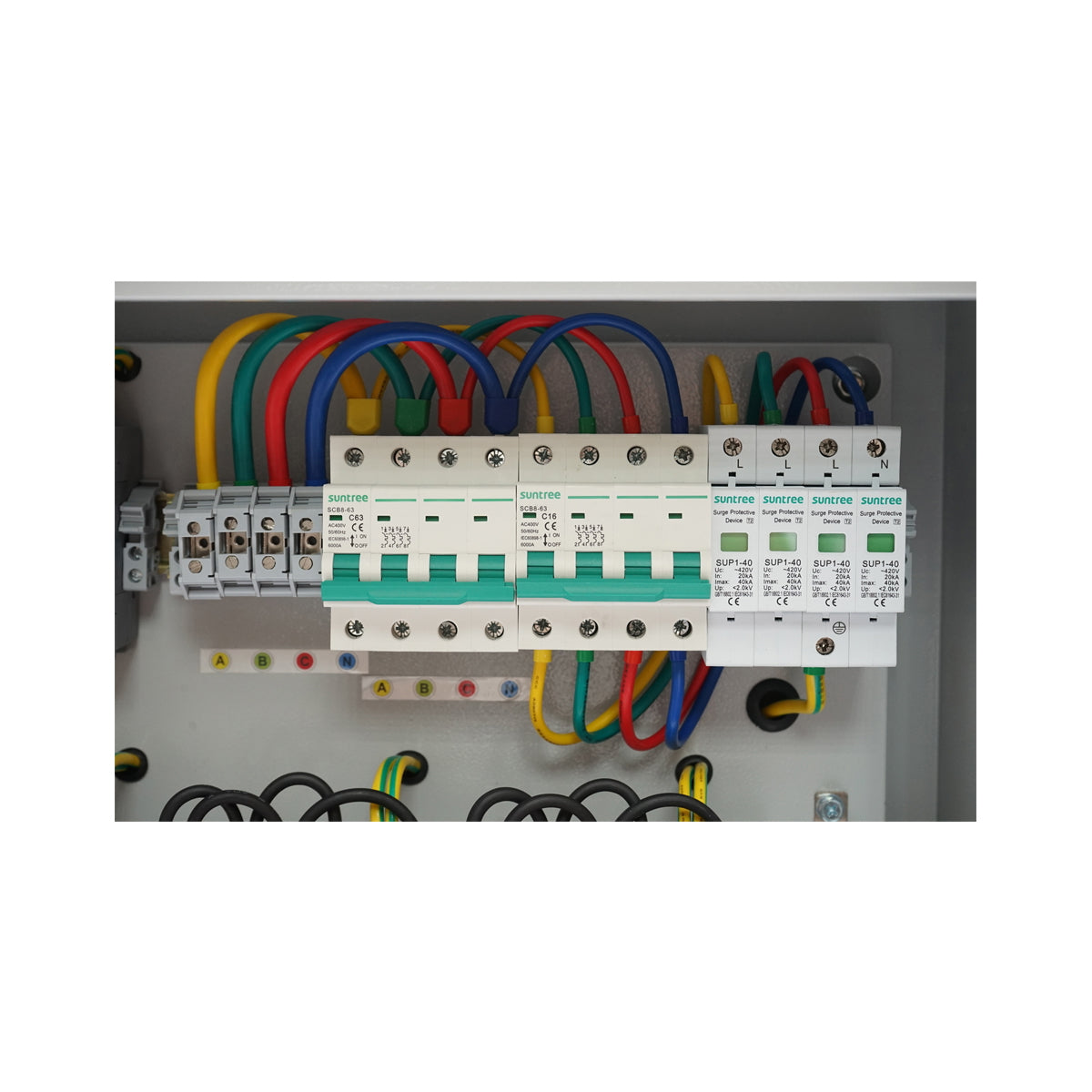

Painting equipment
1.	C63
Nominal current	63 a
Number of poles	4 p
Current type	AC 400V
Frequency	50/60 Hz
Short -circuit breaking capacity	6 ka
1.	C16
Nominal current	16 a
Number of poles	4 p
Current type	AC 400V
Frequency	50/60 Hz
Short -circuit breaking capacity	6 ka
1.	ACSPD, 380VDC 2040KA, 4P SUP1-40
Class	T2
Type	C
Nominal discharge current	20 ka
Maximum Imax Download Current	40 ka
Level of protection to nominal shock up	2.0 kV
Maximum operating voltage continues uC	420 v
Number of poles	4 p
6 string/Sirir containing

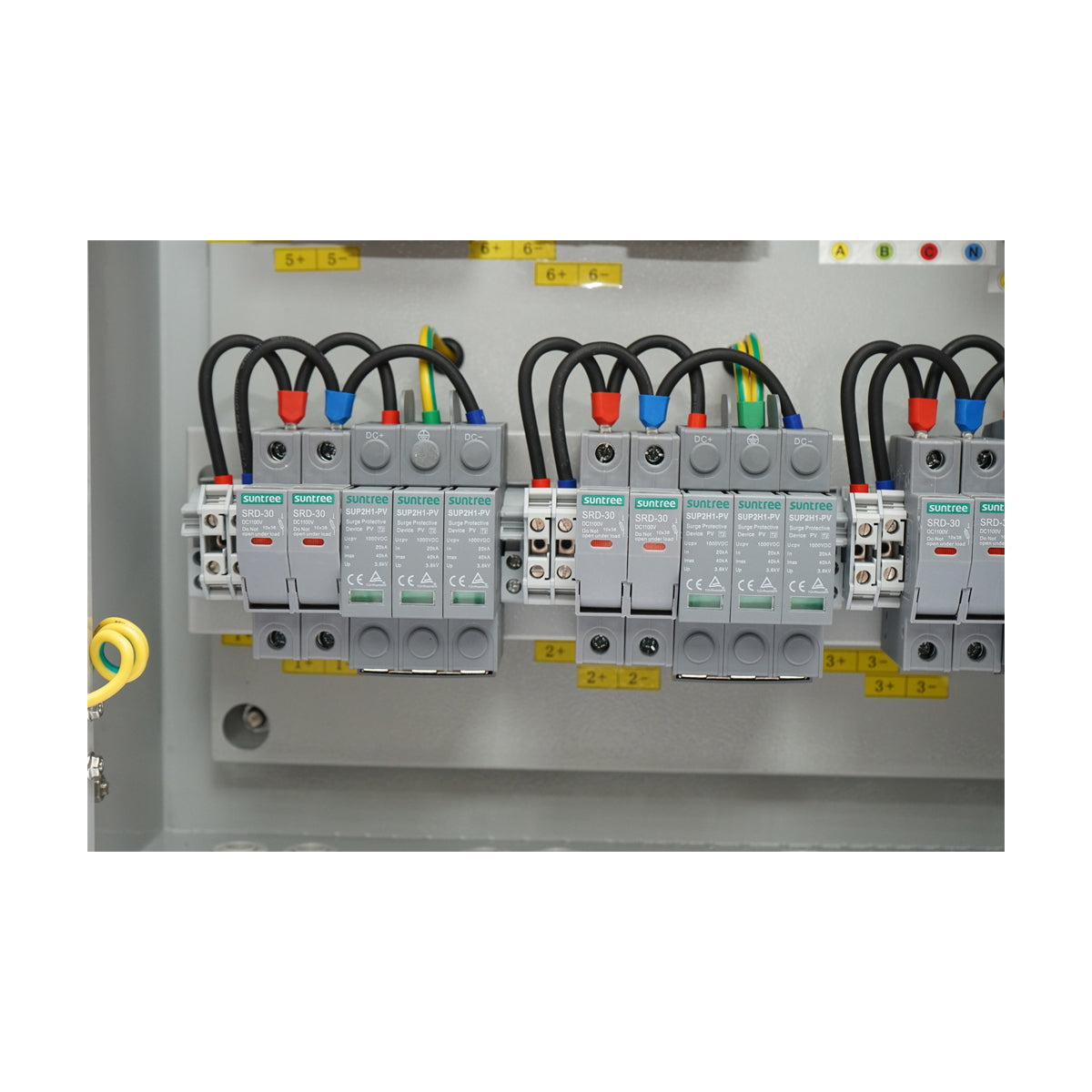

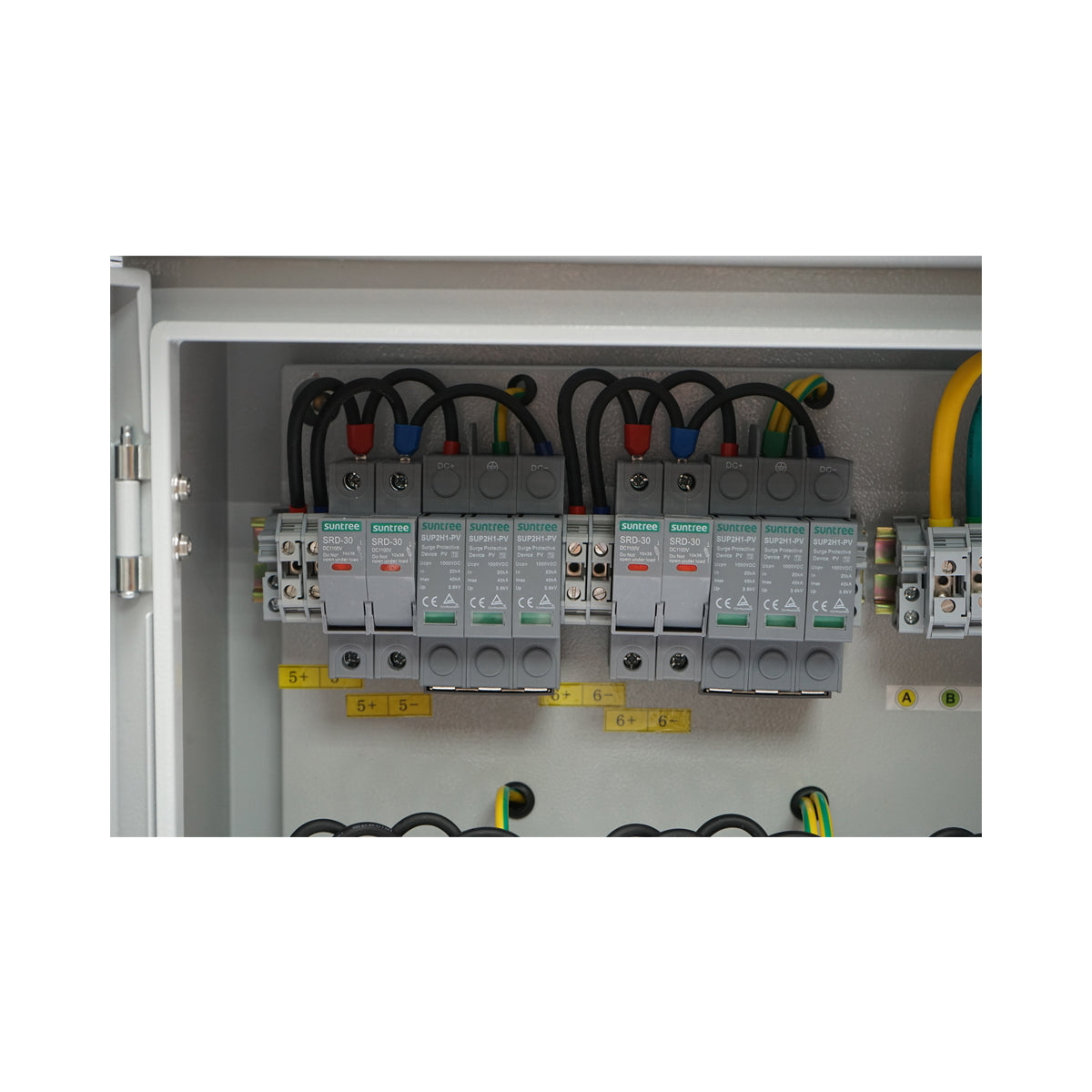

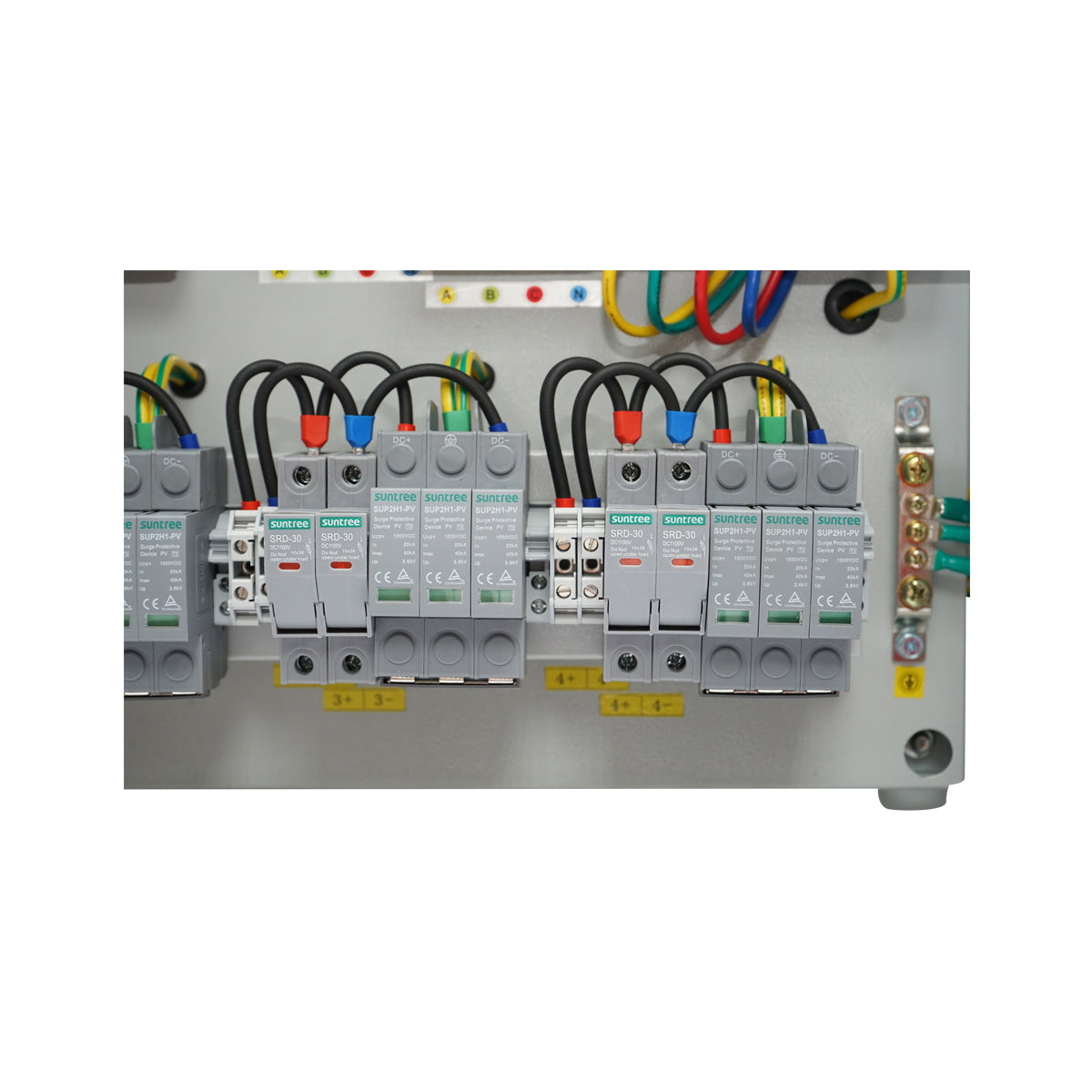

2. GPV fusible separators	SRD-30
Number of poles	1 p
Nominal voltage	1100 v
Maximum nominal current	30 a
Equipped definitely fusible	10 x 38 mm
1.	SUP2H1-PV
Number of poles	3 p
Class	T2, PV
Type	C
Nominal discharge current	20 ka
Maximum Imax Download Current	40 ka
Level of protection to nominal shock up	3.8 kV
Maximum operating voltage continues UCPV	1000 VDC
