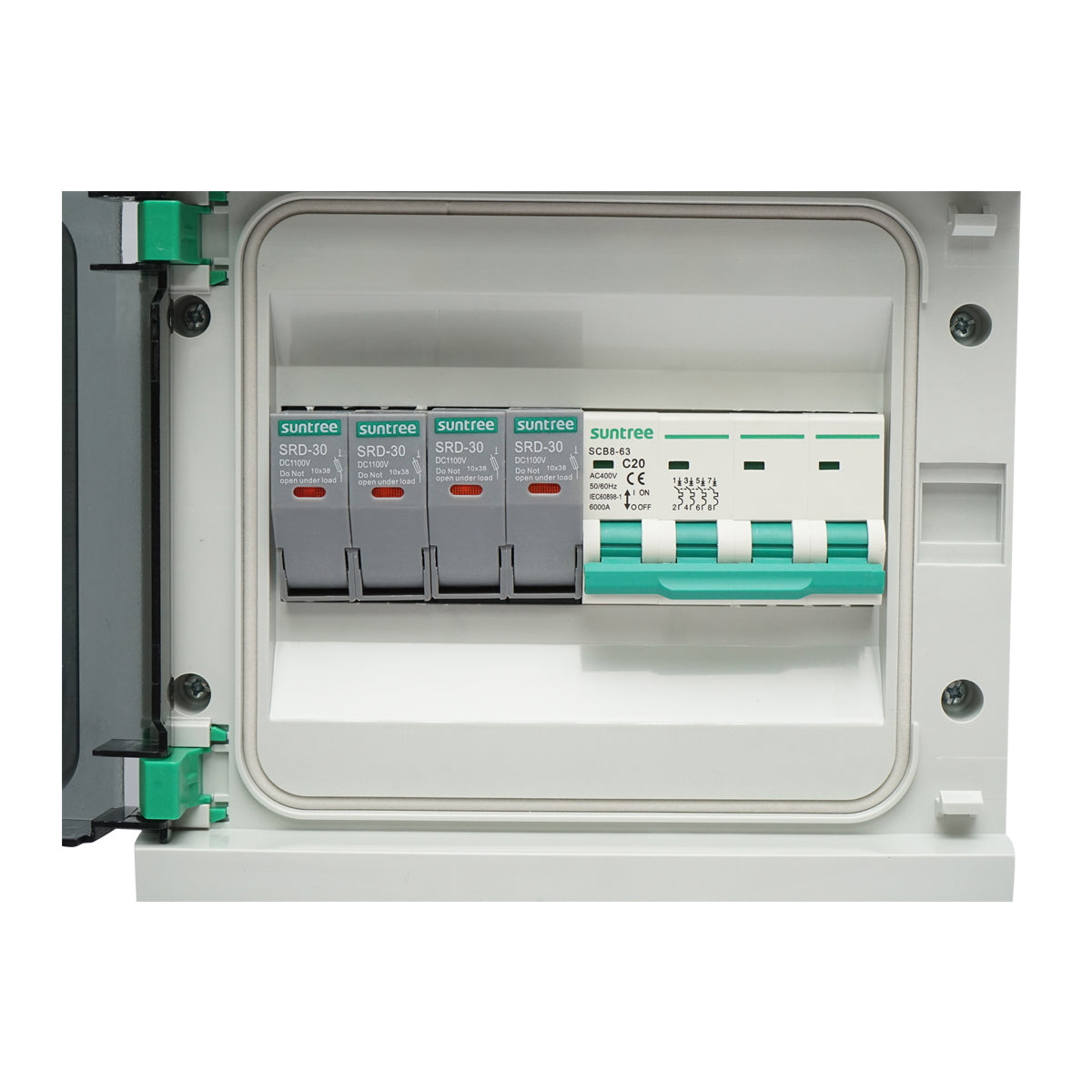

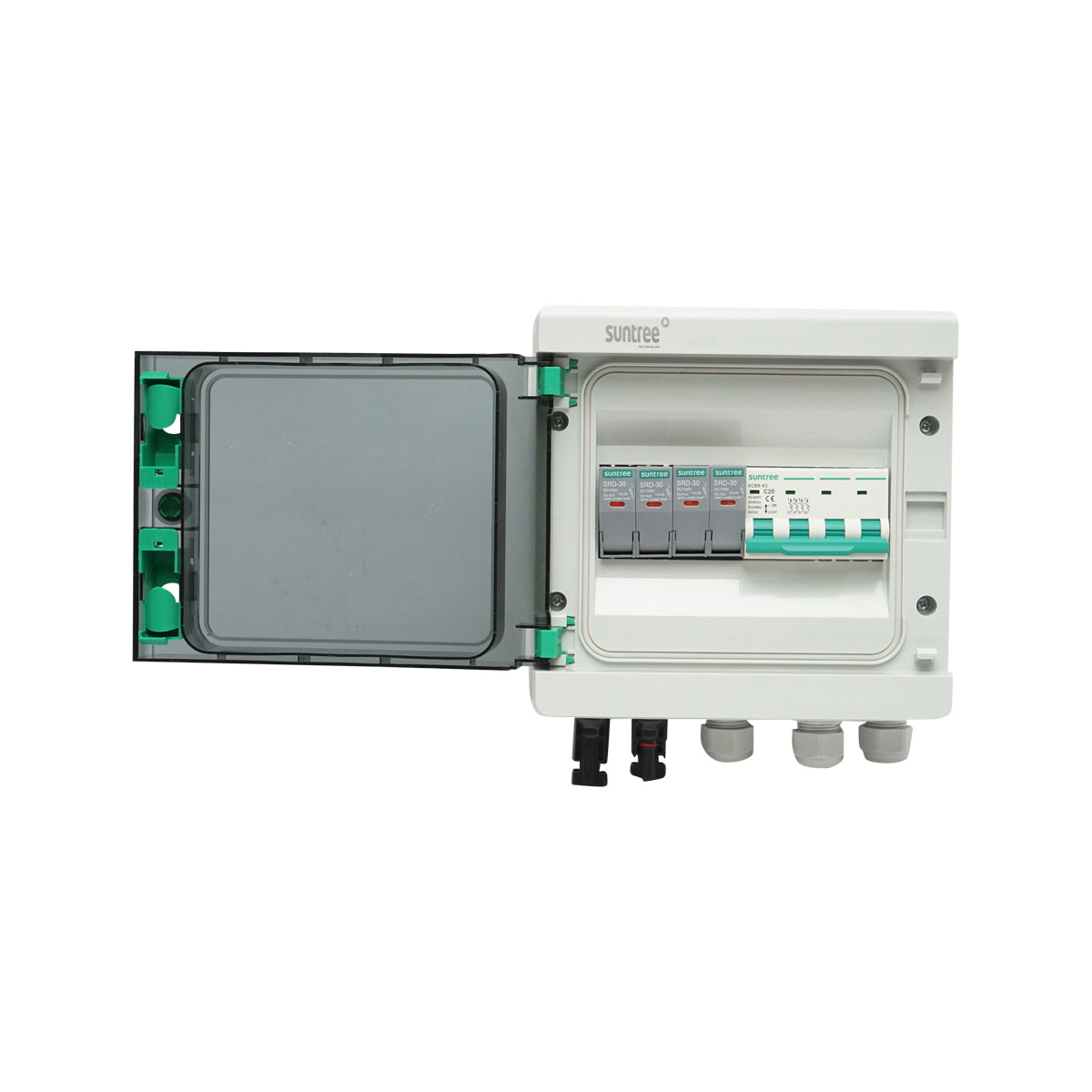

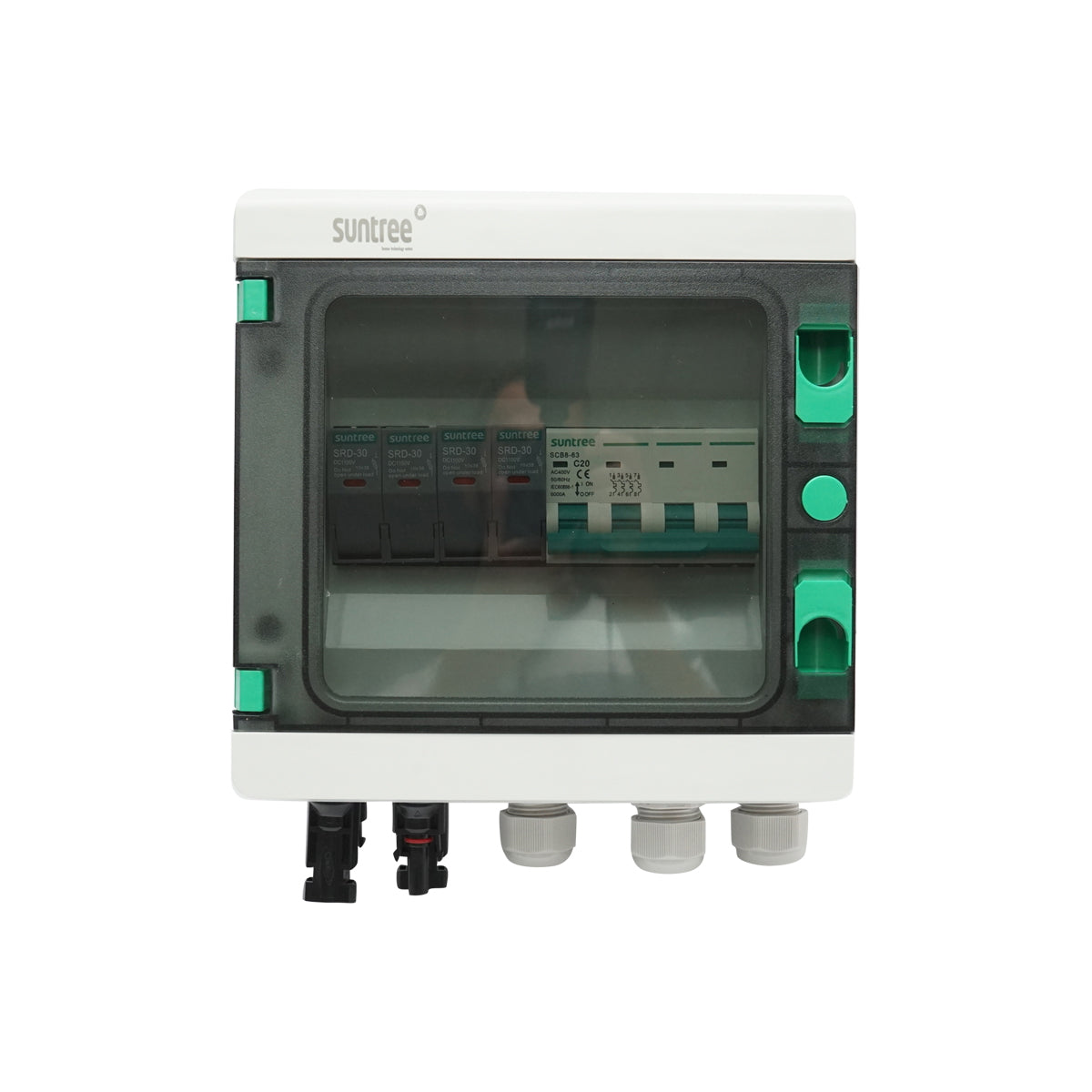

8-module fuse board, equipped for three-phase systems of 5-10KW

About the Product

General data
Number of rows	1
Maximum number of modules	8
Protection level	IP 21

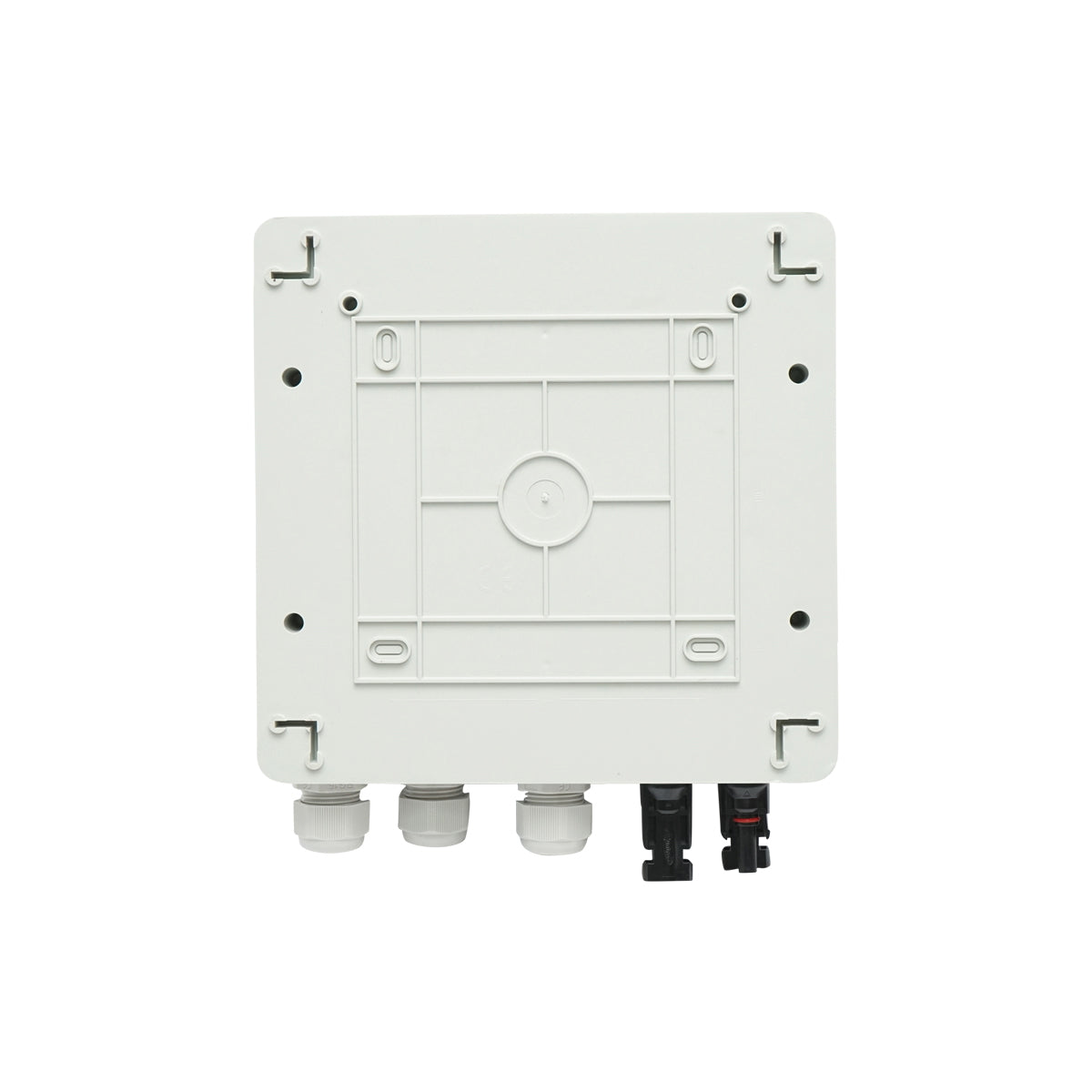

Application type	Pt - on the plaster, masonry
Equipped	The rail of 35 mm
size	200 x 210 x 120 mm
EQUIPMENT
1 x Autopmatian Safety Safety Type SCB8-63, C20
Nominal current	20 a
Number of poles	4
Nominal voltage AC	400 v
4 x GPV fusible separator
Number of poles	1
Nominal voltage dc	1100 v
Nominal current masim	30 a

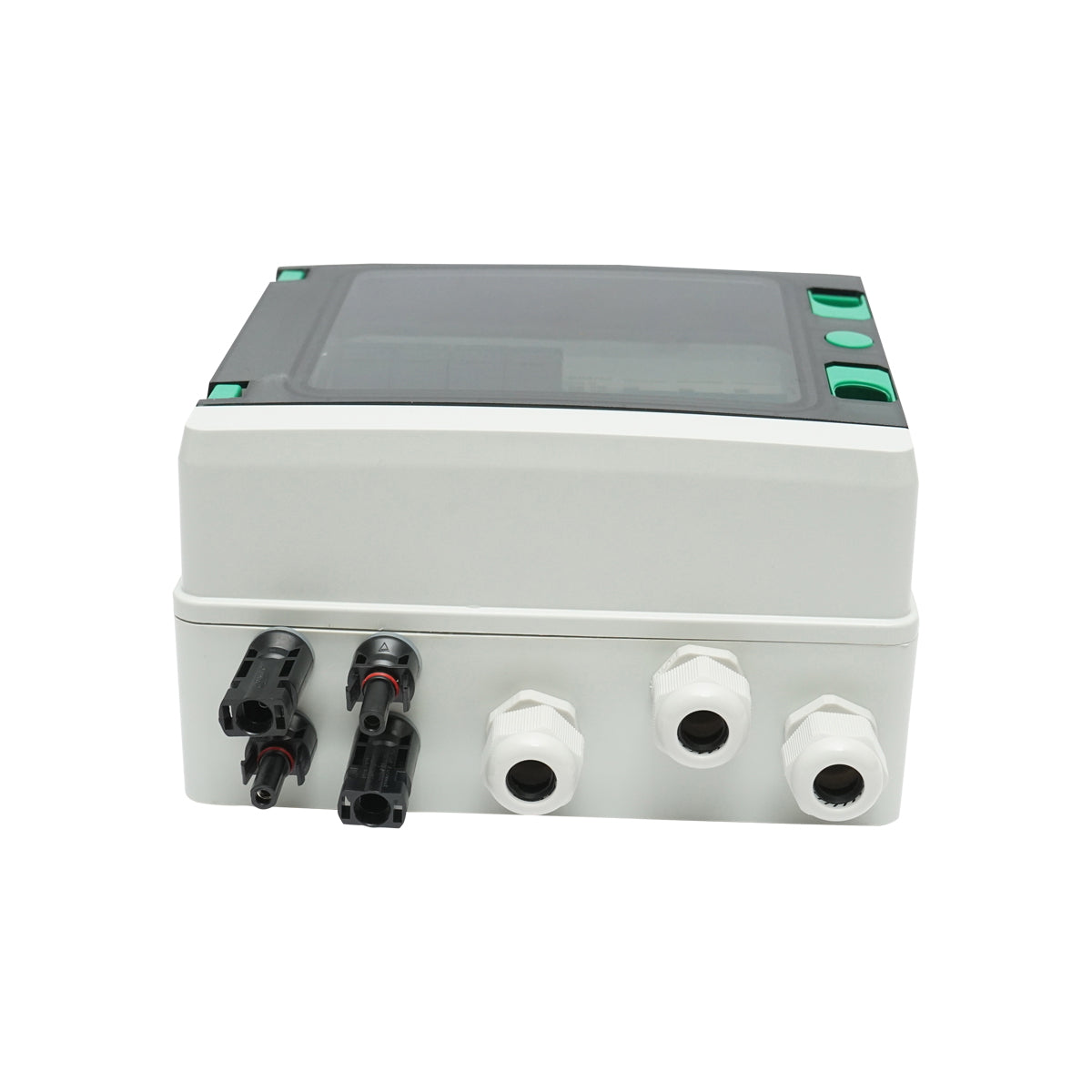

Glands
3 x preset	M18 x 1.5 mm
