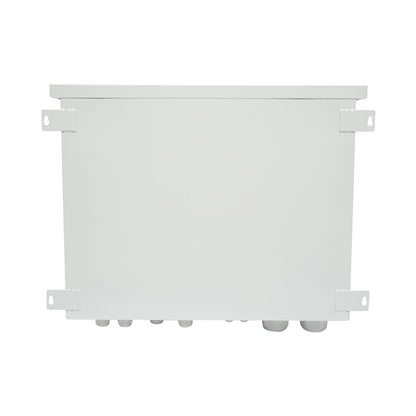

DC/AC equipped fuse box for 220V system, 3-6KW with SY OFF Grid series inverters

About the Product

General data
Painting dimensions	590 x 450 x 200 mm
Mounting type	Applied, for
Material	steel
Niuvel protection	IP 65
equipping	with counterpano, the rail of 35

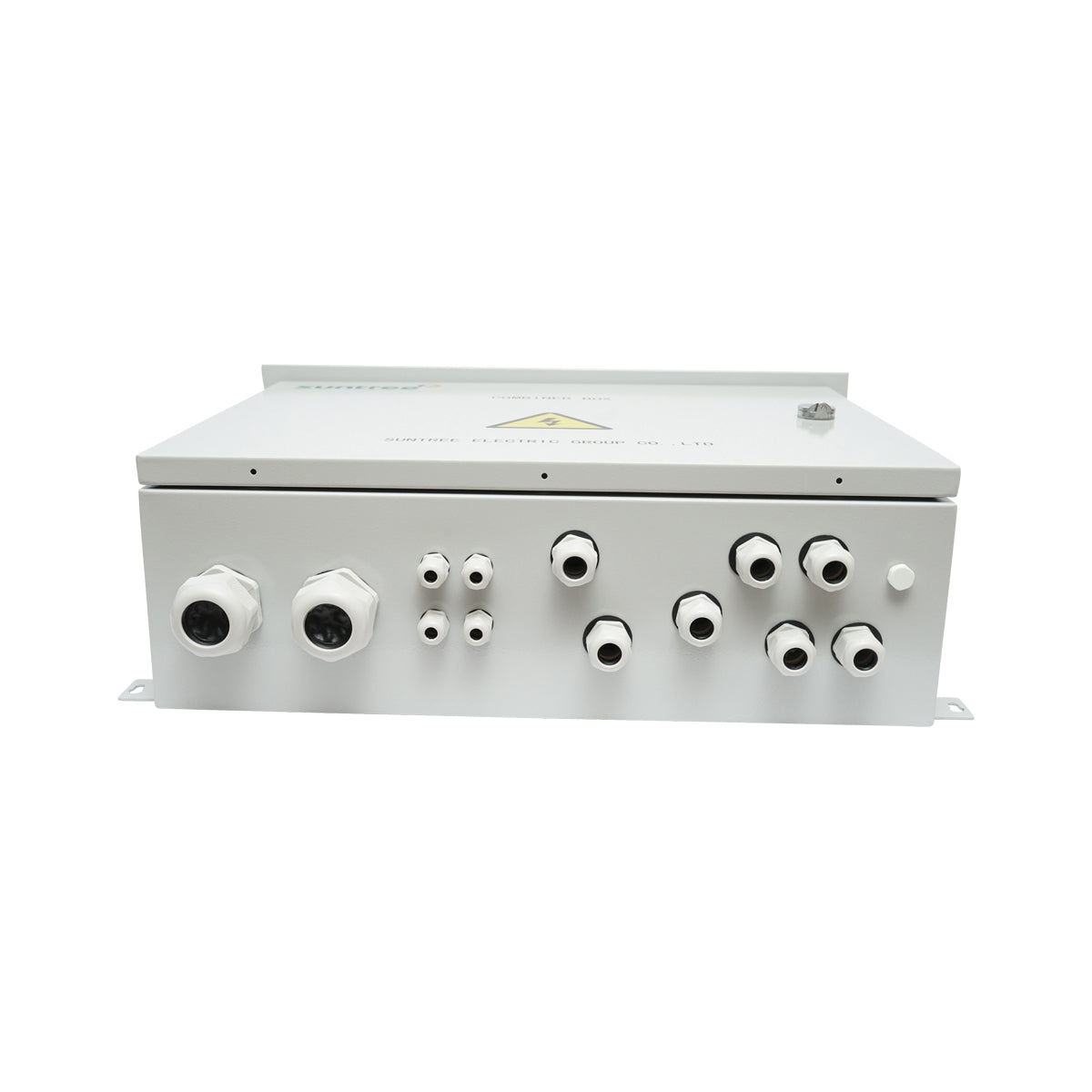

Glands	7 - M25x1.5mm, 4 - M16x1.5mm, 2 - M40x1.5mm

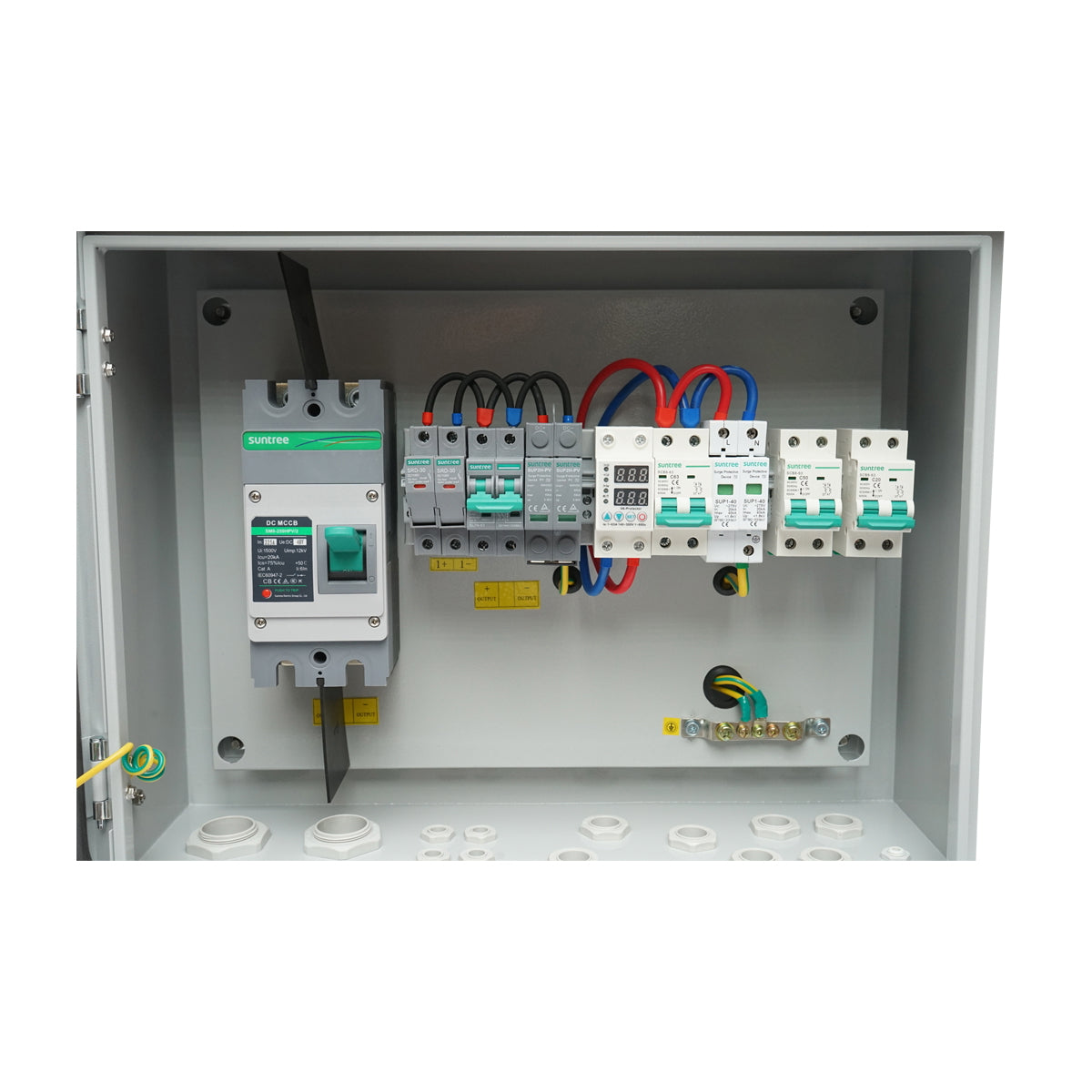

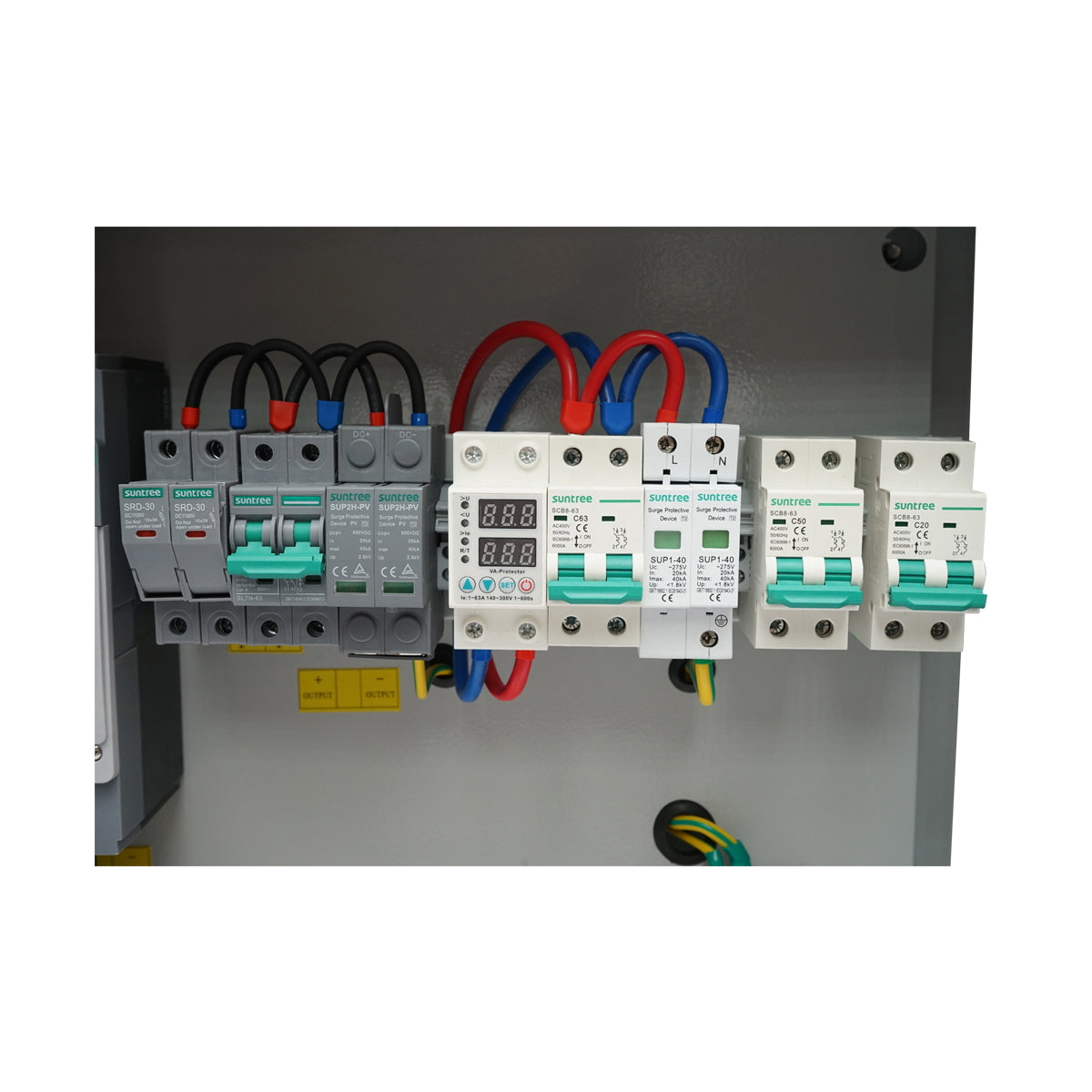

EQUIPMENT

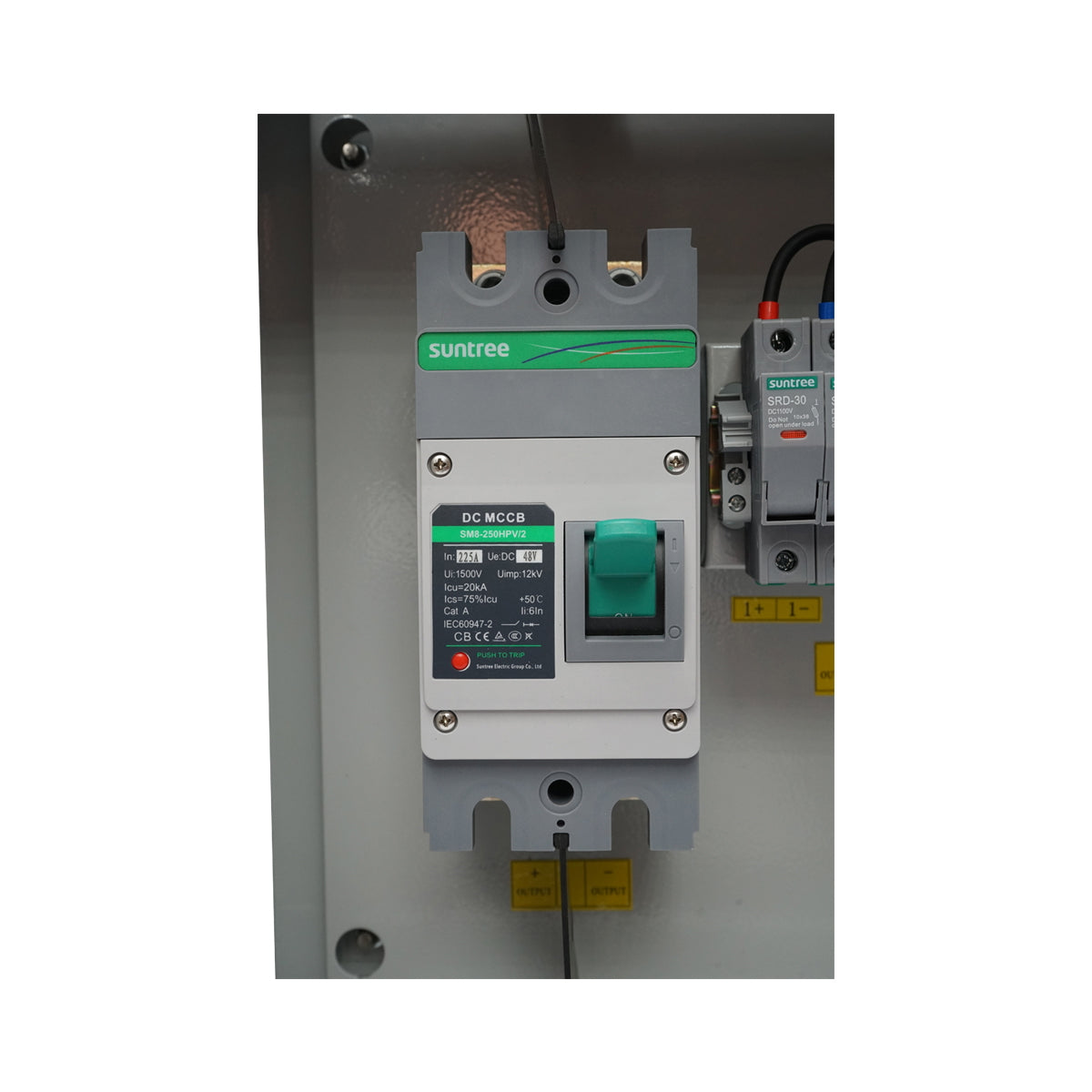

1 x DC MCCB Tip Tip 2 pole	225a, DC48V, UI 1500V
2 x GPV fusible separators	1p, 1100V, 30A
1 x Digital relay for sub-supporting monitoring	2 Poli, 63A, 140-300V
1 x Automatic safety Type SCB8-63 switch	16A, 63A, AC400V, 6Ka
1 x SUPERENSION DISPLANCE WITH SIGNALS 2P SUP1-40	In20KA, IMAX40KA, UP1.8KV, UC385V
1 xSafety Safety Type TypeSCB8-63 C50	2p, 50A, AC400V
1 xSafety Safety Type TypeSCB8-63 C20	2p, 20A, AC400V
