Breckner Germany Diesel Engine Compression Tester Kit

The complete pressure measurement kit for vehicles equipped with diesel engines.

The manometer indicates measurements in the 0-1000 PSI / 0-70 bar as well as the maximum pressure of the pressure reached during the engine compression test, this being provided with a ventilation valve that immediately reset the device if you want to repeat the test.

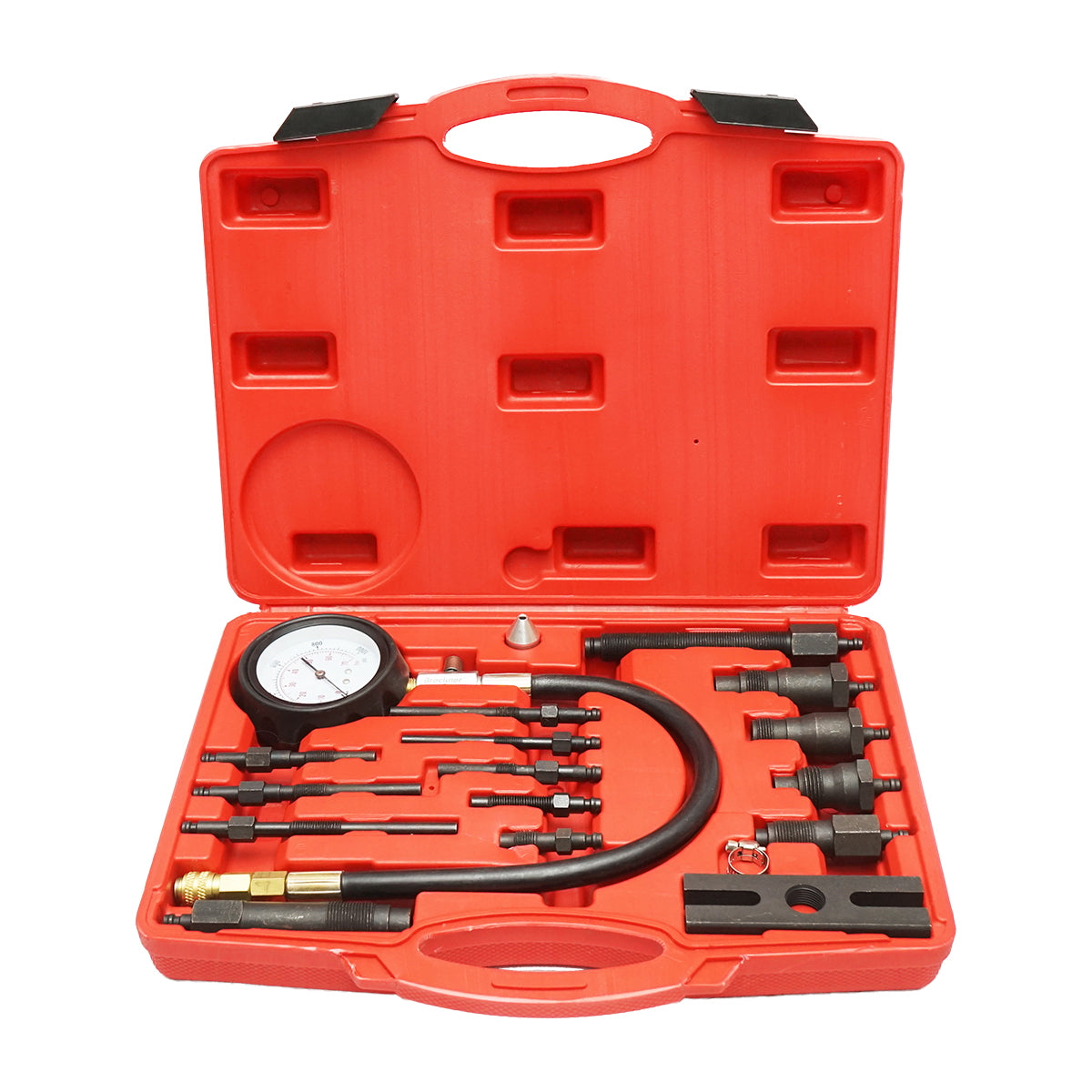

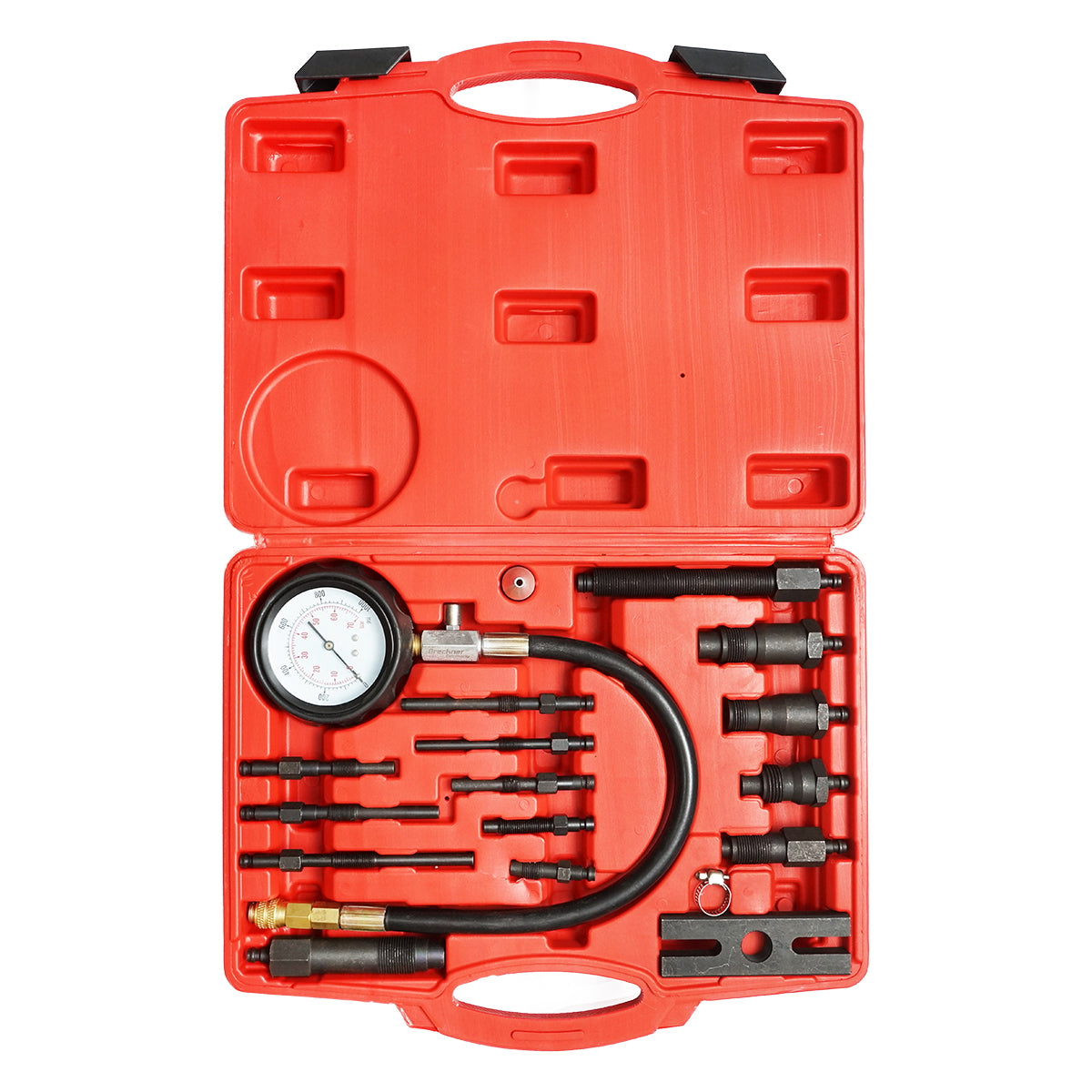

The kit includes the following:

• Incandescent spark plug adapter 91 mm, thread M 10 x 1
• Incandescent spark plug adapter 119 mm, thread M 10 x 1

• Incandescent spark plug adapter 135 mm, thread M 10 x 1.25
• Incandescent spark plug adapter 118 mm, thread M 22 x 1.5
• 340 mm manometer, 0-70 bar
• Incandescent spark plug adapter 83 mm, thread M 10 x 1
• Incandescent spark plug adapter 102 mm, thread M 8 x 1
• Incandescent spark plug adapter 113 mm, thread M 10 x 1
• Incandescent spark plug adapter 64 mm, thread M 10 x 1.25
• Incandescent spark plug adapter 48 mm, thread M12 x 1.25
• ADAPTOR FLIGHT 160 mm
• 89 mm injector adapter, M 24 x 1.5 thread
• 73 mm injector adapter, M22 x 1.5 thread
• 64 mm injector adapter, M 24 x thread
• 75 mm injector adapter, thread M 20 x 1.5
• H
• Ventilation valve
