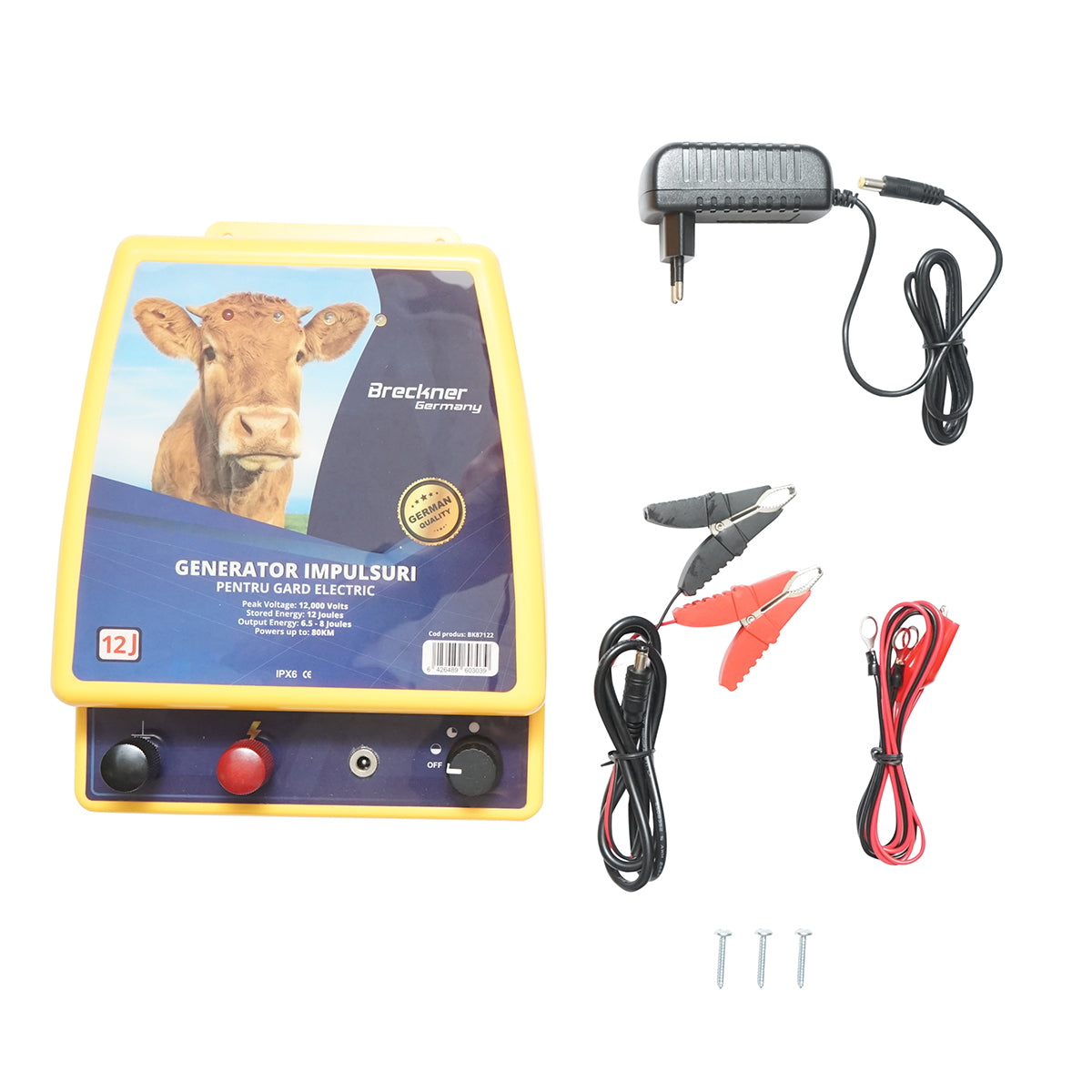

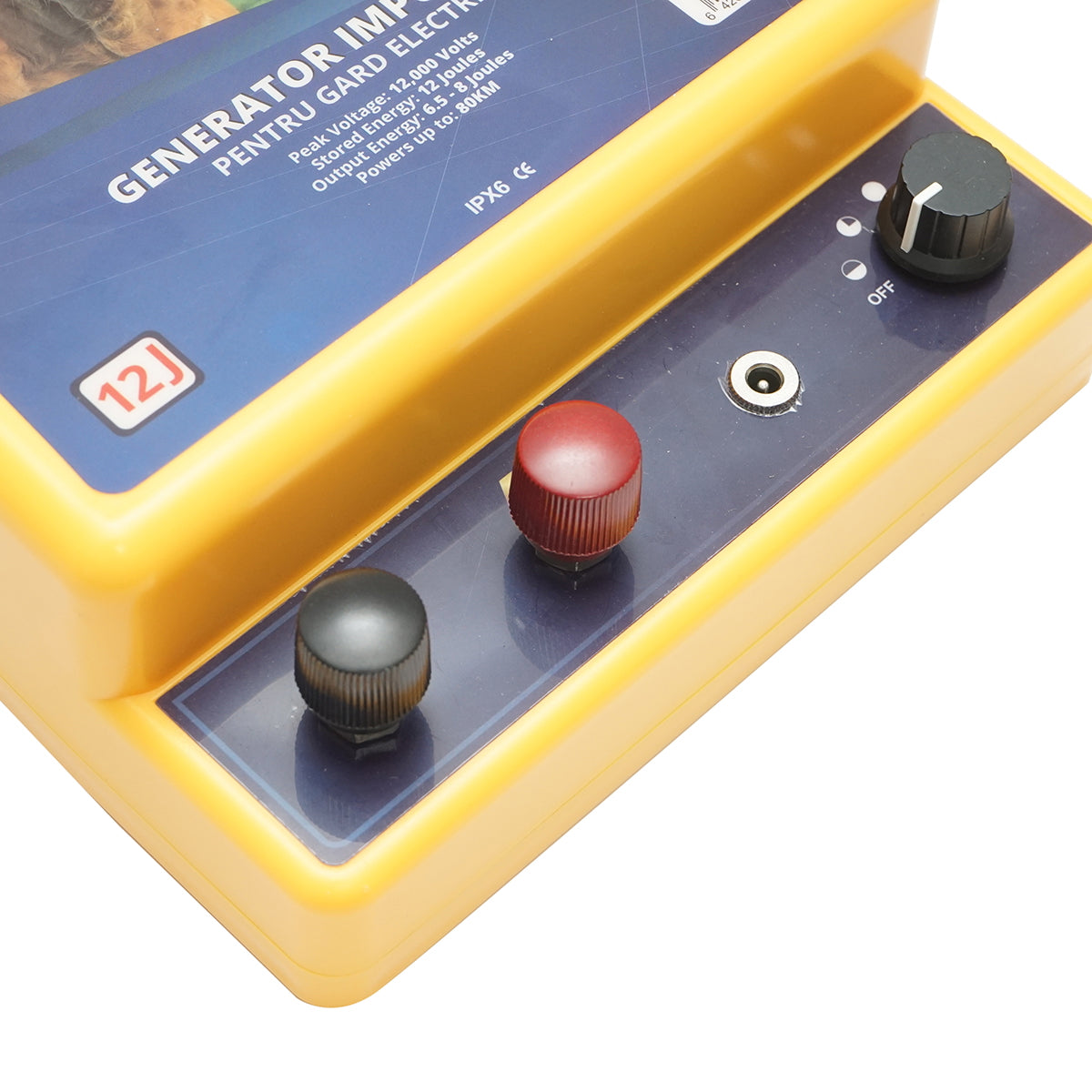

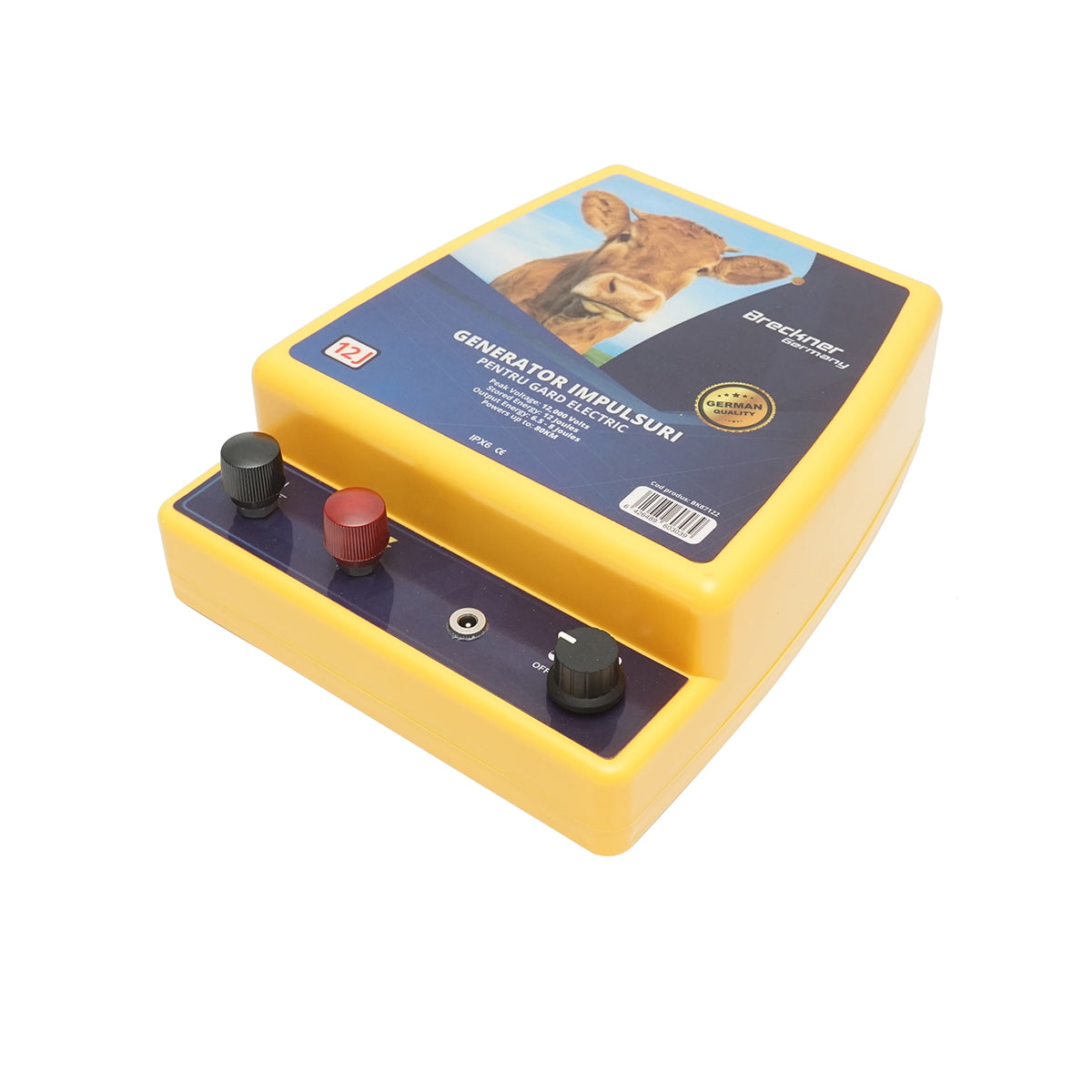

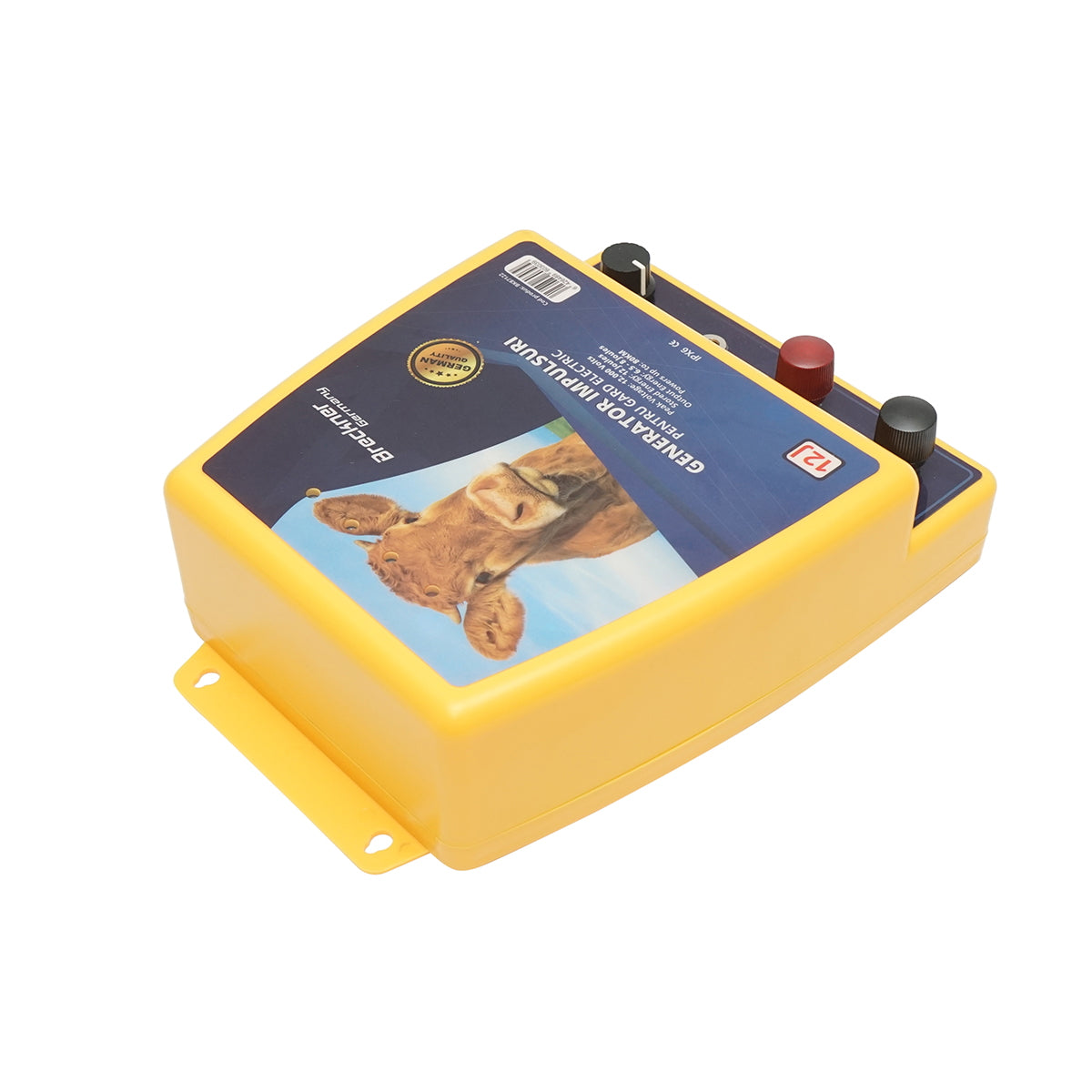

12 Joule impulse generator device for electric fence 12V/220V Breckner Germany

Guide to install solar panels for electric fence impulse generators

Impulse generators for electric fences have become more and more popular in recent years, offering an effective and environmentally friendly way to keep animals safe or delimit a property. However, the way we connect the solar panels to these generators can influence the battery life and the general efficiency of the system.

1. Solar panel size:

If you intend to connect a solar panel to the pulse generator, it is essential to take into account its power. In general, the power of the solar panel should not exceed 20W.

2. How to connect solar panels greater than 20W:

If you choose a solar panel with a capacity greater than 20W, it is essential that you do not connect it directly to the impulse generators. Instead, it should be connected by a controller or regulator and then directly to the battery. This step ensures that solar energy is properly managed and protects the equipment and battery.

3. What happens if we connect a panel up to 20W directly to the terminals of the device?

If you choose to connect a solar panel with a capacity of up to 20W directly to the impulse generators, solar energy will not be used to charge the battery. In contrast, during the day, the pulse generator will use the current directly from the panel. Although this does not charge the battery, it has the advantage of extending its lifespan.

4. The desire to charge the battery:

For those who want to use solar energy to charge the battery, it is crucial to connect the solar panel to the battery through a controller or regulator. This connection ensures that the battery will receive a constant and regular energy flow, thus optimizing the lifespan and the efficiency of the battery.

Conclusion:

The correct connection of the solar panels to the impulse generators of the electric fences is essential for the optimal operation and durability of the equipment. Whether you want to extend the battery life or ensure an effective charging, it is important to follow the above guide to get the best results.
