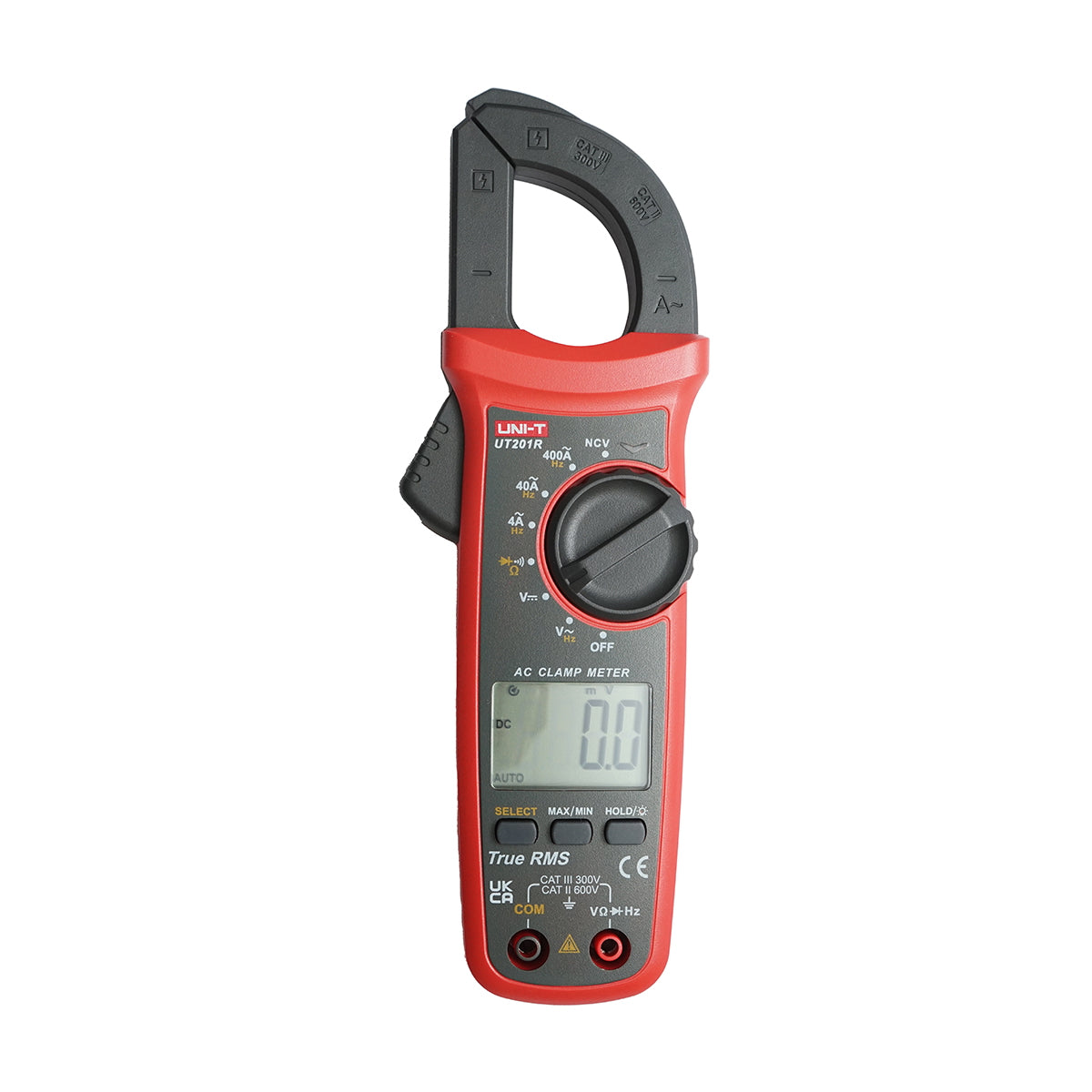

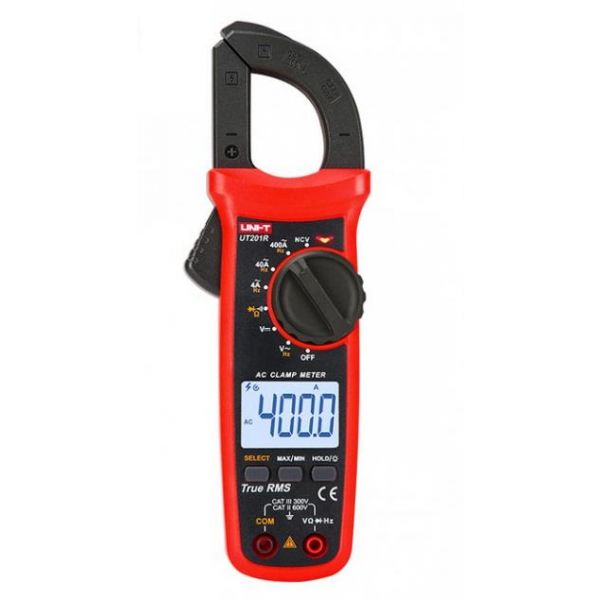

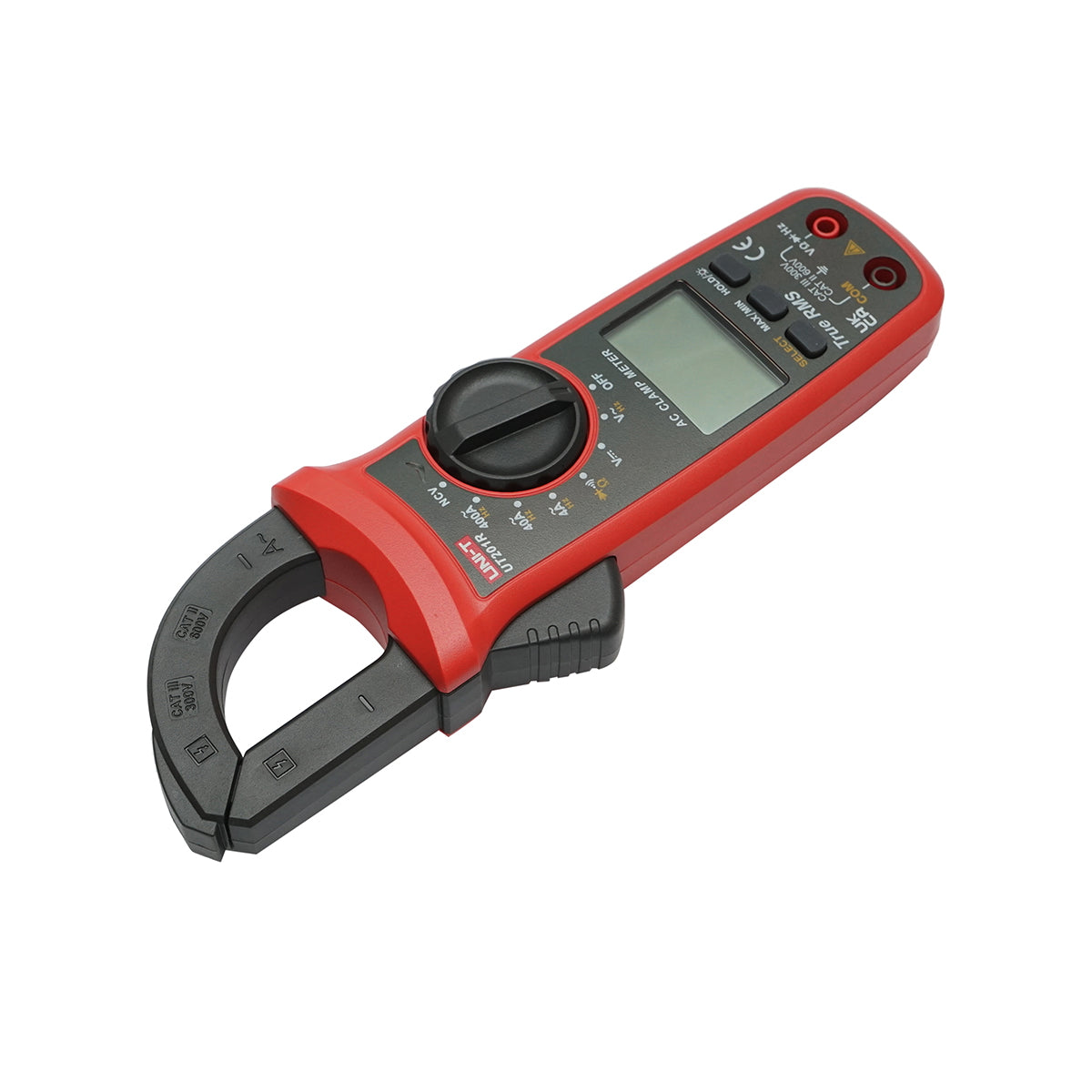

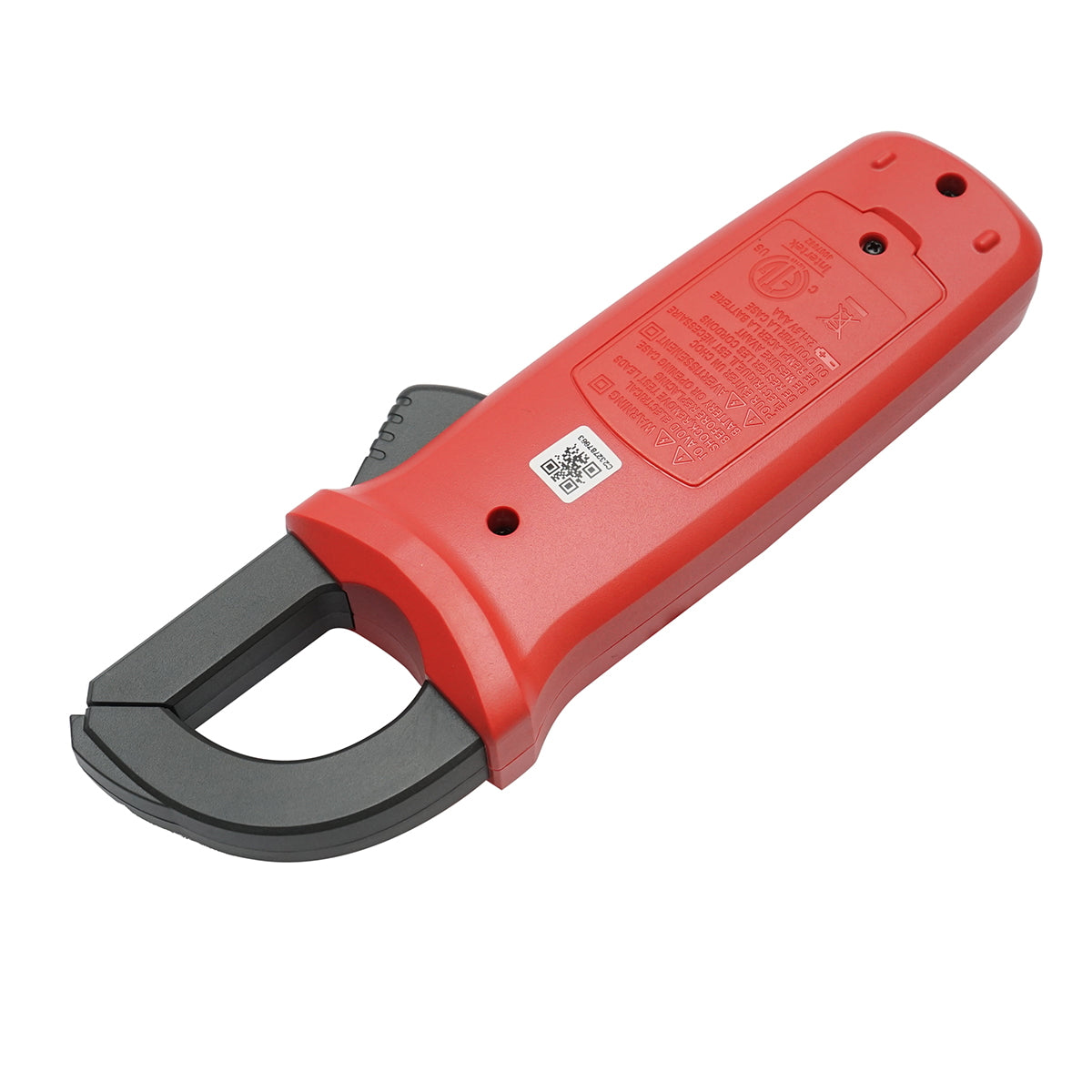

Amperometric clamp, digital clamp meter with 6 functions UT201R UNI-T

Food voltage: 3.0 V

Power source: 2 x 1.5 V (AAA / R03)

Check and control:

- DC voltage: 0.6 - 600 V ± (0.5 + 2) Resolution 0.001 - 1.0 V

Input impedance approximately 10 MΩ

Overload protection at 600 VRMS

- AC voltage: 4 - 600 V ± (0.8% + 5) Resolution 0.001 - 1.0 V

Precision of frequency monitoring when measuring alternate current in the range 50 - 100 Hz is ± (1% + 5) at 0.1 Hz resolution

Input impedance: About 10 Mgω

Overload protection at 600 VRMS

- AC current: 4 - 400 A ± (2.0% +10) with a resolution of 0.1 a

AC current measurement (intervals / resolution / precision):

Overload protection at 420 a

Frequency Curemt AC: 50 Hz - 100 KHz ± (4% + 10)

Precision of frequency monitoring when measuring alternate current in the range 50 - 100 Hz is ± (1% + 5) at 0.1 Hz resolution

- Resistance:

400.0 Ω ± (1% +2)

4.000 KΩ ± (0.8% +2)

40.00 KΩ ± (0.8% +2)

400.0 KΩ ± (0.8% +2)

4.000 MΩ ± (2% +5)

40.00 MΩ ± (2% +5)

Resolution 0.10 Ω - 0.01 MΩ

Overload protection at 600 VRMS

Falci opening: 28 mm

Measurement category: Cat II 600 V, CAT III 300 V

TRUE RMS: Yes

Detection Electric Camp Without Contact (NCV): Yes

Verification of Continuity with Buzzer: Yes

Verification of diodes: yes

Automatic scaling: yes

Data memorization: Yes

Maximum Value Registry: Yes

Automatic stop: yes

Downloaded battery signal: Yes

Display: LCD screen

Screen Dimensions: 35.6 x 25 mm

View capacity: 3999

Dimensions: 215 x 63 x 36 mm

Weight: 0.250 kg
