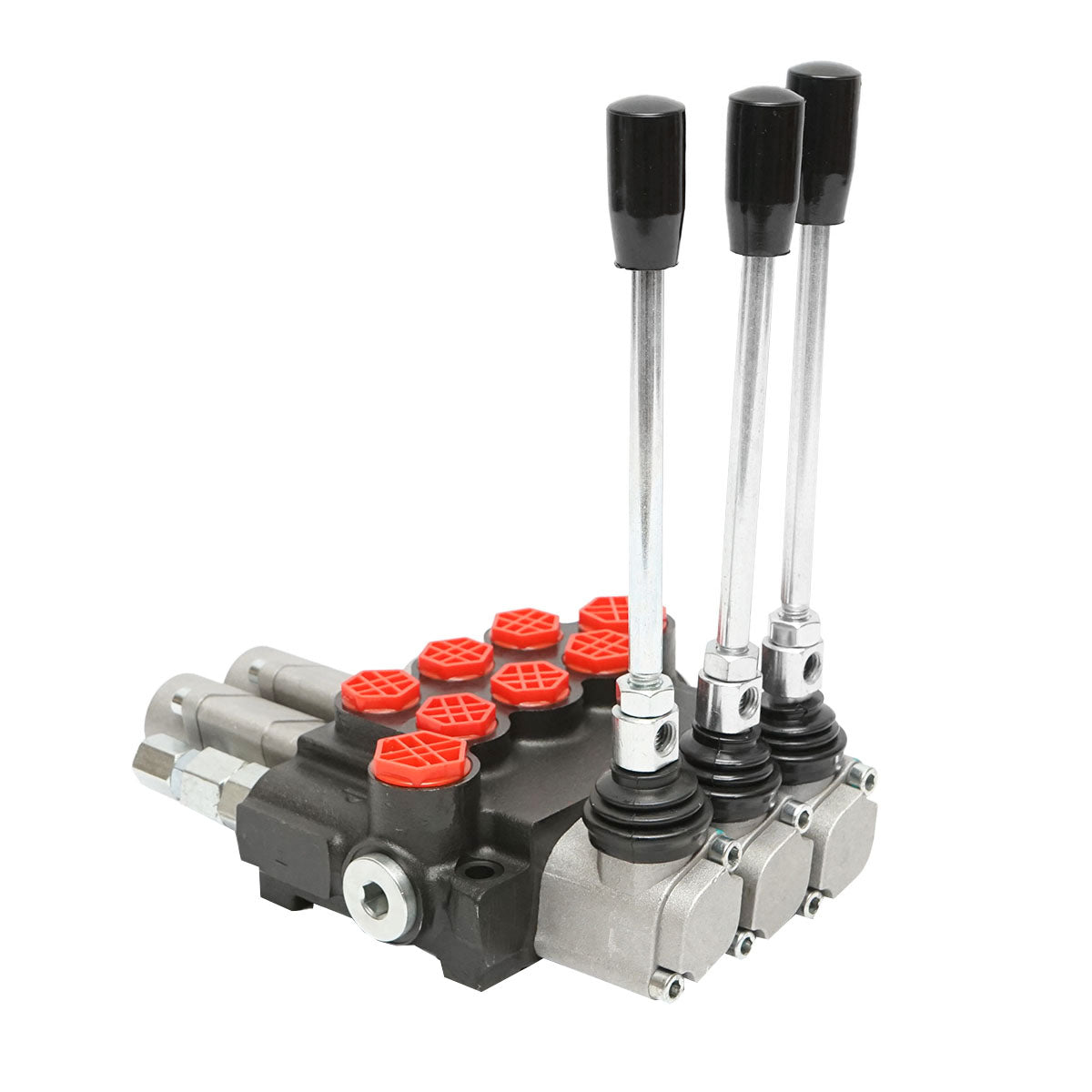

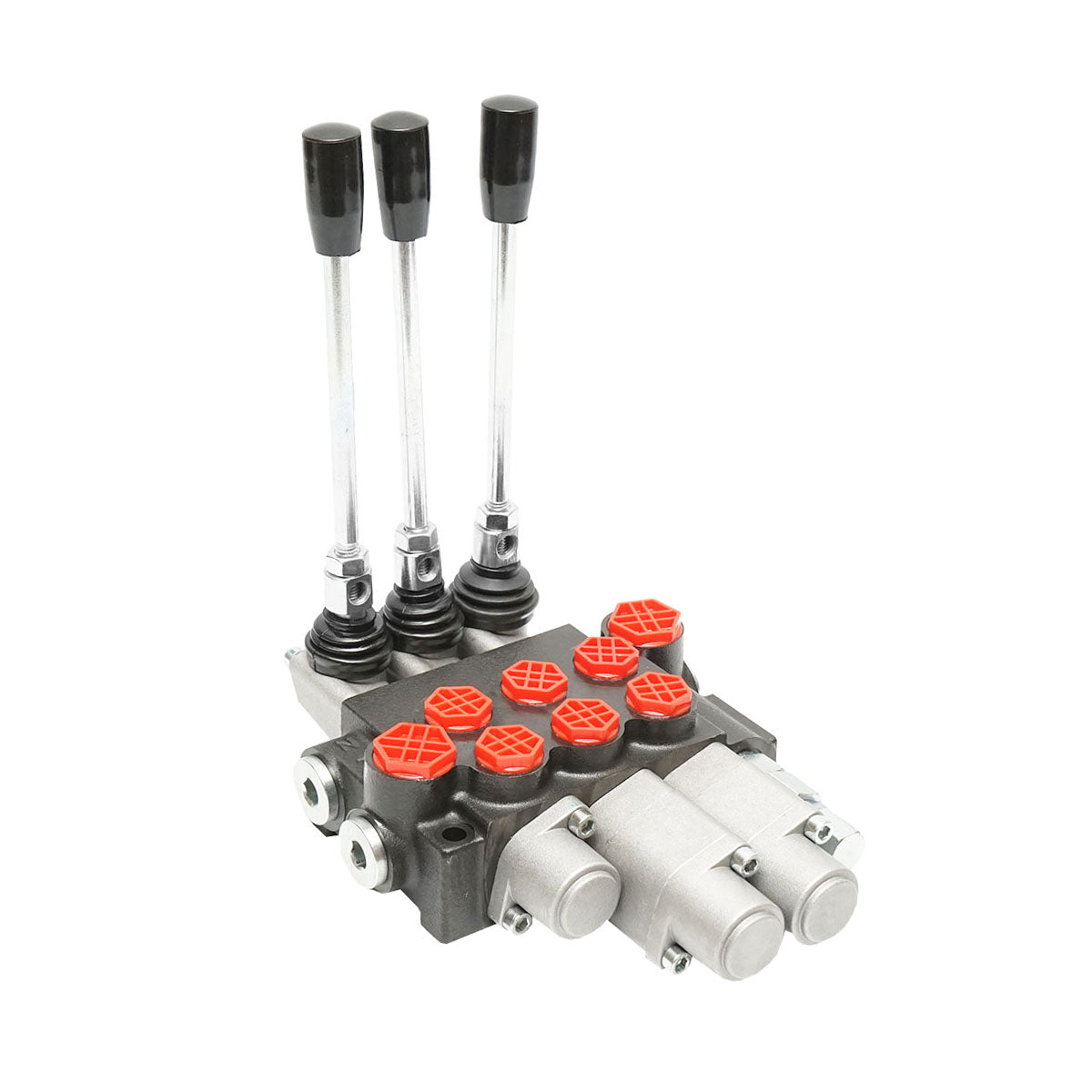

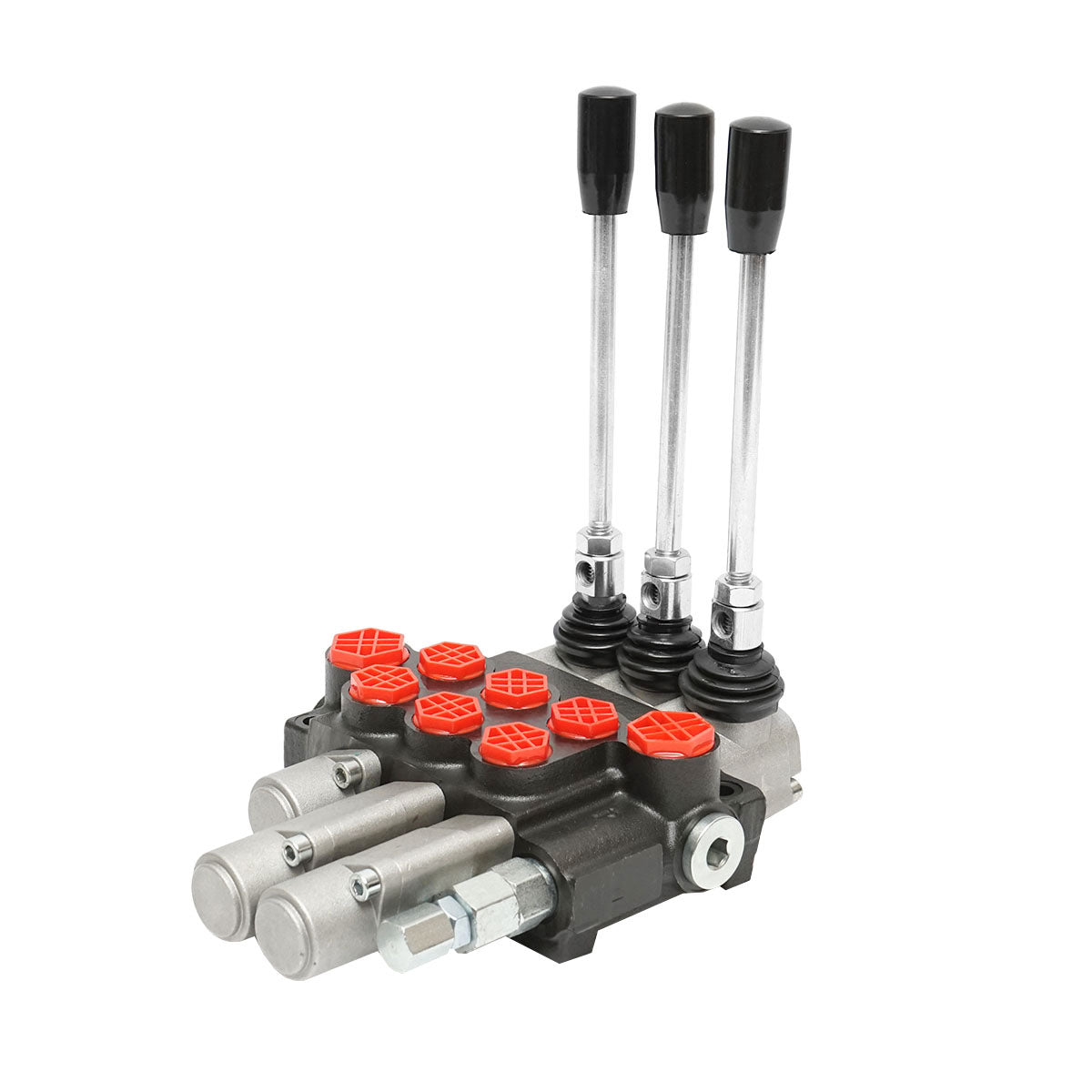

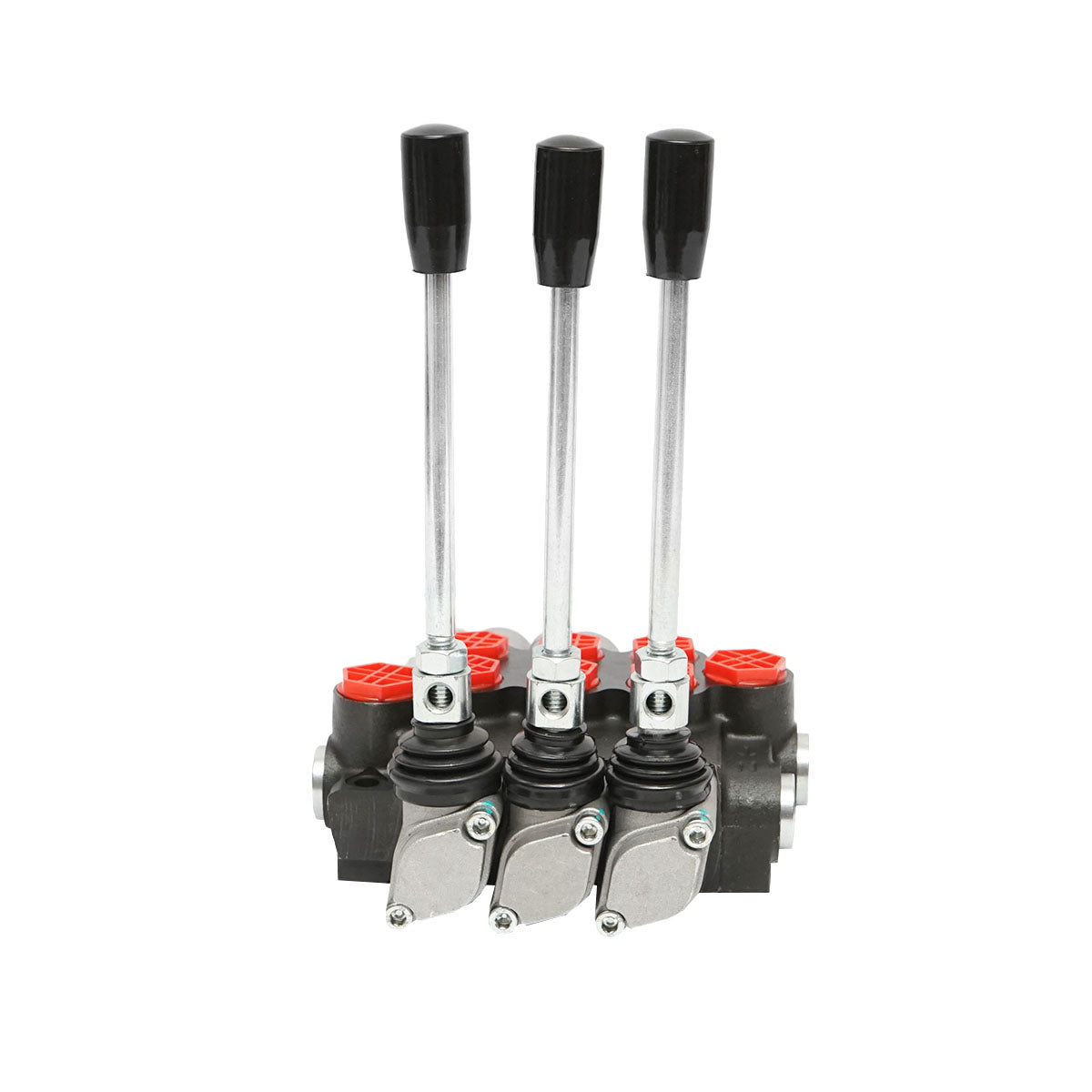

Hydraulic distributor with 3 levers, 2 float positions, 40L/min.

About the Product

Hydraulic distributor with 3 floating details: Details:

Number of levers	3
Normal flow	40l/min
Maximum pressure	315 bar
Work pressure	200 - 250 bar
Drain	7cm3 / 100 bar
Metric diameter side side	20 mm x 2
Metric diameter up top	16 mm x 6
The optimum operating temperature	-40 ° C - +60 ° C.
Optimum fluid temperature	-15 ° C - +80 ° C.
