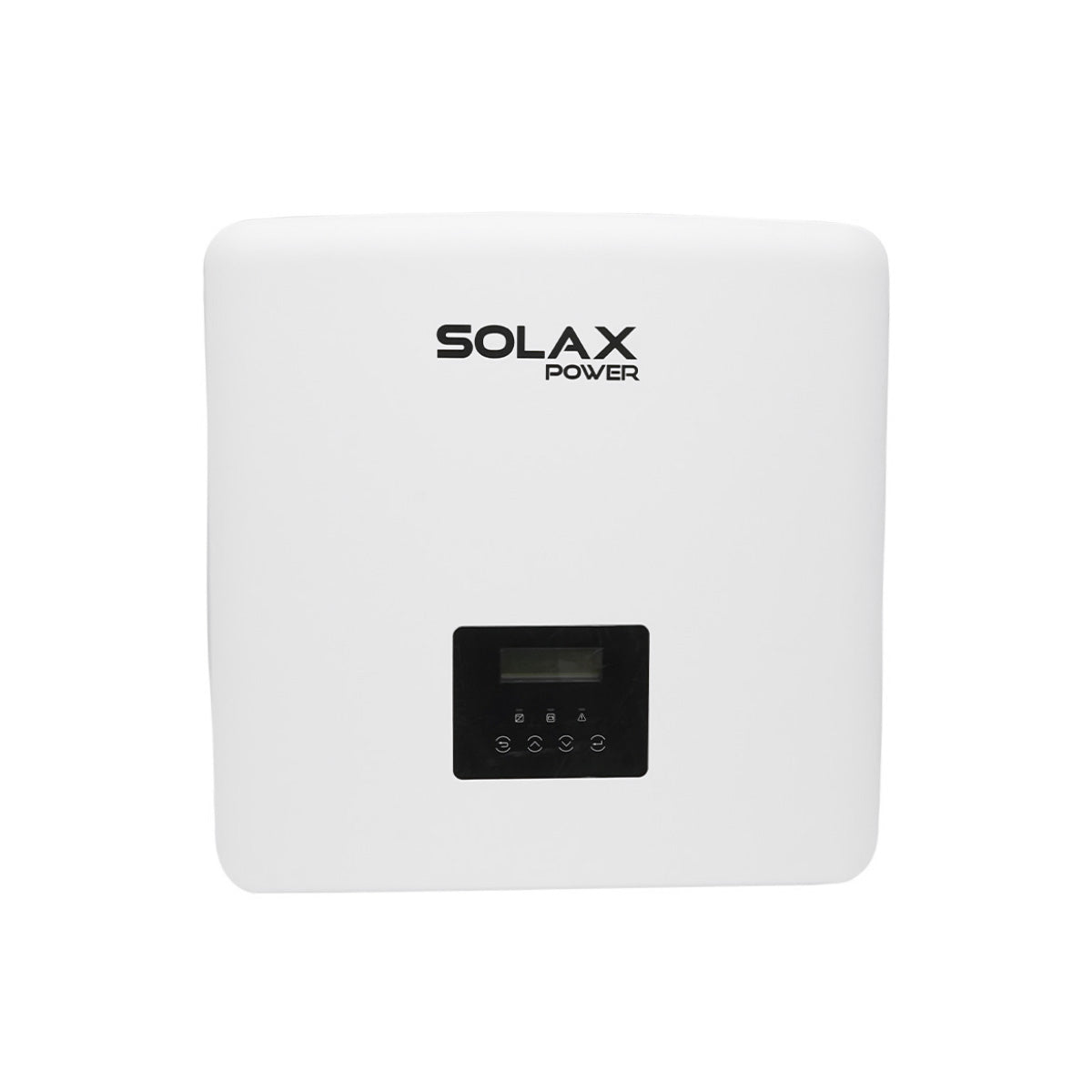

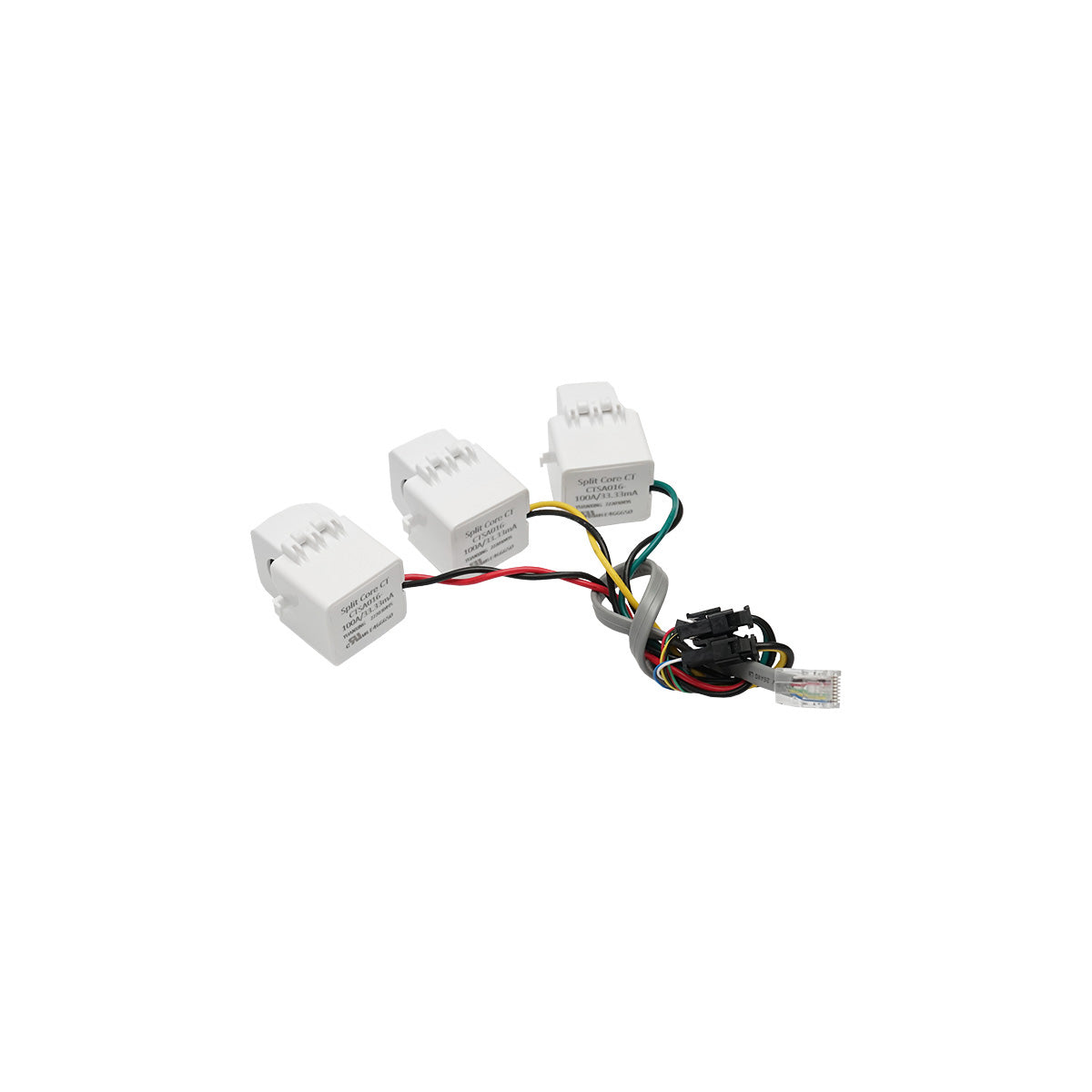

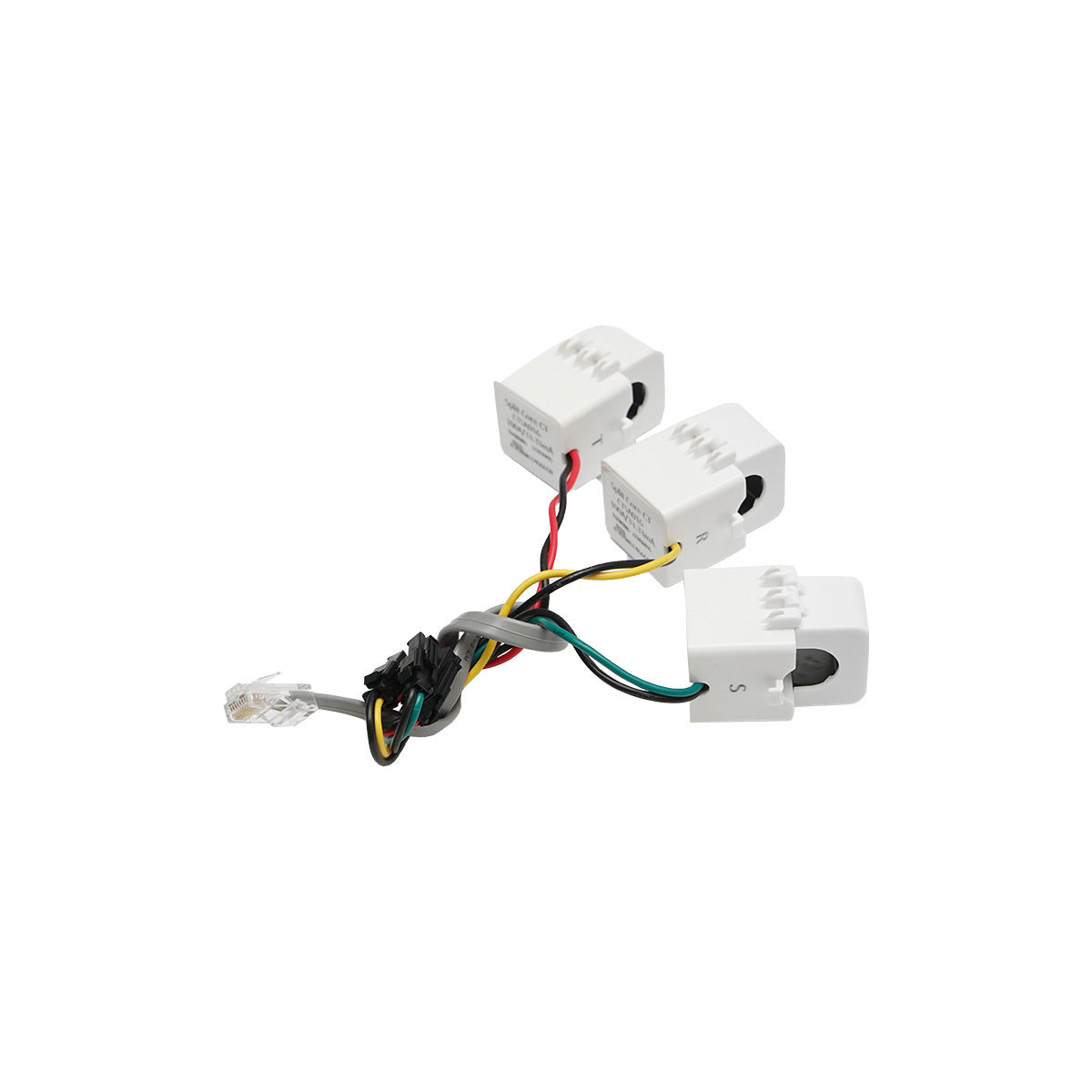

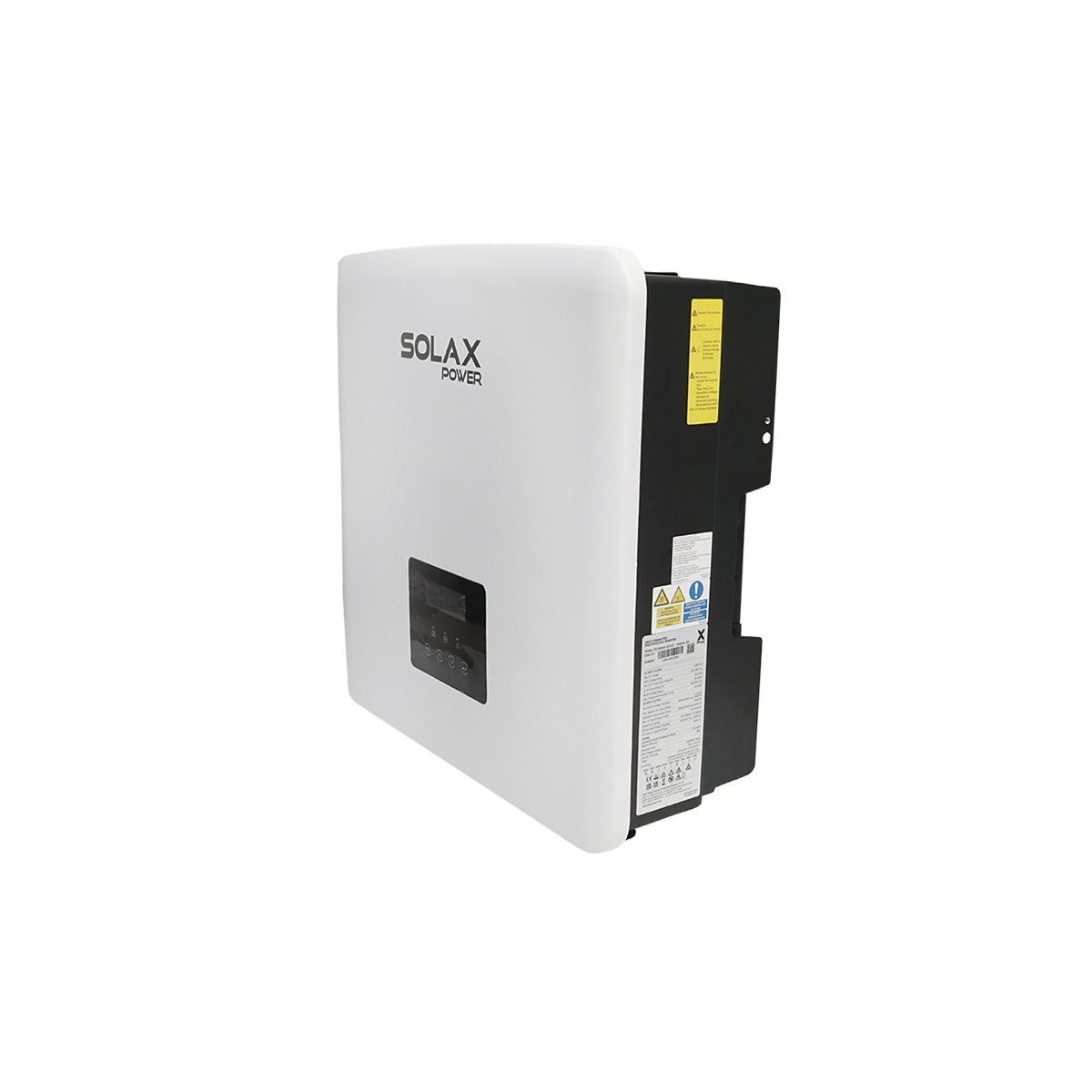

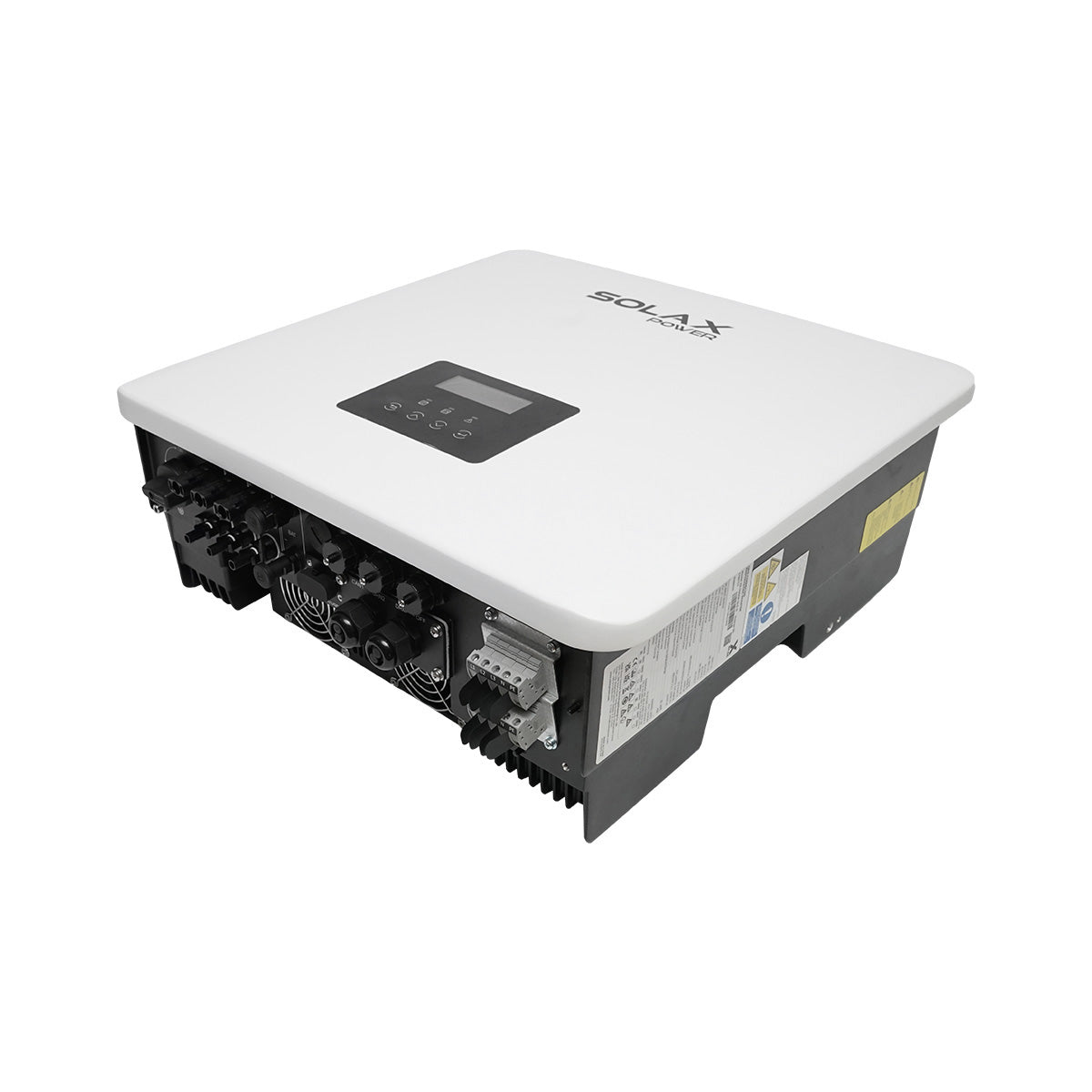

Smart hybrid inverter 15KW SOLAX X3-Hybrid-15.0-D, three-phase with 3 Split Core CT 100A

About the Product

Open - technical sheet
Open - User Manual

GENERAL INFORMATION
Brandi	Solax
series	X-3-Hybrid-15.0-D.
Inverter type	Hybrid, on/off-brid
Efficiency of Europe	97.7 %
Efficiency discharge/charge batteries	97/98.5 %
Protection	IP 65
size	482 x 417 x 181 mm
Weight	30 kg

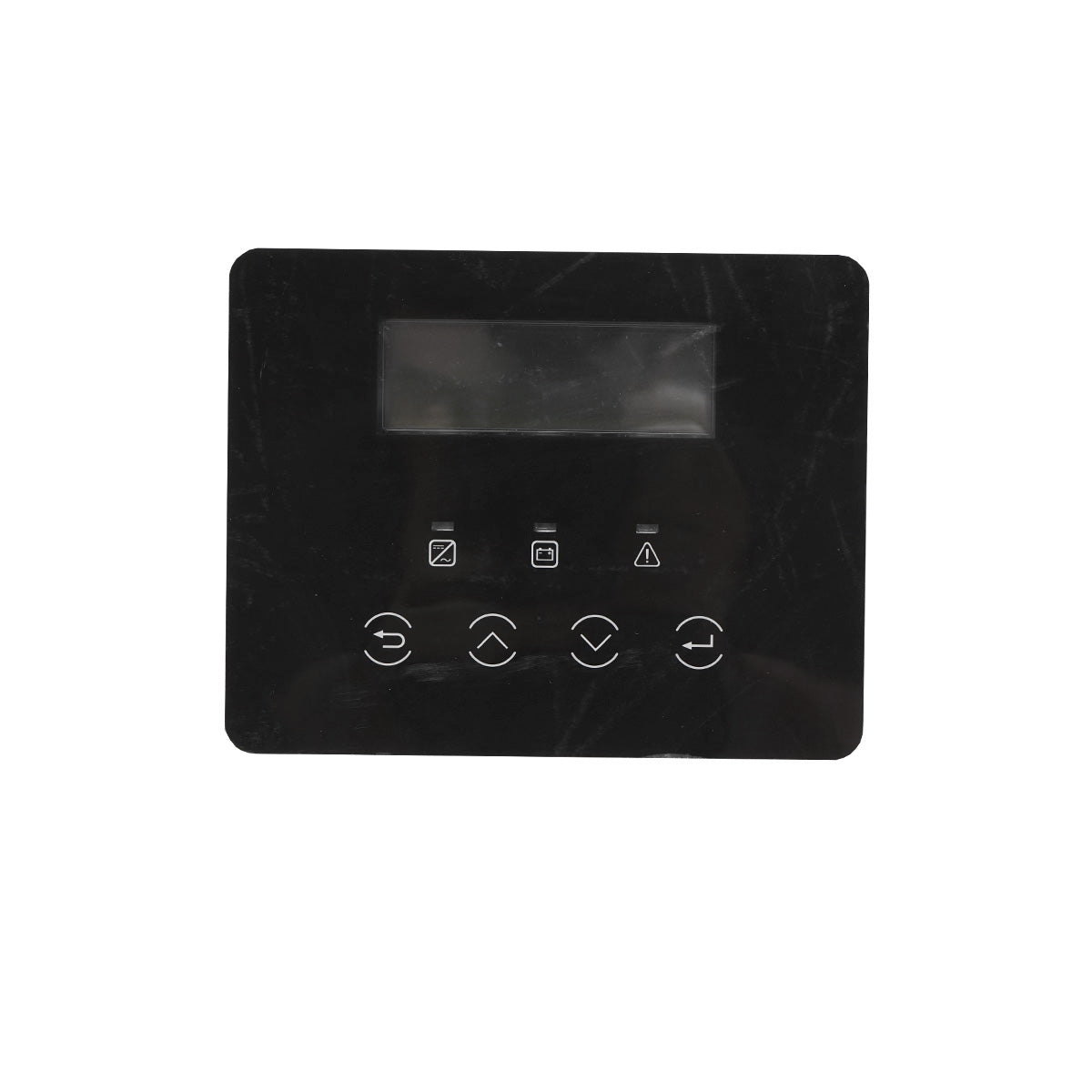

Display	Lcd
Input dc
Max Power of Entry of DC panels	18,000 w
Max Tension of Entry DC panels	1000 v
MPPT number	2 - 26/14 a
Input ac
Max power of the AC network input	20000 will
Max AC voltage	32 a
The nominal voltage of the AC network	415/240; 400/230; 380/220 v
Output ac
Nominal power AC	15,000 will
The nominal voltage of the AC network	415/240; 400/230; 380/220 v
Maximum AC output current	21.8 a
Output DC (at batteries)
Types of batteries	Lead-Acid, Lithium
Battery tension	180 - 650 V
Max Maxim of Loading/Download	30 a
Output off-grid, with batteries
Maximum power continues	15,000 will
Nominal tension	400/230 cow
DC current max	21.1 a
