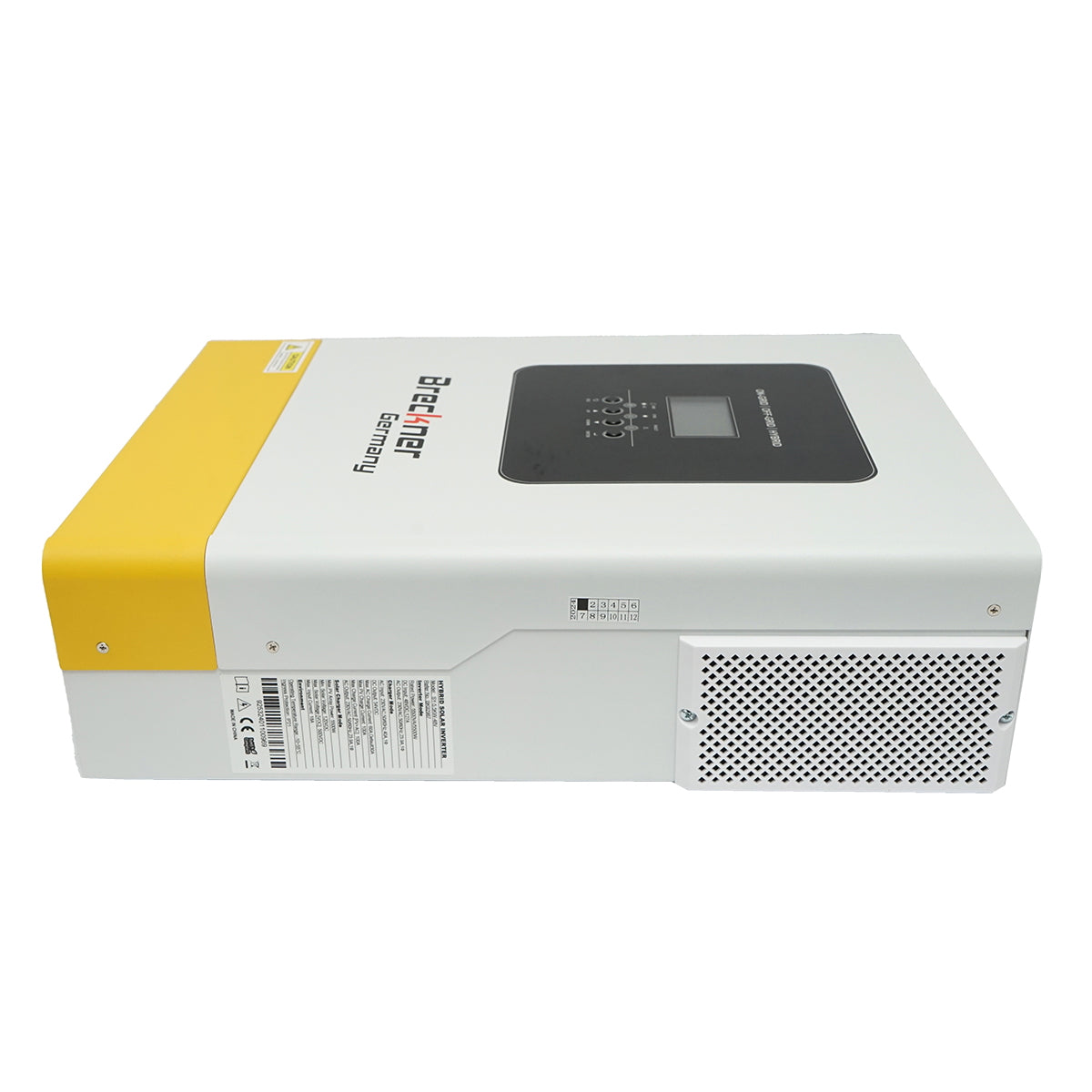

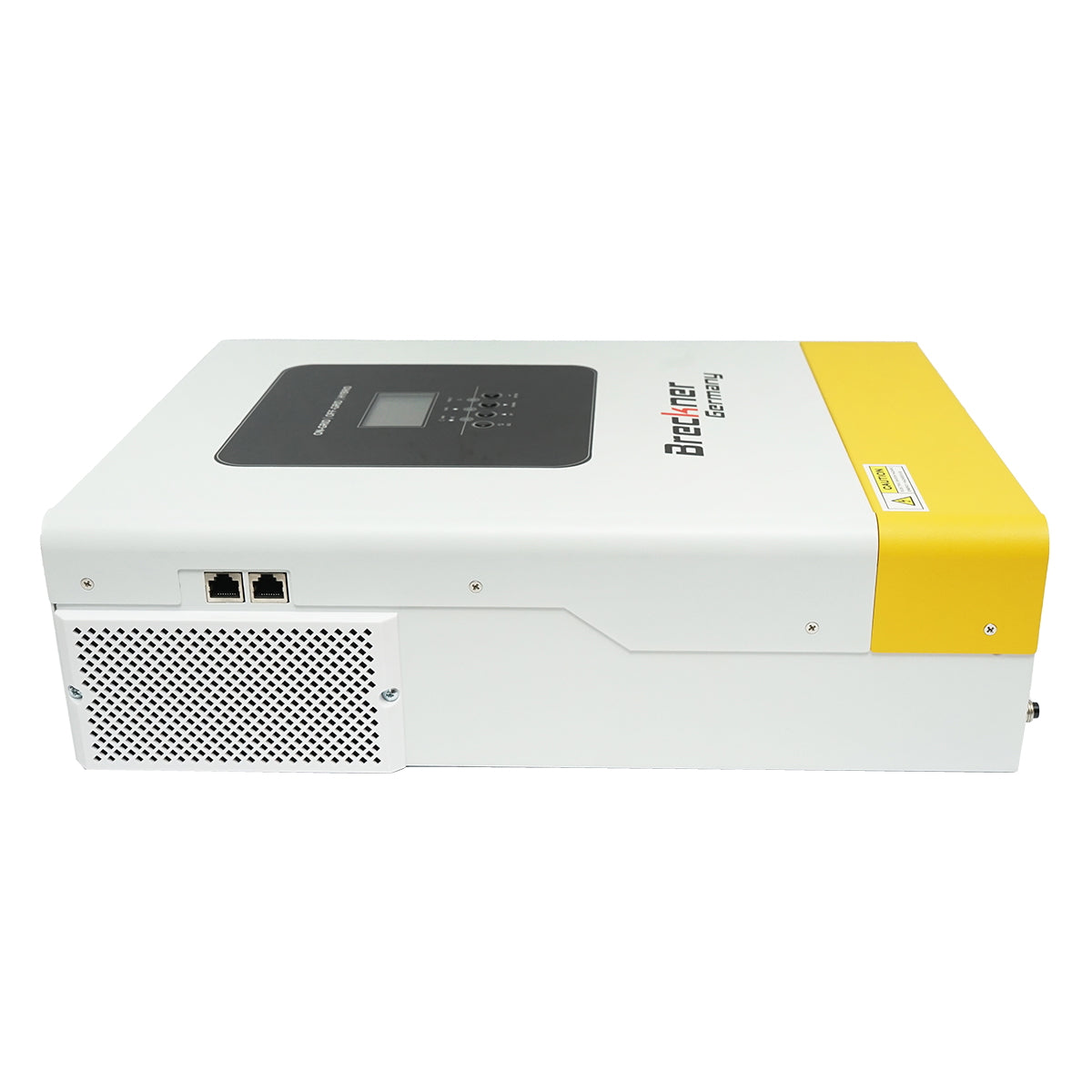

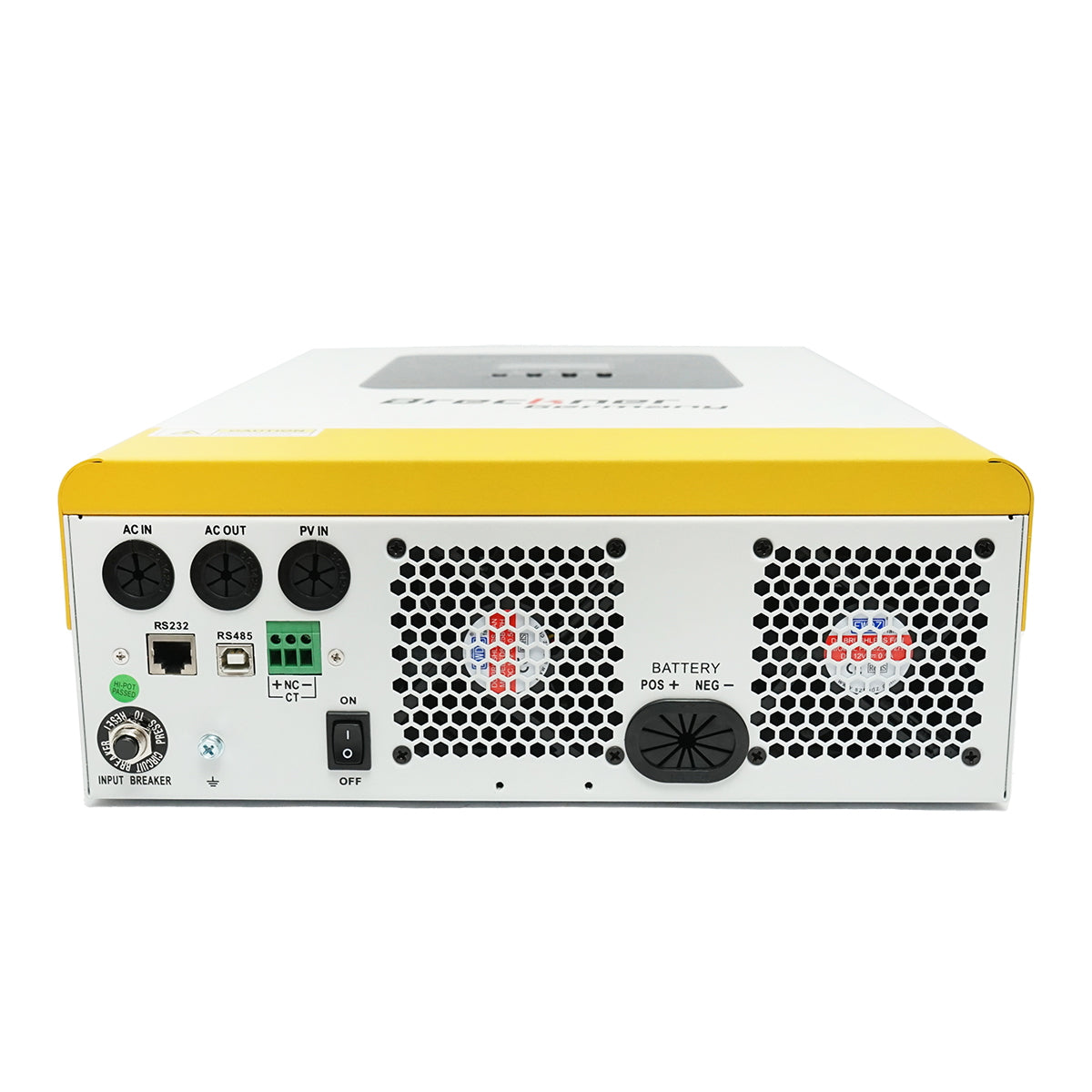

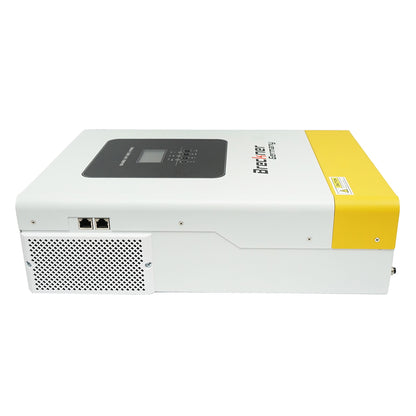

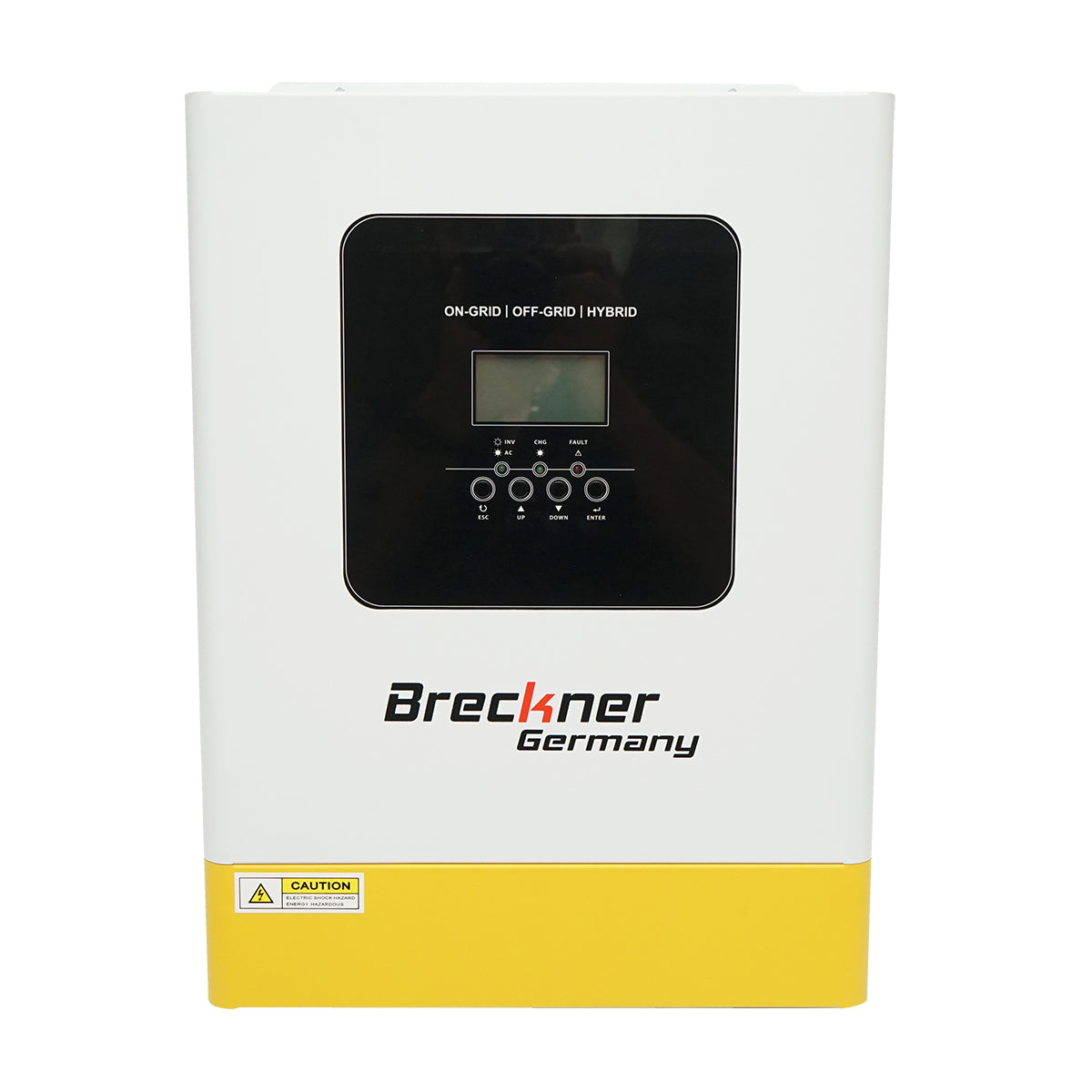

Solar inverter on/off grid, hybrid SY-5KW-48V, 100A single-phase-three-phase Breckner Germany
About the Product

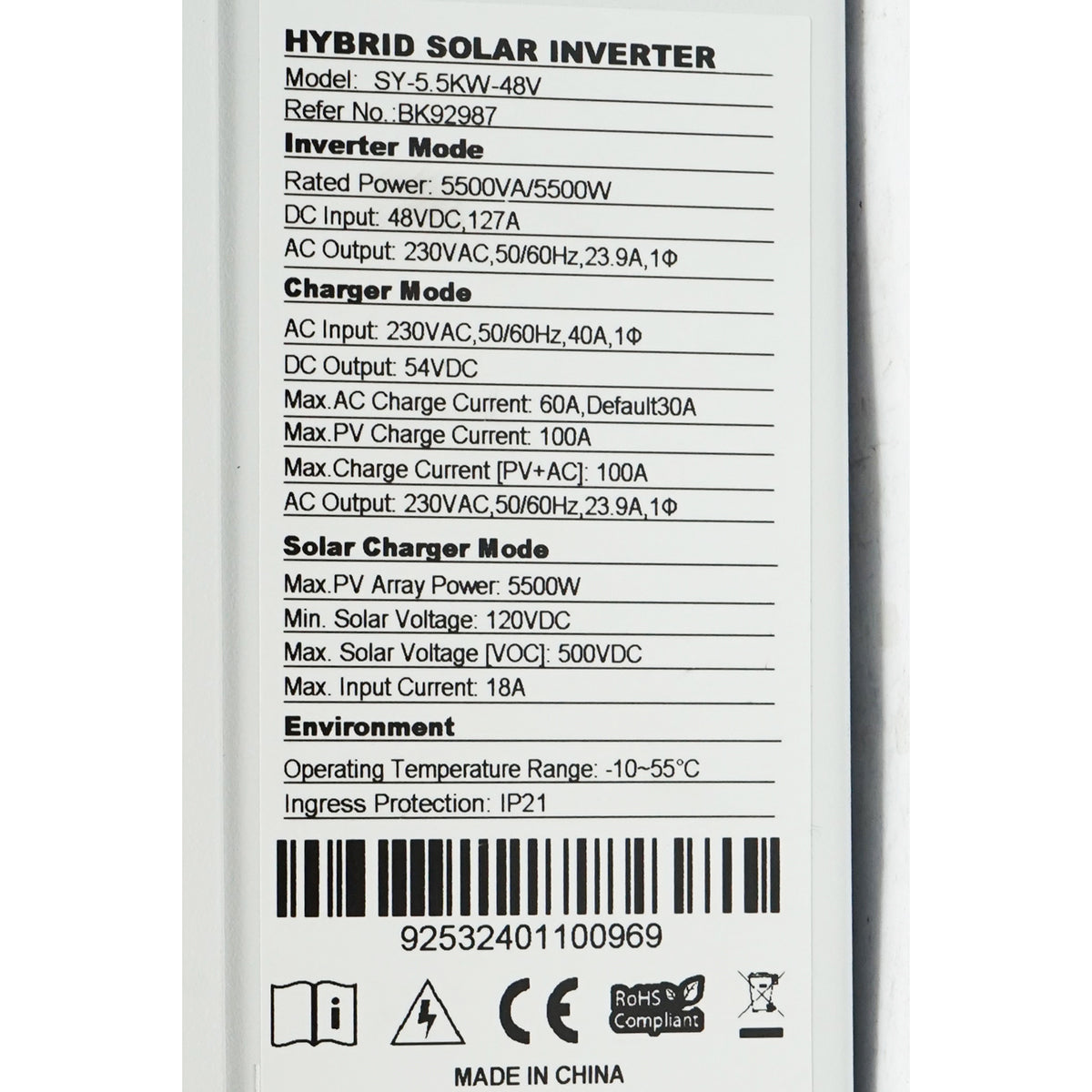

series
SY - 5.0KW - 48V
Nominal power
5500VA/ 5500W
Wave
pure sinusoidal
Tension solar panels
120 - 450 VDC
Tension Max Solar panels (short circuit)
500 VDC
MAX MAXUM CURRENT (AC+PV)
40 A.
Battery charging algorithm
3 steps
Types of charged batteries
Lead acid, AGM, gel
Efficiency
94 %
Protection
IP 21
size
448 x 315 x 122 mm
Weight
11 kg
It is necessary to use fuses both for entering the panels to the inverter and for entering the batteries (max100a) to the inverter (see the user manual).
