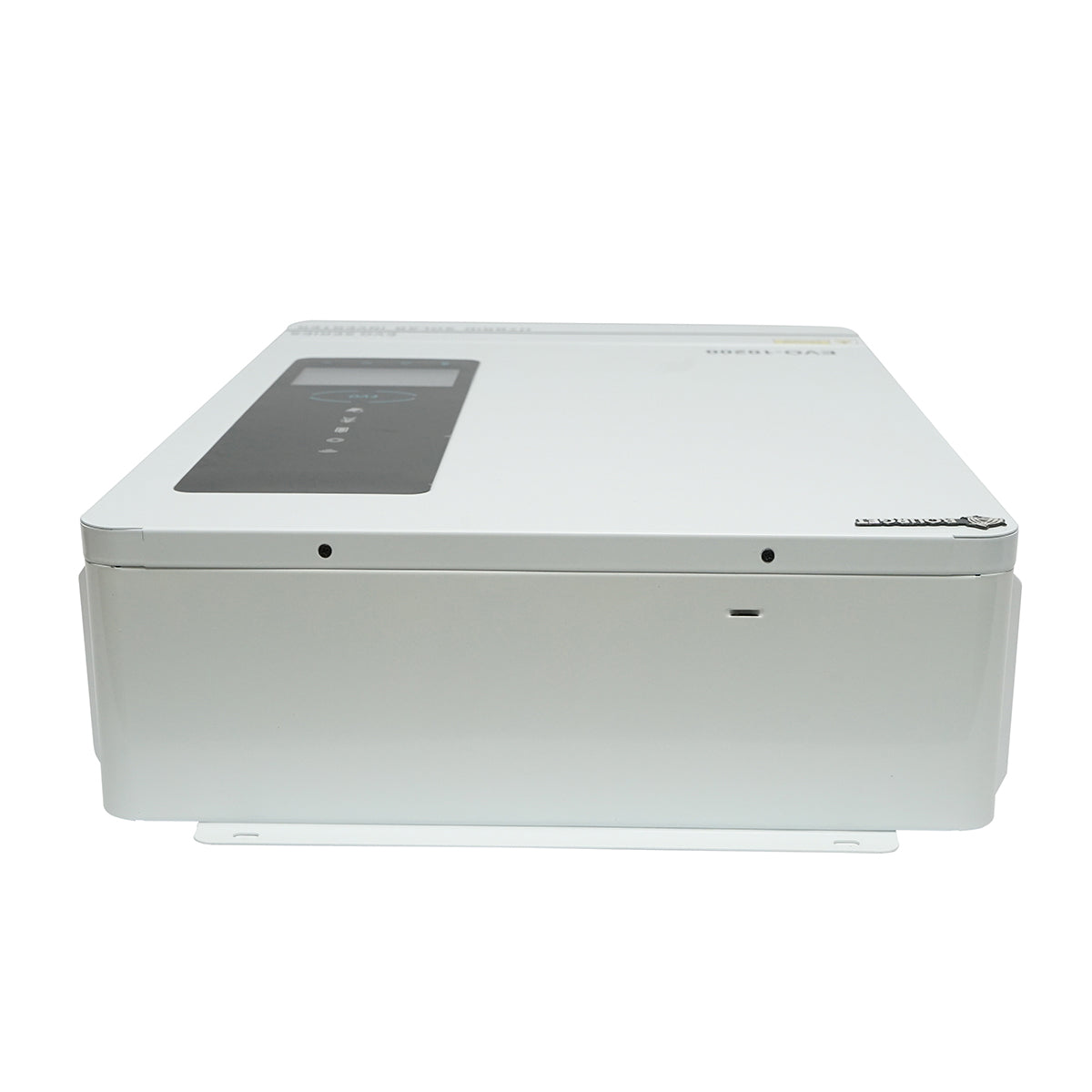

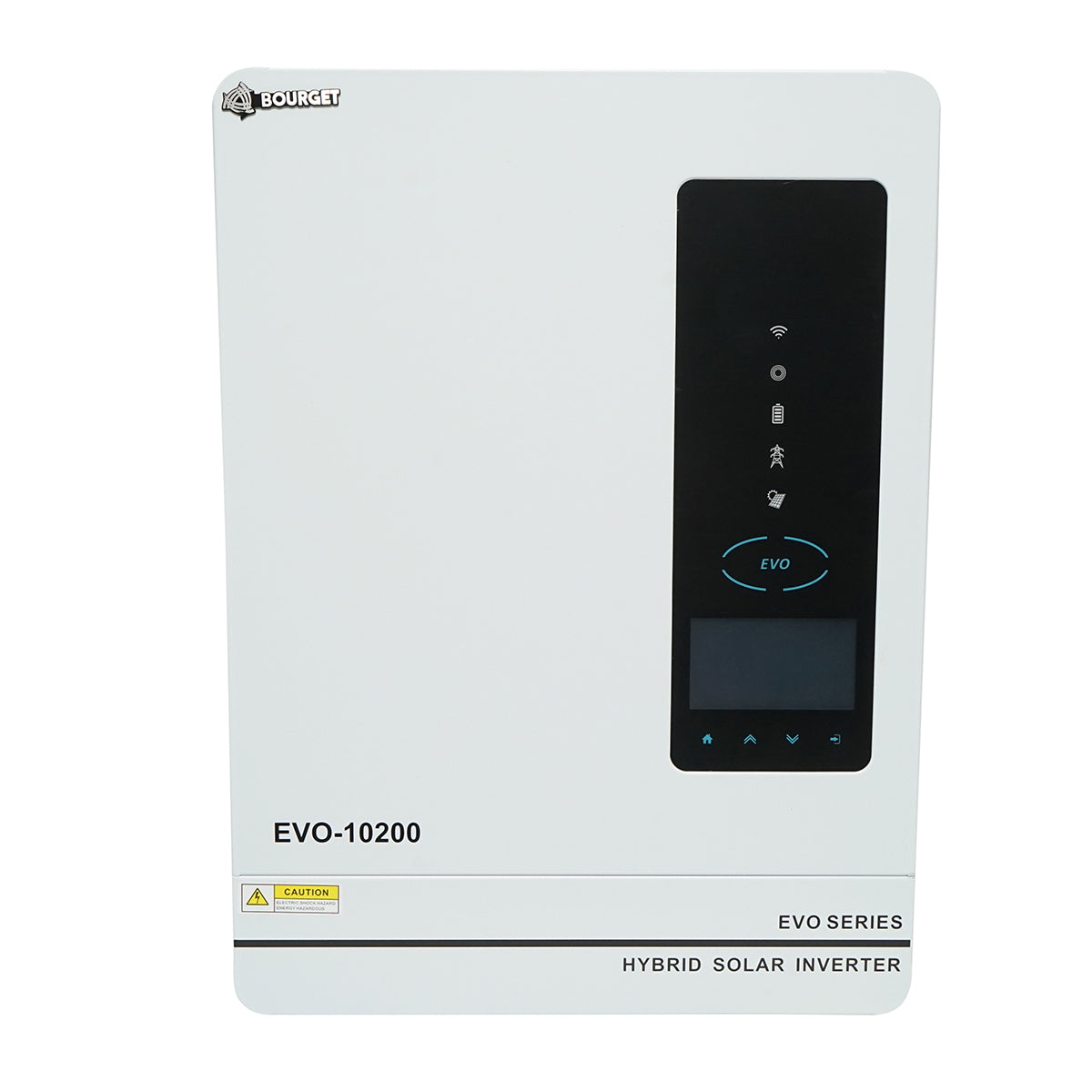

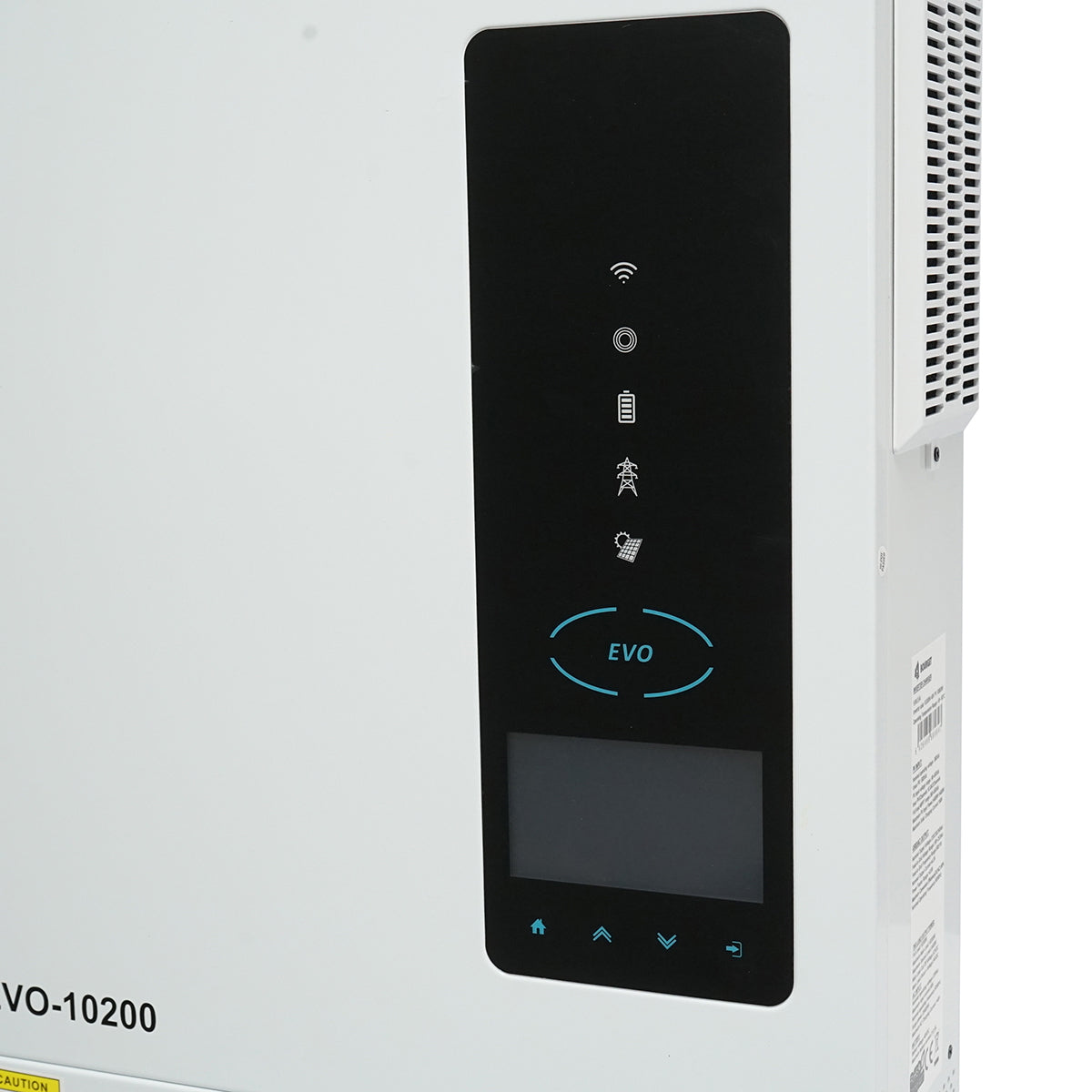

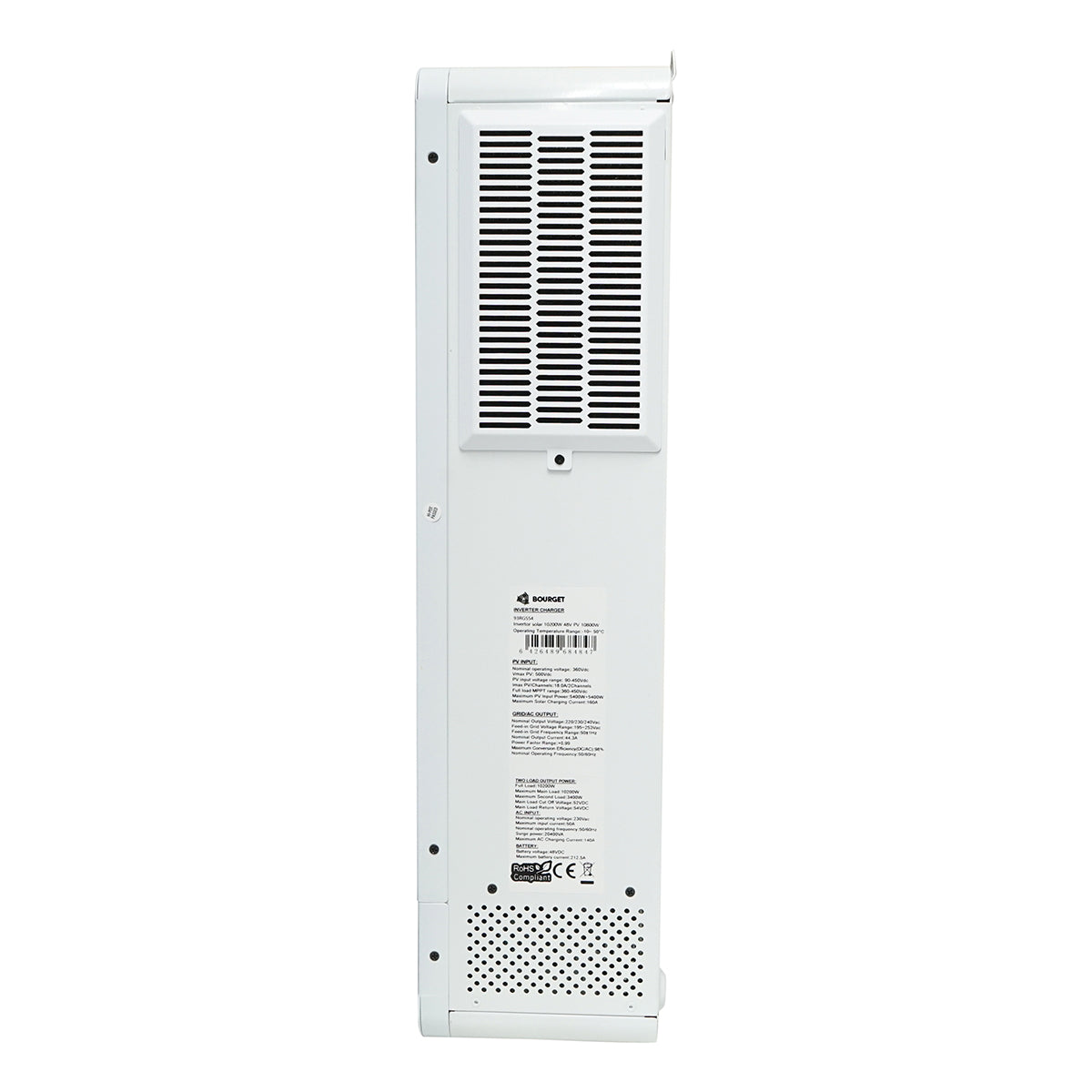

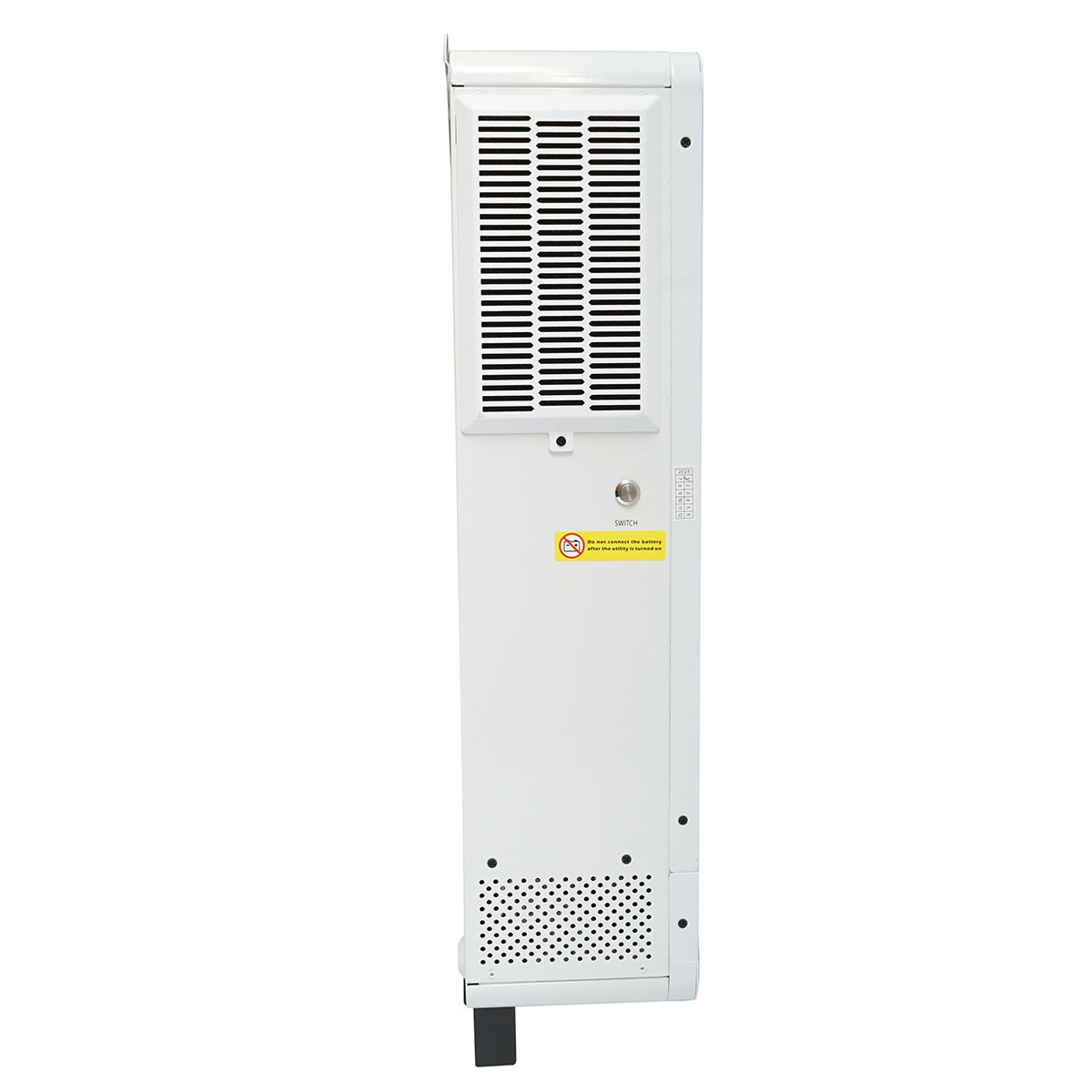

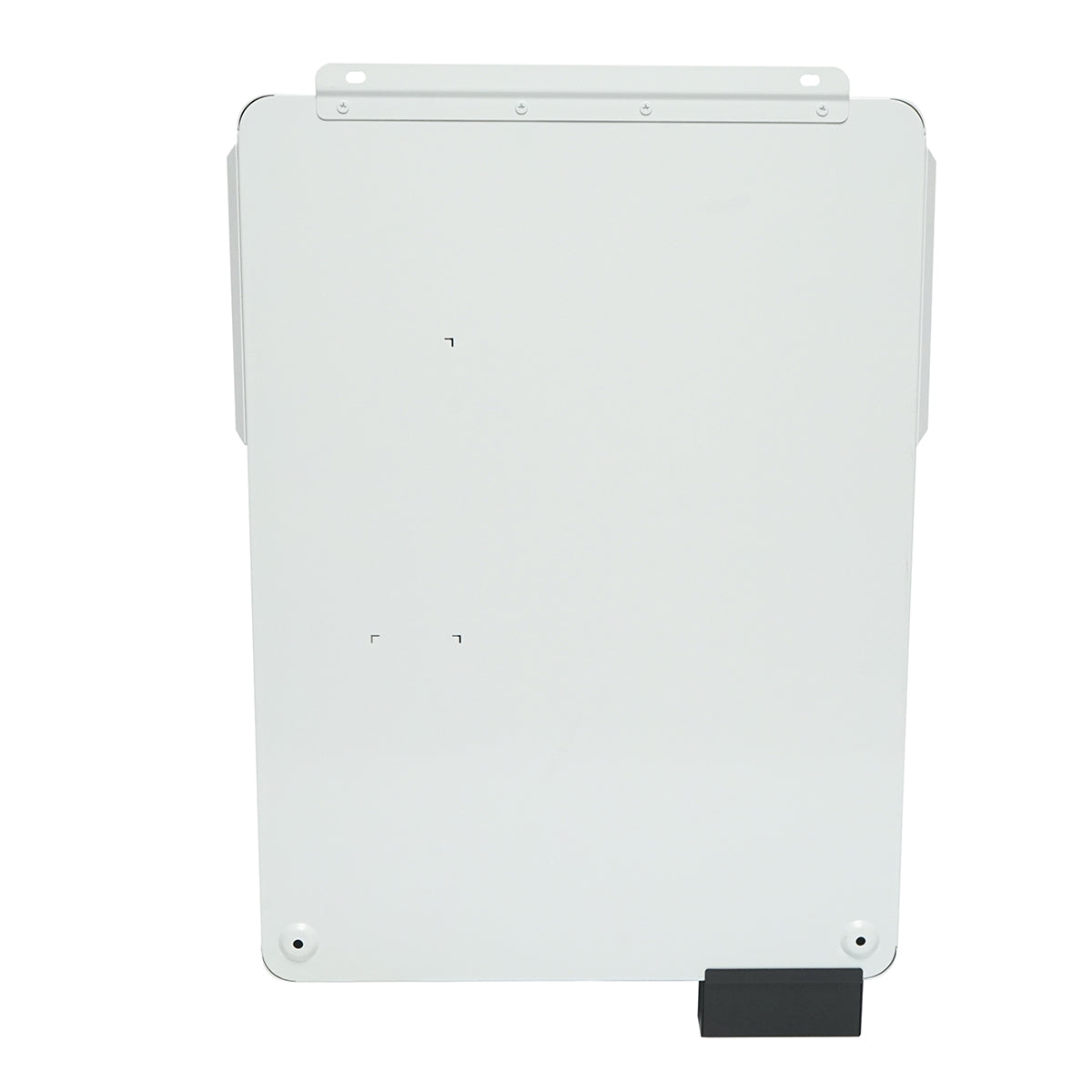

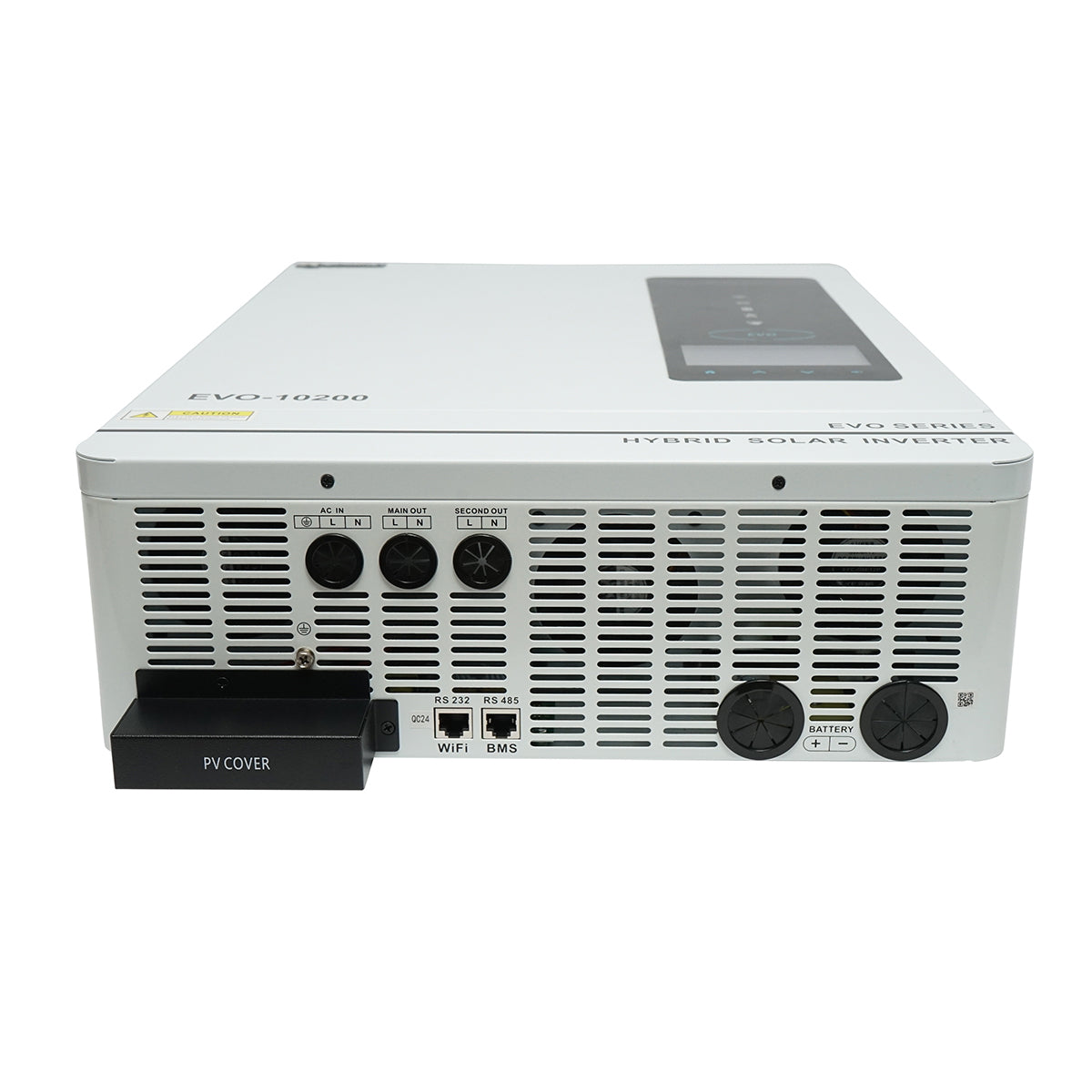

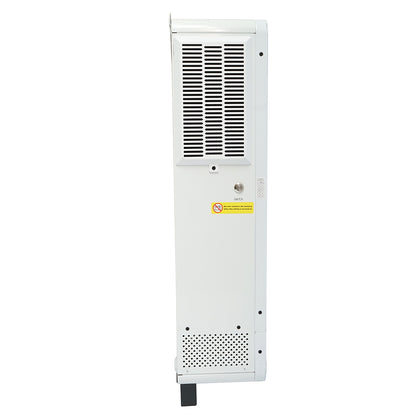

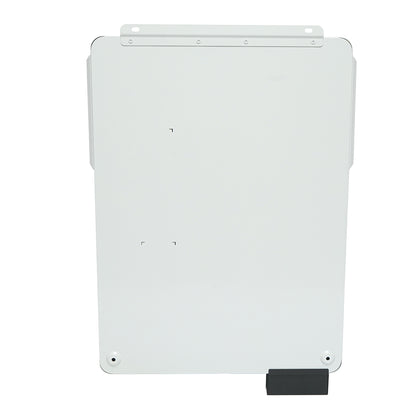

Hybrid solar inverter 10.2 KW, 48V, 160A MPPT, single-phase, ON/OFF-GRID, EVO-10200 Bourget

About the Product

Brandi	Bourget

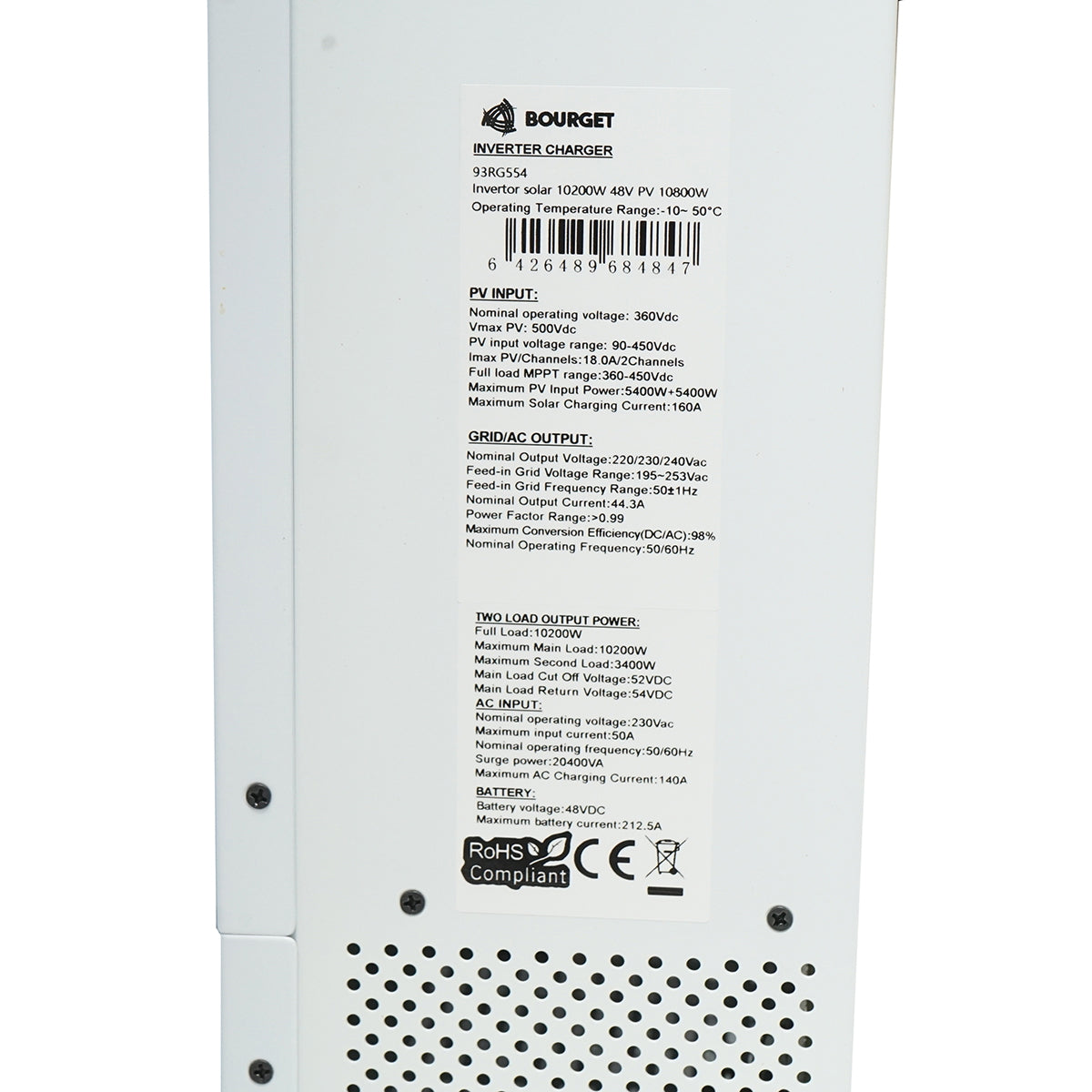

PV input (solar panels)
Nominal power	10200 w
Nominal operating voltage	360 VDC
Maximum voltage (VMAX PV)	500 VDC
Tension interval of PV input	90 - 450 VDC
Maximum current	18 of x 2 channels
MPPT range at maximum task	360 - 450 VDC
Maximum PV input	5400W + 5400W = 10800W
Maximum solar charging current	160 a
Output in network / needle (grid / output)
Nominal output tension	220 /230 /240 cow
Tension range network for injection	195 - 253 cow
Frequency of network frequency	50 ± 1 Hz
Nominal output current	43.3 a
Power factor	> 0.99
Maximum conversion efficiency DC/AC	98 %
Nominal operating frequency	50 /60 Hz
Output power on two circuits
Total power	10200 w
Maximum main pregnancy	10200 w
Maximum secondary load	3400 w
Tension to stop the main task	52 VDC
TENSION OF RELATING THE MAIN TASK	54 vdc
AC input
Nominal operating voltage	230 cow
Maximum entry current	50 a
Nominal frequency	50 /60 Hz
Peak power	20400 will
Maximum load	140 a
BATTERY
Battery voltage	48 vdc
Maximum battery current	212.5 a
Logger Wi-Fi Pro	93RG555
