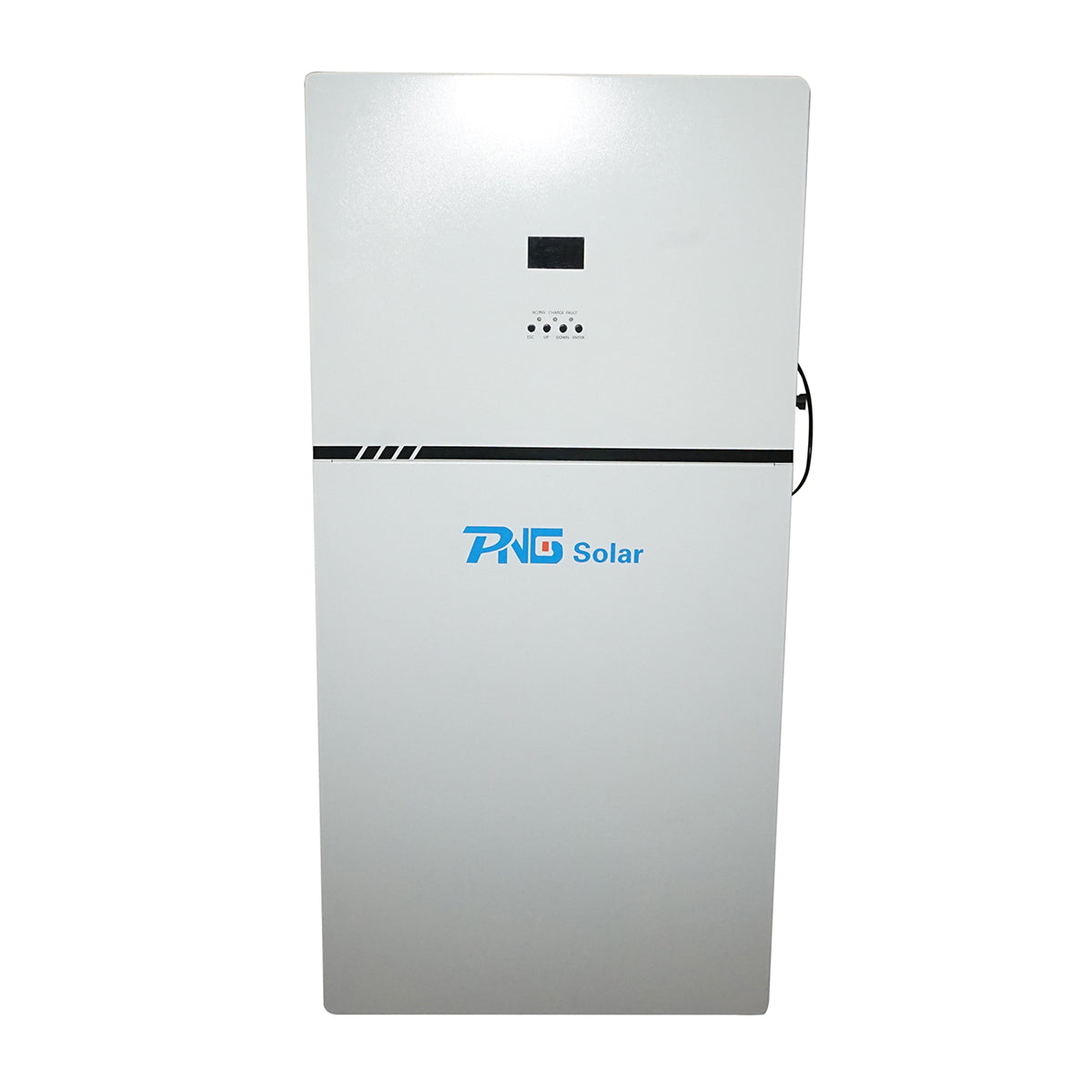

5 KW ON/OFF GRID hybrid solar inverter with integrated Li-ion LifePo4 51.2V, 200Ah battery, BMS, single-phase IP54

About the Product

Brandi	Solar PNG
PV input (solar panels)
Maximum power	5500 w
Input voltage	120 - 500V DC
Nominal power	5000 w
Alternative current parameters (AC)
Nominal output voltage	220 /230 /240 AC ± 5% (L + N + PE)
Nominal frequency	50 /60 Hz
Nominal entry tension	90 - 280V AC (normal mode)
Nominal entry tension	170 -280V AC (MOD UPS)
Wave shape	Pure sinusoidal
Battery parameters
Battery Type	LI-Ion / LifePO4
Nominal capacity	200 ah
Nominal voltage	51.2 v
Stored energy	10.24 kWh
Standard load	50 a (maximum 100 a)
Standard unloading current	50 a (maximum 100 a)
Maximum loading voltage	58.4 v
Maximum unloading voltage	43.2 v
Lifespan	6000 cycles (up to 70% of capacity - soh)
MOUNTING	Wall
Total dimensions (L × L × H)	1100 x 540 x 160 mm
Protection class	IP54
Weight	100 kg
