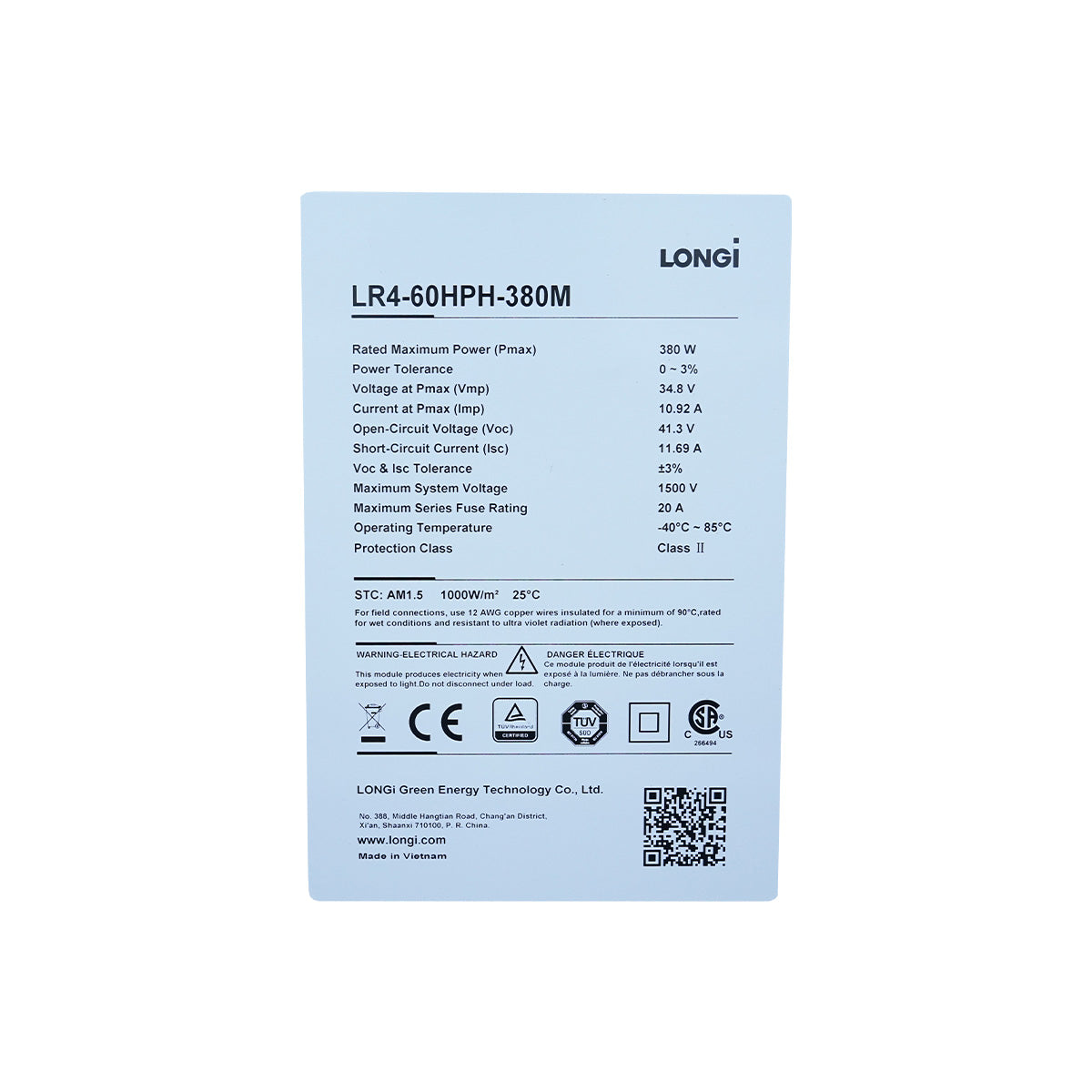

LONGI 380W LR4-60HPH-380M photovoltaic solar panel, monocrystalline 1755x1038x35mm

About the Product

Open - technical sheet

Brandi	Longa
Exemplary	LR4-60HP-380M
Panel type	monocrystalline
Number of cells	120 (6 x20)
Maximum power (PMAX)	380 w
Maximum voltage (VMP)	38.4 v
Maximum current (IMP)	10.92 a
Open circuit voltage (VOC)	41.3 v
Short circuit (ISC)	11.69 a
Efficiency	20.9 %
Operation temperature (min - max)	-40 ° C / +85 ° C
Maximum voltage system	1500 v
Classification	Class A.
size	1755 x 1038 x 35 mm
Framework	Aluminu alloy do noted with black frame
Equipped	J-Box with 3 diodes, 4mm² cables with a length of 1200mm and MC4 jacks
Protection	IP 68
Weight	19.5 kg
