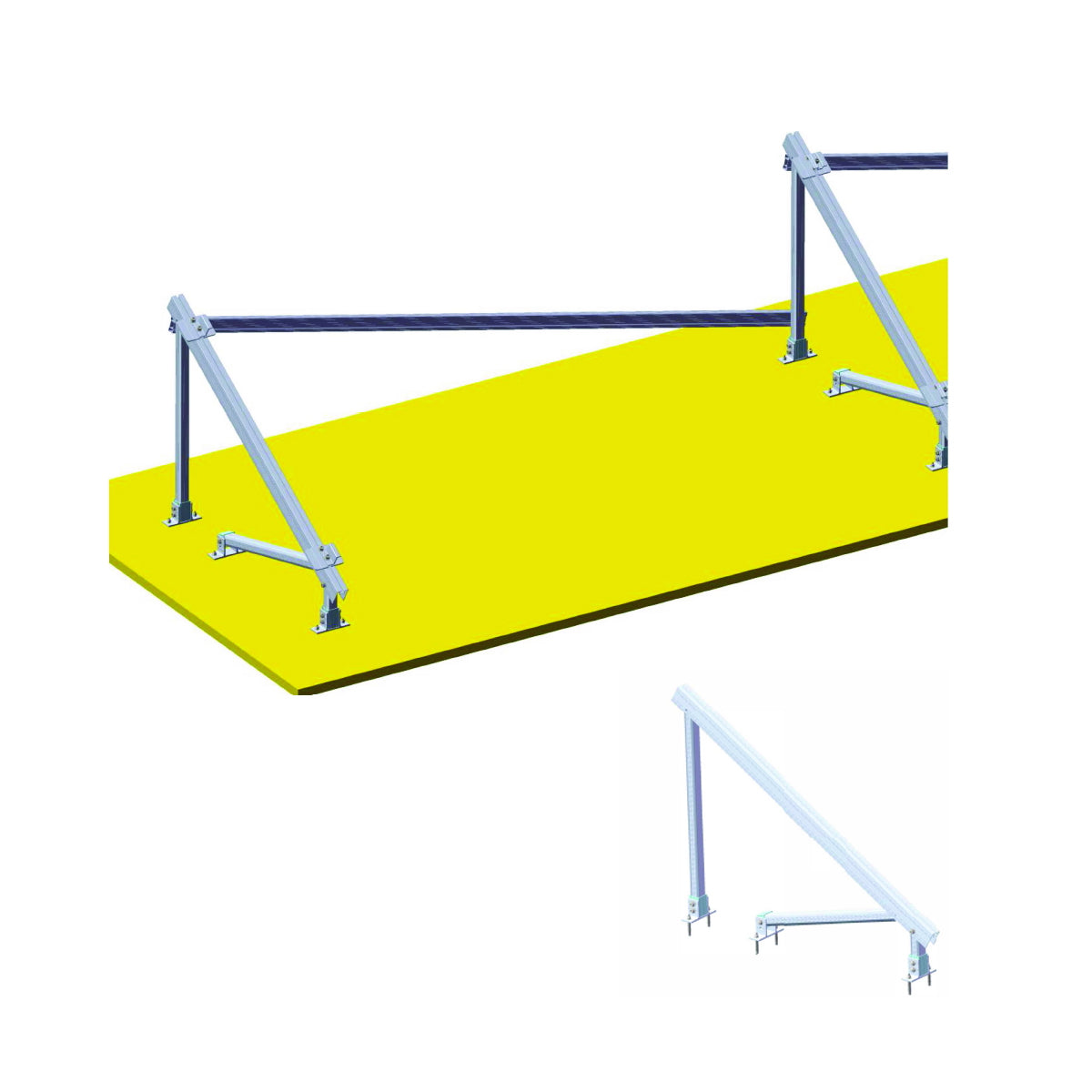

Complete mounting system on concrete for 4 photovoltaic solar panels at 30 degrees Breckner Germany

About the Product

Material	Anodized aluminum 6005-T5
Recommended panel size	4 x 2108 x 1048 x 35 mm
Sol distance	100 mm
Angle	30 degrees
Orientation	Horizontal
MOUNTING	Roof, concrete
Wind resistance	42 m/s
Snow resistance	50 cm
Recommended photovoltaic solar panel	BK69608 - Longi 455W Monocrystalin 2094 x 1038 x 35 mm
	BK77982 - Risen 450W Monocrystalin 2108 x 1048 x 35 mm
