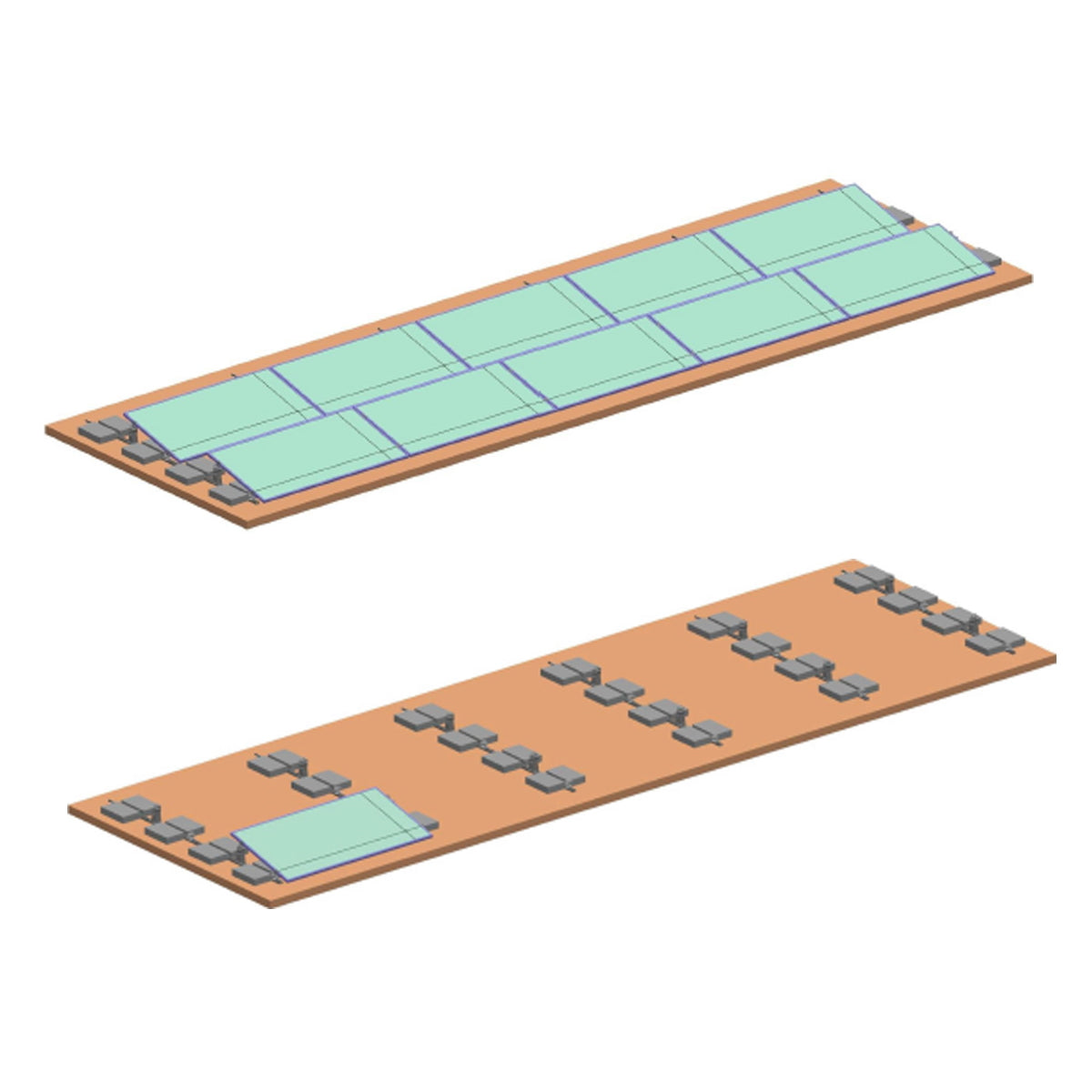

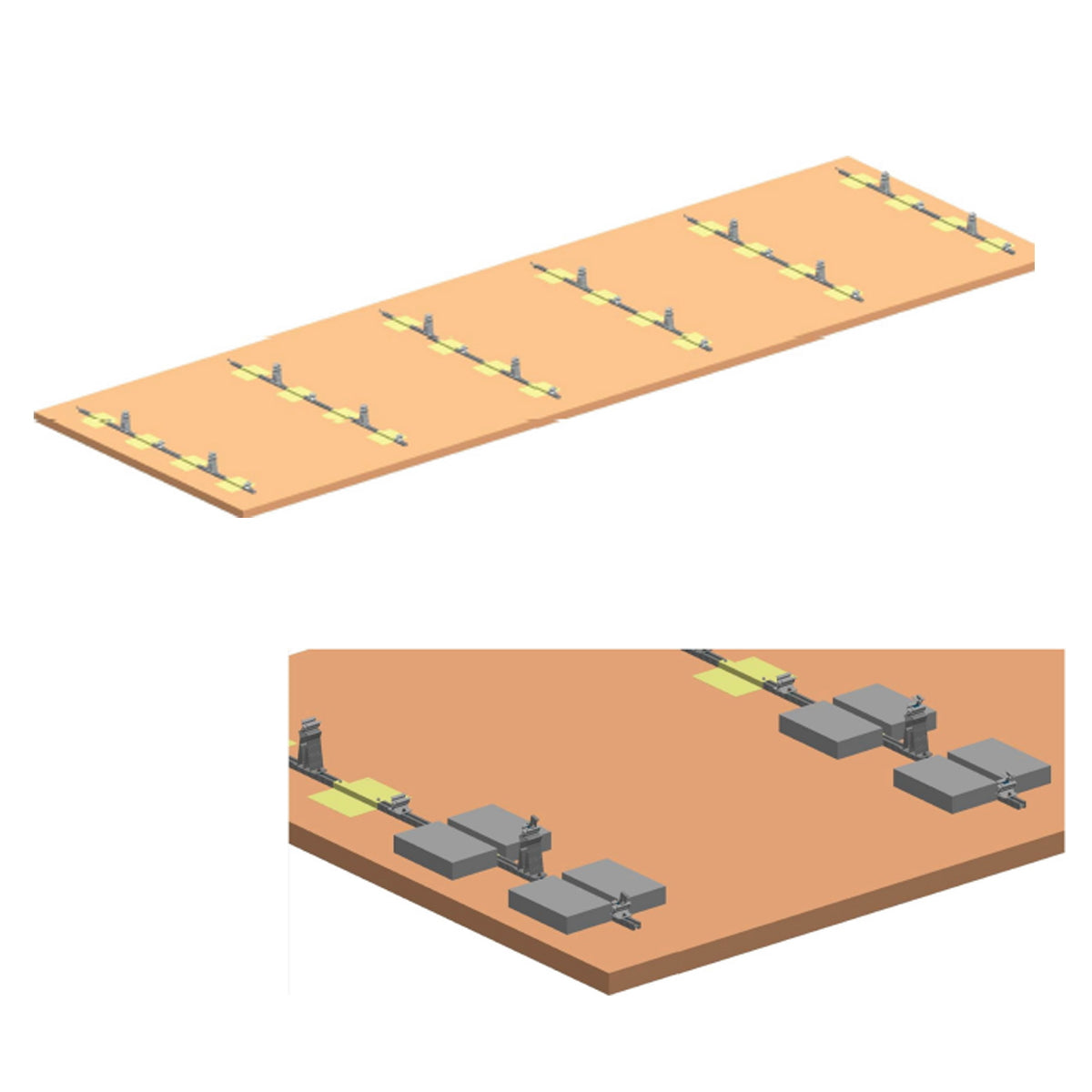

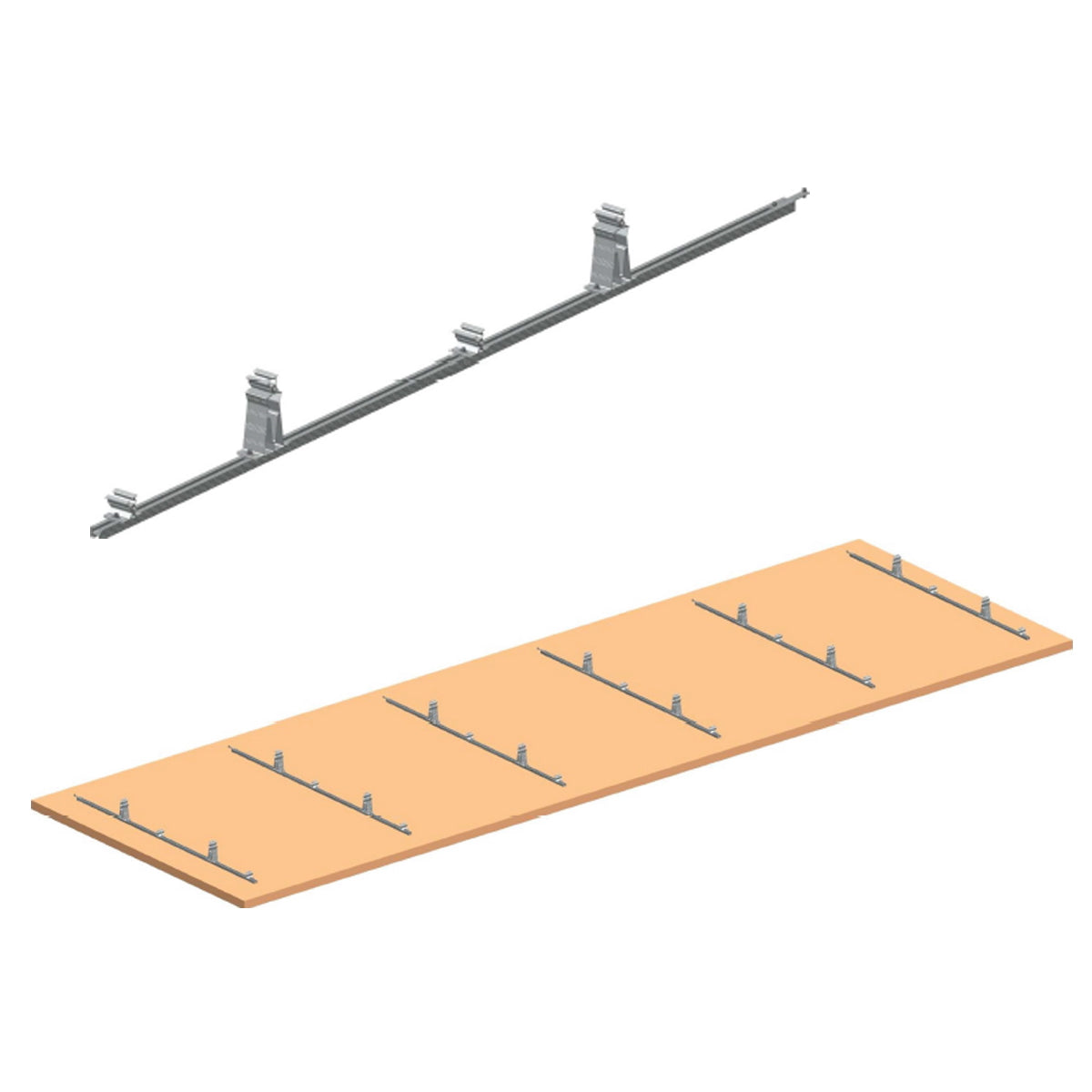

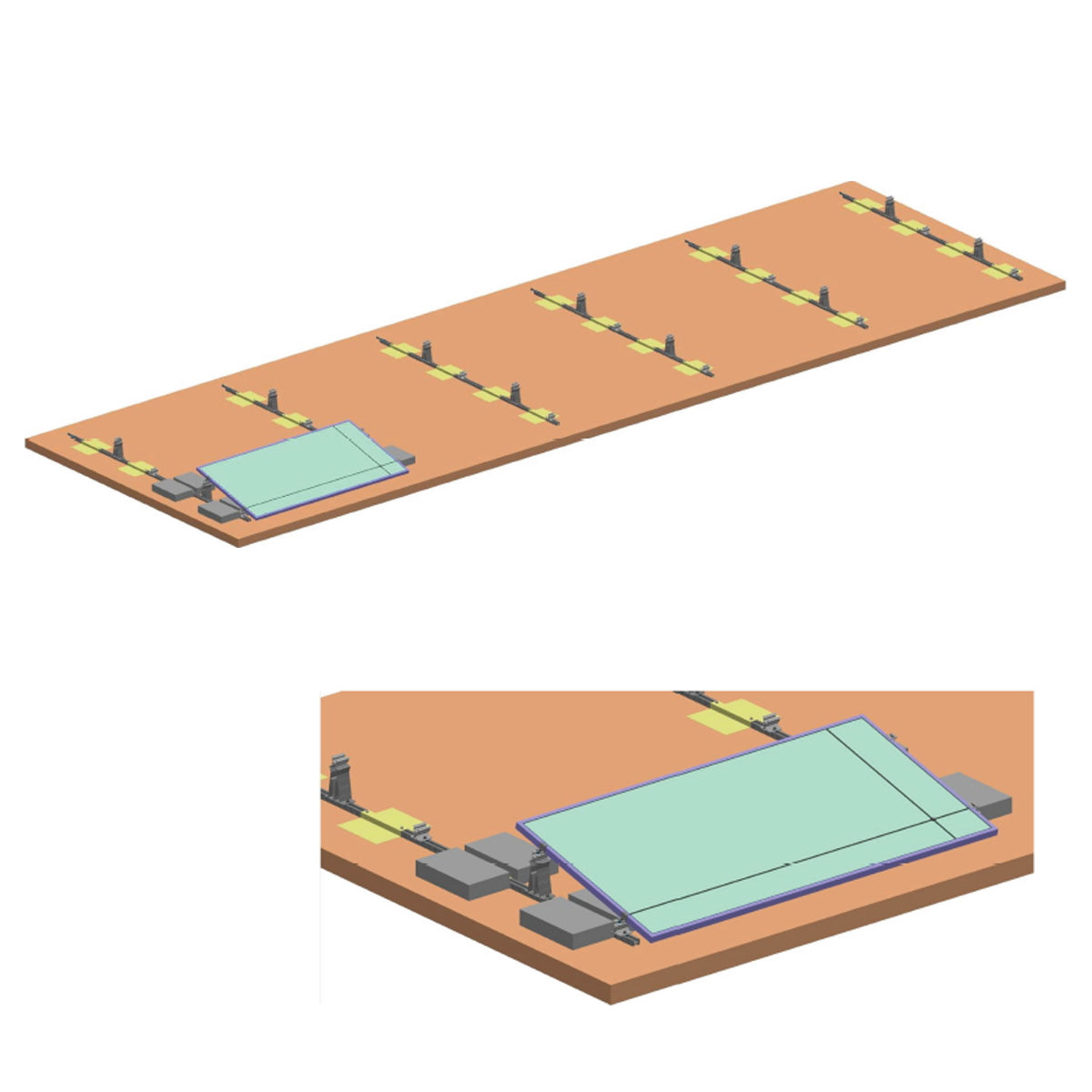

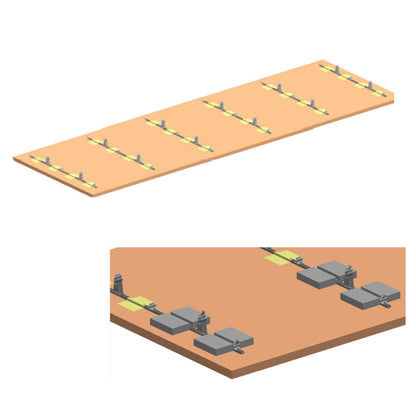

Complete mounting system, terrace structure for 10 solar photovoltaic panels at an angle of 10 degrees Breckner Germany

About the Product

Material	Anodized aluminum 6005-T5

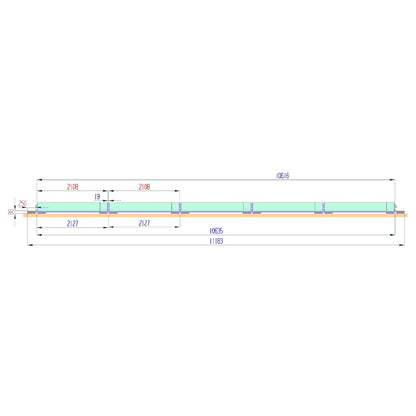

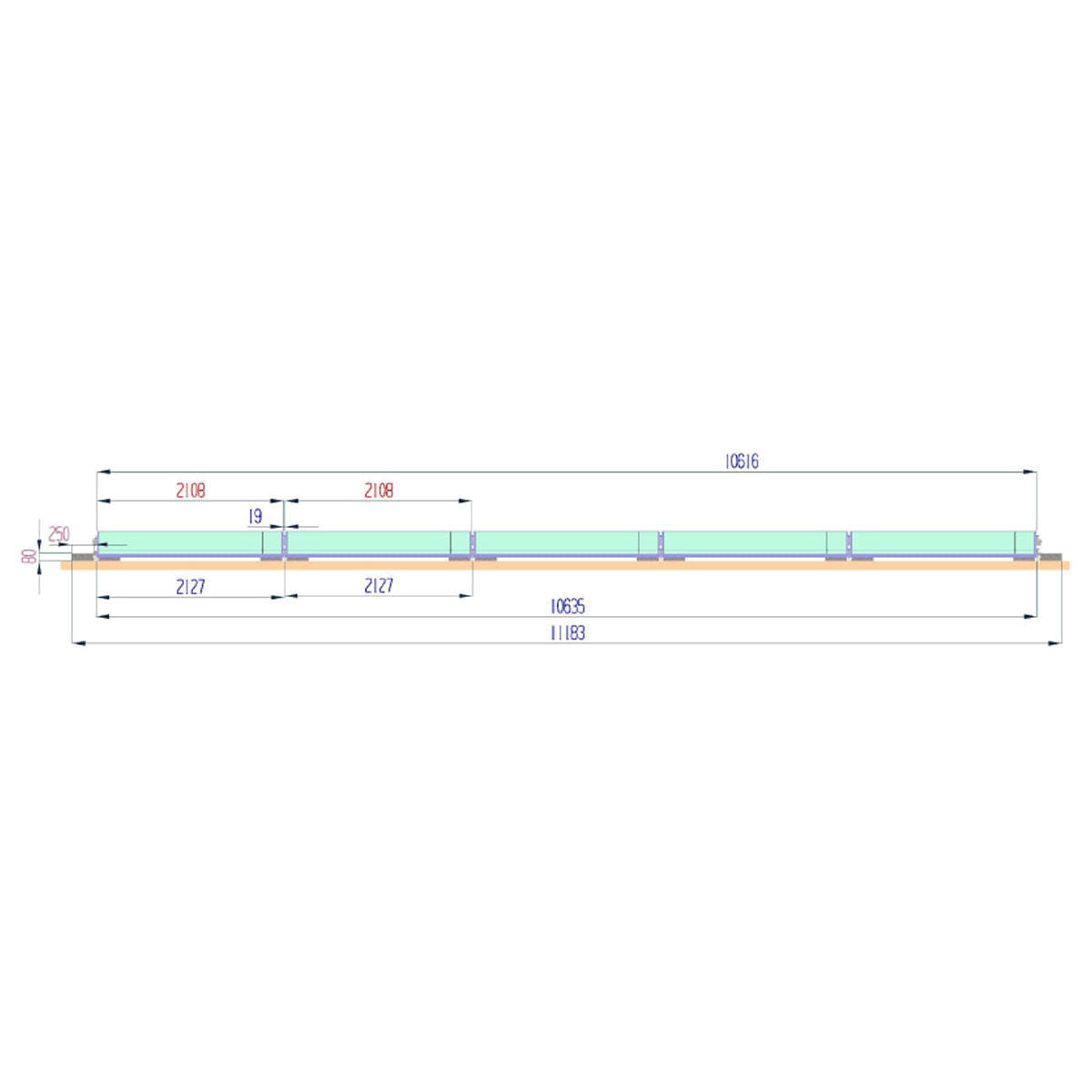

Recommended panel size	10 x 2108 x 1048 x 35 mm

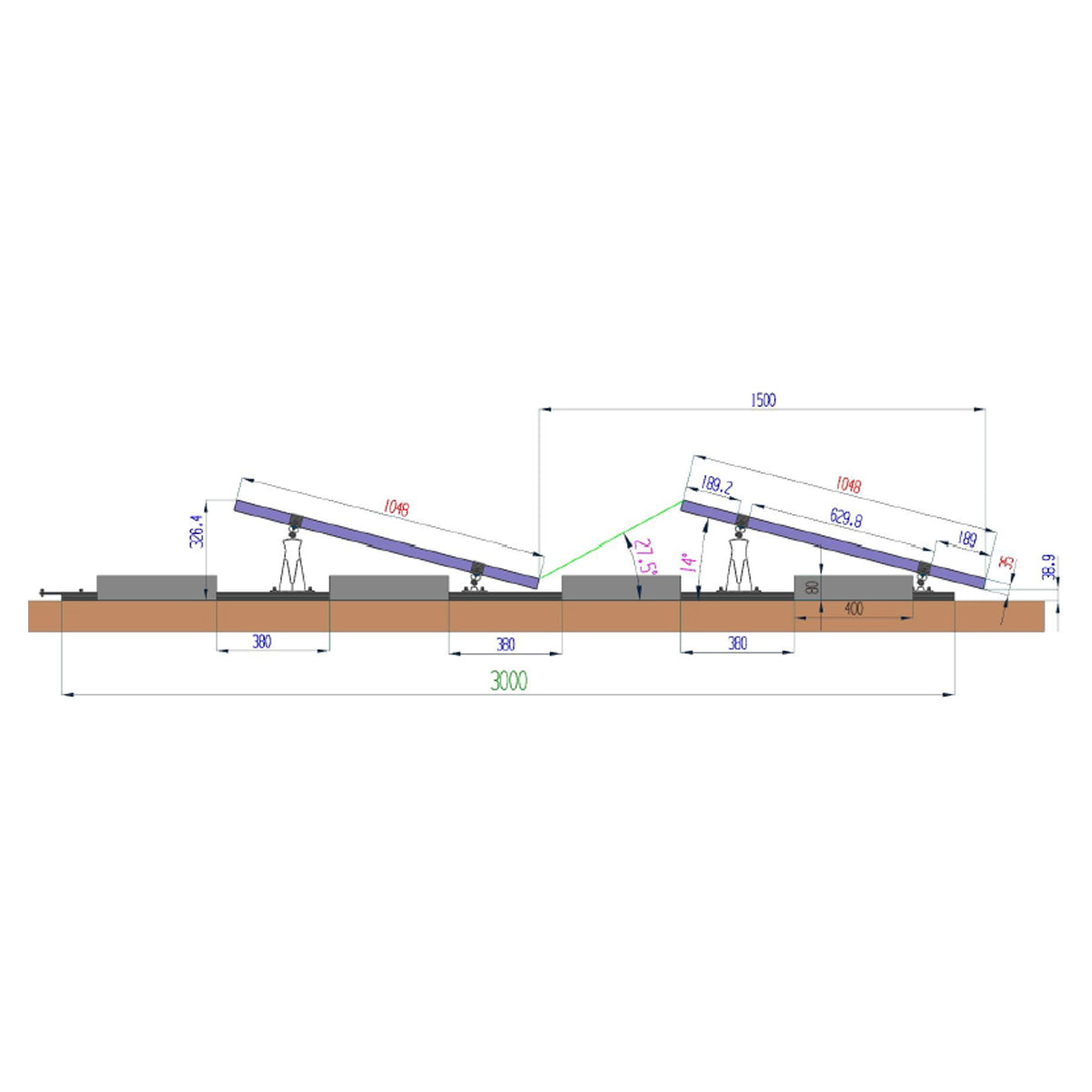

Angle	10 degrees
Orientation	Horizontal
Type type	Ballast -(does not contain ballast prawns)
Arrangement	2 x 5 photovoltaic solar panels
MOUNTING	Covered concrete, terraces
Wind resistance	50 m/s
Snow resistance	70 cm
Recommended photovoltaic solar panel	BK69608 - Longi 455W Monocrystalin 2094 x 1038 x 35 mm
	BK77982 - Risen 450W Monocrystalin 2108 x 1048 x 35 mm
