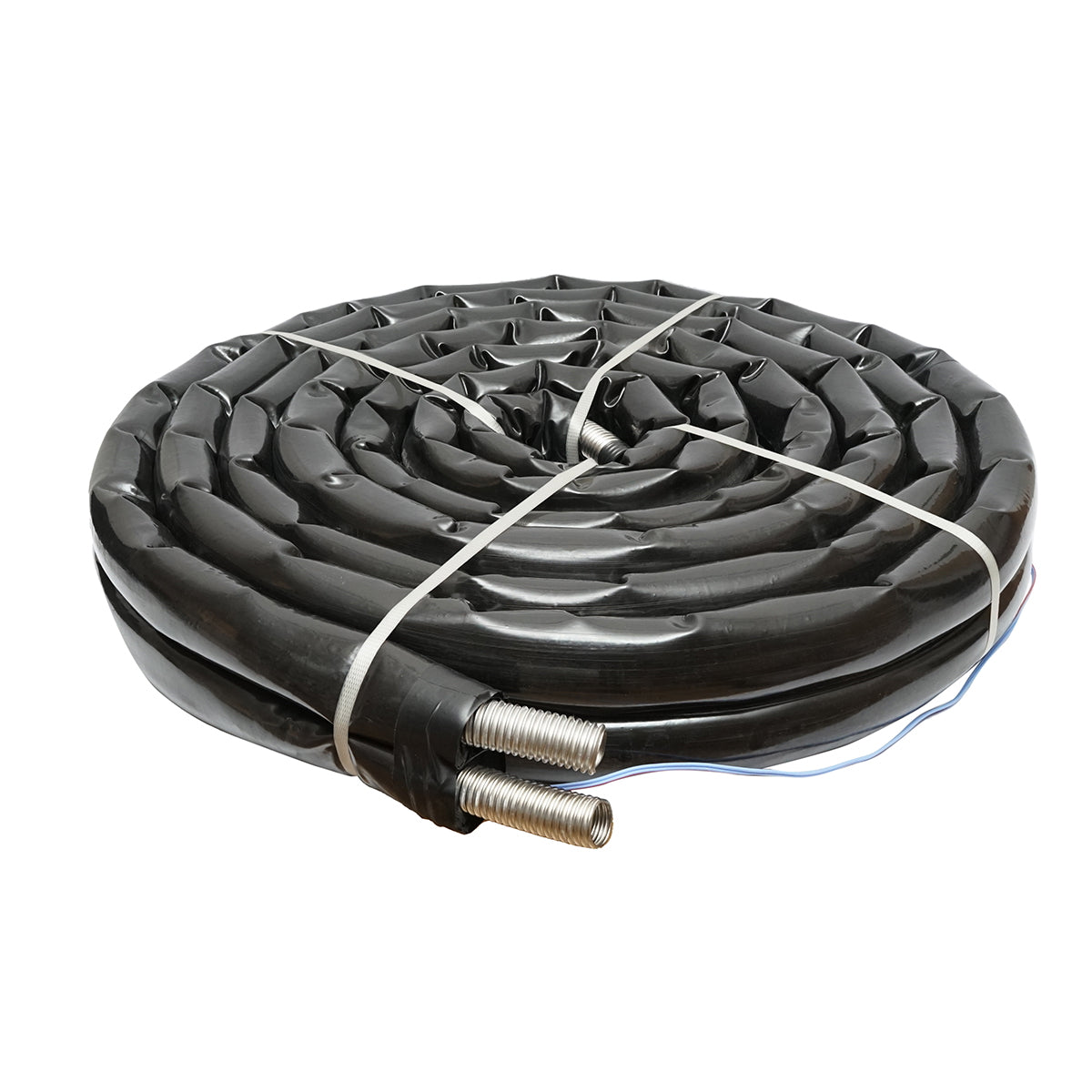

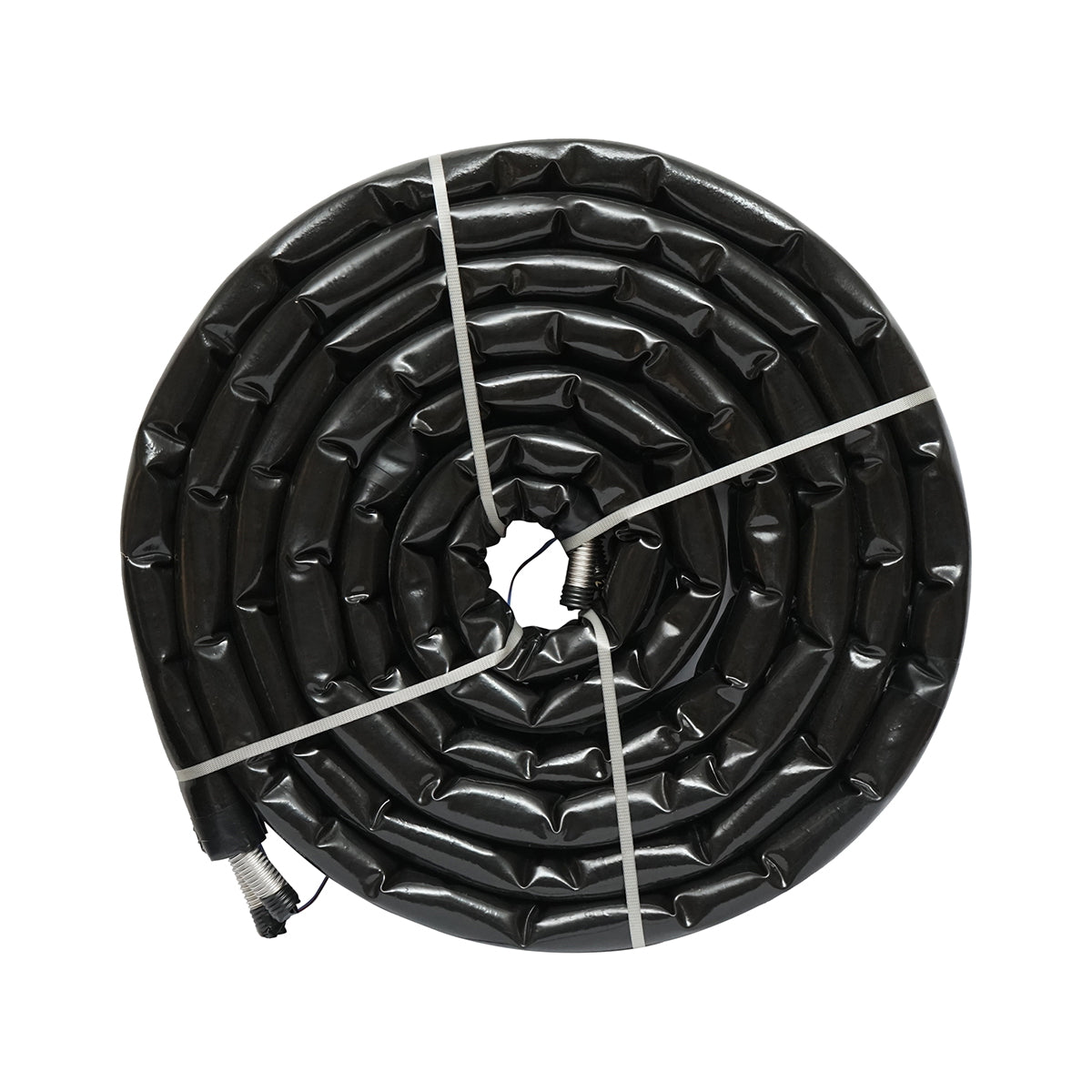

10m double stainless steel pipe DN25-1.1/4 corrugated, flexible, insulated with cable for temperature probe for residential solar installations

About the Product

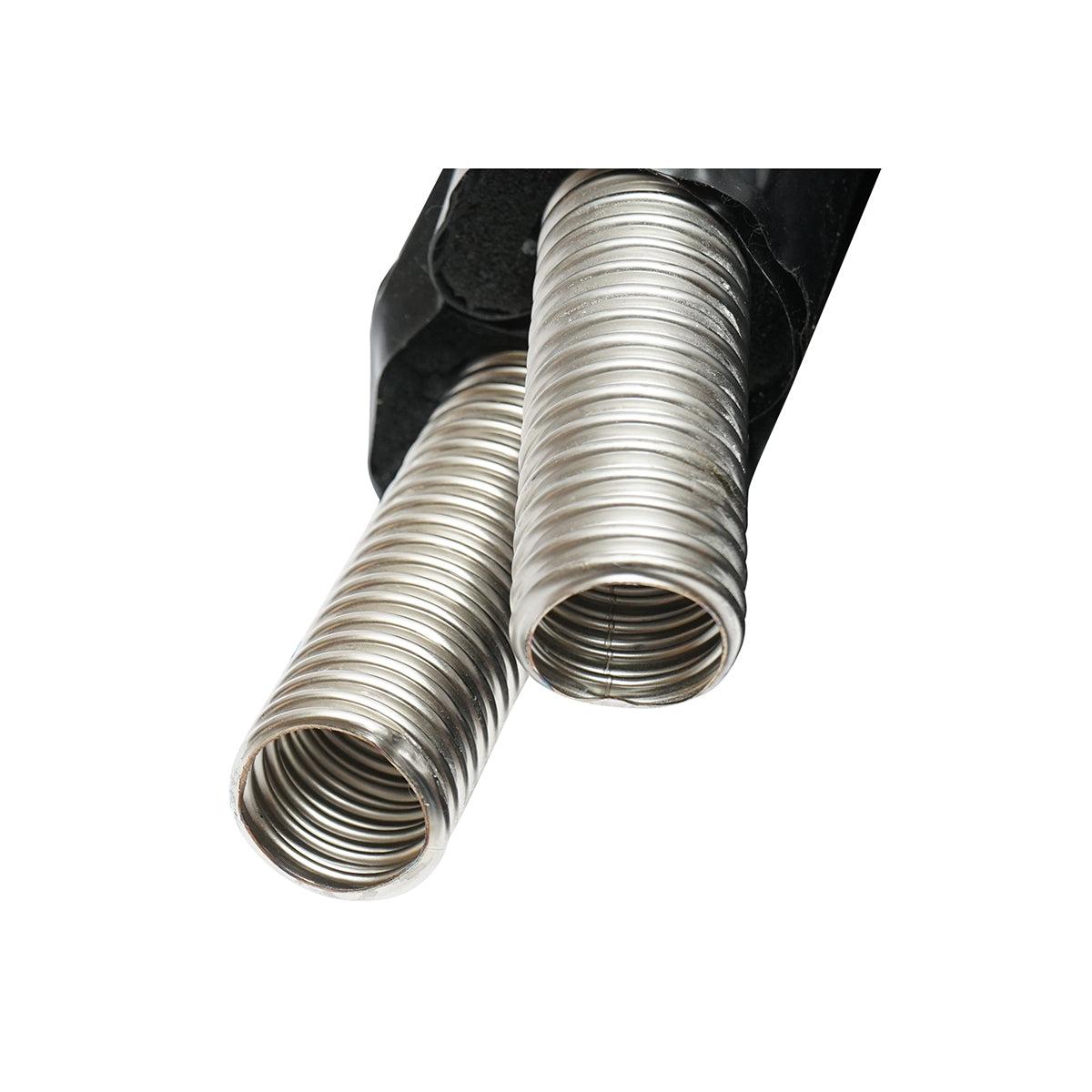

Flexible stainless steel pipe
Stainless steel material	316
Pipe size	DN25
Length	10 m
Maximum work pressure	17.5 bar
Thickness	13/20 mm
Working temperature	-200 ℃ to 175 ℃
Recommended connections 1.1/4	Diskl78
Recommended adapter	Diskl86
INSULATION
Type	EPDM - with closed cells
Graosime Insulation	13 mm
Temperature range	-200 ℃ to +150 ℃ (max 175 degrees)
Inflammability class	B1
Thermal conductivity	0 ℃： 0.034 m.k
	24 ° C ： 0.037 m.k
	32 ° C ： 0.038 m.k
	40 ° C ： 0.039 m.k
Electric cable
Material	copper coated
Section	0.75 mm2
Insulation	silicone
Nominal voltage	300/500 v
Electrical resistance	23.0 ohm/km
