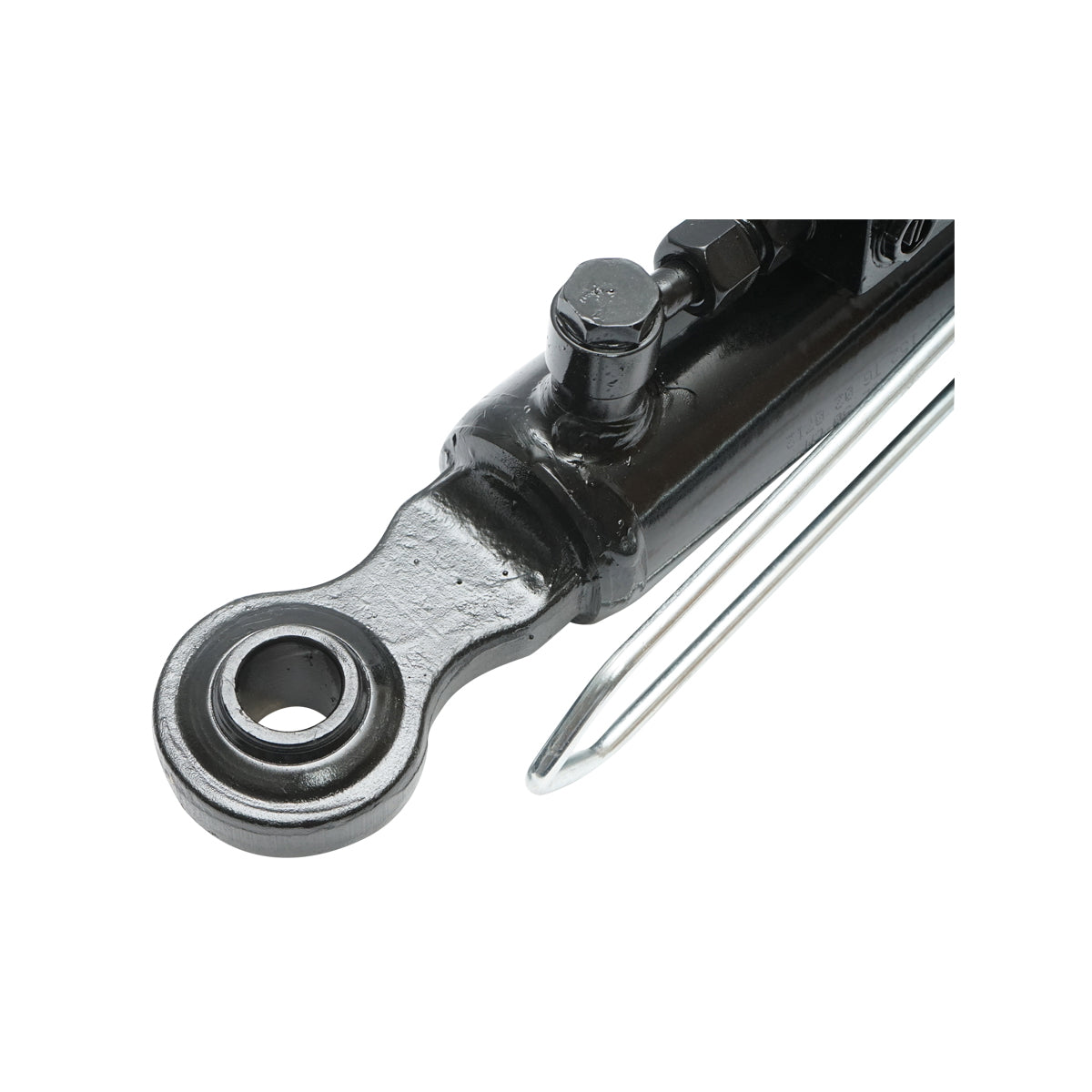

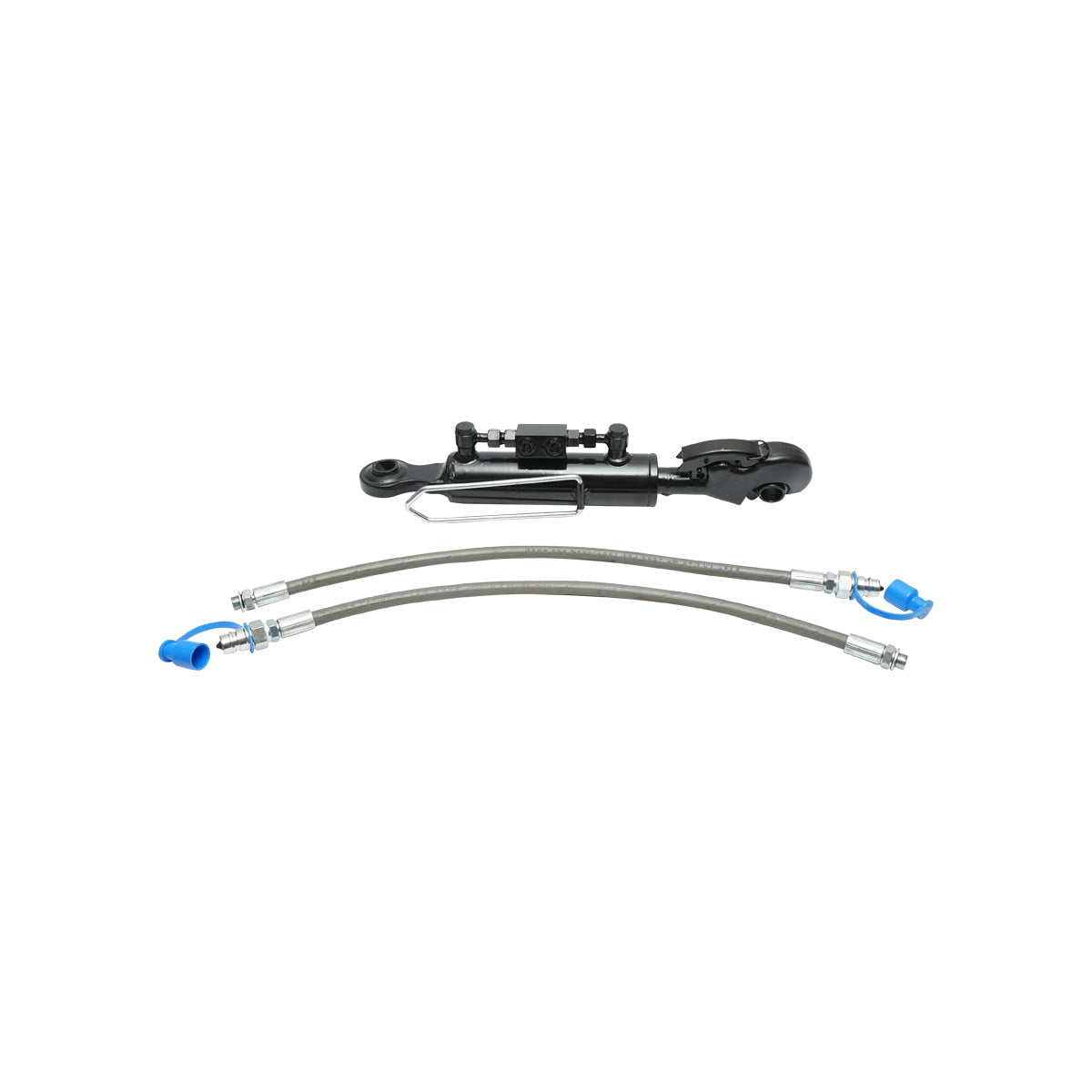

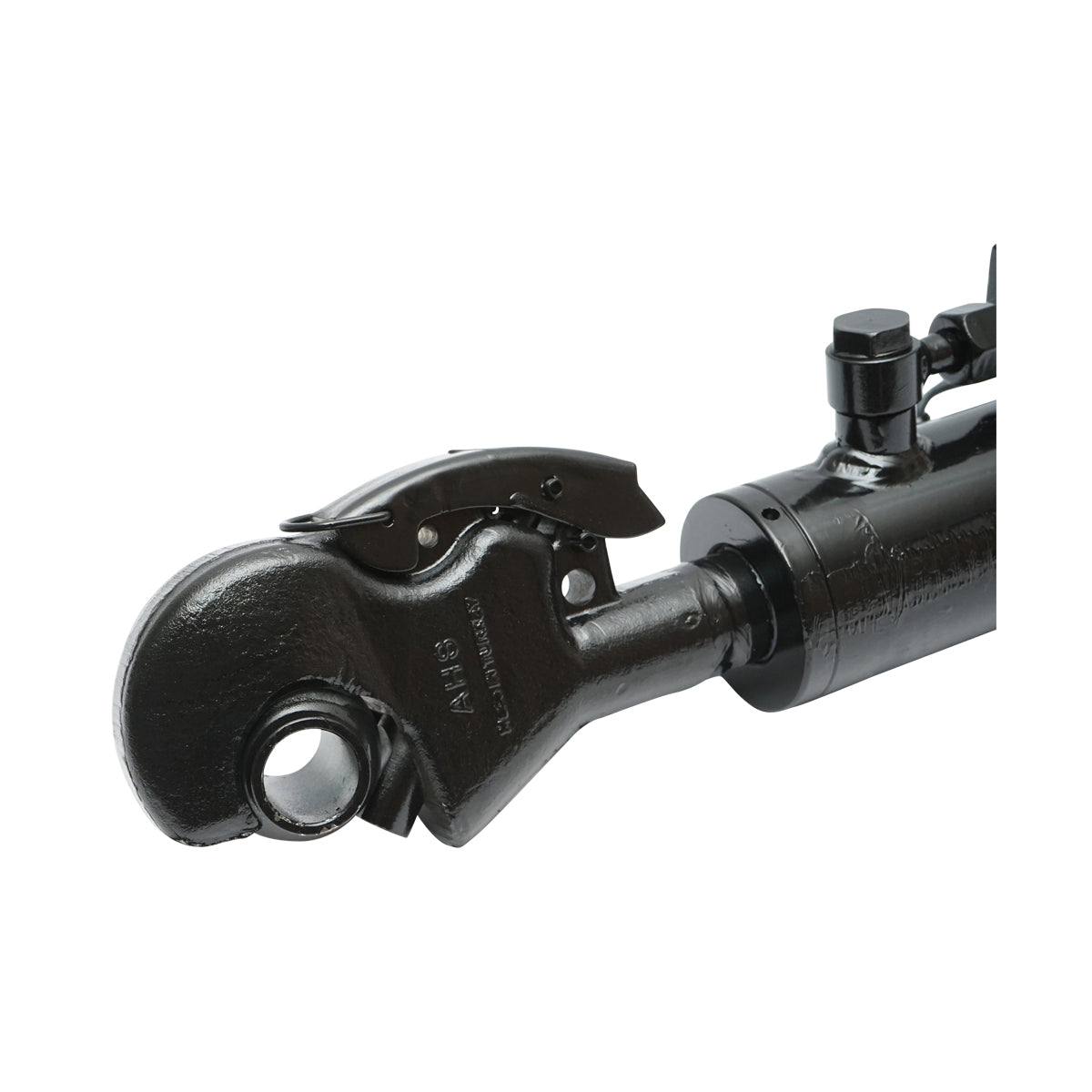

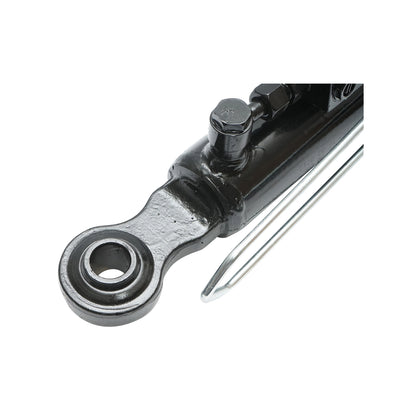

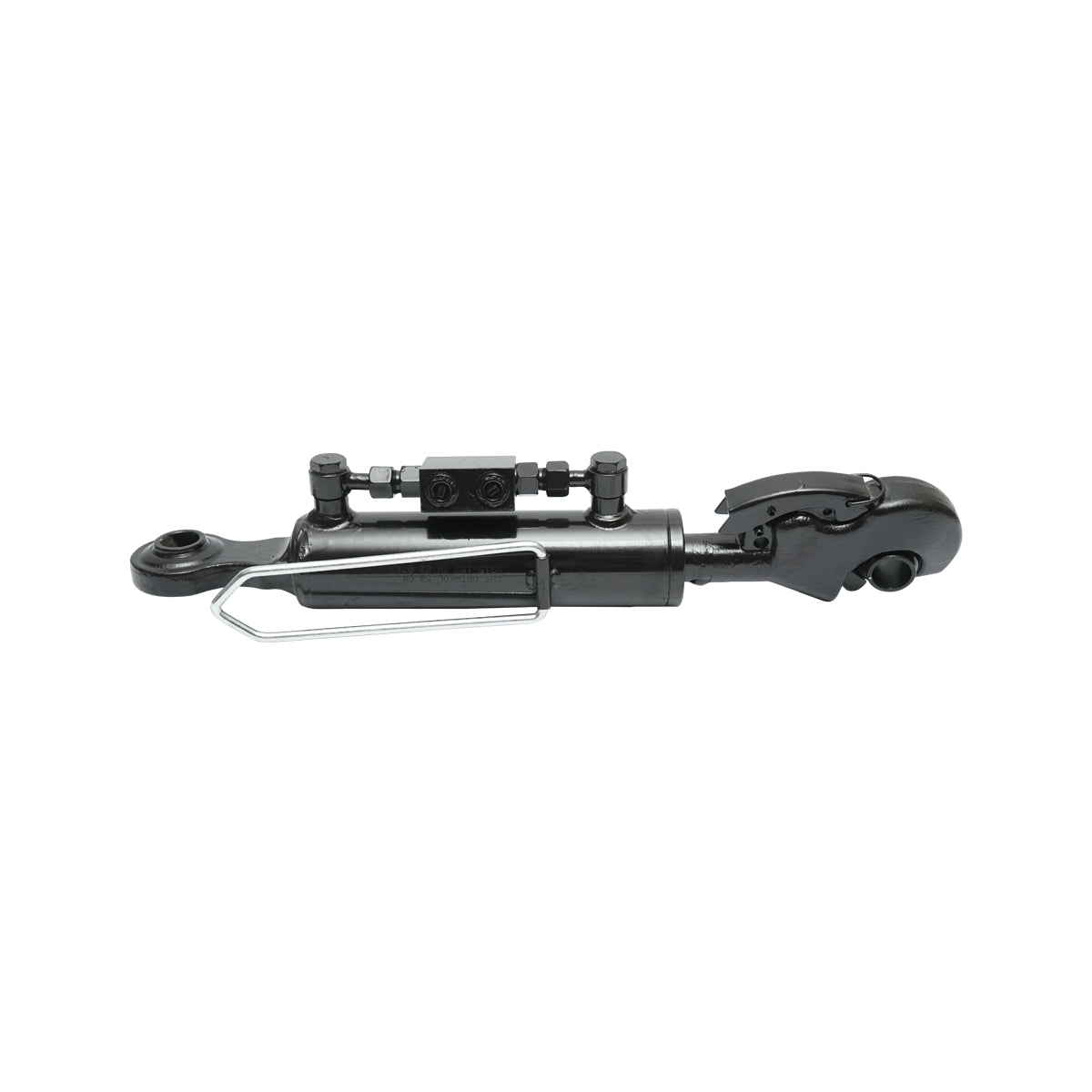

Hydraulic central drawbar with quick coupling, category 2-2, quick coupling, 500mm closed, stroke 175mm

About the Product

Fast coupling hydraulic central, category 2-2, fast coupling, 500mm closed, 175mm race: dimensions:

Closed length	510 mm
Open length	685 mm
opening	175 mm
Category tirant	2 - 2
Big nut	Ø 26 mm
Small walnut	Ø 25.6 mm
The body of the cylinder	Ø 70 mm
Cylinder rod	Ø 35 mm
Hydraulic connection	M16
The valve passage of MOS	cone

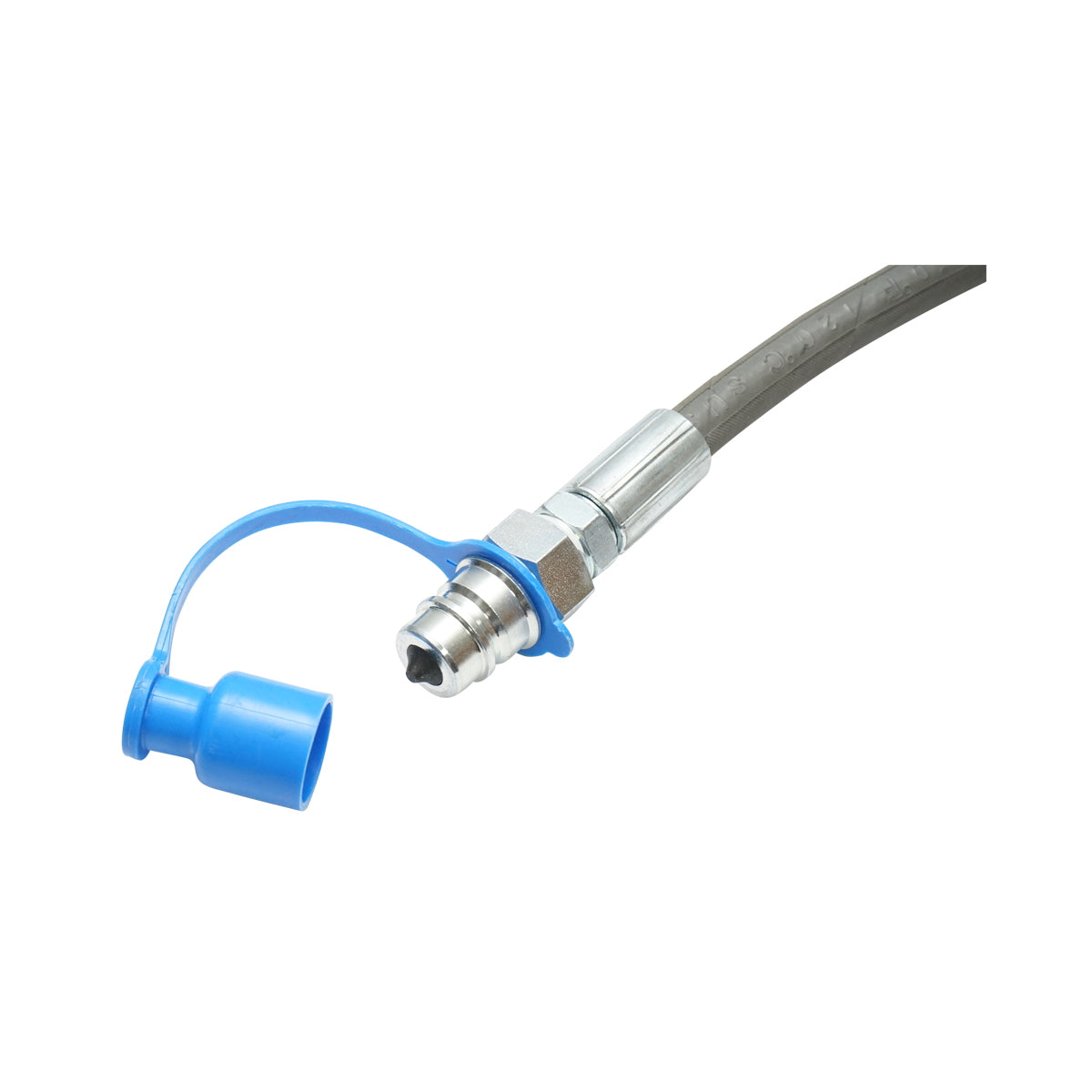

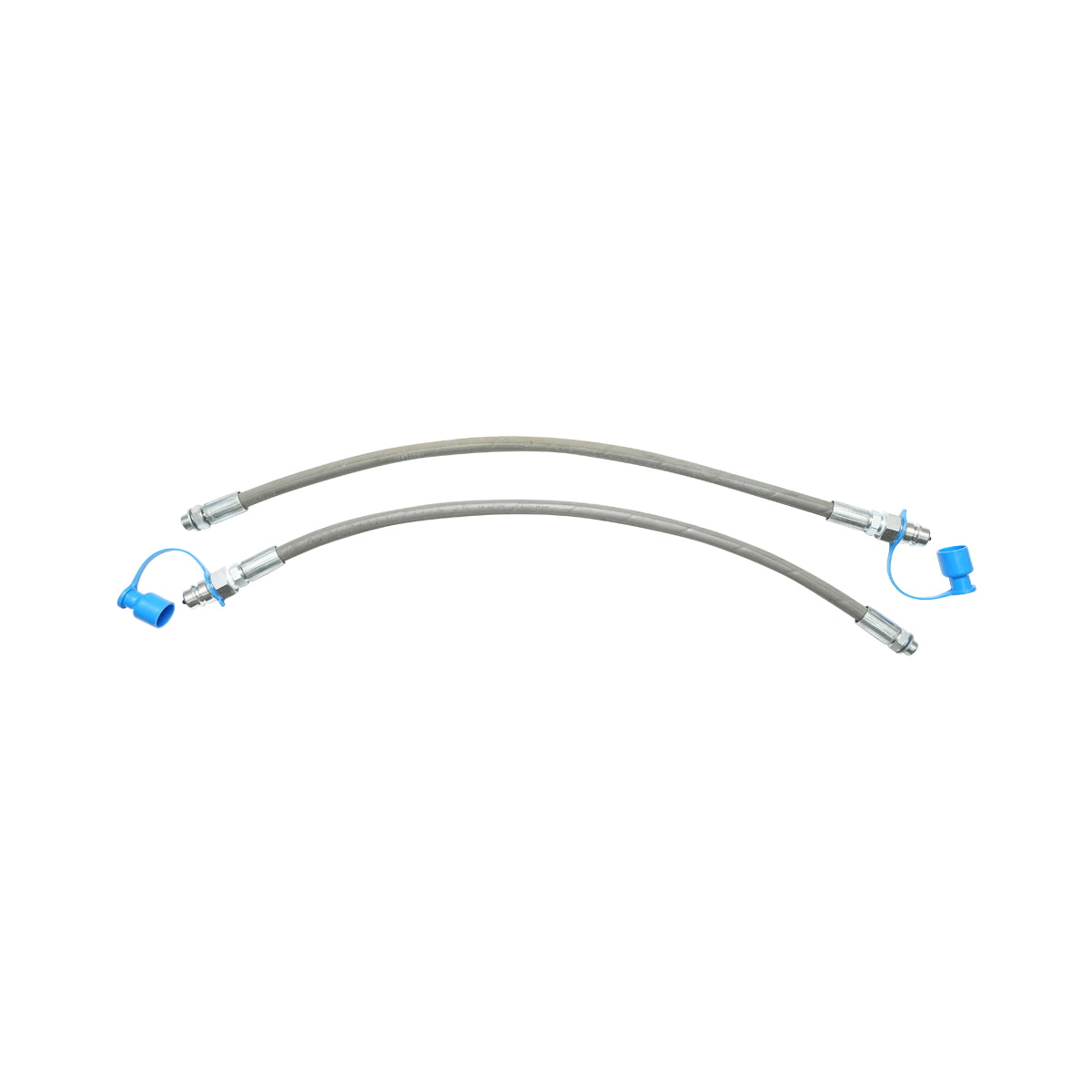

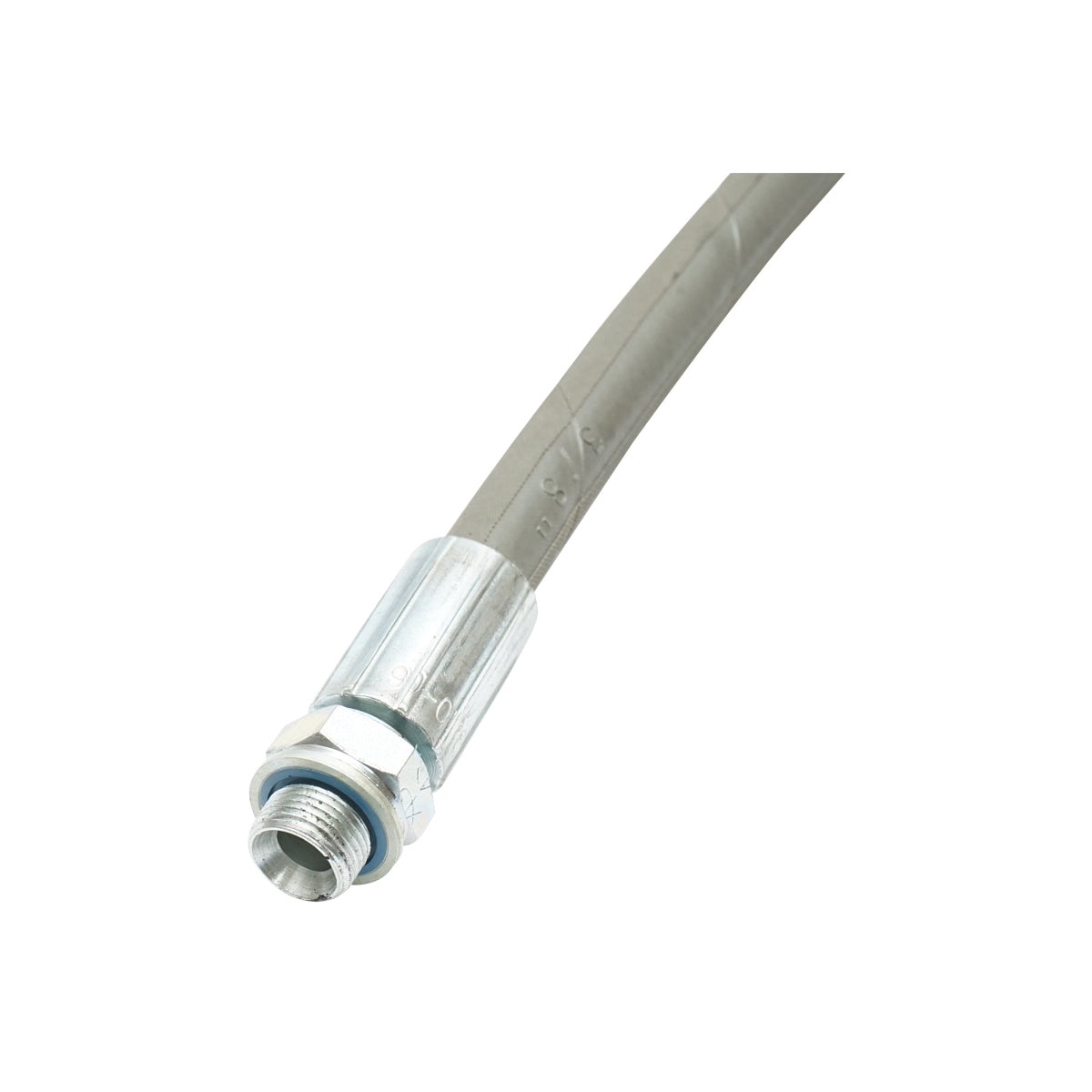

The length of the hose	740 mm
Weight	13.4 kg
